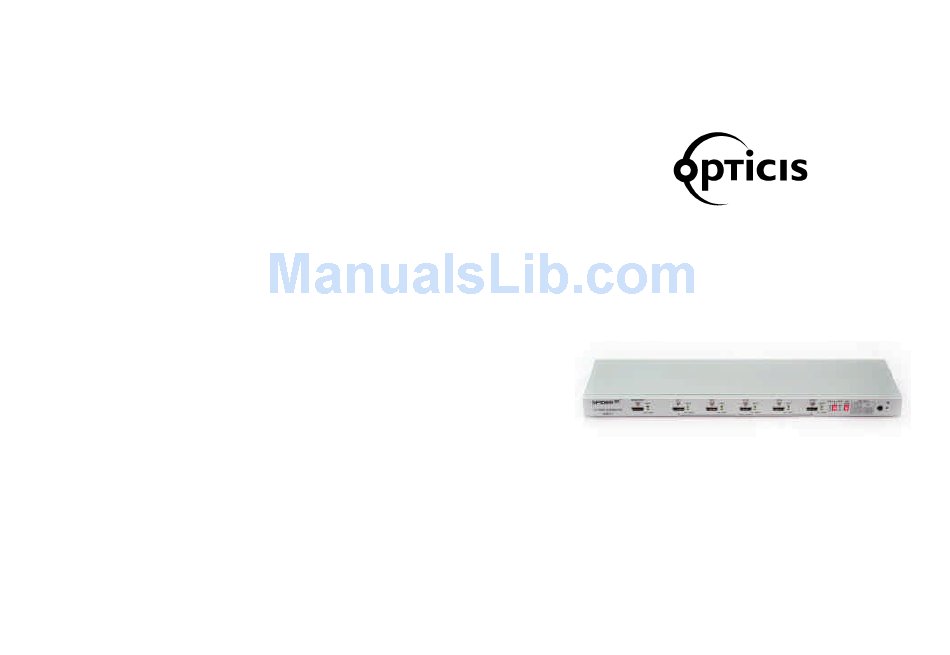

SPIDER
1: 5 HDMI Distribution Amplifier (OHD15)
User's Manual
TM
Advertisement
Related Manuals for opticis SPIDER OHD15
Summary of Contents for opticis SPIDER OHD15
- Page 1 +82 (31) 737-8033 Tel.: (519) 355-0819 Fax: +82 (31) 737-8079 Fax: (519) 355-0520 Revision History For order support, please contact your Distributor or Reseller. CONTENTS For technical support, check with the with the Opticis web site www.opticis.com or contact techsupport@opticis.com...
- Page 2 20ft. Exceeding 20ft. with copper based cables will result in no or poor picture quality. To extend beyond 20ft, please use fiber optical HDMI/DVI extension cables such as Opticis Models, M1-1000, M1-2000, and M1-1P0 cables.
- Page 3 OHD15, HDMI Distribution Amplifiers to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized resellers. If a product does not work as warranted during the applicable warranty...
- Page 4 Description, General Specification Technical Specification Frequency bandwidth: 1.65 Gbps (Single Link) . SPIDER OHD15, HDMI Distribution Amplifier, allows one (1) digital video Supporting Graphic Resolution: S XGA (1280 X 1024 at up to 60Hz) source to be spilt into Five (5) digital displays. The built-in amplification 1080i/p (1920 X 1080 at up to 60Hz) Inputs: HDMI-D Female ports function enables HDMI signal distribution without signal loss.
- Page 5 Mechanical Specification Environmental and Reliability Specifications 1 Operating Conditions [Dimensions] Temperature 0? ~ 50? Humidity : 10% ~ 80%, non-condensing Altitude : maximum 3,000m 2 Transportation Conditions Temperature : -20? ~ 60? Humidity : 5% ~ 95%, non-condensing Altitude : maximum 15,000m 3 Storage Conditions Temperature : -20? ~ 60?
- Page 6 Main Features Video Connection Complete HDMI/HDCP compliance for all individual 5 channels 1. Connect your video source’s HDMI output port to the OHD15’s HDMI input port using standard HDMI cables ( n ot included). Make sure all SPIDER OHD15 HDMI Distribution Amplifiers NEVER allows transmitting your HDMI source and the displays are turned off before connecting HDCP certified sources to not-HDCP-certified displays.
