Summary of Contents for SpeakerCraft AIM WIDE FIVE

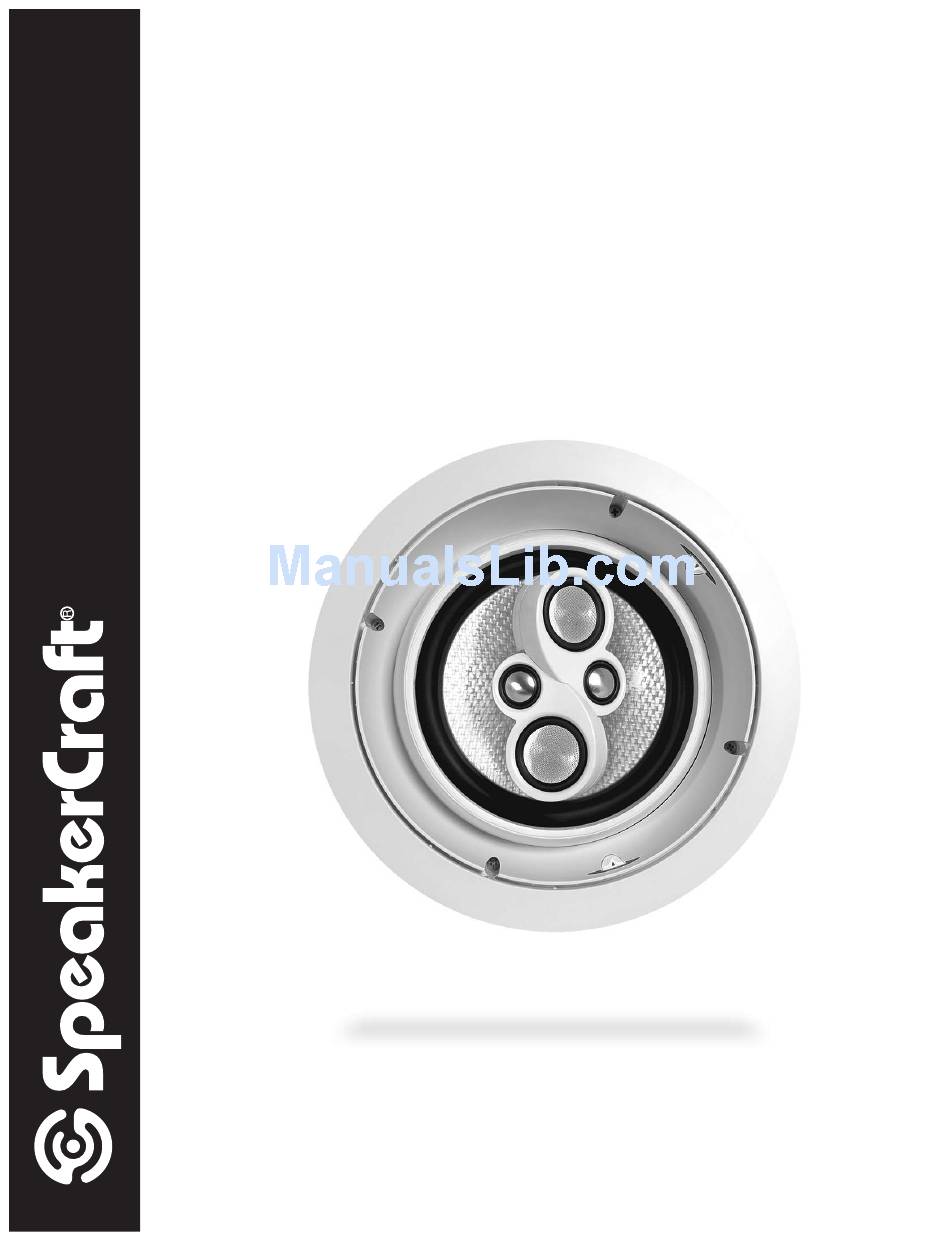

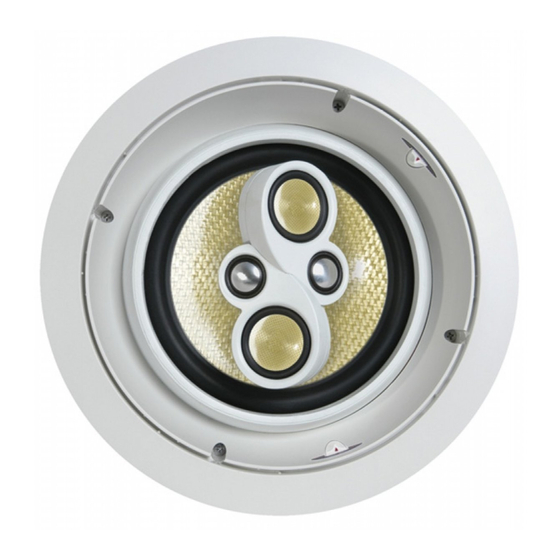

- Page 1 OWNER’S MANUAL AIM WIDE In-Ceiling Home Cinema Speakers AIM WIDE FIVE | AIM WIDE THREE | AIM WIDE ONE...
-
Page 2: Speaker Placement
For home theater applications, they can be used for side or rear channels when a diffused sound is desired. SpeakerCraft recommends the use of a qualified custom installation specialist when installing your Aim Wide speakers. If you need assistance in locating an installer, please contact SpeakerCraft at 1-800-448-0976. -
Page 3: Installation Considerations
Prior to the actual installation of the speakers, it will be necessary to run cables to the speaker location. See your Authorized SpeakerCraft dealer for more information on cable installation. After the cable has been installed, you are ready to mount the speakers. -
Page 4: Speaker Installation
SIDE VIEW OF CEILING First Cut Second Cut Figure 2 SPEAKER INSTALLATION The unique integral four foot mounting system incorporated into each speaker allows for quick installation following these easy steps: 1. If the grille is on the speaker, remove it. It may be necessary to push one or two of the mounting screws and its attached foot towards the baffle and against the inside surface of the grille to force the grille out of its retaining groove. -
Page 5: Speaker Adjustment
Before painting the grilles, remove the material under grille. Place this material back in place once the grille has been painted. SpeakerCraft recommends only light spray painting using 5 parts thinning agent to 1 part paint. Do not paint the grilles while they are attached to the speaker. - Page 6 TREBLE Adjustment (AIM WIDE FIVE and THREE) The TREBLE switch allows for 3dB of tweeter adjustment. Your speakers were shipped with the TREBLE switch in the 0dB (neu- tral) position. If you want more treble, slide the switch to the +3dB position. If you want less treble, slide the switch to the -3dB position.
-
Page 7: Specifications
SPECIFICATIONS AIM WIDE THREE AIM WIDE ONE AIM WIDE FIVE Fully Pivoting In-Ceiling Fully Pivoting In-Ceiling Speaker Type: Fully Pivoting In-Ceiling ⁄ "Aluminum Dome ⁄ " Silk Dome Tweeters High Frequency Driver: ⁄ " Aluminum Dome Tweeters Tweeters (2) 2" Aluminum Cone (2) 2"... -
Page 8: Limited Lifetime Warranty
It is preferable to ship this product in the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser. If, upon examination at the Factory or SpeakerCraft Authorized Dealer, it is deter- mined that the unit was defective in materials or workmanship at any time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below.
