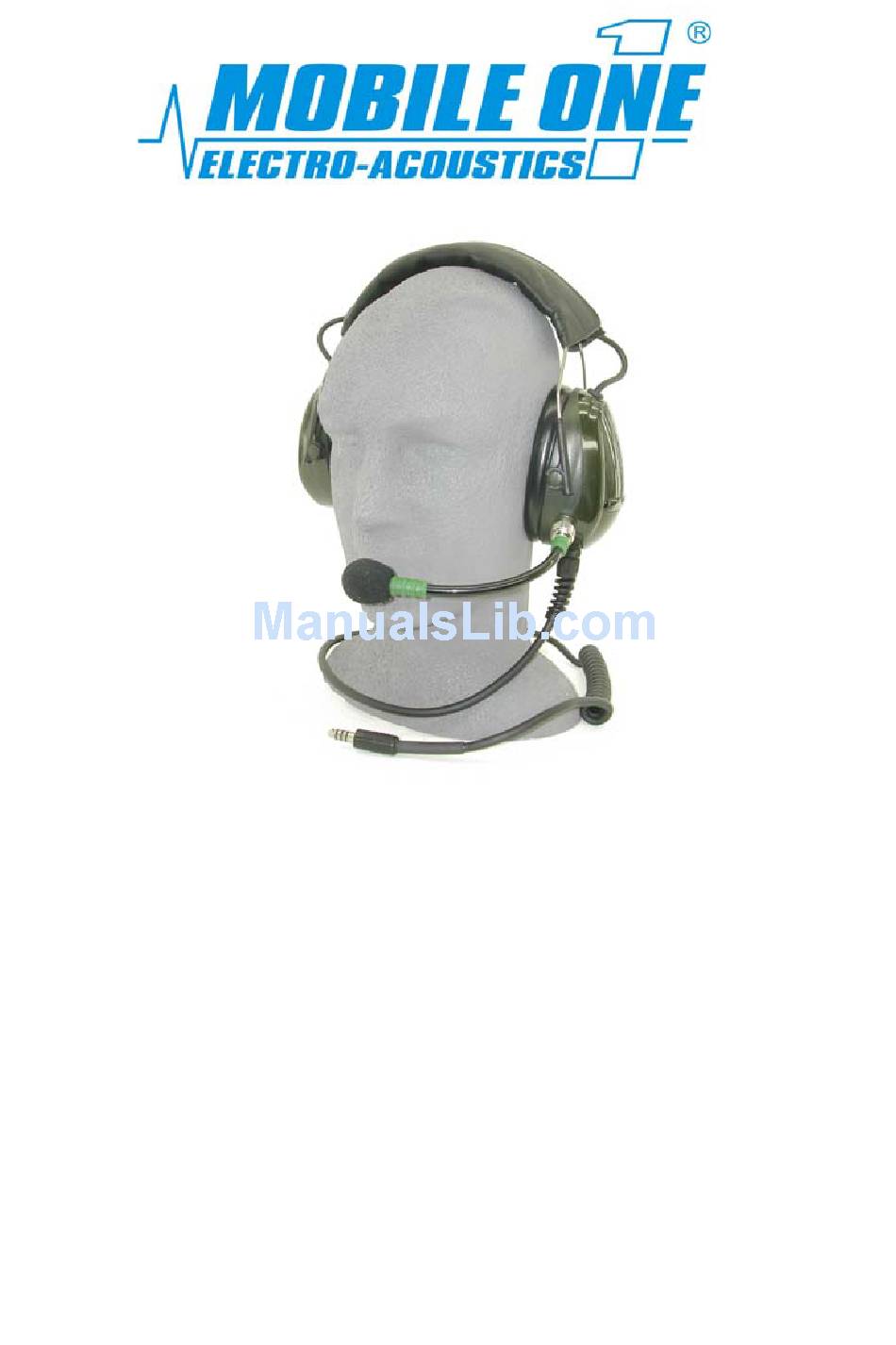

HEADSET INSTRUCTIONS
AND
USER GUIDE
HSP-1 & 2 SERIES
Thank you for choosing a quality communications Headset
from Mobile One Australia. This Headset has been designed
and developed to maximise comfort, provide superior
electronic communications and to ensure excellent
hearing protection in high noise environments.
Advertisement
Table of Contents
Summary of Contents for Mobile One HSP-1 Series
- Page 1 USER GUIDE HSP-1 & 2 SERIES Thank you for choosing a quality communications Headset from Mobile One Australia. This Headset has been designed and developed to maximise comfort, provide superior electronic communications and to ensure excellent hearing protection in high noise environments.
-
Page 2: Certification Data
32.1 35.1 36.2 379g According to the Class rating system: The HSP-1 Headset is a Class 5 The HSP-2 Headset is a Class 5 WARNINGS This headset will only provide the hearing protection as indicated by the SLC80 rating when it is maintained in good working order and fitted correctly. Other factors affecting the noise attenuation characteristics of the headset are items which affect the seal between the Ear Cushion and the head e.g. -
Page 3: Fitting Instructions
FITTING INSTRUCTIONS The purpose of a Headset is to: 1. Protect your hearing 2. Provide electronic communications Correct fitment of the Headset to your head is vital for maximum hearing protection and to optimise communications ability. A CORRECTLY FITTED HEADSET Figure A Figure B PARTS OF A HEADSET... - Page 4 The Headset Ear Cups must be fitted over your ears covering and enclosing them completely The Headset should be fitted so that the horizontal axis of the Ear Cup bisects the approximate tip of the nose of the wearer. This usually means the Headband of the headset will be located directly above the ears, however the headband may be adjusted slightly forward or rearwards for maximum comfort.
- Page 5 STEP 2 Fitting the Headset Holding the Ear Cups as shown, slightly stretch Headset apart just enough place over your head (see Figure 2.0). Release and make sure the Ear Cups sit evenly over your ears and cover them completely. Move the Headset so the Headband is sitting correctly and comfortably on your head (see again Figure D).
- Page 6 STEP 5 Adjusting the Microphone for maximum clarity (5a) ADJUSTING DISTANCE Microphone must be positioned as close to the lips as is comfortable. This provides better voice clarity. See Figure 5.1. Maximum Distance From lips = 5 mm Figure 5.1 (5b) ADJUSTING POSITION Adjust windsock (Microphone) to be directly in the centre of the mouth...
-
Page 7: Care And Maintenance
CARE & MAINTENANCE We recommend that your headset be cleaned regularly, by wiping with a damp sponge containing mild soap and water. Pay special attention to the Ear Cushions to ensure removal of perspiration and skin oils which can reduce the service life of the Cushions. -
Page 8: Replacement Parts List
wires enter. Carefully remove the Earphone. Place the Earphone into the new foam, remove paper cover and press both layers together. Install foam back in cup and replace Ear Cushion. The WIND SOCK (item 3) is the black foam cover for the Microphone at the end of the Microphone boom. -
Page 9: Noise Exposure
NOISE EXPOSURE There is considerable medical research data now available which clearly demonstrates a link between the loss of hearing in humans as a result of exposure to noise. The factors which contribute to this loss of hearing are many and complex, and as the Headset user you should discuss your requirements with suitably qualified professionals to ensure that the headset you have selected is suitable for the type (frequencies) of noise &... -
Page 10: Warranty
WARRANTY... -
Page 11: Contact Details
CONTACT DETAILS Mobile One Australia Pty Limited Electro-Acoustic Service Centre Camden Airport, Camden NSW. P.O Box 123 Camden NSW 2570 AUSTRALIA INTERNATIONAL Phone 02 4655 6677 Phone 61 2 4655 6677 Fax 02 4655 6600 Fax 61 2 4655 6600... - Page 12 Mobile One is proudly an Australian owned company. Our Electronic Hearing Protection and Communication products are designed, developed and manufactured in Australia: Mobile One Australia Pty Limited Electro-Acoustic Engineering Division Camden Airport, Camden NSW. INTERNATIONAL AUSTRALIA Phone +61 2 4655 6677...
