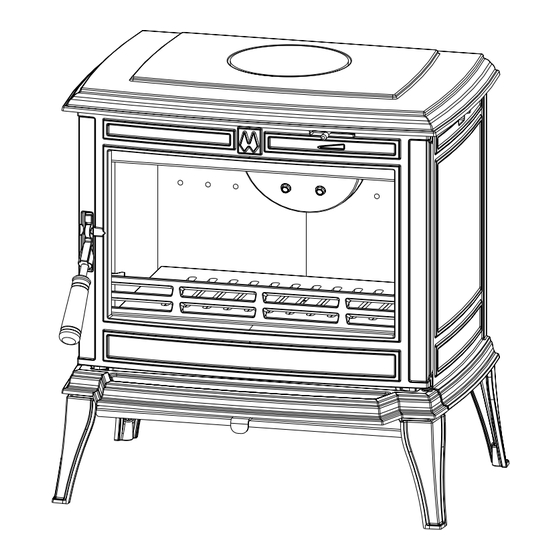

- Page 1 Monaco Document n°1303-2 25/10/2012 Multi fuel stove BS EN 13240 Model : 134 06 05 Technical manual Nominal output : 5,9 kW (wood) to be saved 8,8 kW (solid mineral fuels) by the user for future reference Description of the appliance Parc d’activités de la Verte Rue...
-
Page 2: Table Of Contents
Monaco - 134 06 05 FRANCO BELGE congratulates you on your choice. FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Technical
Net weight ..........kg Heated Volume ........m3 1.4 Operating principle PERFORMANCE WITH WOOD The “ MONACO ” is designed for operation with the door Efficiency (net) ........% 75,7 closed. Heat is mainly diffused by radiation, through the Co (13% O2) .........% 0,28 window and body of the appliance. -
Page 4: Installation Instructions
Monaco - 134 06 05 2. Installation instructions 2.1 Warning to the user with a natural draught, check that sufficient air for combustion is available in the room. In houses All the local and national regulations, and equipped with one VMC (controlled mechanical... -
Page 5: Flue
Monaco 134 06 05 1 - Flue baffle 5 - Clamp 2 - Back panel 6 - Gasket 3 - Gasket 7 - Flue collar 4 - Blanking plate Figure 4 - Smoke exit on the top Figure 5 - Smoke exit at rear... -
Page 6: Chimney Connector
Monaco - 134 06 05 2.3 Mounting the flue collar • The flue must be in good condition and must provide sufficient draught (refer to technical details p. 3). • The flue must be suitable for the installation of fuel... -
Page 7: Door Closing Pressure
Monaco 134 06 05 2.8. Door closing pressure must comply with Current Building Regulations. If in doubt, consult your Dealer or local Building Inspector. Figure 7 • The appliance must not support the weight of the The closing latch rotates around a pressure screw flue. -
Page 8: Instructions For User
Monaco - 134 06 05 3. Instructions for user At the first lighting, the fire must be progressively The manufacturer will not be responsible for increased to allow the various parts to expand normally any damage caused to the appliance due to the and to dry up. -
Page 9: Fuel
Before refuelling, set the secondary air (B) to the • Recommended fuel : required setting, open at maximum the primary air The best fuels for use with the Franco Belge “Monaco” (C), load the Wood and wait for 3 or 4 minutes. are : After This period, when the fuel logs are well blackened Seasoned wood. -
Page 10: Maintenance Of The Chimney
Monaco - 134 06 05 3.5. De-ashing 3.6 Maintenance of the stove - Ashes must be removed regularly. • The appliance must be cleaned regularly , together with the connecting pipe and the flue pipe. - Ashes must never be allowed to pile up to the grate. -
Page 11: Trouble Shooting
Monaco 134 06 05 3.8. Trouble Shooting : This sign means that you should ask for a qualified engineer to do the work. Problem Probable causes - ACTION Fire difficult to start Wood green...or damp Use hard wood logs, which have been cut for at... -
Page 12: Spare Parts
Example : Wood stove "Monaco”, ref. 134 06 05 color P, top plate 352175 RH Y = 1340605 Y ; P = 1340605 P ; L = 1340605 L ; E = 1340605 E ; J = 1340605 J N°... - Page 13 Monaco 134 06 05 Figure 9 - Stove - exploded view Technical manual "1303"...
- Page 14 Monaco - 134 06 05 Y = 1340605 Y ; P = 1340605 P ; L = 1340605 L ; E = 1340605 E ; J = 1340605 J N° Code ........Description ......Type ... Y ..P ..L ..E ..J ....Qty 327909 79 ......
- Page 15 Monaco - 134 06 05 Notes Technical manual "1303"...
- Page 16 Name and address of the installer : ............................................................Telephone : ................................Name and address of the customer : ............................................................Date of installation : .............................. 134 06 05 Model of the appliance : Y P L E ...
