Page 1: User Manual

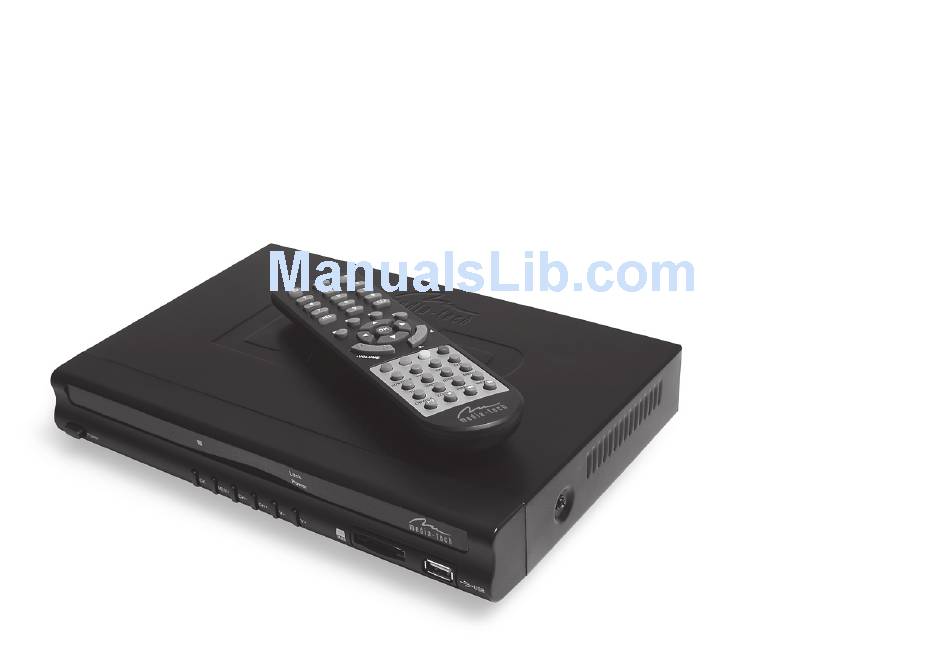

CINEMA HQ 2.0 HD MULTIMEDIA PLAYER & DVB-T TUNER IN ONE MT4160 User Manual... -
Page 2: Table Of Contents
Index Index ....................2 Playing Music ................24 Introduction ..................3 Photo Slideshow ................24 Front panel..................3 Record Manager.................25 Rear panel ..................3 Audio mode .................25 Remote control ................4 INFO button .................25 Hardware confi guration ............5 Troubleshooting ................27 Connecting tuner to a TV ............5 Technical Specifi cation ............28 Software Confi... -
Page 3: Introduction
Introduction Front panel Open menu Display On/Off Enter button Channel Volume SD memory USB Port down/up down/up card slot Rear panel Coaxial Digital Audio TV aerial RF Loop HDMI TV Scart AC Mains for an external TV aerial through for an external device output for connection to the TV... -
Page 4: Remote Control
1. STANDBY On/Off Remote control 2. Number Key pad 3. RECORD 4. EPG (Electronic Programme Guide) 5. MENU 6. Navigation keys (left, right, up, down) 7. VOL- (Volume Down) / VOL+ (Volume Up) 8. RED/GREEN/YELLOW/BLUE – interactive buttons / sub- menu / Teletext Navigation 9. -
Page 5: Hardware Confi Guration
Hardware confi guration Connecting tuner to a TV Connect tuner to your TV with SCART, HDMI. Note: Use only one type of connection! ANTENNA ANT IN LOOP UOT SPDIF HDMI SCART-TV HDMI CABLE SCART CABLE AC MAINS... -
Page 6: Software Confi Guration
Wait until scanning is fi nished. Device now will auto- Software Confi guration matically show fi rst channel from the list. Now tuner is Startup Menu ready to work. If you fi rst time turn on tuner there will be shown “Init Install”... - Page 7 Manual Channel Scanning 1. Choose „Manual Search” menu and press OK 2. Enter default password “0000” and press OK. 3. Select “Channel No. ” to choose desired channel number, next select “Frequency” – use key pad but- tons to enter desired value. Next select “Bandwidth” and then select “Start Search”...
-
Page 8: Watching Tv
Channel fi lter 3. Choose channel from channel list on the menu. When in Full-screen mode press OK button, channel Choose „Channel Filter” to scan for all channels or only list will pop up. Use LEFT/RIGHT navigation keys to for FTA channels. switch channel list and then use UP/DOWN naviga- tion keys to select channel and then press OK again to confi... -
Page 9: Channel Manager
5. Press INFO button to extend program description. Channel Manager Press again to close info window. 1. Press MENU button on remote to enter main menu. 2. Use UP/DOWN keys to highlight „Channel Manager” option, next press RIGHT button to continue Note! EPG information is available only for channels that are broadcasted with EPG feature. -
Page 10: Preference
4. You can lock selected channel pressing RED button. 3. Use RED, GREEN, YELLOW and BLUE button to assign Enter password (default password is “0000”) and. selected channels into four diff erent favorite chan- 5. You can delete selected channel, press GREEN but- nels list. - Page 11 guage menu. Use UP/DOWN button to select language Time On OSD and then press OK to confi rm. Switch “On” option if you want to activate constant dis- play of actual time in the right corner. To disable this function select “Off ”. OSD Timeout Preferred Subtitle Select duration of displaying OSD messages (2-6 sec-...
- Page 12 Preferred Subtitle Preferred Audio Select second preff ered subtitle (function dependent Select fi rst preff ered audio track (function dependent on broadcasted program). on broadcasted program). Hard Hearing Preferred Audio To enable this function for hard hearing watchers se- Select second preff ered audio track (function depend- lect „On”.
- Page 13 Multimedia Music Slide Show Multimedia settings are available only when USB mass You can choose between following options: play all storage device is connected (pendrive or USB HDD). music fi les in selected directory repeatidly, reapeat once, or do not repeat – repeat OFF. Photo Slide Show You can choose between following options: show all images in selected directory repeatidly (Repeat-Dir) or...
- Page 14 BGmusic Eff ect You can turn ON or OFF music play durning images You can set transformation eff ect between slides in slideshow. slideshow mode. SlideTime PVR Confi g You can choose duration between slides in slideshow In preference menu select PVR Confi g and press OK. mode (3-15sec).
-
Page 15: Pvr File Format
PVR File Format Preferred Storage Select preferred storage device recording fi les and TS: recording with subtitles, teletext and EPG (video for- timeshift temporary fi les. mat supported only by MT4160) PS: recording in MPEG2 fi le format (function available for programs broadcasted in MPEG2) Timeshift You can activate timeshift function to pause on-line... -
Page 16: Setting
Timeshift Length You can select length of timeshift (30 min -2 hours) or leave option „auto” – timeshift will record program until free space on prefered storage device ends. Setting Timeshift to Record You can select option „On” – when you press REC button program will be recorded from timeshift activation mo- ment. - Page 17 tion key to enter value and press OK to confi rm. Mode: select between “Weekly”, “Daily” or “Once”. Type: select type of action on timer event start. Se- lect between “Standby” – tuner will turn off , „On” – tuner will turn on, „Recorder” – tuner will turn on and start to record desired channel, „Channel”...
- Page 18 Child Lock 1. Select “Child Lock” in setting menu, enter default password “0000” when prompted. Factory Reset If you want to recover tuner to manufacture setting se- lect “Factory Reset” and enter password when prompted. 2. Select “Parental rating” and enter age of child. Pro- grams broadcasted with child lock will be blocked.
-
Page 19: Av Menu
Note! Unsuccessful fi rmware upgrade can damage your AV menu tuner. Here you can adjust all parameters regarding video and Version audio output. Adjust Contrast, Brightness, Saturation, Select “Version” in setting menu to show information HUE. If you connected Hi-Fi amplifi er to SPDIF you can about fi... -
Page 20: Game
Using USB storage 1. Plug USB mass storage device (pendrive or USB HDD) to USB port of MT4160. When device is successfully installed message will pop-up. 2. Press DEVICE button to open active device list. Here you can set partition for re- cording (press RED button on selected item), format GAME partition in FAT32 (press GREEN button), format par-... -
Page 21: Recording
Recording Note! Before recording programs or using timeshift func- tion it is necessary to set partition for that purpose. Note! It is recommended to use partition with speed level marked as green. Removing USB storage To safely remove USB mass storage/ fl ashcard it is rec- ommended to turn off... -
Page 22: Using Timeshift Function
1. Press REC button on remote to start recording. Using timeshift function 2. Red dot in the upper left corner will fl ash few times, When watching TV press PLAY/PAUSE button to acti- program is recorded on preferred USB storage. vate timeshift function. -
Page 23: Playing Movies
Playing Movies Go to Media Explorer and select MOVIE tab. Use naviga- tion button to select desired movie fi le and press OK. Movie will be played in full screen mode. To play music, preview images or play movies and recorded programs select appropriate tab fi... -
Page 24: Playing Music
Note! For Divx/XviD fi les subtitle fi le must have identical Photo Slideshow prefi x name to be recognized. Go to Media Explorer and select PHOTO tab. Use navi- Note! Rewind/Fast Forward/GOTO function may not work gation button to select desired photo fi le and press OK. for particular movie fi... -
Page 25: Record Manager
UP/DOWN button or vertically – press LEFT/RIGHT but- Audio mode ton. You can press DIGEST button to switch between Press AUDIO button to select desired audio mode. repeat directory /repeat off mode. Note! To play background music go to MUSIC tab and play music fi... -
Page 27: Troubleshooting
Troubleshooting Trouble Cause Solution STANDBY indicator did not Power cord is not plugged in Check the power cord light Burnout fuse Contact with service Out of signal Antenna is not connected to receiver Check aerial cord Incorrect direction of antenna or Change aerial direction antenna damaged No sound or video... -
Page 28: Technical Specifi Cation
Technical Specifi cation Tuner RF Input (IEC-TYPE, IEC 169-2, female) RF Output RF (IEC-TYPE, IEC 169-2, male) Frequency range: 174~230MHz (VHF) 470~862MHz (UHF) Signal Level: -15~ -70dbm Decoder: Video Decoder MPEG-1/MPEG-2 MP@ML/MPEG-4 AVC/H.264 HP@L4.1 Audio Decoder MPEG-1 Layer 1.2/PCM/HE-AAC v.1.0/DD (AC3)/DD+ (E-AC3)/DTS Transfer Speed Max 15 Mbit/s Aspect Ratio...
