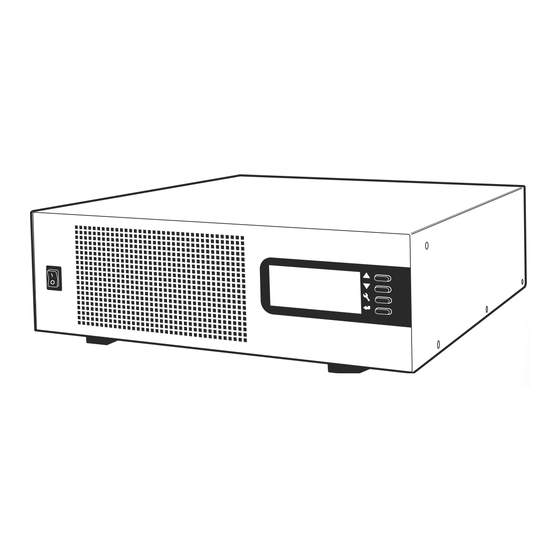

PowerBack PB5000
5KVA 220-230Vac 48Vdc
INVERTER / CHARGER

USER MANUAL

t h e p o w e r t o p r o t e c t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerBack PB5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sollatek PowerBack PB5000

  • Page 1: User Manual

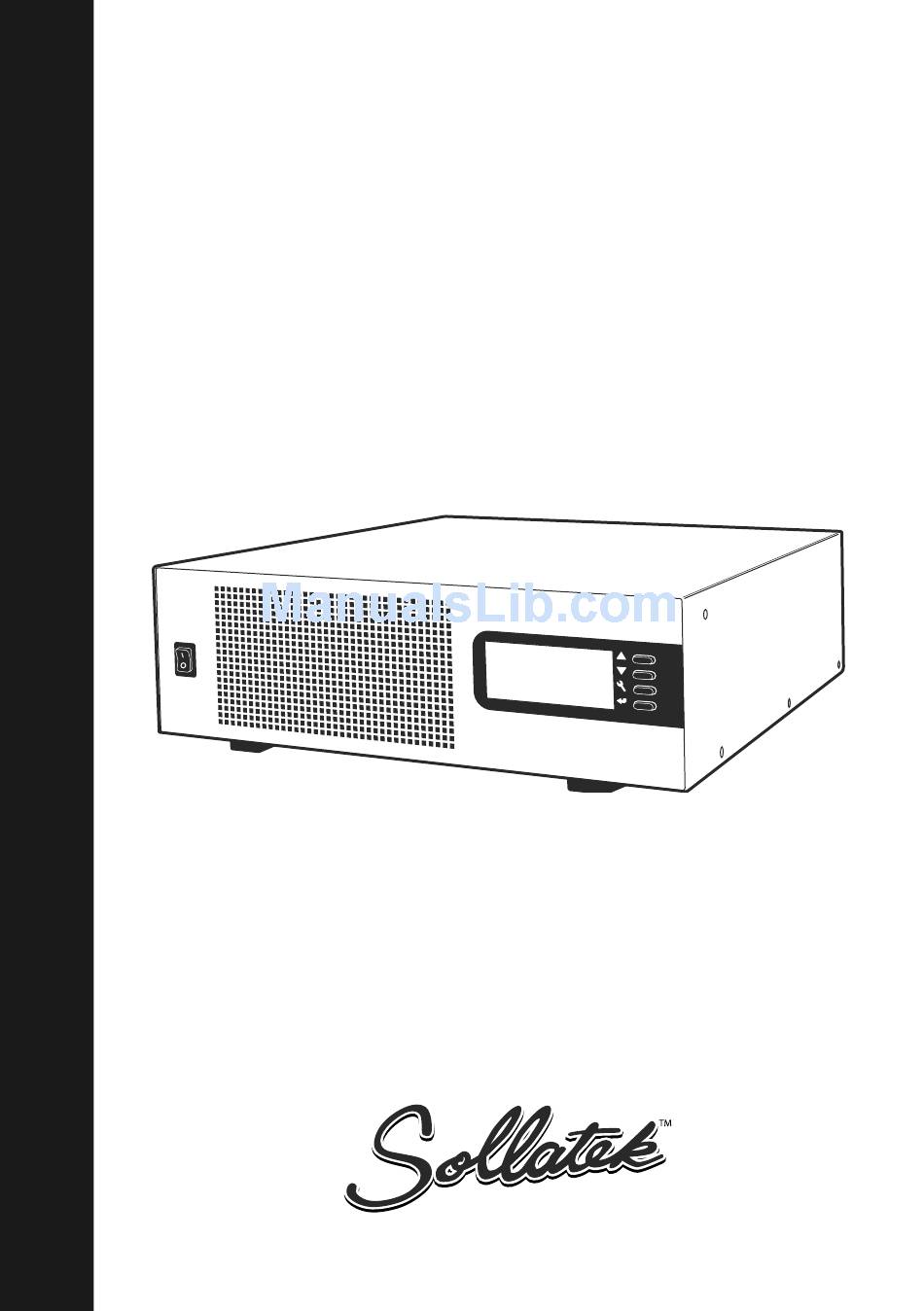

    PowerBack PB5000 5KVA 220-230Vac 48Vdc INVERTER / CHARGER USER MANUAL t h e p o w e r t o p r o t e c t...
  • Page 2: Table Of Contents

    Contents PURPose 3 IMPoRtAnt sAFetY InstRUCtIons General Precautions Personal Precautions DesCRIPtIon oF oPeRAtIon operational Data Priority loads InstALLAtIon Unpacking and Inspection Basic configuration Positioning of PowerBack and battery system Batteries Battery cable Size Dc Disconnect and over-current Protection Battery cable connection ac cable Size ac connections ac Isolation and overcurrent Protection ac loads...
  • Page 3: Purpose

    Protect the unit from splashing if used in vehicle applications. 4. Do not disassemble the unit. take it to a qualified Sollatek service center when service or repair is required. Incorrect re-assembly may result in a risk of electric shock or fire.
  • Page 4: Personal Precautions

    12. GroUNDING INStrUctIoNS -this battery charger should be connected to a grounded permanent wiring system. For most installations, the Ground lug should be bonded to the grounding system at one (and only one point) in the system. all installations should comply with the relevant electrical installation international safety guidelines and local necessary codes and requirements.
  • Page 5: Operational Data

    Warning! Installation must only be carried out by a competent person who has sufficient electrical training and is familiar with safe practices when working on or near electrical systems. Unpacking and Inspection carefully unpack the Sollatek PowerBack inverter/charger from its shipping carton. Verify all listed items list below are present. Please contact your Sollatek distributor if any items are missing. • the unit • 1 Dc red cable •...
  • Page 6 U T I L I T Y S U P P L I E R TO P R I M A RY SYS T E M G RO U N D AC I/P AC D I S T R I B U T I O N B A T T E R Y B A N K PA N EL AC O/P...
  • Page 7 M A I N S S O L A R H Y D R O W I N D O R G E N E R A T O R S T A N D B Y ) C O N T R O L L E R B A T T E R Y B A N K A C D I S T R I B U T I O N P A N E L L O A D S...
  • Page 8: Positioning Of Powerback And Battery System

    PowerBack PB5000 is able to supply the majority of mains operated domestic and office appliances, including small motors, lights, fans, refrigerators and air conditioners up to a maximum total demand of 5kVa. Note: In extreme circumstances where the utility supply remains off and the battery back up has expired, appliances such as fridges and air conditioners require approximately 3 minutes restart delay (time is required to balance the refrigerant gas) before utility mains is reinstated .
  • Page 9: Dc Disconnect And Over-Current Protection

    DC Disconnect and over-Current Protection regulations state that battery over-current protection and/or disconnect devices are required. Fuses and disconnects must be correctly sized to protect the Dc cable in use, and must be rated for Dc operation. Do not use devices rated only for ac service – they will not function properly. Note that some installation requirements may not require a disconnect device, although over-current protection is still mandatory.
  • Page 10: Ac Cable Size

    Installation must only be carried out by a competent person who has sufficient electrical training and is familiar with safe practices when working on or near electrical systems. WARnInG: shock Hazard. take appropriate safety measure when dealing with a battery terminal voltage exceeding 40Vdc. WARnInG: short circuit hazard. take special care not to short any battery terminal, shorting of battery terminals will produce large currents and subsequent discharge of molten metals.
  • Page 11: Ac Connections

    AC Connections Installation should be done by a qualified electrician. consult local regulations for the correct wire REV. ECN NO. sizes, fusing, connectors and conduit requirements. the cable length should be kept to a minimum to prevent excess voltage drop. the PowerBack is intended for permanent connection (non-pluggable) only. a readily accessible 82.9 disconnect device (all poles seperation of at least 3mm) shall be incorporated external to this equipment.
  • Page 12: Ac Isolation And Overcurrent Protection

    DB is recommended. sollatek advise using an automatic voltage switcher AVs30 with basic spike and surge protection. For areas subject to lightning related damage, Sollatek recommends using advanced protection (class II)device such as DsP1P 20KA Mains spike and surge protection. Both devices are obtainable from any Sollatek distributor.
  • Page 13: Commissioning Of Powerback

    PowerBack and associated battery bank. to energise the PowerBack system: close battery isolator/fuse Switch on utility mains. turn power switch to oN. located on front of PowerBack PB5000. to de-energise the PowerBack system: turn off PowerBack. Switch off mains. open battery isolator/fuse turn on PowerBack for 30 seconds then back off to dissipate any residual power in the inverter.
  • Page 14: Configuration Switch

    **Note: charger current depends on the sourced batteries recommended maximum charge current limit, normally expressed as a percentage of the c20 rate. Your local Sollatek distributor can advise. S o l l a t e k P o w e r B a c k M a N U a l...
  • Page 15: Lcd Indicator

    LCD Indicator comprehensive lcD display provides system status and user-friendly panel simplifies program settings. See Figure 6. Figure 6 LCD display interface AC Mode Indicator the line mode symbol will appear and the indicator displays input voltage, output voltage, and load percentage information. Inverter Mode Indicator the inverter mode symbol will appear and the indicator displays input voltage, output voltage, and load information.
  • Page 16: Battery Charger

    Charger mode battery indicator (battery charging) status Battery Capacity 75%-100% Flash1 Solid on Solid on Solid on 50%-75% Flash2 Flash1 Solid on Solid on cc/cV 25%-50% Flash3 Flash2 Flash1 Solid on 0%-25% Flash4 Flash3 Flash2 Flash1 low battery flash Flash4 Flash3 Flash2 Flash1 Floating Full Solid on Solid on Solid on Solid on...
  • Page 17: Internal Circuit Breaker

    Workshop sevicable Items the PowerBack should only be opened for fuse inspection by an approved Sollatek repair workshop. the fuse details are listed below: Sollatek Service centre replaceable fuses.
  • Page 18: Specifications

    sPeCIFICAtIons Line Mode specifications MoDeL PB5000 (48V) Input voltage waveform sinusoidal (utility or generator) Nominal input voltage 230Vac low line disconnect 170Vac (normal) 90Vac (generator/wide range) low line re-connect 180Vac (normal) 100Vac (generator/wide range) High line disconnect 280Vac High line re-connect 270Vac Max ac input voltage 300Vac rms Nominal input frequency 50Hz / 60Hz (auto detection)
  • Page 19: Inverter Mode Specifications

    Inverter Mode specifications MoDeL PB5000 (48V) output voltage waveform pure sine wave rated output power(Va) 5000 Power factor 0.84 Nominal output voltage(V) 230Vac output frequency(Hz) 50Hz / 60Hz ± 1Hz output voltage regulation ±10% rms Nominal efficiency >90% overload protection fault after 5s@≥150% load, fault after 10s@110%-150% load, Surge rating 10000Va...
  • Page 20: Charge Mode Specifications

    Charge Mode specifications MoDeL PB5000 (48V) Nominal input voltage 230Vac Input voltage range 180V- 270Vac(Normal range) 100V- 270Vac(generator/wide range) Nominal output voltage according to the battery type Nominal charge current 20a(95-175v,gen/wide,only), 35a(175-275v)@35a setting 20a(175v-275v)@20a setting) Battery initial voltage(sps setup) >35Vdc charger short circuit protection Unit shutdown automatic over charge protection Bat.
  • Page 21: Fault Code/ Audible Alarm

    Fault code/ Audible alarm Fault Protect Active Mode Condition Warning Fault Restart Code Function (o/P=on) (o/P=oFF) operate Condition low Dc Inverter Dc voltage<low 1beep/2s alarm Dc alarm low Dc Inverter Dc Voltage<low Beep auto Mains is normal Voltage Dc Shut-down continuous Protection over charge line Dc Voltage>High Beep...
  • Page 22: Troubleshooting

    tRoUBLesHootInG Problem Possible Causes Remedy 1. Battery weak 1. re-charge battery no LCD display <35V for 48V 2. Battery defective 2. Battery replacement (can't be charged) 3. Power switch is not 3. Press and hold power switch pressed 4. Battery polarity reversed, 4. Send back for repair can’t start up the unit 1.
  • Page 23: Servicing Of Powerback

    • this guarantee does not affect your statutory or common law rights. Returns Should your unit need repair, the quickest and simplest way is to return it to your dealer or to a Sollatek Service centre or direct to the nearest Sollatek office.
  • Page 24: Warranty

    Seal (where applicable) is broken or the unit has been opened or tampered with. the warranty obligation does not cover any additional charges the owner may incur as a result of the unit needing repair or being sent back to an authorised service centre or a Sollatek workshop.
