Axxcelera Broadband Wireless AB-100 User Manual

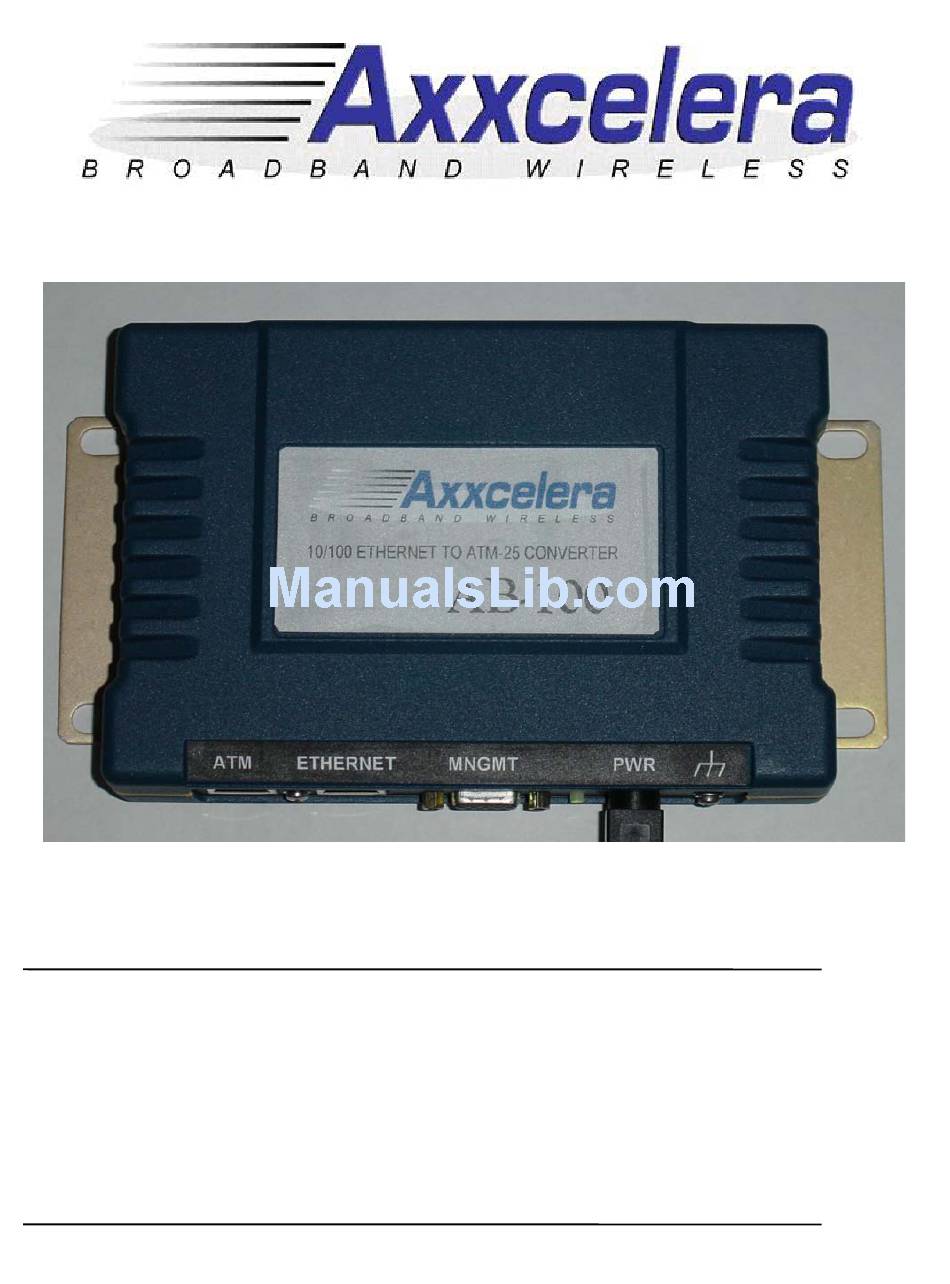

10/100 ethernet to atm-25 converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Axxcelera Broadband Wireless
175 Science Parkway
Rochester, New York 14620
Telephone
(716) 242-9600
Telephone
(877) 557-4001
Fax
(716) 242-9620
AB-100 User Manual
Sept 18, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axxcelera Broadband Wireless AB-100

  • Page 1 AB-100 User Manual Sept 18, 2003 Axxcelera Broadband Wireless 175 Science Parkway Rochester, New York 14620 Telephone (716) 242-9600 Telephone (877) 557-4001 (716) 242-9620...

  • Page 2: Revision History

    Revision History Version Date Author Comments 16-June-03 Matt Olson Created 18-Aug-03 Matt Olson Updated 21-Aug-03 Matt Olson Updated 27-Aug-03 Matt Olson Updated 18-Sep-03 Matt Olson Updated Axxcelera Broadband AB-100 Manual Page 2 of 111 Version 5...

  • Page 3: Table Of Contents

    Setting a default security level................21 3.4.4.4 Configuring security interfaces................. 21 3.4.4.5 Configuring NAT....................22 3.4.4.6 Configuring NAT global addresses ..............23 3.4.4.7 Configuring NAT reserved mapping ..............25 3.4.4.8 Configuring Security policies ................26 Axxcelera Broadband AB-100 Manual Page 3 of 111 Version 5...
  • Page 4 Edit ‘Bridge’ ......................... 52 4.10 Edit ‘Bridge Interface’ ....................53 4.11 Edit Spanning Bridge Interface’ ................... 54 4.12 Edit ‘Spanning Bridge Config’ ..................55 4.13 Edit ‘Auto Bridge’ ......................56 Axxcelera Broadband AB-100 Manual Page 4 of 111 Version 5...
  • Page 5 4.14 Edit ‘Ethernet’....................... 57 4.15 Edit ‘Ether Channel’ ..................... 58 CONFIGURING 1483 (BRIDGED)..................... 59 CONFIGURING CLIP (IPOA) ......................61 AB-100 / AB-ACCESS 1483_S SYSTEM ..................63 AB-Access Configuration Files ..................63 7.1.1 AP resolve......................63 7.1.2 AP system.conf ..................... 64 7.1.3...
  • Page 6 10.1.5 SU system.conf ..................... 88 10.1.6 SU initswitchcli..................... 89 10.2 AB-100 icf config file(AP) ................... 89 10.3 AB-100 icf config file (SU) ..................92 CONVERTING TO ATM........................97 11.1 CLIP_T ......................... 97 11.2 CLIP_S........................100 11.3 1483_S ........................105 APPENDIX ............................109 12.1...

  • Page 7: Overview

    These standards define how to terminate ATM networks at Ethernet bridges (layer 2) as well as how to terminate them at IP routers (layer 3). AB-100 supports both of these varieties via the RFC 1483 and RFC 1577 ATM standards and thus is compatible with standard ATM and Ethernet appliances.

  • Page 8: Installation

    LED that displays status of unit. A green LED indicates the unit is powered on. A orange LED indicates the unit is booting up. 2.2.5 PWR A 48VDC power connector. 2.2.6 Ground Grounding screw to connect grounding cable to. Axxcelera Broadband AB-100 Manual Page 8 of 111 Version 5...

  • Page 9: Technical Specifications

    2.4 Console Port AB-100 has a DB-9 female serial port on it. The serial cable should be a straight DB-9 male to DB-9 female. To gain access to the console of your AB-100, configure your terminal console software with the following settings.

  • Page 10: Web-Based Configuration

    3.3.1 Event Log The Event Log page is displayed whenever an error occurs or can be accessed via the System menu by clicking on Event Log. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 10 of 111 Version 5...

  • Page 11: One-Click Update

    3.3.2 One-click update This allows you to use one-click to download new AB-100 images from a remote HTTP server. You do not need to browse for the correct file to upload, which you must do when using the Update process.

  • Page 12: Remote Access

    Flash. 4. Once the file has been written to Flash, the Auto Update page is refreshed. The page confirms completion of the update and asks you to restart your AB-100 in order to use the new firmware. Click on Restart.

  • Page 13: Firmware Update

    Browse button to browse through the network and select the file. Click on Update. 3. Once the file has been uploaded to the RAM of your AB-100, it is written to Flash. A status page is displayed confirming that the upload is complete and telling you how much of the file (in bytes and as a percentage) has been written to Flash.

  • Page 14: Restoring Your Configuration

    3. Click on the Restore button. The page is refreshed with a Configuration Restored message and details of the number of bytes uploaded. 3.3.6 Restart Router This page allows you to restart your AB-100 System. 1. From the System menu, click on Restart Router. The following page is displayed: Axxcelera Broadband...

  • Page 15: Configuration

    2. Click on the Restart button to reset the AB-100 system. The Restart page also provides you with the option of restarting and restoring the factory default settings. Click on the Reset to factory default settings box to check it, then click on the Restart button. Read the console status output to check how the reset is progressing.

  • Page 16: Authentication

    Saved information model to file //flashfs/im.conf 3.4.2 Authentication This option allows you to administer accounts for users who access the AB-100. From the Configuration menu, click Authentication. The following page is displayed: 3.4.2.1 Creating a new login account 1.

  • Page 17: Editing/Deleting A Login Account

    3.4.3 LAN connection This option allows you to: • Configure the IP address and subnet of the default LAN connection to the AB-100. • Configure a secondary IP address on the same subnet as the primary IP address. • Create virtual interfaces; multiple virtual interfaces can be associated with the existing primary LAN interface.

  • Page 18: Advanced

    Advanced Options section. 3.4.3.2 Creating virtual interfaces 1. Click on the Create a new virtual interface… hyperlink at the bottom of the LAN connections page. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 18 of 111 Version 5...

  • Page 19: Security

    Click on the Delete link. b. Check the details displayed, then click on the Delete this connection button. 3.4.4 Security This option allows you to configure Security, NAT and Firewall: • Security – AB-100 allows you to: Enable Security, see Enabling Security.

  • Page 20: Enabling Security

    You must enable Security before you can enable Firewall and/or Intrusion Detection. In the Security State section: 1. Click on Security Enable radio button. 2. Click on Change State to update the Security State section. Axxcelera Broadband AB-100 Manual Page 20 of 111 Version 5...

  • Page 21: Enabling Firewall And/Or Intrusion Detection

    1. From the Security Interfaces section, click on Add Interface. The Firewall: Add Interface page is displayed: 2. Click on the Name drop-down list and select the LAN service that you want to base your security interface on. Axxcelera Broadband AB-100 Manual Page 21 of 111 Version 5...

  • Page 22: Configuring Nat

    Interface table tells you that you can enable NAT between the existing security interface and a network interface type. For example, if you create an external interface and an internal interface, your table will look like this: Axxcelera Broadband AB-100 Manual Page 22 of 111 Version 5...

  • Page 23: Configuring Nat Global Addresses

    1. From the NAT Security Interfaces table, click on the Advanced NAT Configuration hyperlink for the interface that you want to add a global pool to. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 23 of 111 Version 5...
  • Page 24 2. Click on Add Global Address Pool the following page is displayed: Axxcelera Broadband AB-100 Manual Page 24 of 111 Version 5...

  • Page 25: Configuring Nat Reserved Mapping

    The Advanced NAT Configuration page is displayed. 2. Click on the Add Reserved Mapping hyperlink. The follow page is displayed: Axxcelera Broadband AB-100 Manual Page 25 of 111 Version 5...

  • Page 26: Configuring Security Policies

    To create and configure a Firewall policy: 1. Go to the Policies, Triggers and Intrusion Detection section of the Security Interface Configuration page. Click on Security Policy Configuration. The Security Policy Configuration page is displayed. Axxcelera Broadband AB-100 Manual Page 26 of 111 Version 5...

  • Page 27: Axxcelera Broadband

    Click on Apply. After a short time, the policy is added to the Firewall configuration. 4. To display policy details click on Return to Policy List. The page is refreshed and contains a Current Security Policies table: Axxcelera Broadband AB-100 Manual Page 27 of 111 Version 5...

  • Page 28: Configuring Portfilters

    The page displayed contains three Add Filter hyperlinks that allow you to create three different kinds of portfilter: • For a TCP portfilter click on Add TCP Filter. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 28 of 111 Version 5...

  • Page 29: Axxcelera Broadband

    For details on how to complete the table, follow the above instructions for adding a TCP portfilter. • For a non-TCP/UDP portfilter click on Add Raw IP Filter. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 29 of 111 Version 5...

  • Page 30: Configuring Validators

    1. From the Current Firewall Policies table, click on Host Validators link for the policy that you want to configure. The Configure Validators page is displayed. Click on the Add Host Validator link. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 30 of 111 Version 5...

  • Page 31: Configuring Triggers

    Configuration. Click on Firewall Trigger Configuration. The Firewall Configuration pages is displayed. There are no triggers defined at this time. Click on the New Trigger link. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 31 of 111 Version 5...

  • Page 32: Axxcelera Broadband

    4. Each trigger displayed on the Firewall Trigger Configuration page has a Delete hyperlink assigned to it. To delete a trigger, click on this link, then at the confirmation page, click Axxcelera Broadband AB-100 Manual Page 32 of 111 Version 5...

  • Page 33: Configuring Intrusion Detection Settings

    The Security Interface Configuration page is displayed. b. Use Victim Protection; select true of false depending on whether you want to protect a victim from an attempted web spoofing attack. Axxcelera Broadband AB-100 Manual Page 33 of 111 Version 5...

  • Page 34: Wan Connections

    3.4.5 WAN connections This option allows you to create and configure WAN connections for your AB-100. You can also create virtual interfaces on routed services. From the Configuration menu, click on WAN connections. The WAN connections page is displayed: 3.4.5.1 Creating a WAN service...

  • Page 35: Editing A Wan Service

    This option allows you to create static IP routes to destination addresses via an IP interface name or a Gateway address. From the Configuration menu, click on IP routes. The Edit Routes page is displayed: Axxcelera Broadband AB-100 Manual Page 35 of 111 Version 5...

  • Page 36: Creating An Ip V4 Route

    • Whether the route is advertised via RIP (true or false) 3.4.6.1 Creating an IP V4 Route 1. Click on Create new IP V4 Route hyperlink. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 36 of 111 Version 5...

  • Page 37: Editing A Route

    This option allows you to enable/disable the DHCP server and create, configure and delete DHCP server subnets and DHCP fixed IP/MAC mappings. From the Configuration menu, click on DHCP server. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 37 of 111 Version 5...

  • Page 38: Enabling/Disabling The Dhcp Server

    DHCP server unless you disable DHCP relay. See DHCP Relay. 3.4.7.2 Creating a DHCP server subnet 1. Click on the Create new Subnet link. The following page is displayed: Axxcelera Broadband AB-100 Manual Page 38 of 111 Version 5...

  • Page 39: Editing A Dhcp Subnet

    Set the Primary and Secondary DNS Server addresses or set your AB-100 System to give out its own IP address as the DNS Server address. d. Set your AB-100 System to give out its own IP address as the default Gateway address.

  • Page 40: Creating A Fixed Host

    Existing DHCP fixed IP/MAC mappings. To edit a fixed mapping, click on the IP address, MAC address or max lease time, type a new entry and Axxcelera Broadband AB-100 Manual Page 40 of 111 Version 5...

  • Page 41: Dhcp Relay

    DHCP server is disabled and the button changes to Enable. NOTE: If DHCP server is enabled, DHCP relay will be disabled by default. You can not enable DHCP relays unless you disable DHCP server. See DHCP Server. Axxcelera Broadband AB-100 Manual Page 41 of 111 Version 5...

  • Page 42: Adding A Dhcp Server To The Dhcp Relay List

    From the Configuration menu, click on DNS client. The following page is displayed: 3.4.9.1 Configuring DNS servers 1. Type the IP address of the unknown domain name in the DNS servers: text box. Axxcelera Broadband AB-100 Manual Page 42 of 111 Version 5...

  • Page 43: Configuring Dns Search Domains

    2. Click on Apply. The address is displayed in the Edit DNS server list section. 3. To delete an entry, check Delete? box for a IP address, then click on Apply. Axxcelera Broadband AB-100 Manual Page 43 of 111 Version 5...

  • Page 44: Ports

    3.5 Ports This option allows you to configure the ports available on your AB-100 system. AB-100 has two ports one Ethernet port and one ATM port. 3.5.1 Configuring ports 1. From the left-hand menu, click on Configuration. From the Configuration menu, click on Ports.

  • Page 45: View Advanced Attributes

    3.5.1.3 View advanced attributes Axxcelera Broadband AB-100 Manual Page 45 of 111 Version 5...

  • Page 46: Advanced Options

    Number or bytes received on interface. If Out Octets Number of bytes transmitted on interface. If In Errors Number of errors received on interface. If Out Errors Number of errors transmitted on interface. Axxcelera Broadband AB-100 Manual Page 46 of 111 Version 5...

  • Page 47: Edit 'Atm Channel

    The maximum number of cells allowed to pass through the PVC in a second. Burst Tolerance {0-100} Controls the duration of traffic bursts on VBR (Variable Bit Rate) and VBR RT (VBR Real Time) channels. Axxcelera Broadband AB-100 Manual Page 47 of 111 Version 5...

  • Page 48: Axxcelera Broadband

    UBRPlus | QFC} always use the default of UBR. Port Allows user to set the type of port, which will always be atm. Port Class Displays the type of port. Axxcelera Broadband AB-100 Manual Page 48 of 111 Version 5...

  • Page 49: Edit 'Ip Interface

    Displays the real interface that a virtual interface is attached to. Name Interface name The name of the WAN service as defined by AB-100 when created. Snmp If Index Enabled {true | false} Allows user to enable or disable the interface.

  • Page 50: Edit 'Rip Versions

    RIP V1 updates to other devices. Send V2 {true | false} Controls whether the interface will send any RIP V2 updates to other devices. Send Multicast {true | false} Send RIP updates via multicast. Axxcelera Broadband AB-100 Manual Page 50 of 111 Version 5...

  • Page 51: Edit 'Nat

    4.7 Edit ‘NAT’ Name Value Description Nat Enabled {true | false} Set whether NAT (Network Address Translation) is set on the interface. Axxcelera Broadband AB-100 Manual Page 51 of 111 Version 5...

  • Page 52: Edit 'Rfc1483

    MAC addresses are removed from the filter table when there is no activity. Version Displays the current version of the bridge drivers. Enabled {true | false} Enables or disables the bridge. Axxcelera Broadband AB-100 Manual Page 52 of 111 Version 5...

  • Page 53: Edit 'Bridge Interface

    If the value is “all” it will forward packets, received on a specified bridge interface, to all existing bridge ports. Enabled {true | false} Enables or disables this feature. Layer2Session N/A Axxcelera Broadband AB-100 Manual Page 53 of 111 Version 5...

  • Page 54: Edit Spanning Bridge Interface

    Path Cost {1-65535} The cost of the port is used when deciding which is the best path to the root bridge. Axxcelera Broadband AB-100 Manual Page 54 of 111 Version 5...

  • Page 55: Edit 'Spanning Bridge Config

    Forward Delay {4-30} Sets the time that the bridge spends in listening or learning states when the bridge is or is attempting become the root bridge. Axxcelera Broadband AB-100 Manual Page 55 of 111 Version 5...

  • Page 56: Edit 'Auto Bridge

    4.13 Edit ‘Auto Bridge’ Name Value Description Auto Bridge {true | false} Enables or disables auto bridge. Axxcelera Broadband AB-100 Manual Page 56 of 111 Version 5...

  • Page 57: Edit 'Ethernet

    Number of packets sent on interface. Good Packets Number of good packets sent on interface. Version Current version of Ethernet driver. Enabled {true | false} Enables or disables interface. Termination Axxcelera Broadband AB-100 Manual Page 57 of 111 Version 5...

  • Page 58: Edit 'Ether Channel

    4.15 Edit ‘Ether Channel’ Name Value Description Port {text field} Enter class of port. Should be left to default. Port Class Ethernet Displays class of port. Axxcelera Broadband AB-100 Manual Page 58 of 111 Version 5...

  • Page 59: Configuring 1483 (Bridged)

    5 Configuring 1483 (bridged) 1. Open web browser. 2. Click on Configuration. 3. Click on WAN connections. 4. Click on Create a new service. 5. Select RFC 1483 bridged 6. Click on Configure. Axxcelera Broadband AB-100 Manual Page 59 of 111 Version 5...

  • Page 60: Axxcelera Broadband

    NOTE: AB-Access only supports VPI 0-7 on terrestrial interface. c. VCI: Virtual Circuit Identifier. d. Encapsulation method: LLC/SNAP or VcMux(null). NOTE: AB-Access only supports LLC/SNAP encapsulation. 8. Click on Apply. Axxcelera Broadband AB-100 Manual Page 60 of 111 Version 5...

  • Page 61: Configuring Clip (Ipoa)

    Section 6 6 Configuring CLIP (IPoA) The CLIP_S and CLIP_T configuration are setup the same on AB-100. The only difference is that in CLIP_T you only need to create one WAN (IPoA routed) connection. The CLIP_S configuration requires that you create a different WAN (IPoA routed) for each SU in the sector.

  • Page 62: Axxcelera Broadband

    WAN IP address: IP address assigned to the ATM WAN interface. This address is the address the ipatm pvc’s in the resolve file of each SU will terminate on. 8. Click on Apply. Axxcelera Broadband AB-100 Manual Page 62 of 111 Version 5...

  • Page 63: Ab-Access 1483_S System

    Section 7 7 AB-100 / AB-Access 1483_S system 192.168.3.2 192.168.3.10 PVC 768 PVC 1024 MID 3 MID 0 192.168.3.11 AB-100 LAN 192.168.3.1 /24 MID 4 AP Management PVC SU1 Data/Mgmt PVC SU2 Data/Mgmt PVC 7.1 AB-Access Configuration Files 7.1.1 AP resolve device add bridge ether //bridge mtu 1500 192.168.3.2...

  • Page 64: Ap System.conf

    0 200 atm25m 0 768 default default perm epd add atm25m 0 1024 atm25i 0 300 default default perm epd add atm25i 0 300 atm25m 0 1024 default default perm epd 7.1.6 SU1 resolve Axxcelera Broadband AB-100 Manual Page 64 of 111 Version 5...

  • Page 65: Su1 Initbridge

    3 bid 0 interface eth0 backoff 0 provider abw key Axxcelera mask 1ffff leds active 7.1.9 SU1 initr1483 pvc 0/768 atm25m 70000 70000 7.1.10 SU2 resolve Axxcelera Broadband AB-100 Manual Page 65 of 111 Version 5...

  • Page 66: Su2 Initbridge

    Axxcelera mask 1ffff leds active 7.1.13 SU2 initr1483 pvc 0/1024 atm25m 70000 70000 7.2 AB-100 icf config file This file can be retrieved and loaded through the Backup/Restore page. # Information Model configuration file version 4 N ImIGMPProxy ImIGMPProxy...

  • Page 67: Axxcelera Broadband

    A layer2Session ImServices.rfc1483-1.item0 N ImSpanningBridgeInterface ImBridge.ImBridgeInterfaces.rfc1483- 1.ImSpanningBridgeInterface A enabled false A priority 128 A pathCost 10 N ImSpanningBridgeConfig ImBridge.ImSpanningBridgeConfig A spanning false A spanPriority 32768 A helloTime 2 A maxAge 20 Axxcelera Broadband AB-100 Manual Page 67 of 111 Version 5...

  • Page 68: Axxcelera Broadband

    N ImService ImServices.rfc1483-0 A creator WebAdmin A description SU1 N ImRfc1483 ImServices.rfc1483-0.item0 A mode LlcBridged A enabled true A layer2SessionUser ImBridge.ImBridgeInterfaces.rfc1483-0 N ImChannels ImServices.rfc1483-0.item0.ImChannels N ImAtmChannel ImServices.rfc1483-0.item0.ImChannels.item0 A txVci 200 Axxcelera Broadband AB-100 Manual Page 68 of 111 Version 5...

  • Page 69: Axxcelera Broadband

    A mask 255.255.255.0 A dhcp false A mtu 1500 A enabled true A layer2Session ImBridge N ImTcpMssClamp ImRouter.ImIpInterfaces.ip1.ImTcpMssClamp A enabled false N ImRipVersions ImRouter.ImIpInterfaces.ip1.ImRipVersions A acceptV1 false A acceptV2 false Axxcelera Broadband AB-100 Manual Page 69 of 111 Version 5...

  • Page 70: Axxcelera Broadband

    A resetDefaults false N ImWebserver ImWebserver A httpPort 80 A upnpPort 2800 A telnetPort 23 A interface ip1 A enabled true A mgmtIp 0.0.0.0 A archive //expand/isfs/derived_data.dat A enableAuxillaryPort true # end Axxcelera Broadband AB-100 Manual Page 70 of 111 Version 5...

  • Page 71: Ab-Access Clip_T System

    Section 8 8 AB-100 / AB-Access CLIP_T system The CLIP_T configuration will allow the easiest conversion from Ethernet to ATM mode. However it does not have the small packet performance advantages that CLIP_S has. This configuration uses the AP in the exact same way that it does in Ethernet mode. So there are only minor changes and additions to the resolve and system.conf files.

  • Page 72: Ap System.conf

    0/768 pcr 70000/70000 remoteip 192.168.100.3 8.1.2 AP system.conf channel 0 antenna horizontal mode static mid 0 bid 0 interface atm0 duplex half backoff 0 provider abw key Axxcelera mask 1ffff leds active max_mid 254 Axxcelera Broadband AB-100 Manual Page 72 of 111 Version 5...

  • Page 73: Su Resolve

    0 provider abw key Axxcelera mask 1ffff leds active 8.2 AB-100 icf config file # Information Model configuration file version 4 N ImIGMPProxy ImIGMPProxy A forwardAll false N ImRip ImRip A hostRoutes false A poison false...

  • Page 74: Axxcelera Broadband

    A relayDomainName '' N ImDnsClient ImDnsClient N ImFireWall ImFireWall A security_enable false A firewall_level none A firewall_enable false A IDS false A ClearIDSBlacklist true A sessionlog true A blockinglog true Axxcelera Broadband AB-100 Manual Page 74 of 111 Version 5...

  • Page 75: Axxcelera Broadband

    A pppLoginAuth none N ImRouter ImRouter N ImIpInterfaces ImRouter.ImIpInterfaces N ImIpInterface ImRouter.ImIpInterfaces.ip1 A ipaddr 192.168.1.1 A mask 255.255.255.0 A dhcp false A mtu 1500 A enabled true A layer2Session ImBridge Axxcelera Broadband AB-100 Manual Page 75 of 111 Version 5...

  • Page 76: Axxcelera Broadband

    A resetDefaults false N ImWebserver ImWebserver A httpPort 80 A upnpPort 2800 A telnetPort 23 A interface ip1 A enabled true A mgmtIp 0.0.0.0 A archive //expand/isfs/derived_data.dat A enableAuxillaryPort true # end Axxcelera Broadband AB-100 Manual Page 76 of 111 Version 5...

  • Page 77: Ab-Access Clip_S System

    The CLIP_S configuration will give you better small packet performance than CLIP_T, however it is more difficult to convert an existing sector to CLIP_S. This is because the AB-100 only allows one IP address per PVC. So each SU must be terminated to a different IP address, this also requires that each wireless interface of each SU be assigned a new IP address.

  • Page 78: Ap System.conf

    0 200 atm25m 0 768 default default perm epd add atm25m 0 1024 atm25i 0 300 default default perm epd add atm25i 0 300 atm25m 0 1024 default default perm epd Axxcelera Broadband AB-100 Manual Page 78 of 111 Version 5...

  • Page 79: Su1 Resolve

    9.1.5 SU1 system.conf channel 0 antenna horizontal mode static mid 3 bid 0 interface eth0 duplex half backoff 0 provider abw key Axxcelera mask 1ffff leds active 9.1.6 SU2 resolve Axxcelera Broadband AB-100 Manual Page 79 of 111 Version 5...

  • Page 80: Su2 System.conf

    0 provider abw key Axxcelera mask 1ffff leds active 9.2 AB-100 icf config file # Information Model configuration file version 4 N ImIGMPProxy ImIGMPProxy A forwardAll false N ImRip ImRip A hostRoutes false A poison false...

  • Page 81: Axxcelera Broadband

    N ImDnsClient ImDnsClient N ImFireWall ImFireWall A security_enable false A firewall_level none A firewall_enable false A IDS false A ClearIDSBlacklist true A sessionlog true A blockinglog true A IntrusionLog false Axxcelera Broadband AB-100 Manual Page 81 of 111 Version 5...

  • Page 82: Axxcelera Broadband

    N ImChannels ImServices.ipoa-1.item0.ImChannels N ImAtmChannel ImServices.ipoa-1.item0.ImChannels.item0 A txVci 200 A rxVci 200 A pcr 2000 A class UBR A port atm N ImService ImServices.ipoa-2 A creator WebAdmin A description 'SU2 Data' Axxcelera Broadband AB-100 Manual Page 82 of 111 Version 5...

  • Page 83: Axxcelera Broadband

    N ImTcpMssClamp ImRouter.ImIpInterfaces.ipoa-0.ImTcpMssClamp A enabled false N ImRipVersions ImRouter.ImIpInterfaces.ipoa-0.ImRipVersions A acceptV1 false A acceptV2 false A sendV1 false A sendV2 false A sendMulticast false N ImIpInterface ImRouter.ImIpInterfaces.ipoa-1 A ipaddr 192.168.5.1 Axxcelera Broadband AB-100 Manual Page 83 of 111 Version 5...

  • Page 84: Axxcelera Broadband

    N ImPorts ImPorts N ethernet ImPorts.ethernet A resetDefaults false N atm ImPorts.atm A resetDefaults false N ImWebserver ImWebserver A httpPort 80 A upnpPort 2800 A telnetPort 23 A interface ip1 Axxcelera Broadband AB-100 Manual Page 84 of 111 Version 5...

  • Page 85: Axxcelera Broadband

    A enabled true A mgmtIp 0.0.0.0 A archive //expand/isfs/derived_data.dat A enableAuxillaryPort true # end Axxcelera Broadband AB-100 Manual Page 85 of 111 Version 5...

  • Page 86: Ab-Access Native_Atm (Backhaul) System

    Section 9 10 AB-100 / AB-Access Native_ATM (Backhaul) System PVC 768 192.168.2.2 /30 192.168.100.3 192.168.9.2 192.168.100.1 PVC 200 MID 0 MID 3 PV C AB-100 SU 192.168.9.1 /30 AP/SU Management PVC AB-100 LAN 192.168.1.2 SU Data PVC AP 192.168.2.1 /30 LAN 192.168.1.1...

  • Page 87: Ap System.conf

    UBR 70000 sp default 256 stats add atm25m 0 769 atm25i 0 200 default default perm epd add atm25i 0 200 atm25m 0 769 default default perm epd Axxcelera Broadband AB-100 Manual Page 87 of 111 Version 5...

  • Page 88: Su Resolve

    0/768 pcr 70000/70000 remoteip 192.168.100.1 10.1.5 SU system.conf channel 0 antenna horizontal mode static mid 3 bid 0 interface atm0 backoff 0 provider abw key Axxcelera mask 1ffff leds active Axxcelera Broadband AB-100 Manual Page 88 of 111 Version 5...

  • Page 89: Su Initswitchcli

    256 stats add atm25m 0 769 atm25i 0 200 default default perm epd add atm25i 0 200 atm25m 0 769 default default perm epd 10.2 AB-100 icf config file(AP) # Information Model configuration file version 4 N ImIGMPProxy ImIGMPProxy...

  • Page 90: Axxcelera Broadband

    A saveconfig false N ImServices ImServices N ImService ImServices.eth1 A creator CLI A description eth1 N ImEthernet ImServices.eth1.eth1 A enabled true A layer2SessionUser ImBridge.ImBridgeInterfaces.eth1 N ImChannels ImServices.eth1.eth1.ImChannels N ImEtherChannel ImServices.eth1.eth1.ImChannels.item0 Axxcelera Broadband AB-100 Manual Page 90 of 111 Version 5...

  • Page 91: Axxcelera Broadband

    A layer2Session ImBridge N ImTcpMssClamp ImRouter.ImIpInterfaces.ip1.ImTcpMssClamp A enabled false N ImRipVersions ImRouter.ImIpInterfaces.ip1.ImRipVersions A acceptV1 false A acceptV2 false A sendV1 false A sendV2 false A sendMulticast false N ImIpInterface ImRouter.ImIpInterfaces.ipoa-0 Axxcelera Broadband AB-100 Manual Page 91 of 111 Version 5...

  • Page 92: Icf Config File (Su)

    A interface ip1 A enabled true A mgmtIp 0.0.0.0 A archive //expand/isfs/derived_data.dat A enableAuxillaryPort true # end 10.3 AB-100 icf config file (SU) # Information Model configuration file version 4 N ImIGMPProxy ImIGMPProxy A forwardAll false N ImRip ImRip A hostRoutes false...

  • Page 93: Axxcelera Broadband

    A allowUnknownClients true A enabled false N ImDhcpRelay ImDhcpRelay A enabled false N ImDnsRelay ImDnsRelay A relayDomainName '' N ImDnsClient ImDnsClient N ImFireWall ImFireWall A security_enable false A firewall_level none Axxcelera Broadband AB-100 Manual Page 93 of 111 Version 5...

  • Page 94: Axxcelera Broadband

    A mode LlcBridged A enabled true A layer2SessionUser ImBridge.ImBridgeInterfaces.rfc1483-0 N ImChannels ImServices.rfc1483-0.item0.ImChannels N ImAtmChannel ImServices.rfc1483-0.item0.ImChannels.item0 A txVci 200 A rxVci 200 A pcr 2000 A class UBR A port atm Axxcelera Broadband AB-100 Manual Page 94 of 111 Version 5...

  • Page 95: Axxcelera Broadband

    A cost 1 A timeout 0 A interface '' A advertise false N ImPorts ImPorts N ethernet ImPorts.ethernet A resetDefaults false N atm ImPorts.atm A resetDefaults false N ImWebserver ImWebserver Axxcelera Broadband AB-100 Manual Page 95 of 111 Version 5...

  • Page 96: Axxcelera Broadband

    A httpPort 80 A upnpPort 2800 A telnetPort 23 A interface ip1 A enabled true A mgmtIp 0.0.0.0 A archive //expand/isfs/derived_data.dat A enableAuxillaryPort true # end Axxcelera Broadband AB-100 Manual Page 96 of 111 Version 5...

  • Page 97: Converting To Atm

    Section 10 11 Converting to ATM Before you install the AB-100 at an existing sector you will need to convert the AP from a terminated Ethernet configuration to an ATM configuration. All of these configuration changes will be done on the AP and are slightly different for CLIP_T, CLIP_S and 1483_S modes. All instructions use the AB-Express tool.

  • Page 98: Axxcelera Broadband

    If the unit relay all then nothing needs to be changed. If the unit specifies specific devices all relays need to be deleted and add relay all. • Old: relay eth0 eth0 relay eth0 atm1 relay atm1 atm1 • New: relay all Axxcelera Broadband AB-100 Manual Page 98 of 111 Version 5...

  • Page 99: Axxcelera Broadband

    Interface • Old: interface eth0 • New: interface atm0 13. Once files are edited and saved they are ready to upload to the AP by using Program AB Unit. Axxcelera Broadband AB-100 Manual Page 99 of 111 Version 5...

  • Page 100: Clip_S

    2. Change all IP addresses information on all SUs in the sector. All wireless SU IP addresses will need to be changed. The reason for this is that AB-100 can only bind 1 PVC to an IP address, so each SU must be on a separate subnet and terminated on a different interface on AB-100.

  • Page 101: Axxcelera Broadband

    9. Convert the ipatm pvc information in the resolve file to the initswitchcli file. This is done by the AB File Converter tool. 10. Fill in Hostname of AP that you want to convert. 11. Select Convert Resolve File. Axxcelera Broadband AB-100 Manual Page 101 of 111 Version 5...

  • Page 102: Axxcelera Broadband

    15. Select Edit Configuration. 16. Click on Submit. 17. Edit the resolve file by changing the following lines… a. Device • OLD: device add eth0 ether //edd mtu 1500 192.168.2.2 Axxcelera Broadband AB-100 Manual Page 102 of 111 Version 5...

  • Page 103: Axxcelera Broadband

    • New: relay all 18. Edit the system.conf file with the following changes… a. Interface • Old: interface eth0 • New: interface atm0 Axxcelera Broadband AB-100 Manual Page 103 of 111 Version 5...

  • Page 104: Axxcelera Broadband

    18. Fill in the current IP address. 19. Enter the Hostname for the modified files. 20. Fill in the current unit password. 21. Select Reboot Now. 22. Click on Submit. Axxcelera Broadband AB-100 Manual Page 104 of 111 Version 5...

  • Page 105: Axxcelera Broadband

    7. Convert the mr1483 information in the initmr1483 file to the initswitchcli file. This is done by the AB File Converter tool. 8. Fill in Hostname of AP that you want to convert. 9. Select Convert mr1483 File. Axxcelera Broadband AB-100 Manual Page 105 of 111 Version 5...

  • Page 106: Axxcelera Broadband

    10. Click on Submit. 11. Create the file TestAP.initr1483. 12. Create the file TestAP.initbridge. Axxcelera Broadband AB-100 Manual Page 106 of 111 Version 5...

  • Page 107: Axxcelera Broadband

    13. Select Edit Configuration. 14. Click on Submit. 15. Edit the system.conf file with the following changes… a. Interface • Old: interface eth0 • New: interface atm0 Axxcelera Broadband AB-100 Manual Page 107 of 111 Version 5...

  • Page 108: Axxcelera Broadband

    18. Fill in the current IP address. 19. Enter the Hostname for the modified files. 20. Fill in the current unit password. 21. Select Reboot Now. 22. Click on Submit. Axxcelera Broadband AB-100 Manual Page 108 of 111 Version 5...

  • Page 109: Appendix

    Section 12 12 Appendix 12.1 Ethernet port RJ-45 Female TYPE SIGNAL OUTPUT OUTPUT INPUT INPUT 12.2 Ethernet cables 12.2.1 Straight RJ-45 Male SIGNAL Direction 12.2.2 Cross-Over Axxcelera Broadband AB-100 Manual Page 109 of 111 Version 5...

  • Page 110: Atm Port

    RJ-45 Male SIGNAL Direction 12.3 ATM port RJ-45 Female TYPE SIGNAL INPUT INPUT OUTPUT OUTPUT 12.4 ATM cables 12.4.1 Straight RJ-45 Male SIGNAL Direction Axxcelera Broadband AB-100 Manual Page 110 of 111 Version 5...

  • Page 111: Cross-Over

    12.4.2 Cross-Over RJ-45 Male SIGNAL Direction Axxcelera Broadband AB-100 Manual Page 111 of 111 Version 5...

Table of Contents
