Summary of Contents for Navig[8]r Navcam-HD
- Page 1 USER MANUAL NAVCAM-HD Please read carefully before use It is recommended to use a Class 4 ( 4Mb/s write speed) Micro SDHC card for optimal performance.
-
Page 2: Table Of Contents
USER MANUAL NAVCAM-HD TABLE OF CONTENTS Important Safety Instructions and Precautions ..................2 Product Connections and Use ......................... 3 Whats in the box ............................. 3 FEATURES AND OPERATION........................4 Memory Card required for operation ....................4 Power on/off function (auto on/off)....................4 Auto Record when turned on ...................... -
Page 3: Product Connections And Use

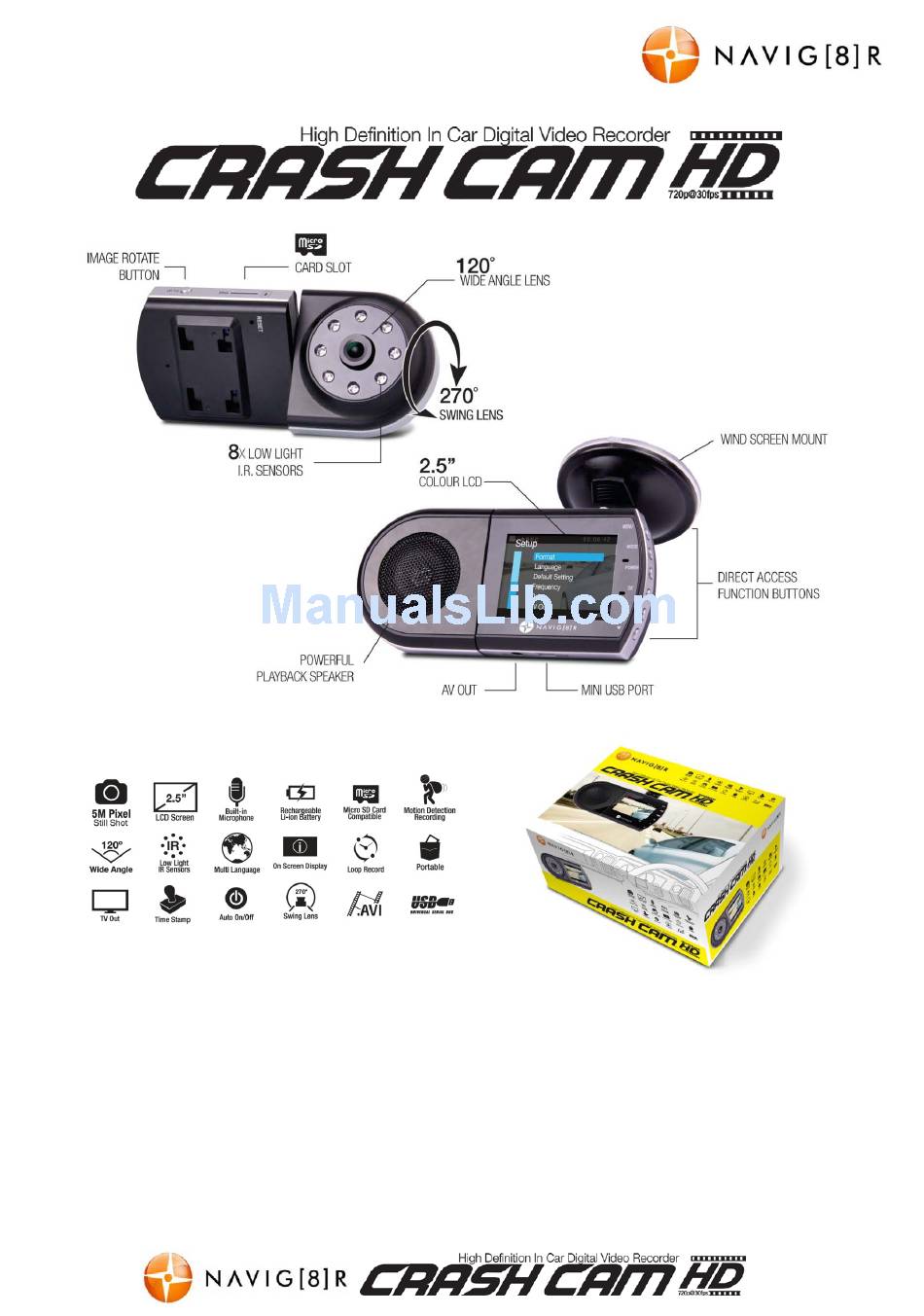

USER MANUAL NAVCAM-HD PRODUCT CONNECTIONS AND USE Flip Button- rotates the image 180 on screen Menu (on screen display menu) Micro SD card slot, please use a Class 4 micro SDHC [Not used] Mini USB Port (for charging or connecting to a PC) Mounting plate AV Out (3.5mm to RCA connectors) –... -
Page 4: Features And Operation
Power on/off function (auto on/off) To turn on the Navcam-HD, press the power button on the side of the device. To turn off, press the same power button. When connected to the 12v DC socket (cigarette socket) of your car, the Navcam-HD will turn on and off automatically when the car’s ignition is turned on or off. -
Page 5: Recording
USER MANUAL NAVCAM-HD image appear upside down, press the “flip” button on the top of the Navcam-HD unit to flip the image 180 degrees. Recording Turn on the NAVCAM-HD. Recording should start automatically. If not press the “OK” button. When recording, the word “REC” will appear in the LCD and the green LED will flash. -
Page 6: Video Mode Setting (On Screen Menu Options)
NAVCAM-HD Video Mode Setting (on screen menu options) Turn on the NAVCAM-HD and press the “OK” button to stop recording. Press the MODE button until the Orange Movie camera icon appears in the top left of the LCD display. Press the MENU button to enter the VIDEO MODE settings menu. Press the ▲/▼... -
Page 7: Digital Still Camera (Dsc) Mode Settings
TV’s in Australia / New Zealand) Digital Still Camera (DSC) Mode Settings: Turn on the NAVCAM-HD and press the “OK” button to stop recording. Press the MODE button until the Yellow camera icon appears in the top left of the LCD display. Next press MENU to enter into DSC mode settings. - Page 8 Playback Mode Setting Turn on the NAVCAM-HD and press the “OK” button to stop recording. Press the MODE button until the either the purple “play” triangle icon or the black/white film strip icon appears in the top left of the LCD display.
-
Page 9: Usb Connection
NAVCAM-HD USB Connection Connect the NAVCAM-HD to a Windows (XP or 7) PC with the USB cable (included). The LCD screen on the NAVCAM-HD will turn blue with the words “MSDC”. Under “My computer” or “Windows Explorer” you should see a drive which will resemble a “Removable Disk (?:)”... - Page 10 Once the wiring and installation of the Navcam-HD have been completed, please check the following: - With the car’s ignition on (or engine started), the red LED indicator on the Navcam-HD will light up and the LCD screen should turn on. Recording should start automatically. This will indicate a successful installation –...
-
Page 11: Trouble Shooting / Q & A
PC/notebook (rather than through a USB hub) computer No Video - Check the cable connections on the Navcam-HD and that playback mode is displayed on TV selected - Check the AV input selection on the TV PRODUCT SPECIFICATIONS ... - Page 12 USER MANUAL NAVCAM-HD Multi language menu. Loop cycle record in selectable 2 or 5 or 15 minute increments Time and date stamp on video or still image whilst recording USB direct connection to PC (no need for a card reader) ...
- Page 13 NAVCAM-HD Warranty Against Defects Navig8r is a brand sold and marketed by Laser Corporation Pty Ltd (“Laser”). Laser hereby warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
