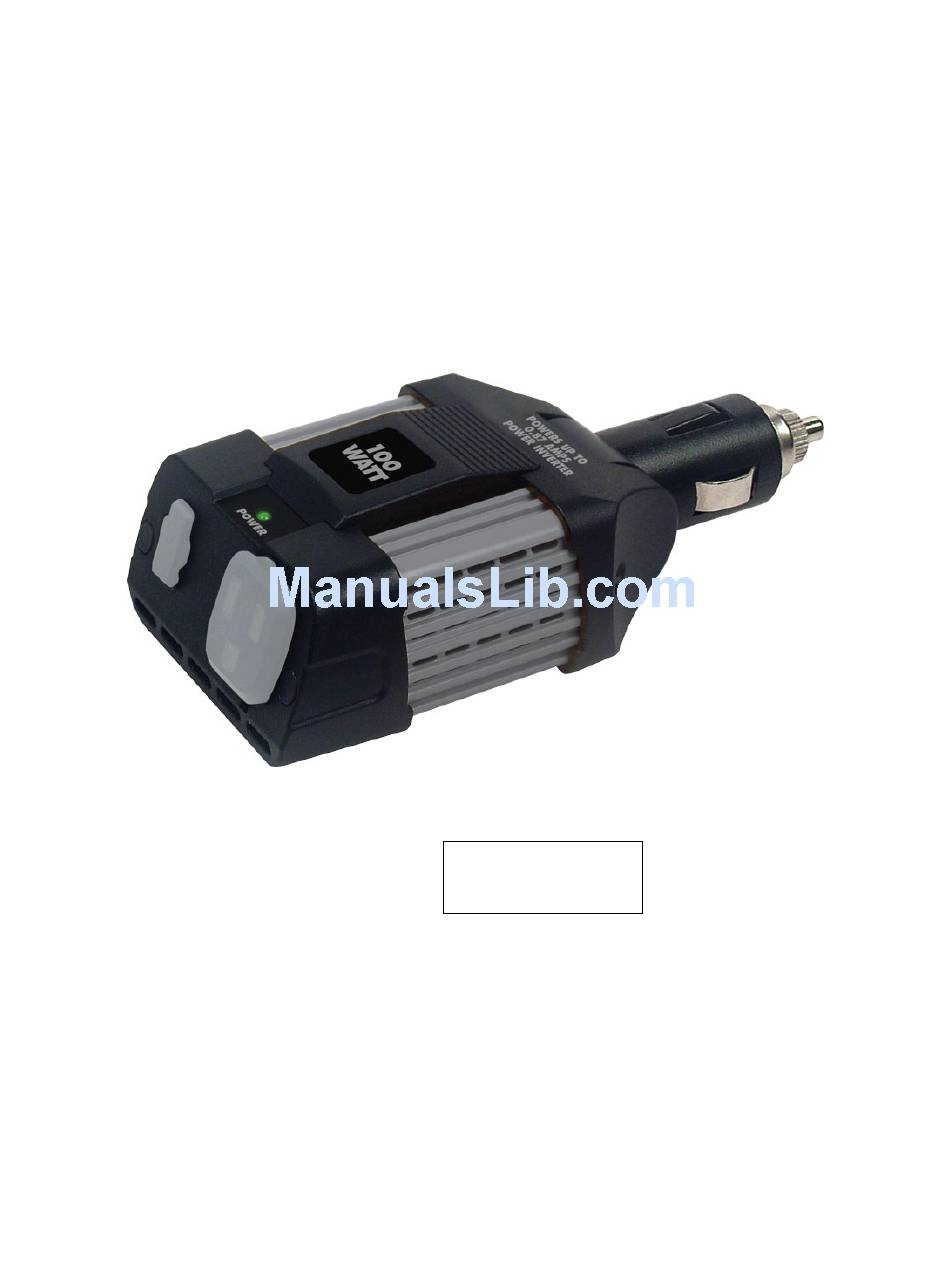

- Page 1 Voltec Power Inverter Owner’s Manual 100W (Model 10-00474 ) - 1 -...
-
Page 2: Table Of Contents
Thank you for purchasing this VOLTEC product. All VOLTEC products are produced to the highest quality. To reduce the risk of injury, please read this instruction manual and retain for future reference. Should you have any questions or need any support, please contact us at www.voltec-industries.com... -
Page 3: Introduction
1. Introduction Thank you for purchasing this VOLTEC power inverter, a high performance solution to using household power while on the road. Connected to a 12V volt outlet, the inverter efficiently and reliably supplies 115V/60Hz AC power for a wide variety of loads, such as TV sets, gaming systems, cell phones and portable entertainment devices. - Page 4 • Connect the unit to only to 12V DC power supplies (6V is too low, and 24V will damage the unit). • Do not insert any foreign objects into the unit outlets, vents or fan openings. • Do not expose the unit to rain, water or any other liquid. •...
-
Page 5: Features
3. Features Figure 1 1. Cooling Fan and Ventilation Openings— The high speed cooling fan protects the inverter from over-heating. And the ventilation openings should be kept clear! 2. LED Indicator—When there is DC power input, the green LED Indicator is on;... -
Page 6: Connecting/Operating The Inverter
4. Connecting and operating the inverter When connecting the unit, please be sure to follow the guideline, cautions and warnings mentioned in this manual. The inverter should be connected to your vehicle’s 12 V battery or power outlet socket. No devices should be plugged into the inverter until the inverter is properly connected and the inverter’s power indicator is active. -
Page 7: Troubleshooting
discharge”. Constantly operating the unit from a vehicle battery until the low voltage shut off will affect the life of the battery. If you are operating electrical products for extended periods of time, you should consider connecting the unit to a separate deep discharge battery. 5. - Page 8 Nintendo DS 40.00 Rechargable Electric Knife 48.00 Household Battery Chargers 32.00 2 way Radios 48.00 5" LCD TV 48.00 BlackBerry 96.00 96.00 Wireless Mouse 240.00 Cordless Shaver 96.00 When using a vehicle battery as a power source, it is strongly recommended to start the vehicle every hour or two to recharge the battery before its capacity drops too low.
- Page 9 cables. Adjust the orientation of the inverter television, antenna and cables. Maximize TV signal strength by using a better antenna and use shielded antenna cable where possible. c) Reference Chart PROBLEM CAUSE SOLUTION Battery is defective Replace battery Blown fuse Check and replace fuse power, indicator.
- Page 10 required. Restart. Inverter runs small loads but Low voltage battery Charge the battery not large ones. Disconnect the inverter and Water entered the unit wipe immediately with a dry Water entered cloth, or permanent damage can occur. Low voltage shutdown or Allow unit to cool.
-
Page 11: Specifications
6. Specifications a) AC Power Output Model 100W AC output voltage 125V AC (104V) 100W Continuous output power Maximum 200W output surge power output 59~61Hz frequency(nominal) output Modified waveform sine wave b) USB Power Output DC output voltage 5V DC c) DC Power Specifications DC input voltage range 11.0~15.0V DC... - Page 12 - 12 -...
