Summary of Contents for Daniel Hertz M2

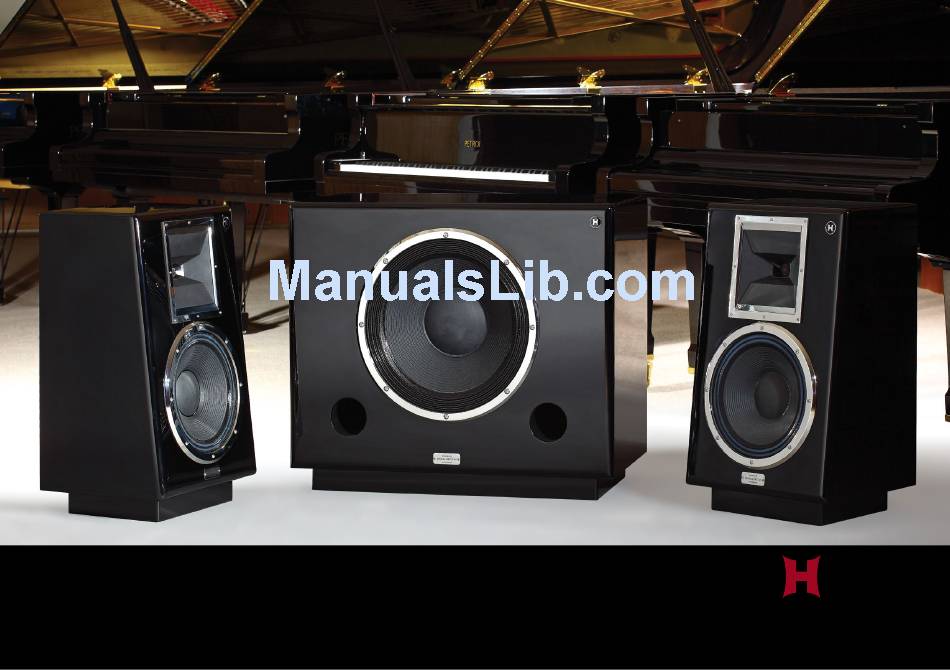

- Page 1 Daniel Hertz M2 Speaker owner’S Daniel Hertz M3 18” Subwoofer Manual Daniel Hertz Sa Switzerland...
-
Page 2: Table Of Contents
Table of Contents Please read this manual before using your daniel hertz M2 and M3 speakers. welcome The information in this manual will help overview you get the full benefit from your invest- The Daniel Hertz M2 and M3 product ment. -
Page 3: The Daniel Hertz Team
The Daniel Hertz M2 and M3 offer simi- Mark Levinson lar performance to the flagship M1 in a Daniel Hertz M2 and 3 are built with the Director compact, discreet and elegant form factor. absolute highest quality of construction... - Page 4 The ultimate test is recording a musical event and playing it back. When you hear the live preformance and then the playback with Daniel Hertz,it truly sounds and feels like the musicians are in the room. No other audio system can equal this achievement.
- Page 5 1 Watt of power produces 100 decibels (dB) ence Power Amplifier, designed with high of sound pressure level (SPL). This means purity in the milliWatt region; the Daniel that most listening levels require less than 1 Watt of power. With Daniel Hertz sys-...
-
Page 6: Product Description
80Hz. At this fre- for the high frequency compression quency and below, the sound is omnidi- The Daniel Hertz M2 speaker is a 2 way driver horn. rectional and cannot be localized. Your design using a high frequency compres-... -
Page 7: Connections To The Power Amplifiers
MONO subwoofer out- put of the M6 Preamplifier to the input of the M5 driving the M3. b) Set the filter switch of the M5’s driving the M2’s to HPF (High Pass Filter) . c) Set the filter switch of the M5 driving the M3 to LPF (Low Pas Filter). -
Page 8: Operating Notes
Operating Notes the M2 and M3 to capture the peaks and Raise the volume to the desired level. beginnings of notes. The distortion is so The M2 and M3 can play effortlessly with low that it is easy to turn the volume up extreme power. - Page 9 “Burn” by Usher sounds incredible at very loud levels. A solo piano recording by Artur Rubinstein will sound terrible played at such a level. Find the appropriate level for the music you want to hear. Keep in mind that the M2 and M3 will do things that other speakers cannot do.
-
Page 10: Care And Maintenance
If a driver is mechanically damaged, it must be replaced according to factory in- structions by a qualified technician. In practice, service for the M2 and M3 is not needed. They are extremely robust and typically immune to probems encountered... - Page 11 Daniel Hertz M2 Speaker Specifications Daniel Hertz M3 18” Subwoofer Specifications Height: ..........750mm (29.5”) Height: ..........750mm (29.5”) Width: ..........5450 mm (17.7”) Width: ..........880mm (34.7”) Depth: ..........380 mm (15”) Depth: ..........470 mm (18.5”) Weight: ..........60 kg (unpacked) Weight: ..........80 kg (unpacked) Sensitivity:..........100dB/1W/1M...
- Page 12 DANIEL HERTZ SA Route de la gare 36 CH-2012 Auvernier Switzerland www.danielhertz.com...
