Page 1: User Manual
AdvanceTec AdvanceCommunicator™ Desktop Communication Kit User Manual for iDEN i60c, i90c, and i95cl phones... -
Page 2: Table Of Contents
Contents General ............... First Start ..................AdvanceCommunicator™ Components ..........Communication Initialization............System Requirements ................ Application Phone Book ..............Adding Records to the Phone Book ..........Hardware installation and Operation ...... Deleting Phone Book Record ............Connecting the kit components ............Importing the Phone's Contacts List.......... -
Page 3: General

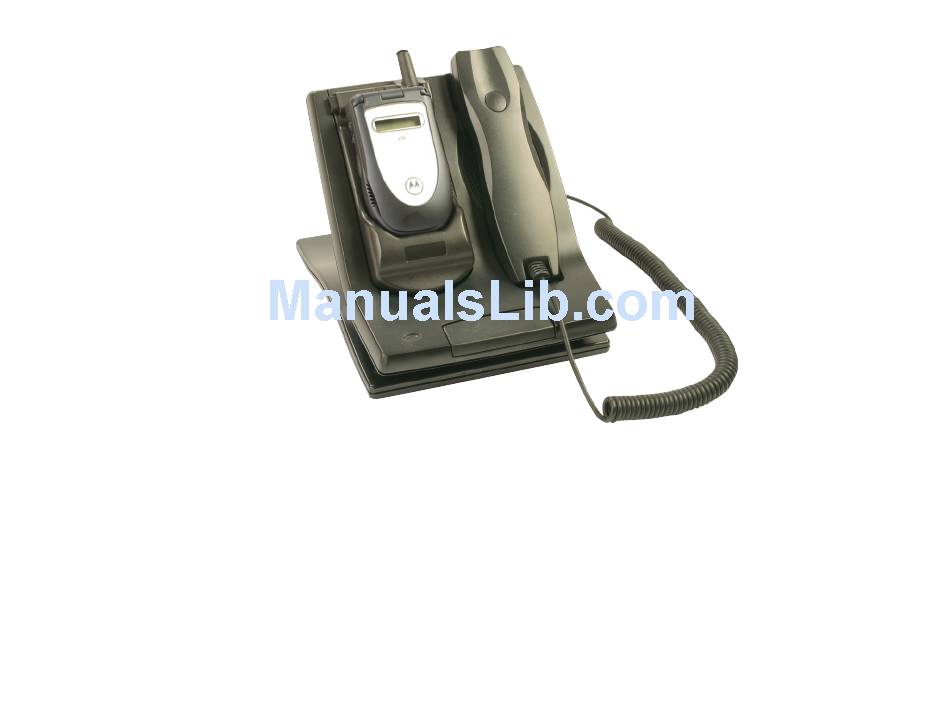

AdvanceCommunicator™ Components The AdvanceCommunicator™ kit includes the following components: • Base station with a suitable cradle for iDEN i60c, i90c, and i95cl phones • Phone hand set • 12VDC Power adaptor • Local antenna Optional components: •... -
Page 4: Hardware Installation And Operation
Hardware installation After connecting the AdvanceCommunicator™ base to the power supply, the base station will perform a series of internal tests. During these tests, the color of the LED indicator will change. At the end of the and Operation test series, the LED indicator will display a flashing red signal. 5 In order to remote operate the AdvanceCommunicator™... -
Page 5: Led Indicator
Hardware Installation and Operation Phone Operation in B Press the phone down onto the cradle connector and the top of the phone back into the cradle until it lock into place. AdvanceCommunicator™ Note: If the logo lable covering the antenna socket at the back of the Once the phone is inserted into the AdvanceCommunicator™... -
Page 6: Receiving Phone Calls
Hardware Installation and Operation Note: When using the handset, you can switch to Bidirectional Close the phone's flip. communication mode by pressing the PTT button at the front Sending Call Alert of the AdvanceCommunicator™ or on the back of handset while picking up the handset. -
Page 7: Volume Control
Hardware Installation and Operation Volume Control You can control the volume level of the AdvanceCommunicator™ by using the phone's volume control buttons located at the left side of the phone. Recording Calls The AdvanceCommunicator™ allows you to record phone calls as well as private and group calls, by hooking a recording device to the 3.5mm recording jack located at the back of the AdvanceCommunicator™... -
Page 8: Software Installation
To change the location suggested as default,, press on Change Directory. This section of the manual will guide you step by step through the install process of the AdvanceTec Communicator application included in the Advance Communicator kit. 1 Before starting the install process, close all active applications. - Page 9 6 To start the application, go to the Start button, select Programs, and existence of newer version for one or more of the installed then select the AdvanceTec Communicator. components. The displayed message prompts you to select wither to save the newer version, or replace it with the installed component.
- Page 10 After the Start menu is displayed, release the mouse button. 2 Go into Programs, and select AdvaceTec Communicator. 3 Using the right mouse button, grab and drag the AdvanceTec Communicator label from the menu to the Desktop or into the Application Bar at the bottom.
-
Page 11: Using The Software
Using the Software The AdvanceCommunicator application included allows for remote operate the iDEN cellular phone installed in the AdvanceCommunicator™ cradle, and perform many of the cellular activities, directly from the computer. Using the application, enhances the basic cellular activities of dialling, and sending call alerts, by enabling you to use an enhanced phone book, and presenting a detailed activity log. -
Page 12: Menus
Using the Software Menus Phone Info This menu does not drop down, but acts like a button. Pressing it, The three application menus will allow you to perform the following will display the user information of the iDEN phone installed in the operation: AdvanceCommunicator™... -
Page 13: Activity Log
Using the Software • Phone Status - This field displays the status of the phone installed in the The Activity Log displays the following activities: cradle. • Local call Please Wait • Incoming/Outgoing call When communication status is checked. • Active call Wait for While initializing communication with the •... -
Page 14: Phone Book
Using the Software Phone Book This section has two display modes: • Phone Book and Turbo Dial • Phone Book Record Details Phone Book Display Mode When in Phone Book and Turbo Dial Mode, this section displays the Phone Book entries list, and 12 Turbo Dial buttons, to witch you can assign any phone, private or group number from the Phone Book records. -
Page 15: First Start
Using the Software First Start Note: If the phone security or SIM security are active, the initialization process will complete setting the communication between When the application is started for the first time, a red shaded section the application and hardware, but no cellular activity will be will appear, prompting you to select the serial port that will be used to permitted until the security code is entered. - Page 16 Using the Software • Mobile Numbers - Three fields for mobile cellular phone numbers. Note: The sound file should be in WAV format Each of these fields consists of a list that allows selecting the After selecting the sound file, you will be prompted to name and appropriate type to the phone number, and an edit field for the save it.
- Page 17 Using the Software New TalkGroup Record assigned to the image file is the name of the record it is being assign To add a new TalkGroup record to the application Phone Book: 1 From the menus, select Phone Book > Add Group, -or- Note: When assigning an image file to a record, the application may loose communication with the phone.
-
Page 18: Deleting Phone Book Record
Press Yes to delete the record, or No to cancel and keep the record. Importing the Phone's Contacts List The AdvanceTec Communicator application lets you to import the contacts from the iDEN phone installed in the AdvanceCommunicator™ cradle. To import the contact entries from the iDEN phone: 1 Make sure the iDEN phone is on and not blocked, and communication is established between the application and hardware. -
Page 19: Phone Book Contents
Using the Software Saving All the Imported Entries in the Phone Book Note: The imported contact entries are not saved in the application Phone Book. After closing and starting the application, you will To save all the imported contact entries from the iDEN phone in the need to import them again. -
Page 20: Phone Calls
To enter a phone number stored in the application Phone Book: 1 In the Phone Book section, select the record containing the phone The AdvanceTec Communicator application lets you define 12 Turbo Dial number in the Name List. buttons, that will enable you to place a call to the assigned phone number with a single mouse click, directly from the application. -
Page 21: Answering Calls
Using the Software Turbo Dialling Deleting Turbo Dial To Turbo Dial a phone number: To clear an assigned Turbo Dial number: Click on the Turbo Dial button assigned to the phone number. 1 Right-click the Turbo Dial button you like to set. To Turbo Dial a Private ID or TalkGroup: The Turbo Dial fields will be displayed in the General Section, to the left of the Turbo Dial buttons. -
Page 22: Making Private And Group Calls
Using the Software 2 Right-click on the row, in order to enter the Private ID that appears in it Press the PTT button on the back of the AdvanceCommunicator™ into the Private ID fields of the Dial Box section. handset, -or- Talk into the microphone at the front of the AdvanceCommunicator™... -
Page 23: Updating The Hardware Software
Using the Software Updating the Hardware Software To install software updates of the AdvanceCommunicator™ hardware: 1 From the application menus select Options > Hardware Software Update. 2 In the Program Update window displayed, select Update > Start Update. 5 At the end of the update process the message Update Succeeded, Please Wait will be displayed and the application will initialize the communication with the hardware. -
Page 24: Troubleshooting
Troubleshooting Problem Possible Reason Possible Solution The LED indicator in the AdvanceCommunicator™ The power adaptor is not connected to the power Make sure the power adaptor is connected to the base is off supply power supply The iDEN phone turns off after installing in the The accessories connector is not clean Remove the phone from the cradle and clean the AdvanceCommunicator™... - Page 25 Microsoft and Windows are registered trademarks of Microsoft. AdvanceCommunicator™ is a registered trademark of AdvanceTec. All other product names or services mentioned in this user’s guide are the property of their respective trademark owners.
