Summary of Contents for Be.Better RX805

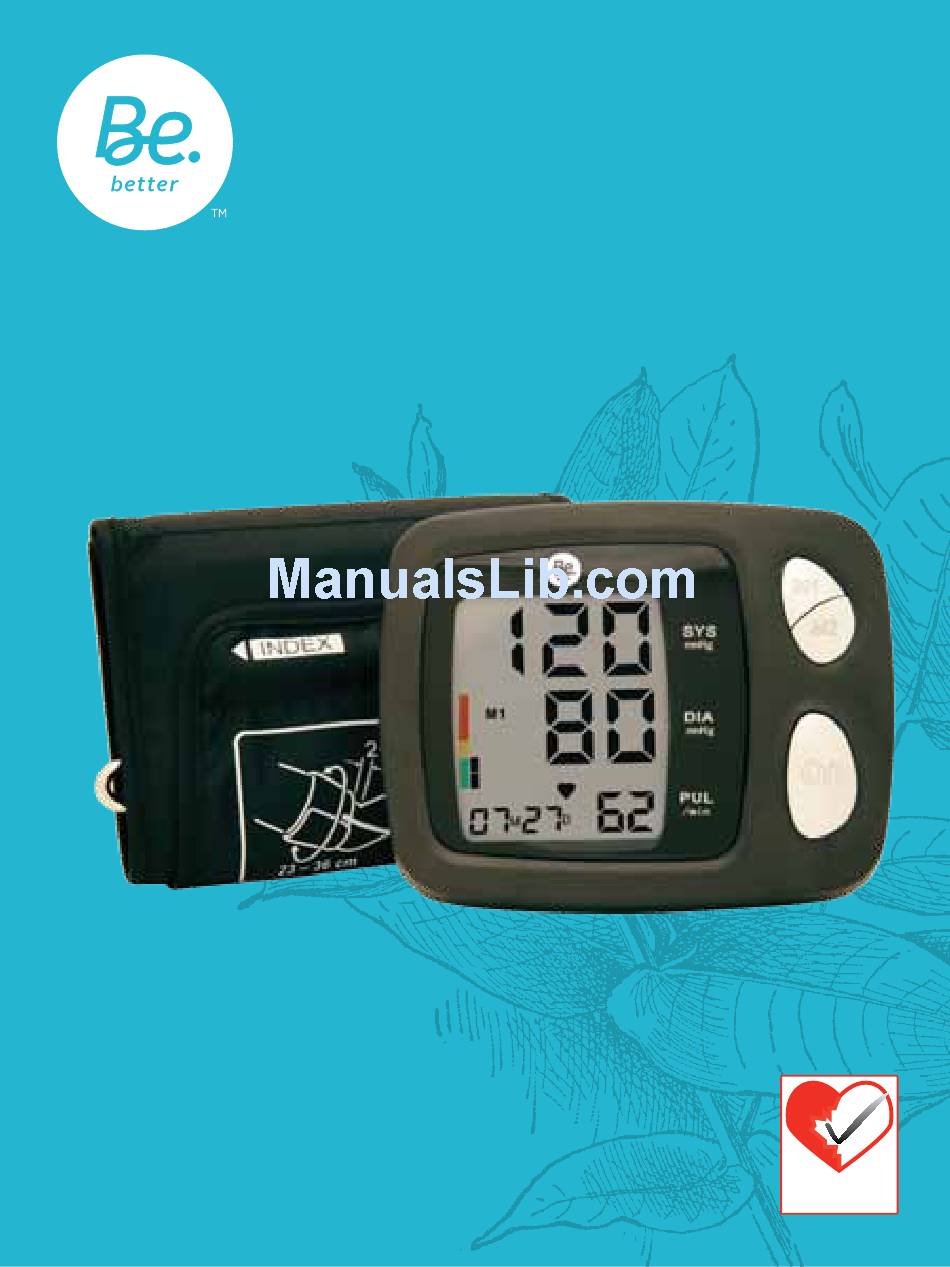

- Page 1 Premium AuTOmATiC Blood Pressure monItor InstructIon manual Recommended by Hypertension Canada...

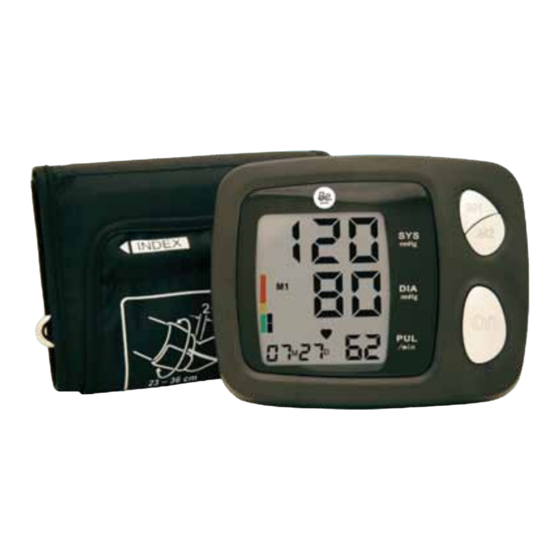

- Page 3 Parts and Components D-ring 1. Main Body AC Power Adapter 2. Display Button ‘M1’ 3. Cuff Connection 10. Button ‘M2’ 4. Tube Plug 11. Button ‘O/I’ 5. Air Hose 12. Batteries (Optional) 6. Cuff...
-
Page 4: Table Of Contents
Premium Automatic Blood Pressure Monitor Instruction Manual - RX805 Table of Contents General Principle of Operation Tips On Taking Blood Pressure Measurement 2.1 About Blood Pressure 2.2 Normal Blood Pressure Values 2.3 Obtaining Accurate Measurements 2.4 Before Measuring 2.5 Common Sources of Error 2.6 Fitting the Cuff... - Page 5 Troubleshooting Warranty Technical Specifications...
-
Page 6: General
This instruction manual is intended to assist the user in the safe and efficient operation of the Be Better™ Premium Automatic Blood Pressure Monitor model RX805. The device should be used in accordance with the procedures described in this manual. It is important to read and understand the entire manual, especially section 2 “Tips on Taking Blood Pressure Measurement.”... -
Page 7: Normal Blood Pressure Values
(arteriosclerosis). An insufficient supply of blood to important organs (heart, brain, muscles) can be the result. Furthermore, with long-term increased blood pressure values, the heart will become structurally damaged. -
Page 8: Obtaining Accurate Measurements
• Always take measurements on the same arm (normally left) and in the same posture. Do not switch between right and left arms while recording your blood pressure as there may be a difference of up to 10 mmHg pressure between the two arms. -
Page 9: Common Sources Of Error
• A loose cuff causes false measurement values. • With repeated measurements, blood accumulates in the arm, which can lead to false results. Consecutive blood pressure measurements should be repeated after at least a 15 second pause or after the arm has been held up in order to allow the accumulated blood to flow away. - Page 10 The cuff should fit snugly around the arm, but not too tight. You should be able to fit two fingers under the cuff. e) Place the arm on the table (palm facing upwards) so that the cuff is at the same level as the heart.
-
Page 11: Battery Installation
If this device was stored in low temperature, it is necessary to leave it in room temperature for at least 1 hour, otherwise the measurement can be inaccurate. ATTENTION: Do not use cuff other than the original cuff contained in this kit! 3. - Page 12 • Use only the same type of batteries together. Replace all batteries simultaneously; if the device isn’t being used for a long time, please take out the batteries. • Don’t leave the worn batteries in the device. 4. Using the Device With AC Power Adapter Besides batteries you can use the AC power adapter as the power supply.
-
Page 13: Setting The Date And Time
5. Setting the Date and Time The function provides accurate measuring time for each measurement. To get accurate date and time, the user should preset the date and time correctly before the first use of this device. The operation procedure for presetting Date/Time is as follows: 1. - Page 14 5. Press button ‘M1’ or button ‘M2’ to record the reading in corresponding memory. For example, if button ‘M2’ is pressed, the display will show as Fig.8. If the user does not press button ‘M1’ or ‘M2’ or press button O/I, the reading won’t be recorded.
-
Page 15: Function Of Memory
7. Function of Memory Memory Recall 1. RX805 can store 60 sets of readings each in ‘M1’ and ‘M2’, and will automatically calculate the average value of the latest 3 readings for ‘M1’ and ‘M2’ respectively. When the memory is full (60 sets of readings are stored), the oldest reading will be replaced by a new one. -
Page 16: Memory Clearance
3. Press again, the display will show ‘01’, which means the last reading taken, then turns to another screen to show readings and measuring time as Fig.10; 4. Press again, the display will show ‘02’, which means the second to the last reading taken. -
Page 17: Who Blood Pressure Classification Indication
It is important that you be relaxed, remain still and do not talk during measurement. If the symbol appears frequently (e.g. several times a week), it may be an idication of a more serious heart problem, and you should consult your doctor. -
Page 18: Error And Low Battery Information
11. Care, Storing, Repair and Recycling 1. It’s necessary to protect this device against high moisture, direct sunlight, shock, solvent, alcohol and gasoline. 2. Remove the batteries if the device is to be stored for a long time, and keep the batteries away from children. -
Page 19: Troubleshooting
7. Do not open the device. It has delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instruction, request service from your dealer. - Page 20 Inflation stops and The automatic inflation See “Automatic re-inflates later. for ensuring correct Inflation” measurement. Did you talk or move Remain still and silent your arm (or hand) during during the measurement. measurement? The reading is Is the cuff at the same Make sure that your extremely high or low.
- Page 21 If you have questions regarding the operation of your monitor call the Blood Pressure Hotline: 1-866-536-2289 Should repair be necessary, return the unit with all component pieces. Enclose proof of purchase and $5.00 for return shipping and insurance. Ship the unit prepaid and insured (at owners option) to: Thermor Ltd.
- Page 22 14. Technical Specifications Model: RX805 Size: 127(L) x 99(W) x 50(H)mm Weight: Approximately 255g without batteries Measuring method: Oscillometry Measuring range: 40 to 260 mmHg (blood pressure) 40 to 160 beats/minute (pulse rate) Measuring accuracy: ±3 mmHg for static pressure...
