Technical Specifications
(1) System Mode: VHF/RF
(2) Modulation: FM
(3) Audio Mode: Stereo
(4) Carrier Frequency: chA: 108.2 MHz, chB: 109.2MHz
(5) Transmission Power: <10mW
(6) Operating Distance: 30 meters/100 feet (Open Air)
(7) S/N Ratio: >70dB
(8) Channel Separation: >50dB
(9) Distortion: <1%
(10) Frequency Response: 30 - 15000 Hz
(11) Headphone Power Supply: 2 x AAA batteries (not included)
(12) Transmitter Power Supply: 2 x AAA batteries (not included) or DC5V
Special Features
Double PLL and MCU System
Both the Transmitter and the Headphones are equipped with a Phase
Lock Loop (PLL) and Micro Computer (MCU) System to provide the
ultimate in transmission and reception frequency stability.
Active Noise Reduction Technology
Active noise reduction technology is employed for crystal clear sound.
Manufactured for:
www.sonictechnology.com
Tele: 1-800-247-5548
E-Mail: info@sonictechnology.com

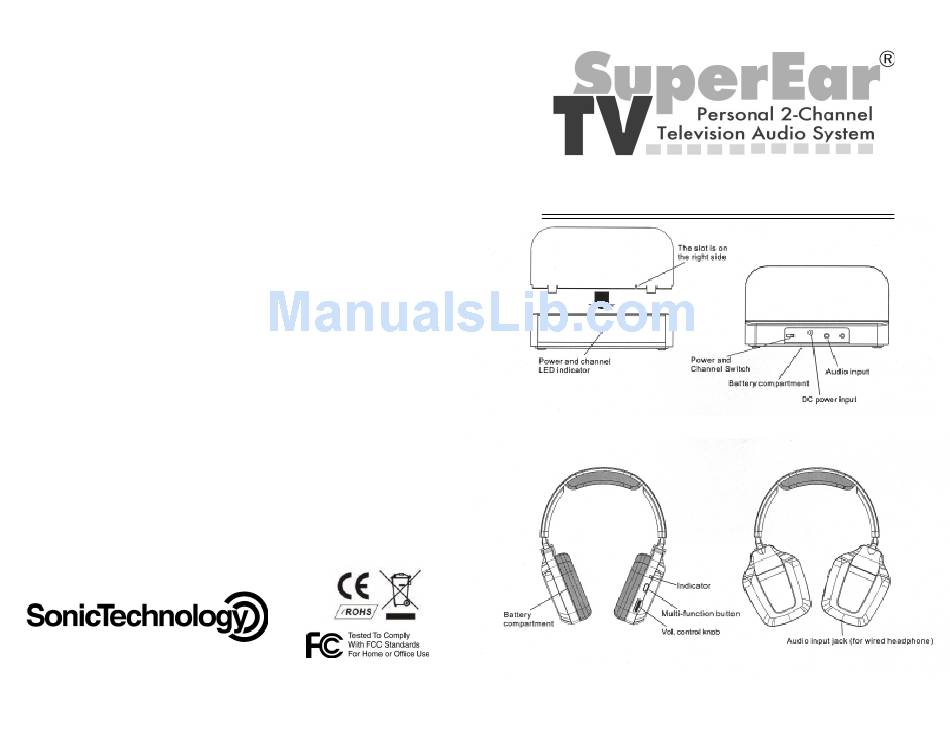

MODEL SE1900 USER MANUAL
WIRELESS AUDIO TRANSMISSION SYSTEM
TRANSMITTER
HEADPHONES
Advertisement
Table of Contents
Summary of Contents for Super Ear SE1900
-
Page 1: Technical Specifications
(1) System Mode: VHF/RF (2) Modulation: FM (3) Audio Mode: Stereo (4) Carrier Frequency: chA: 108.2 MHz, chB: 109.2MHz MODEL SE1900 USER MANUAL (5) Transmission Power: <10mW WIRELESS AUDIO TRANSMISSION SYSTEM (6) Operating Distance: 30 meters/100 feet (Open Air) (7) S/N Ratio: >70dB (8) Channel Separation: >50dB... - Page 2 2. Headphones System Components Twist and remove the left ear cushion of the headphones, insert two 1) Transmitter (4) User Manual AAA (1.5V) batteries into the battery compartment with the (+) and (-) (2) Headphones (5) USB Power Supply Cable 1pc poles positioned correctly, then replace the left ear cushion.
