Smartec – 1-Channel Video Decoder
STS-IPD160
Firmware User manual
www.smartec-security.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STS-IPD160 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartec STS-IPD160

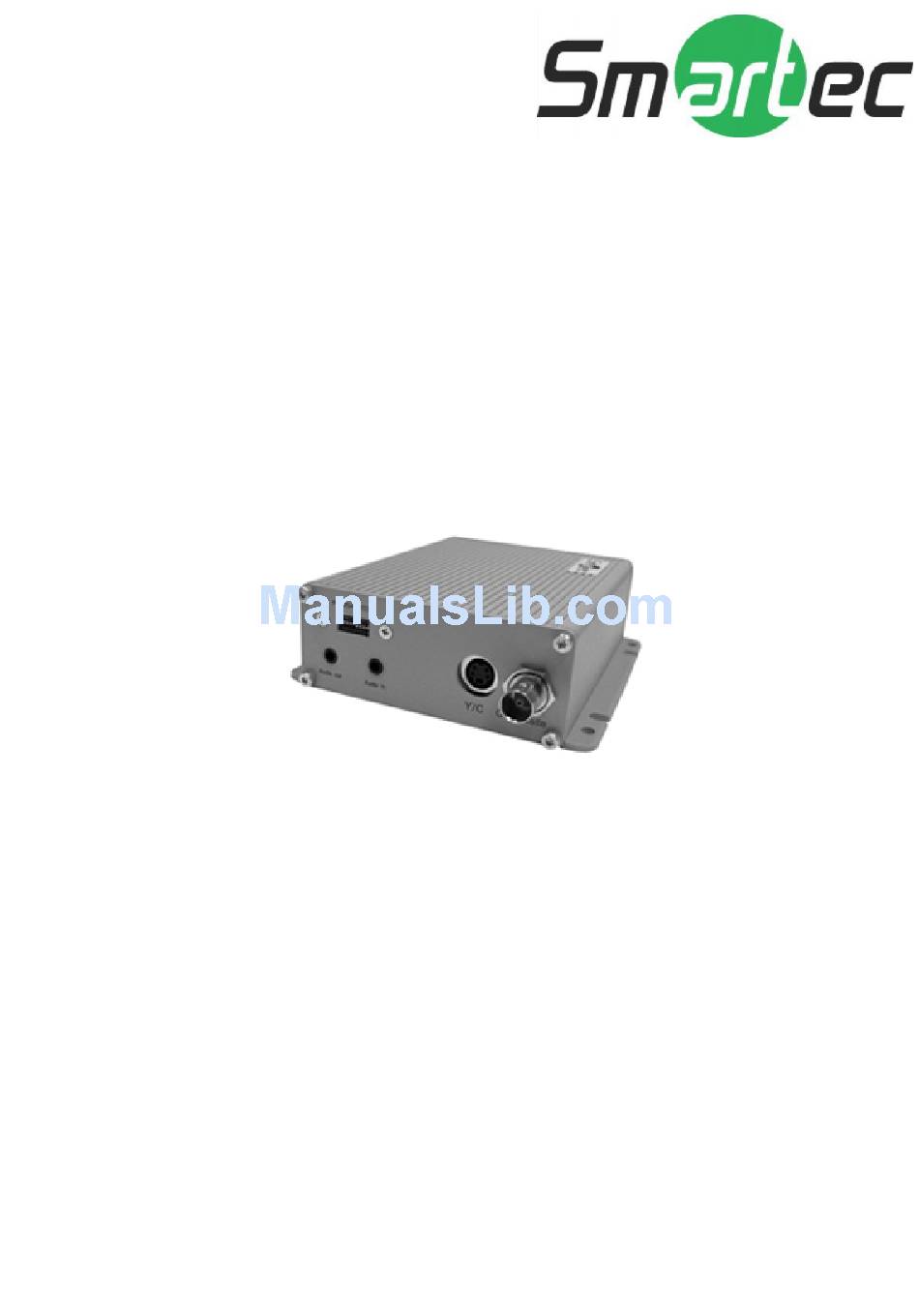

  • Page 1 Smartec – 1-Channel Video Decoder STS-IPD160 Firmware User manual www.smartec-security.eu...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ____________________________________________________1 Minimum system requirements ______________________________________ 1 Preparation before setup ___________________________________________ 2 1.2.1 Setup your PC network ___________________________________________________2 Configuring the video Decoder ______________________________________ 6 1.3.1 Host Setting ____________________________________________________________8 1.3.2 WAN Setting __________________________________________________________12 1.3.3 Connection Setting _____________________________________________________15 1.3.4 User Account Management _______________________________________________17 1.3.5 Port Setting____________________________________________________________18 1.3.6...

  • Page 3: Introduction

    INTRODUCTION 1.1 Minimum system requirements Pentinum 4 2.4GHz and above 40 GB or above Hard Disk 256 MB or above Memory Windows XP / Windows 2000 with SP4 or above Operating System FFDShow, DirectX 9.0b or later hardware acceleration Required Utilities SVGA or XGA with 1024x768 resolution, 32-bit color Video Resolution...

  • Page 4: Preparation Before Setup

    1.2 Preparation before setup To configure the video Decoder, you have to use the Internet Explorer to login the video Decoder. Before that, your PC’s networks settings and the video Decoder’s IP address must be setup. Make sure all the connections are connected correctly, and then follow the procedures below to setup.
  • Page 5 Start up your PC. STEP2 Click the [Start] and select the "Control Panel" STEP3 Double-click the "Network and Internet connections" icon. STEP4...
  • Page 6 Double-click the "Network connections" icon STEP5 Click “Local Area Connections”, and then click “Change settings of this connection” in the network Task menu. STEP6 Click “Internet Protocol (TCP/IP)”, and then click the [Properties] button.
  • Page 7 STEP7 Click the “Use the following IP address” radio button and enter the IP address and the subnet mask. Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. 0 (NOTE: xxx should be a number from 1 to 254, but 200 is excepted.) STEP8 Click the [OK] button and the window dialog box closes.

  • Page 8: Configuring The Video Decoder

    1.3 Configuring the video Decoder This section describes how to configure the video Decoder. The product administrator has unlimited access to all setup windows and normal users can only watch the live image. The video Decoder is configured under a standard browser (Microsoft Internet Explorer 6.0 or above).
  • Page 9 change the default user interface language. STEP5: Click the button to login or click the button to re-enter again.

  • Page 10: Host Setting

    1.3.1 Host Setting This section tells you how to setup video Decoder’s host settings and LAN settings. STEP1: Click the [Host Setting] on the “Main Setup page”. The “Host setting page” is displayed as below.
  • Page 11 STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 12 ■ Host Setting Parameters Description Enter a host name, and this host name will be shown when you Host name use the IP utility or the SDK to search for the video Decoder. Select the language of default user-interface. Each user login Language will see the default user-interface first.
  • Page 13 ■ Audio Volumn Setting Parameters Description Set “On” to increase audio signal, or “Off” to do nothing of Audio In Gain increasing audio Audio Out Vol Audio out volumn setting STEP3: Click the [Apply] button of each setting to confirm the settings or click the [Reset] button to re-enter the parameters.

  • Page 14: Wan Setting

    1.3.2 WAN Setting This section tells you how to setup video Decoder’s WAN, DNS server and DDNS server settings. STEP1: Click the [WAN Setting] on the “Main Setup page”. The “WAN setting page” is displayed as below STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 15 ■ WAN Setting Parameters Description Click this to enable video Decoder’s DHCP function. Dynamic IP It will acquire its WAN port IP address from a DHCP server within the same network. (You must have a DHCP server in address order to enable this function.) Click this to manually enter the video Decoder WAN port IP address.
  • Page 16 Enter the password to login your DDNS service account. Password STEP3: Click the [Apply] button of each setting to confirm the settings or click the [Reset] button to re-enter the parameters. NOTE: Check with your system administrator, if Client PC and video Decoder are setting in different VLANs, please connect to WAN port.

  • Page 17: Connection Setting

    1.3.3 Connection Setting This section tells you how to setup video server or IP camera’s video and streaming settings. STEP1: Click the [Video Setting] on the “Main Setup page”. The “Video setting page” is displayed as below STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 18 3. 6(NTSC) or 5(PAL) 4. 3(NTSC) or 3(PAL) 5. 1(NTSC) or 1(PAL) Set IP address or domain name of a video server / IP TCTCP Connect IP camera while Connect Type is TCP Streaming. Set IP address of video server / IP camera while Connect Multicast Connect IP Type is Multicast streaming.

  • Page 19: User Account Management

    1.3.4 User Account Management This section tells you how to setup the accounts. STEP1: Click the [User account] on the “Main Setup page”. The “Account management page” is displayed as below STEP2: Setup the account names and their respective passwords. There are 1 root (administrator) account and 10 common user...

  • Page 20: Port Setting

    1.3.5 Port Setting This section tells you how to setup the ports. STEP1: Click the [Port Setting] on the “Main Setup page”. The “Port setting page” is displayed as below STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.

  • Page 21: System Info

    1.3.6 System Info This section tells you how to see the system information of this video Decoder including firmware version, MAC address, WAN status and system log. STEP1: Click the [System info] on the “Main Setup page”. The “System information page” is displayed as below STEP2: View the information at the 3 columns.
  • Page 22 It shows the firmware version, MAC address, and video System info Decoder’s production ID. It shows the WAN port’s IP address, netmask, gateway, DNS WAN status server, DDNS host and connection status. It shows the system event. This column is very useful to as a System log diagnostic tool.

  • Page 23: Firmware Upgrade

    1.3.7 Firmware Upgrade This section tells you how to see update video Decoder’s firmware. You can always visit our web site for the latest firmware. STEP1: Click the [Firmware] on the “Main Setup page”. The “Firmware upgrade page-1” is displayed as below STEP2: Click [Apply] button.
  • Page 24 You can upload the firmware images here. Firmware Click the [browse] to select the an image file and click the [enter]. images file You can always get the latest version at our website. You can upload the MD5 file here. Click the [browse] to select an MD5 file and click the [enter].

  • Page 25: Factory Default

    1.3.8 Factory Default This section tells you how to load the factory default setting of video Decoder STEP1: Click the [Factory Default] on the “Main Setup page”. The “Factory default setting page” is displayed as below STEP2: Click the [Apply] button to go to the loading confirmation page or click the [Reset] button to exit to previous page.

  • Page 26: Save Reboot

    1.3.9 Save Reboot This section tells you how to save all the settings and reboot this video Decoder. This is critical because some settings might not take effect before save and reboot. STEP1: Click the [Save and reboot] on the “Main Setup page”. The “Save and reboot page”...

  • Page 27: Logout

    1.3.10 Logout This section tells you how to logout the video Decoder. Be sure to logout this video Decoder once your setting is completed. STEP1: Click the [Logout] on the “Main Setup page”. You will logout and return to the “Login Page” displayed as below.
