Chapter 1 – Getting Started
1.1 Subject
The Neo ProLink V9 adapter—an integration that links between an iPod (and iPhone) and a car stereo. The ProLink
adapter features are:
- iPod/iPhone© play, charge and control via EXT2 port.
- Bluetooth capability via additional EXT1 port and Bluetooth Dongle for hands free and wireless audio streaming
from your mobile phone.
- AUX-IN 3.5mm connector for many other audio devices such as XM radio, MP3 or DVD player. via EXT1 port.
- Firmware upgradeable via micro SD card, universal adapter that fits into many car makes.
1.2 Introduction
Thank you for purchasing the Neo ProLink adapter. It has been designed to provide endless hours of listening
pleasure through most vehicles' factory radios. You will be able to control your iPod/iPhone with the car stereo
buttons or steering wheel controls, and your iPod/iPhone will stay charged when connected to the car stereo.
Additional EXT port will allow you to connect Bluetooth Dongle or any other audio device that has 3.5mm plug. To
ensure that your iPod/iPhone performs correctly in your car or truck, we recommend that you read your vehicles
section in this manual before attempting to install the interface.
1.3 Precautions
Proper mounting location
Securely install the interface in a location that is free from heat, humidity, moving parts, or direct sunlight. Beware of
the hot airflow from your vehicle's climate control system. We recommend securing the interface to a suitable
location that is free of sharp metal edges using double-sided tape, Velcro, or wire ties.
The iPod/iPhone has not been designed to withstand extreme automotive temperatures. You may damage your
iPod/iPhone if you leave it inside your vehicle on a very hot or very cold day. For further information, please refer to
your iPod/iPhone manual.
1.4 Disclaimer
This product is not affiliated with any OEM manufacturers.
Modifying the radio may void any outstanding warranty.
The purchase of this product carries with it no warranties, either expressed or implied.
While every care has been taken to provide a quality product, we cannot guarantee that the Neo iPod
adapter will function correctly if installation is not done according to the instructions provided in this guide.

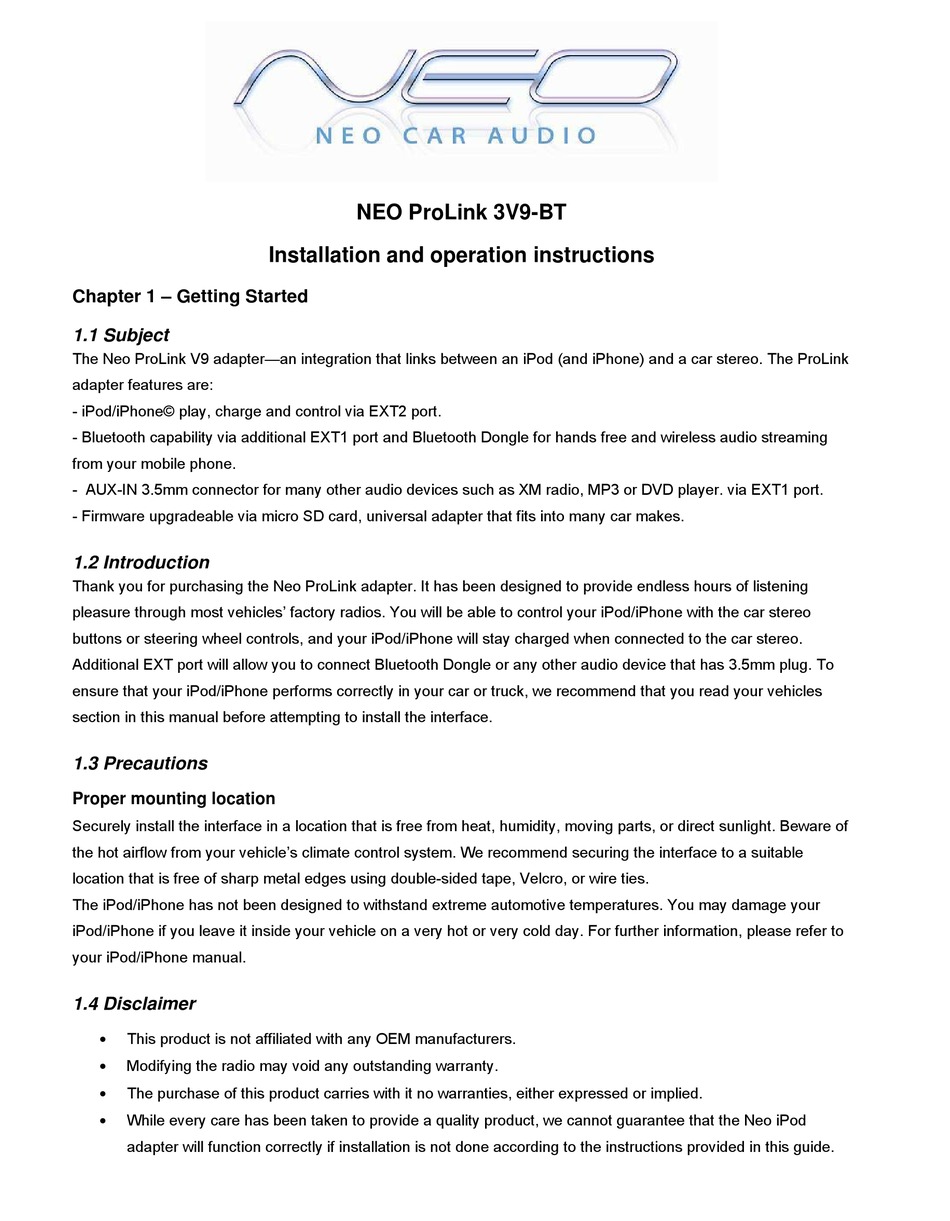

NEO ProLink 3V9-BT
Installation and operation instructions
Advertisement
Table of Contents
Related Manuals for Neo Car Audio ProLink 3V9-BT
Summary of Contents for Neo Car Audio ProLink 3V9-BT
- Page 1 NEO ProLink 3V9-BT Installation and operation instructions Chapter 1 – Getting Started 1.1 Subject The Neo ProLink V9 adapter—an integration that links between an iPod (and iPhone) and a car stereo. The ProLink adapter features are: - iPod/iPhone© play, charge and control via EXT2 port.
- Page 2 1.5 Kit Contents and Vehicle Connection a) The Neo Car Audio adapter set consists of the 3V9 interface, one iPod dock cable, and one vehicle-specific cable with optional accessories.
-
Page 3: Important Compatibility Notes
6. For AUDI vehicles only: For some AUDI headunits an additional part or harness modification is required in order to gain the access to the CD changer port. The 8-pin CD changer port on such stereos is occupied by a solid 20-pin connector. Please contact NEO Car Audio to get a special harness to retain factory connections... - Page 4 7. For BMW vehicles only: Please refer to the installation insert for the special guidelines for BMW installation. 8. For Toyota/Honda vehicles only: In some Toyota/Lexus/Scion and Honda/Acura vehicles the CD changer port is occupied with a factory harness (such as NAV or audio harness). The NEO package for Toyota/Lexus or Honda/Acura includes a Y shaped vehicle cable.
- Page 5 Chapter 3- Usage manual 3.1 Supported iPods 4th Gen iPod and newer / Nano 1st, 2nd, 3rd, 5th Gen and Nano-chromatic / iPod Video / iPod Photo / iPod Classic 1st and 2nd Gen / iPod Touch 1st and 2nd Gen / iPhone / iPhone 3G / iPhone 3GS / iPhone 4 3.2 Basic features The 3V9-iPod adapter has two modes of operation: 3.2.1...
- Page 6 Next track When pressed on car stereo, iPod will jump to the next song and car stereo track number will represent song number in a current playlist Previous track When pressed on car stereo, iPod will jump to the previous song and car stereo track number will represent song number in a current playlist Fast Forward When pressed iPod will start rewinding current track forward.
-
Page 7: Troubleshooting
3.7 Using EXT1 for AUX-IN on your NEO 3V9 adapter You can connect any alternative audio sources such as MP3 player, DVD, GPS, XM and etc. to the Neo Car Audio adapter via Mini Din to RCA and 3.5mm phone jack cable (must be purchased separately, is not included in the basic package). -
Page 8: One Year Limited Warranty
All parts of this NEO CAR AUDIO product are guaranteed for a period of 1 year as follows: Within the first 12 months from date of purchase, subject to the conditions above, NEO CAR AUDIO will repair or replace the product if it is defective in material or workmanship providing it is returned to NEO CAR AUDIO, with PROOF OF PURCHASE from an authorized dealer. -
Page 9: Chapter 1 - Getting Started
BLUBTDV9 also enables wireless A2DP playback with AVRCP control. 1.2 Introduction Thank you for purchasing the Neo Car Audio Bluetooth Dongle. With the Bluetooth Dongle you will be able to: u se your phone in your car hands free;... -
Page 10: Chapter 2 - General Installation
Pic. 1 The NEO CAR AUDIO Bluetooth Dongle (microphone shape and mount may vary) Chapter 2 – General Installation 2.1 Installation location: 1. Connect the BLUBTDV9 8 pin connector to the EXT or EXT1 port of the V9 interface. Mount the BLUBTDV9 module away from metal structures in the dash and as close to the phone as possible. - Page 11 2.3 Operating with more than one playing source connected. If you have any audio player connected to the NEO CAR AUDIO-V9 Kit via AUX port please disconnect the player. You can leave AUX cable in its place. BLUBTDV9 will not be able to mute the audio player connected via AUX cable.
-
Page 12: Troubleshooting And Support
1. Switch off NEO CAR AUDIO mode (FM for example). 2. Wait 3-4 seconds 3. Switch to NEO CAR AUDIO mode and after 1 second press SCAN button 4. You will hear low beep confirming the reset The sound from the microphone is distorted or muted.
