Memphis Select

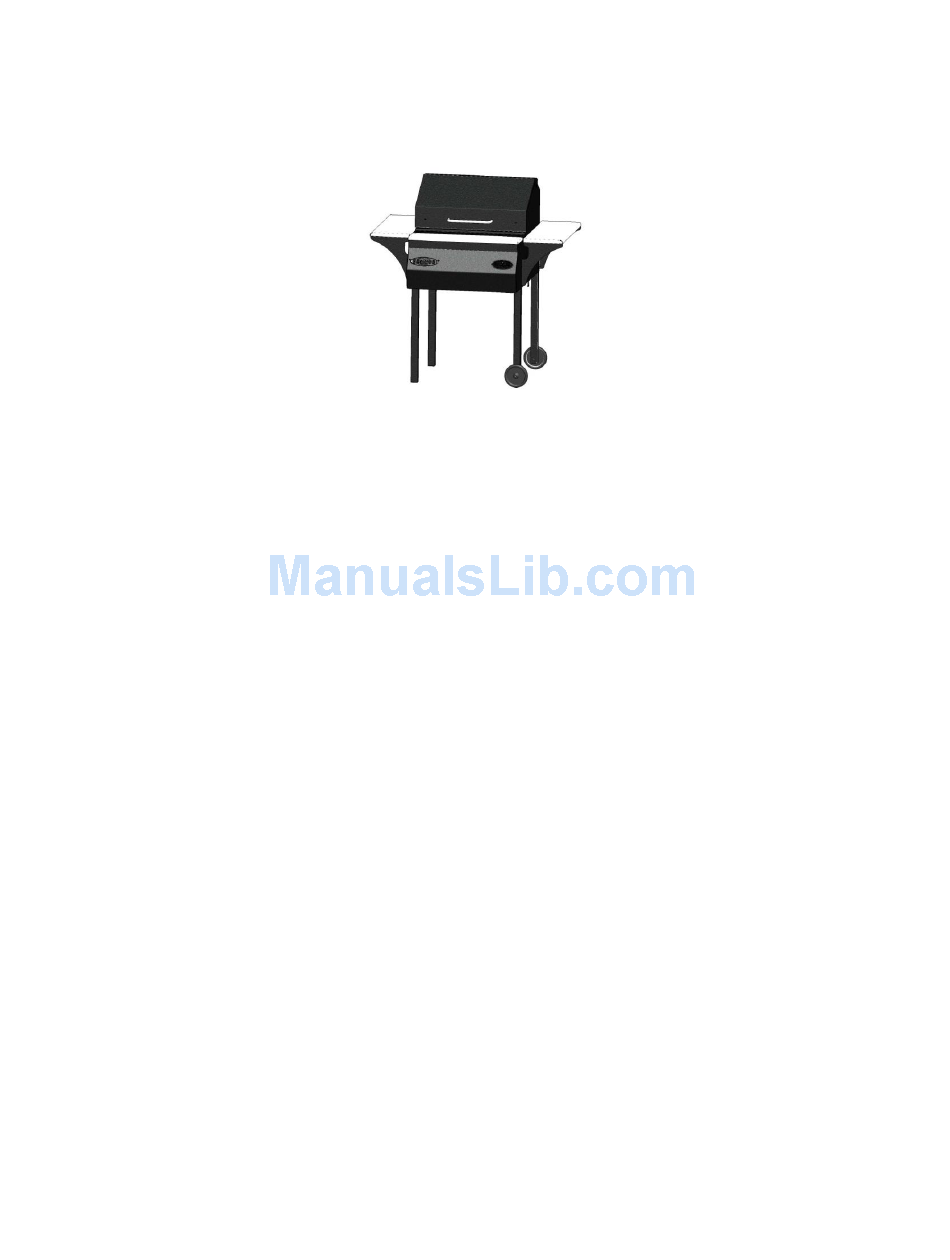

Wood Fire Convection Grill
"Revolutionizing Outdoor Cooking"
Owner's Manual and User's Guide
Congratulations on your purchase of the Memphis Select Wood Fire Convection Grill. With proper care and
maintenance, your grill will give you years of trouble-free operation. Please review the following information
carefully for useful tips and information that will help you utilize your grill's extensive features and benefits.
Keep in mind that your Memphis Select Wood Fired Convection Grill is so much more than a grill. It's a true
convection oven, featuring a computerized Intelligent Temperature Control (ITC) which automatically adjusts
for outside ambient conditions. The result is a simple "set it and forget it" way to cook, bake, roast, sear or
low and slow smoke; whether it's 40° or 90° outside, just set the desired temperature and sit back and enjoy.
We all have our favorite recipes and cooking tricks. We suggest you experiment with your new grill to discover
just how many ways it adds to your outdoor cooking experience. With a little time and effort you'll amaze your
friends and family with your impressive culinary skills. Like many of us, you'll find that your Memphis Select
Wood Fired Convection Grill will become your cooking appliance of choice; eliminating heat and odors from
cooking indoors, while giving you unbeatable results.
Before you get started, take a few moments to register your grill and write your model and serial number in
the space provided. Fill in the information here and on page 37 as well. This will register your warranty and
make it quick and easy to reference this information in the future. Your model and serial number are located
on the sticker under the hopper lid.
Thank you for choosing the Memphis Advantage Wood Fire Convection Grill!
Model_________________________________________________________________________________
Serial Number:______10VG0070-__________________________________________________________
Date of Purchase_______________________________________________________________________
Dealer________________________________________________________________________________
Memphis Select Owner's Manual Revision D
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10VG0070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Memphis Select 10VG0070

  • Page 1 Keep in mind that your Memphis Select Wood Fired Convection Grill is so much more than a grill. It's a true convection oven, featuring a computerized Intelligent Temperature Control (ITC) which automatically adjusts for outside ambient conditions.
  • Page 2: Table Of Contents

    25-26 Food Handling and Safety Appendix A – Approximate Grilling Times 28-30 Appendix B – Approximate Smoking Times Appendix C – Smoking – General Information Wiring Diagram Limited Warranty 34-35 Blank Page Warranty Registration Memphis Select Owner’s Manual Revision D...
  • Page 3: Safety Information

    Do not move your Memphis Wood Fired Grill while operating or while the grill is hot. Make sure the fire is completely out, and that the grill is completely cold before transporting the grill. Memphis Select Owner’s Manual Revision D...
  • Page 4: Unpacking And Assembling Your Memphis Wood Fired Convection Grill

    2 - Shelf tops 4 - Shelf support brackets (2 - Shelf bracket right) (2 - Shelf bracket left) 8 - #10 Self-tapping screws Procedure for Assembly – See Diagrams on the following pages. Memphis Select Owner’s Manual Revision D...
  • Page 5 Memphis Select Owner’s Manual Revision D...
  • Page 6 VG1749 WHEEL LEG VG0540 PELLET HOPPER LID 1.50” ZINC PLATED DS2290 VG0593 HOPPER EXT COVER WASHER VG9501 5” POLYOLEFIN WHEEL VG5504 BURN POT ASSEMBLY 3/8”-16 X 1.5” RTD TEMPERATURE DS2277 VS0927 SHOULDER SCREW PROBE Memphis Select Owner’s Manual Revision D...
  • Page 7 Memphis Select Owner’s Manual Revision D...
  • Page 8 Memphis Select Owner’s Manual Revision D...
  • Page 9 WHEEL TUBE LEG VG1748 STATIONARY TUBE LEG DS2178 1/4-20 X 3/4” HEX HEAD BOLT DS2290 1.50” DIA. ZINC PLATED WASHER VG9501 5” POLYOLEFIN WHEEL DS2277 3/8-16 X 1.5” SHOULDER SCREW DS2001P 3/8-16 ANTI-ROTATION NUT Memphis Select Owner’s Manual Revision D...
  • Page 10 Memphis Select Owner’s Manual Revision D...
  • Page 11 Memphis Select Owner’s Manual Revision D...
  • Page 12 Memphis Select Owner’s Manual Revision D...
  • Page 13 Memphis Select Owner’s Manual Revision D...
  • Page 14 Memphis Select Owner’s Manual Revision D...
  • Page 15 How Your Memphis Select Wood Fired, Convection Grill Works: Your Memphis Select Wood Fire Convection Grill represents a new way of outdoor cooking. It is a true high quality convection oven that also has grilling and smoking capability. It combines many unique features with time-proven pellet-burning technology.
  • Page 16: Read Prior To Lighting

    Always cook with the lid closed. An open lid negates the convection air and lengthens cooking times. Cooking with the lid closed keeps the temperature even, cooking the food faster while using less fuel. A closed lid also helps to create a smokier flavor. Memphis Select Owner’s Manual Revision D...
  • Page 17: Intelligent Temperature Control – Overview

    Temp (Temperature) up and down touch pad By pressing either the up or down arrows, the LED readout can be moved in 5 degree increments. The temperature setting range is 200°-295°F for smoking and 300°-500°F for cooking. Memphis Select Owner’s Manual Revision D...
  • Page 18 LED beside Cook or Smoke is used to indicate which mode is being used and blinks to indicate the start up (igniter is on) or shut down (fans are running to cool the grill) status of the grill. Memphis Select Owner’s Manual Revision D...
  • Page 19 Using Your Memphis Select Wood Fired Convection Grill Prior to starting your cooking center, inspect the burn area inside the grilling area. It's a recommended practice to go through this procedure at initial start up and after every few uses to ensure peak performance.
  • Page 20: Operating Instructions

    Operating Instructions: Memphis Select Wood Fired Convection Grill and Computerized Intelligent Temperature Control (ITC). About the ITC: The ITC is very much the same as the control on your kitchen oven. The big difference is the ITC's ability to automatically compensate for different ambient conditions. This means that you can cook outside in nearly any weather.
  • Page 21 Once the grill cools to 130F, restart using the normal starting procedure. When preparing particularly greasy food place a pan partially filled with water under item to catch grease. Memphis Select Owner’s Manual Revision D...
  • Page 22 Cover the cooking center with the optional cover. Note: If grease or smoke discoloration is allowed to stay for long periods of time you may need a stronger cleaner to remove. Frequent through cleanings are strongly advised. Memphis Select Owner’s Manual Revision D...
  • Page 23: Information About Bbq Cooking Pellets

    Flavor is an individual taste and we suggest you try the different flavors or combinations of flavors to find the combinations that suit your needs and tastes. (See you local dealer or go to www.natureswaypellets.com to order individual pellet flavors) Memphis Select Owner’s Manual Revision D...
  • Page 24: Periodic Grill Maintenance

    Do not use high-pressure hoses or steam to clean or use stiff brushes, harsh detergents, abrasive cleaners or chlorine on your grill cover. Do not store your cover in the lower grill cabinet while the grill is in use. Memphis Select Owner’s Manual Revision D...
  • Page 25: Recommended Grilling Accessories

    Rib racks are a great way to increase your capacity of your grill for those large gatherings. They can also be used for chops and chicken pieces. (Additional small grates are available for purchase and will allow you to significantly increase your total cooking surface.) Memphis Select Owner’s Manual Revision D...
  • Page 26 It is important to clean your grill thoroughly before each use. A long handled brush with metal bristles is the best tool for the job. Skillets and Woks These kitchen favorites allow you to stir-grill vegetables, seafood, and other small pieces of food the same way you would if you were indoors. Memphis Select Owner’s Manual Revision D...
  • Page 27: Food Handling And Safety

    It’s a good idea to put grilled food onto a heated platter to help keep the food warm. Steaks benefit from resting for several minutes before serving. This seals those delicious juices in the meat. Memphis Select Owner’s Manual Revision D...
  • Page 28 Steaks, Sirloin, or Leg 1" thick 350°- 375° 5 min./side 145 to 160 Kabobs 1" cubes 350°- 375° 4 min./side 145 to 160 Patties, Ground 4 oz., 1/2" 450°- 500° 3 min./side Medium 160 thick Memphis Select Owner’s Manual Revision D...
  • Page 29 4 to 7 lbs. 325°F,160°c 1 to 1 3/4 hrs. boneless Thighs, Drumsticks (indirect heat) 8 to 16 oz. 325°F,160°c 1 1/2 to 2 hrs. Direct heat (pre-cook 1 hr.) 8 to 10 min./side Memphis Select Owner’s Manual Revision D...
  • Page 30 Boneless turkey roll (indirect heat) 2 to 5 lbs. 325°F,160°c 1 1/2 to 2 hrs. 170 to 175 5 to 10 lbs. 2 to 3 1/2 hrs. Memphis Select Owner’s Manual Revision D...
  • Page 31: Appendix B – Approximate Smoking Times

    200°-275° 160-180 PORK, Fresh VEAL 200°-275° 145 to 160 VENISON 200°-275° 145 to 160 CHICKEN 200°-275° 170 to 180 DUCK or GOOSE 200°-275° 180 to 185 TURKEY 200°-275° 180 as measured in the thigh Memphis Select Owner’s Manual Revision D...
  • Page 32: Appendix C – Smoking – General Information

    If you wish to smoke at lower temperatures the Memphis Select is calibrated to allow you to go as low When smoking at the lower temperatures it’s critical that you use a premium food as 200°.
  • Page 33: Wiring Diagram

    VG0070 WIRING DIAGRAM Memphis Select Owner’s Manual Revision D...
  • Page 34: Limited Warranty

    ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR OTHER DAMAGES OF ANY NATURE WHATSOEVER IN EXCESS OF THE ORIGINAL PURCHASE PRICE OF THIS PRODUCT. ALL WARRANTIES BY MANUFACTURER ARE SET FORTH HEREIN AND NO CLAIM SHALL BE Memphis Select Owner’s Manual Revision D...
  • Page 35: Limited Warranty

    Call your nearest HP dealer for repair or replacement of your “in-warranty” parts. Be prepared to furnish the following information: 1. Purchaser’s name, model and serial number of grill and date of purchase. 2. An accurate description of the problem. ============================================================= Memphis Select Owner’s Manual Revision D...
  • Page 36: Blank

    This page is intentionally left blank. Memphis Select Owner’s Manual Revision D...
  • Page 37: Warranty Registration

    Send Registration Card to the following address: Hearthland Products, LLC. Memphis Select Grill Warranty Registration 9111 Grand Ave S Bloomington, MN 55420 Memphis Select Wood Fired Convection Grill. Thank you for choosing a 5-18-10 Memphis Select Owner’s Manual Revision D...
