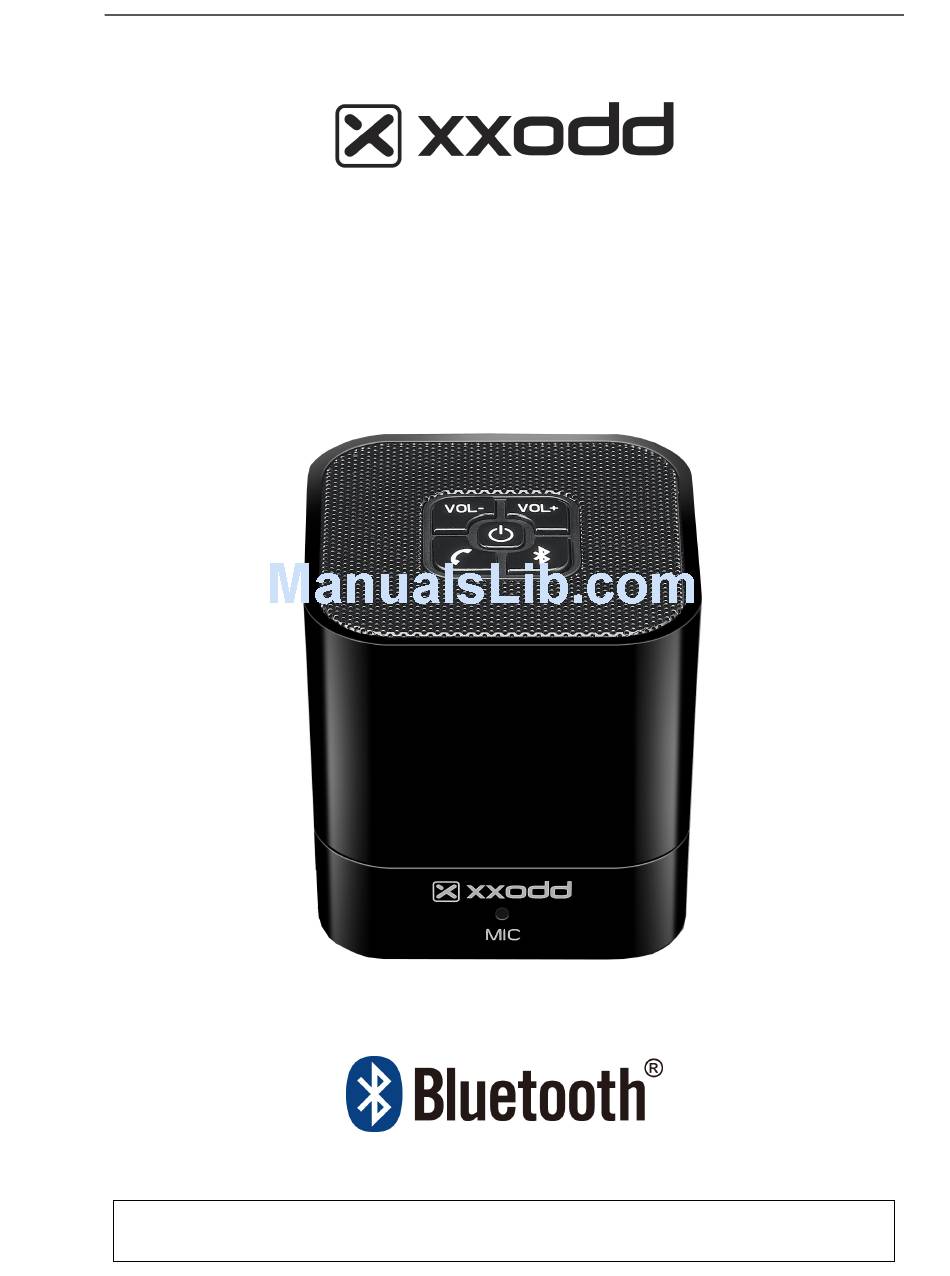

- Page 1 BLUETOOTH WIRELESS SPEAKER WITH POWERBANK FUNCTION WOOMBOX USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. -
Page 3: Compliance With Fcc Regulations
IMPORTANT NOTES Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. • Places subject to constant vibration. • Dusty, humid or moist places. NOTE: This product is not magnetically shielded and may cause color distortion on the screen of some TVs or video monitors. -
Page 4: Protect Your Furniture
PRODUCT FEATURES The Woombox is a Bluetooth portable speaker with the following features: Auxiliary input jack to play music from your iPod or digital audio player Wireless playback of music from your mobile phone via the Bluetooth connection... -
Page 5: Led Status Indicators
PHONE BUTTON VOLUME DOWN (-) BUTTON POWER ON/OFF BUTTON; 5V DC-OUT BUTTON; POWER/CHARGING INDICATOR VOLUME UP (+) BUTTON BLUETOOTH ON/OFF BUTTON; BLUETOOTH STATUS INDICATOR CONDENSOR MIC DC OUT/AUXILIARY BATTERY CHARGING USB PORT AUX-IN JACK DC IN/BUILT-IN BATTERY CHARGING MICRO-USB PORT SPEAKER LED STATUS INDICATORS POWER LED... -
Page 6: Charging Instructions
BLUETOOTH LED （ R ed & Blue , beneath Bluetooth button ） Not in pairing LED Off Tapping Bluetooth button for In pairing Red & Blue flash alternatively 3 seconds to enter pairing Failed to link Red flashes twice per second mode. -
Page 7: Bluetooth Operation
3. Turn on the Bluetooth feature of your mobile phone and enable the search or scan feature to find the " WOOMBOX ". 4. Select " WOOMBOX " from the device list when it appears on your screen. If required, enter the pass code “0000” to pair (link) the unit with your mobile phone. - Page 8 Adjusting volume of linked device will do as well. 4. To end the call, just tap the PHONE button again on WOOMBOX . A short beep sound will be heard and the call will end. If you were streaming music from your mobile phone to the WOOMBOX, the music will automatically resume streaming to the WOOMBOX.
- Page 9 1. Use the audio cable (included) with one 3.5 mm stereo plug on each end of the cable. 2. Plug one end into the AUX-IN jack on the WOOMBOX and the other end of the cable into the Line-out Jack or Headphone Jack of your external audio device.
- Page 10 1. Plug the unit into a USB port on your computer or into a DC 5V, 1000mA USB power adaptor (not included) using the included USB cable. 2. Plug the micro USB plug of the cable into the micro USB port of the WOOMBOX. Charging in Power On mode The Red &...
-
Page 11: Care And Maintenance
With a 700mA DC current maximum the WOOMBOX is capable of charging devices of 3,000mAH or below. 1. Connect the 5V USB DC OUT jack of the WOOMBOX to the charging port of your mobile phone with the USB cable included in the pack of the mobile phone when being purchased. -
Page 12: Troubleshooting Guide
WOOMBOX is placed out of working Place WOOMBOX within 10m of mobile phone Bluetooth mode range Increase volume of WOOMBOX , and that of Volume level was set too low source device if necessary. AUX IN socket was plugged Unplug AUX IN . -
Page 13: Specifications
SPECIFICATIONS Bluetooth: v3.0 Wireless Receiving Distance: 10M / 33FT Bluetooth Profiles: A2DP + HFP + HSP Advanced Audio Distribution Profile (A2DP) for Wireless Music Streaming. Hands-free Audio (HFP) and Headset Profiles (HSP) for Hands-free Speakerphone. Hands-free Speaker for Bluetooth Phone. Built-In Microphone.
