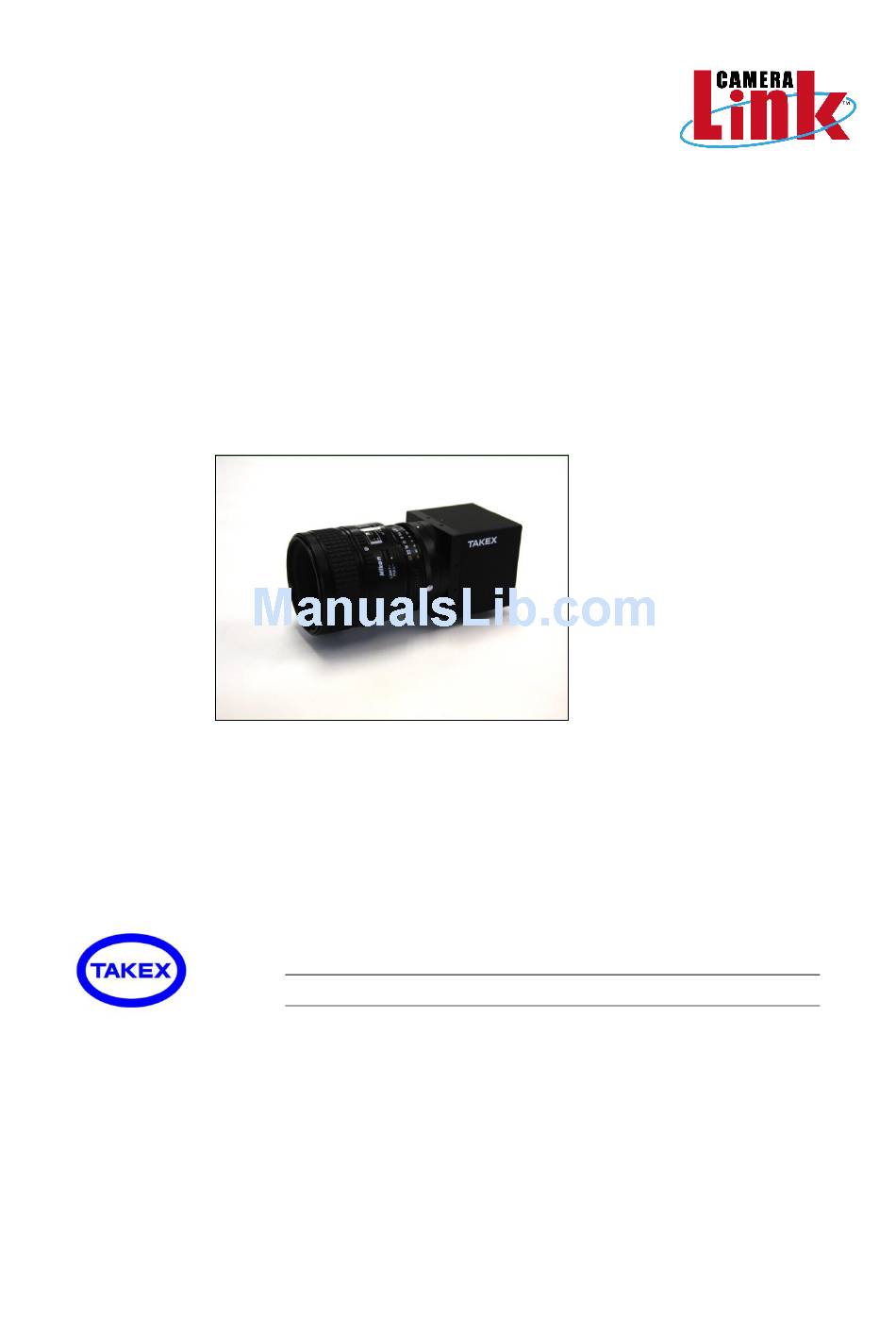

● We greatly appreciate your confidence choosing our TAKEX Line Scan Camera.
● Please read this manual and the attached guarantee certificate carefully and manage the camera properly.
Keep this manual at hand and reread it whenever you are unsure about the operation procedure.
□ H e a d
O f f i c e 86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN
□ C a m e r a
□ I m a g e I n s p e c t i o n D e p t .
□ T o k y o
O f f i c e 2F MK Bldg. 2-2-19 Sotokanda Chiyoda-ku 101-0021 Tokyo JAPAN
TAKENAKA SYSTEM CO.,LTD.
TAKENAKA SENSOR GROUP
Line scan camera
Instruction Manual
Model: TL-7400UCL
TAKENAKA SENSOR GROUP
TAKENAKA SYSTEM CO.,LTD.
TEL:+81-75-593-9300 FAX +81-75-593-9790
D e p t . 4F Matsumasa Bld.1-17-14 Ogaya Otsu Shiga 520-2144 JAPAN
TEL:+81-77-545-4331 FAX +81-77-545-4335
86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN
TEL:+81-75-593-9300 FAX +81-75-593-9790
TEL :+81-3-3255-0361
URL http://www.takex-system.co.jp/
URL http://www.takex.co.jp/
FAX:+81-3-3255-0362
(ver.0.9)
1 / 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-7400UCL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Takex TL-7400UCL

  • Page 1 Instruction Manual Model: TL-7400UCL ● We greatly appreciate your confidence choosing our TAKEX Line Scan Camera. ● Please read this manual and the attached guarantee certificate carefully and manage the camera properly. Keep this manual at hand and reread it whenever you are unsure about the operation procedure.
  • Page 2 The Brief History of Takenaka System Co. Takenaka System Co.(Trade mark:TAKEX) is the Japan’s first company to have produced the Line scan cameras. It was established in 1975 and began to produce and sell the Line scan cameras that year.

  • Page 3: Table Of Contents

    3 / 19 Table of Contents ………………………………………………… 4 1. Outline ………………………………………………… 4 2. Features ………………………………….…………… 4 3. Applications ……………………………………. ………… 5 4. CCD image sensor ………………………………… …………… 6 5. Specifications ……………………………… ……………… 7 6. Camera I/O 6-1. Power connector 6-2. Camera Link connector ……………………...

  • Page 4: Outline

    ● CCD line scan camera with 7400 pixels of image sensor and of 100MHz data rate. ● TL-7400UCL adopts the video signal output format complying with Camera Link standard (Unified standard for digital camera interface for industry). ● 2×8 /10 bit digital image signal output complying with Camera Link (Base Configuration).

  • Page 5: Ccd Image Sensor

    5 / 19 4. CCD image sensor μm square pixel, image sensor Is characterized by effective pixels and high speed performance. 7400 Charges accumulated in single-row photo diodes are divided into four groups (No.1 for ODD numbers of first half , No.2 for EVEN numbers of first half, No. 3 for ODD numbers of latter half ,No.4 for EVEN numbers of latter half ) and are output thorough four shift registers, respectively.

  • Page 6: Specifications

    6 / 19 5. Specifications 7400 Number of pixels 4.7μm × 4.7μm Pixel size 34.8 mm Photo array length 100 MHz (Max.) Data rate Scan rate 12.71 kHz 79 μsec(Min.) 100Ω termined Line transfer pulse input Base　Configuration Video output (Digital output) 2 ×...

  • Page 7: Camera I/O

    7 / 19 6. Camera I / O Connector panel Camera Link connector Power connector Power indicator 6-1 Power connector Power is supplied through 6 pin connector. Though ripple-free and stable power source is preferable, the switching supply is also employable. In general, ripple voltage of a stabilized power source is approx.35mV, and approx.120mV for a switching supply.
  • Page 8 8 / 19 6-2 Camera Link connector Camera Link connector Pinout Conforming cable 3M made 14B26-SZLB-＊00-0LC (＊m) ※ 14B26-SZ3B-＊00-04C (＊m) ※ Flex resistance cable Camera Control Signals Camera Link Connector (Base Configuration) Signal name Connection Pin No. Signal name Pin No. Signal name EXSYNC Shield...

  • Page 9: How To Change Settings

    9 / 19 to change settings The ODD/EVEN video signal gain and the camera gain are changeable as needed by removing the camera cover,. 7-1 Fine adjustment of ODD/EVEN video signal gain Gain adjustment of ODD/EVEN video signal is not normally needed, as it has been set before shipment. However, when it is needed, make a fine adjustment following the diagram below.

  • Page 10: Timing Chart

    10 / 19 8. Timing chart Ⅰ .TL-7400UCL Timing Chart (channel=2) STROBE (50MHz) EX SYNC In (CC1 IN) LINE VALID PIXEL DATA PORT A (OS1+OS2) PIXEL DATA PORT B (OS3+OS4) 3700 1 Lin e Outpu t Peri od (3 928pixe ls)

  • Page 11: Rs232C Command List

    11 / 19 Command List RS232C 【Command Protocol】 (PC->Camera) Command Format Argument Return value Explanantion Name Communication 1 Check check<CR> Command for communication test Camera Setting 0:Dip Switch 2 Ctrl (Get) ctrl[?]<CR> Get the effective state of Communication set value/DIP SW. 1:Com N=0:Dip Sw 3 Ctrl (Set)

  • Page 12: Exposure Control

    12 / 19 10. Exposure control Line period exposure (expc=0) Exposure during each period of EXT.SYNC(CC1) （at 8bit output） ST -1 ST -2 S T-3 S T-4 EX T. SYN C IN (c c1 ) Exposure time Exposure time Exposure time ST O UT- 1 ST O UT- 2 ST O UT -3...
  • Page 13 13 / 19 Pulse width exposure (expc=2) Exposure during the period of the pulse width of EXT.SYNC(CC1). Minimum exposure time = 80μsec * Note that the minimum period of EXT.SYNC is 160μsec at the Pulse width exposure mode. Minimum period = 80μsec+DATA output duration（80μsec）(at 8bit output) ST-1 ST- 2 ST-3...

  • Page 14: Setup Steps Of Hyper Terminal

    14 / 19 (in case of Microsoft Windows2000) Setup steps of Hyper terminal. [Setup of Hyper terminal ] 1) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal” 2) The windows will appear with the picture below. 3) When the next picture appears, enter any name.(e.g. GMA_RS232C) Then click the “OK”...
  • Page 15 15 / 19 5) When the next picture appears, select each items as follows.(9600,8,None,1,Non) Then click the “OK” button. 6) The next picture will appear. 7) Select [File]→ [Properties]...
  • Page 16 16 / 19 8) When the next picture appears, select “Settings” tag. 9) When the next picture appears, click the “ASCII Setup” button. 10) When the next picture appears, select each items as follows.(☑, ☑, 0, 0,☑, blank, blank) Then click the “OK” button. 11) The screen display will return to the screen of 9).
  • Page 17 17 / 19 12) End of setup. Confirm the connection of the camera , enter “check” on the screen below and then send it out. If “OK” is displayed on the screen, communication processing has been completed. 13) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal” →”(＊1) ”, when to launch the Hyper terminal again with the same settings after having exited the above screen.

  • Page 18: Notes

    18 / 19 12. Notes Precautions for use ■ Do not make an impact on the equipment. ■ Do not lag the equipment with heat insulating agent. If the equipment is covered with heat insulating agent, It produces an increase in teｍperature and it causes the equipment to malfunction.(except for low-temperature environment use) ■...

  • Page 19: External Dimensions

    19 / 19 13. External dimensions 80 .3 M2 . 6 d e pt h 6 Camera Link Ni kon Moun t 素子 Ｐ ＯＷ Ｅ Ｒ Ｍ Ｏ ＤＥ Ｌ Ｔ Ｌ －515 0Ｕ Ｃ Ｌ Ｓ ＥＲ ．ＮＯ ． ＭＡ...
