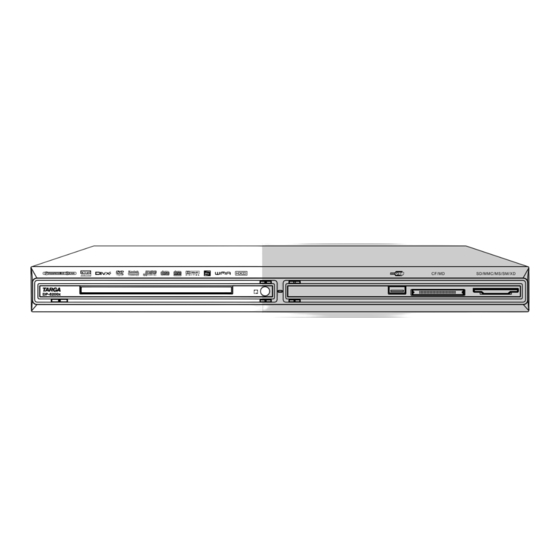

- Page 1 DP-5200x DVD Player USER’S MANUAL...
-
Page 2: Features Of The Dvd Player
FEATURES OF DP-5200x DVD PLAYER Full discs playback compatibility: DVD,MPEG4,DVD±R,DVD±RW, DVCD, MP3, CD-DA, HDCD , Picture CD. Excellent AV effect: 1. Composite video, S-Video and component video output. Built-in progressive output enables a higher resolution of the pictures. 2. Supports PAL or NTSC system with aspect ratio of 4:3 or 16:9. Fiber optical and coaxial audio outputs are also available. -
Page 3: Safety Precautions
PLEASE READ THIS MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND KEEP IT FOR FUTURE REFERENCE. Safety Precautions CAUTION: This symbol alerts the user that ¡dangerous voltage¡ exists in the player CAUTION cabinet with the risk of electric shock to persons. RISK OF ELECTRIC SHOCK CARE: This symbol alerts the user that important operating and maintenance... - Page 4 - Do not defeat the safety purpose of the grounding-type plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. - The wall outlet must be easily accessible. - To completely disconnect the device from the electrical power, unplug the power cord. - Do not use any extension cords.
-
Page 5: Accessories
Accessories Open the package of this DVD player,make sure the following accessories attached with the product: WARRANTY CARD Remote Control User's Manual, Audio/Video Cable Maintenance Card USB Cord Battery x2 SCART Cord... -
Page 6: Table Of Contents
Introduction Features of the DVD player ..........................1 Safety Precautions .............................. 2 Important Safety Instructions .......................... 2-3 Accessories ................................. 4 Connections Control Button Layout ............................. 6-9 Front Panel/Rear Panel ............................6 DVD VFD ................................7 Remote Control ..............................8 Preparations/Operation of the Remote Control ....................9 Connecting to a TV ............................. -
Page 7: Control Button Layout
Front Panel/Rear Panel Front Panel OPEN/CLOSE REMOTE CONTROL WINDOW DISC TRAY STOP POWER CARD SLOT PLAY PAUSE CARD SLOT Rear Panel... -
Page 8: Dvd Vfd
DVD VFD DVD VFD INDICATOR DOLBY INDICATOR REPEAT PLAYBACK INDICATOR REPEAT A-B DVD INDICATOR MP3/MP4 INDICATOR TIME INDICATOR VCD INDICATOR PLAY/PAUSE INDICATOR ANGLE INDICATOR Notes: It is normal if some VFD indicators disappear in playing procedure without harm. -
Page 9: Remote Control
Remote Control 1. POWER: switch DVD player on or go to standby mode 2. PROGRAM: program playback 3. AUDIO:audio language selector 4. ANGLE: select DVD camera angle 5. SUBTITLE:subtitle language selector 6. MENU/PBC:access menu of a disc / open or close the PBC(VCD2.0 or SVCD) 7. -
Page 10: Preparations/Operation Of The Remote Control
Operating with the Remote Control Preparations for the Remote Control Insert the batteries into the remote control, and you can use it This section shows you how to use the remote control. to operate DVD player. Open the cover Point the remote control at the remote sensor and press the buttons. -
Page 11: Connecting To A Tv
Connecting to a TV Connect the DVD player to a TV. Connecting to an Interlaced Scanning TV Notes: (1) If your TV has a SCART input connector, connect the out jacks on the DVD player to the corresponding input on the TV. (2) If the TV has component video input (YCbCr/YPbPr) jacks, you can connect them to the YcbCr/YPbPr jacks of the DVD player to get a clearer picture, and use these jacks rather than the OUTPUT jack. - Page 12 Connecting to a TV Connect the DVD player to a TV. Connecting to a Progressive Scanning TV HEADPHONES Notes: 1. Select progressive when you have a TV that can accept progressive signals to enjoy accurate color reproduction and high quality images. 2.
-
Page 13: Connecting To An Audio System
Connecting to an Audio System You can enjoy the sound of discs in stereo. Connecting to the Amplifier System Notes: Refer to the user’s manual of the connected equipment as well. When you connect the DVD player to other equipment, be sure to turn off the power and unplug all the equipment from the wall outlet before making any connections. -
Page 14: The Amplifier System
Connecting to an Audio System You can enjoy the high quality dynamic sound of Dolby Digital, MPEG-2 and 2 Channel Digital Stereo. Connecting to the Amplifier with Digital Input Port Dolby Digital Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect at home. -
Page 15: Connecting To An Amplifier With Digital Input Port
Connecting to the Amplifier with 5.1 Channel Surround Input... -
Page 16: Playback A Disc
Basic Playback Preparations If you want to play a DVD, VCD or CD-DA disc, turn on the TV and select the video input source which is connected to the DVD player. If you want to enjoy the sound of disc from the audio system, turn on the audio system and select the input source which is connected to the DVD player. -
Page 17: Playback Control
Enjoy pictures of higher quality Sometimes when playing DVD discs, on the TV screen there is unusual interference that are not common in ordinary television broadcast. This is because the high-resolution pictures of DVD discs contain a wide range of information. The extent of the interference depends on the TV set connected with the DVD player, and it is recommended that you set the TV set to a low contrast ratio when watch a DVD disc. -
Page 18: Set Hot Button
Playback Control 14. SEARCH 19. OPEN/CLOSE Press this button to search the playback point by chapter number or Press this button to open or close the disc tray. title time (for DVD discs), disc time or track time or track number 20. -
Page 19: Volume Control
JPEG Picture Display Volume Control 26. VOLUME The playback menu of the JPG picture is similar to MP3 playback With an analog Audio connection . The volume can be adjusted menu. Please refer to MP3 playback. using the VOL+ and VOL- buttons . The volume can be muted by pressing the MUTE button on the remote control. -
Page 20: Function Setup
Function Setup VIDEO Press the SETUP button, the following graphic will display on the Video setup has four options . If using INTERLACE-YUV output screen. to TV , choose INTERLACE-YUV mode. If using P-SCAN SETUP SYSTEM YPBPR output to TV , choose P-SCANYPBPR mode TV SYSTEM SCREEN SAVER VIDEO... -
Page 21: Audio Setup
Function Setup AUDIO SETUP LANGUAGE SETUP LANGUAGE SETUP AUDIO SETUP OSD LANGUAGE >> ENGLISH AUDIO OUT >> SPDIF/OFF CHINESE SPDIF/RAW GERMAN SPDIF/PCM SPANISH TONE>> -¡- + 4 -¡- + 2 FRENCH -¡- 0 PORTUGUESE -¡- - 2 -¡- - 4 AUDIO LANG >>... - Page 22 Function Setup SPEAKER SETUP SPEAKER SETUP LT/RT DOWNMIX>> STEREO SUBWOOFER>> ALL LG SPK BASS MODE>> ALL SM SPK MIXED SPK - -¡ + CENTER DELAY>> - -¡4MS - -¡2MS - -¡0MS REAR DELAY>> - -¡ + - -¡12MS - -¡6MS - -¡0MS EXIT SETUP DOWNMIX...
-
Page 23: Notes On Discs
On Discs On Handing Discs Do not touch the playback side of the disc. Maximum Disc mark Contents Disc size playback time Approx.2 hours(single sided single layer disc) Approx.4 hours(single Audio+video sided double layer disc) video (motion 12cm Playback side Approx .4 hours(double discs picture) -
Page 24: Notes On Service
Notes on Service Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Measure No power The power plug is disconnected Connect the power plug into the wall outlet securely Select the appropriate video input mode on the TV so the picture The TV is not set to receive DVD signal output from the DVD player appears on the TV screen. -
Page 25: Specifications
Specifications DVD Player/Outputs/Supplied Accessories DVD Player 100 - 240V~, 50/60HZ Power Supply Power Consumption Mass 2.5Kg+0.25 Size 430x255x38mm(W/H/D) Signal system PAL/NTSC Laser Semiconductor Laser (wavelength 650nm, 780nm) Frequency Response +0.5-1db(20HZ-20KHZ) Signal-to-noise ratio approx. 90db Audio dynamic range approx. 80db Operating conditions Temperature: 0°C ~ 40°C, Operation status: Horizontal Outputs 1.0 Vp-p,75 Ω... - Page 26 Targa GmbH Lange Wende 41 D-59494 Soest (Germany) www.targa-online.com...
