Summary of Contents for Acoustic Research ARHD41

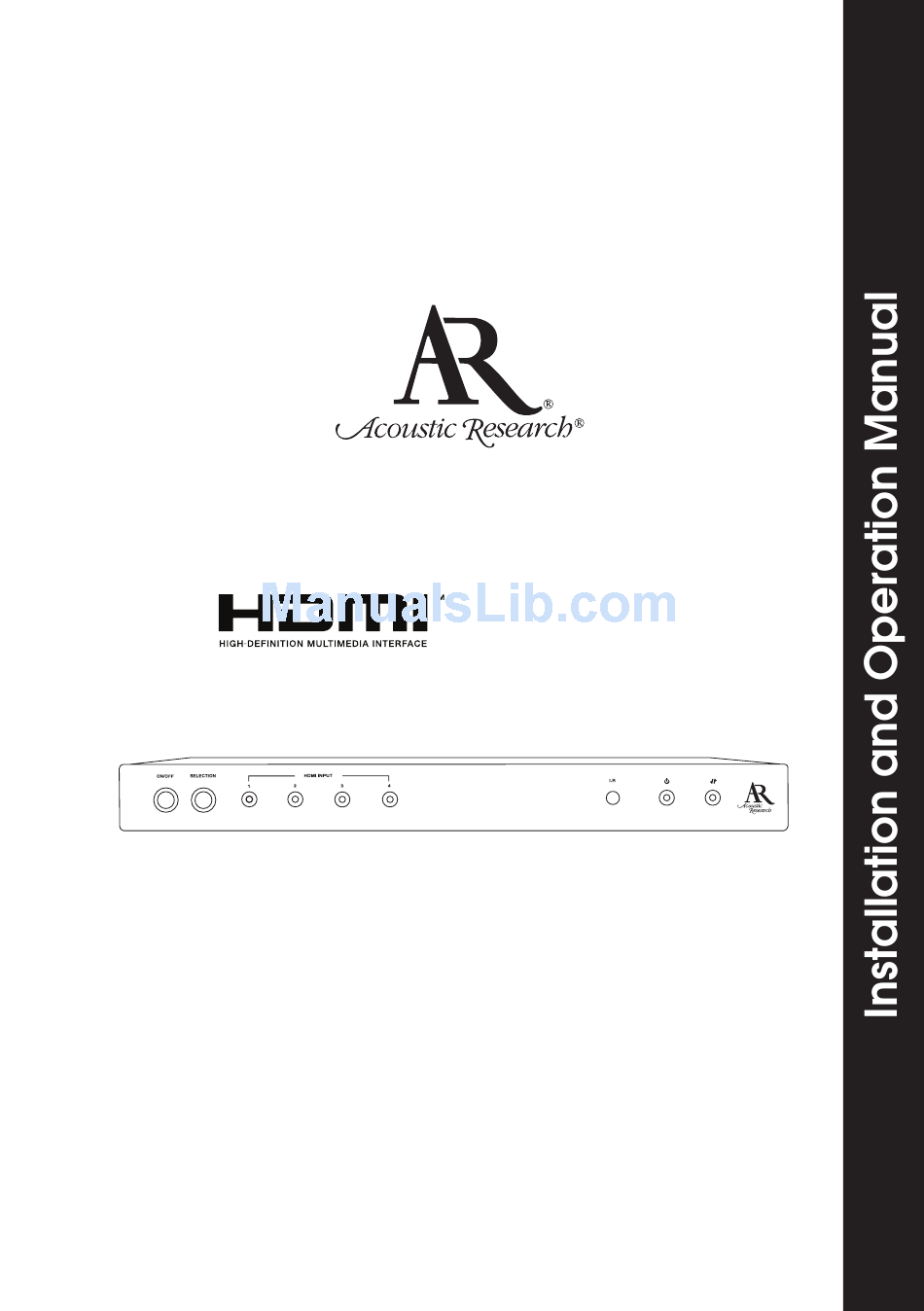

  • Page 1 ARHD41...
  • Page 2 Important information Warning To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Caution: To reduce the risk of electric shock, do not CAUTION remove cover (or back).
  • Page 3: Notice To Users

    Important information notice to Users The system may cause interference to a TV or radio even when it is operating properly. To determine whether the system is causing the interference, turn it off. If the interference goes away, the system is causing the interference. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4: What's In The Box

    Manual /Remote control Power DC 5V 2A Size 16.9” (W) x 8.7” (D) x 1.6” (H) Weight 4.6 lbs Note: Thomson Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
  • Page 5: Front Panel

    HDMI Switcher Front panel HDMI INPUT INDICATORS STATUS INDICATOR SELECTION BUTTON POWER INDICATOR ON/OFF BUTTON IR SENSOR Back panel DC/5V JACK HDMI OUTPUT JACK HDMI INPUT JACKS MAINS POWER SWITCH RS-232C JACK Connecting to electronic components 1. Connect an HDMI cable from the signal source (for example, a DVD player or high definition receiver) to one of the HDMI INPUT jacks on the switcher’s back panel.
  • Page 6: Rs-232 Pin Assignment

    HDMI Switcher RS-232C interface information Terminal Settings: RS-232 Pin Assignment: Bits per second ......9600 • Pin 2: TxD Data bits ..........8 • Pin 3: RxD Stop bits ..........1 • Pin 5: Ground Parity ..........None Flow Control ....... None Binary Table: Input Binary 1 0101 0001 2 0101 0010 3 0101 0011 4 0101 0100 Troubleshooting...
  • Page 7 HDMI Switcher LIMITED FIVE YEAR WARRANTY Our company (in the U.S. THOMSON INC./ in Canada, Thomson multimedia Ltd.) warrants that for 5 years from date of purchase, it will replace this product if found to be defective in materials and workmanship. For a prompt, no charge replacement of a current equivalent product, return the defective product postage prepaid to the appropriate address.
  • Page 8 Thomson Inc. 10330 North Meridian Street Indianapolis, IN 46290 © 2006 Thomson Inc. Trademark(s) Registered Marca(s) Registrada(s) Printed in China ARHD41_IB_00...
