Summary of Contents for Smart+ Products SPP55AW
-

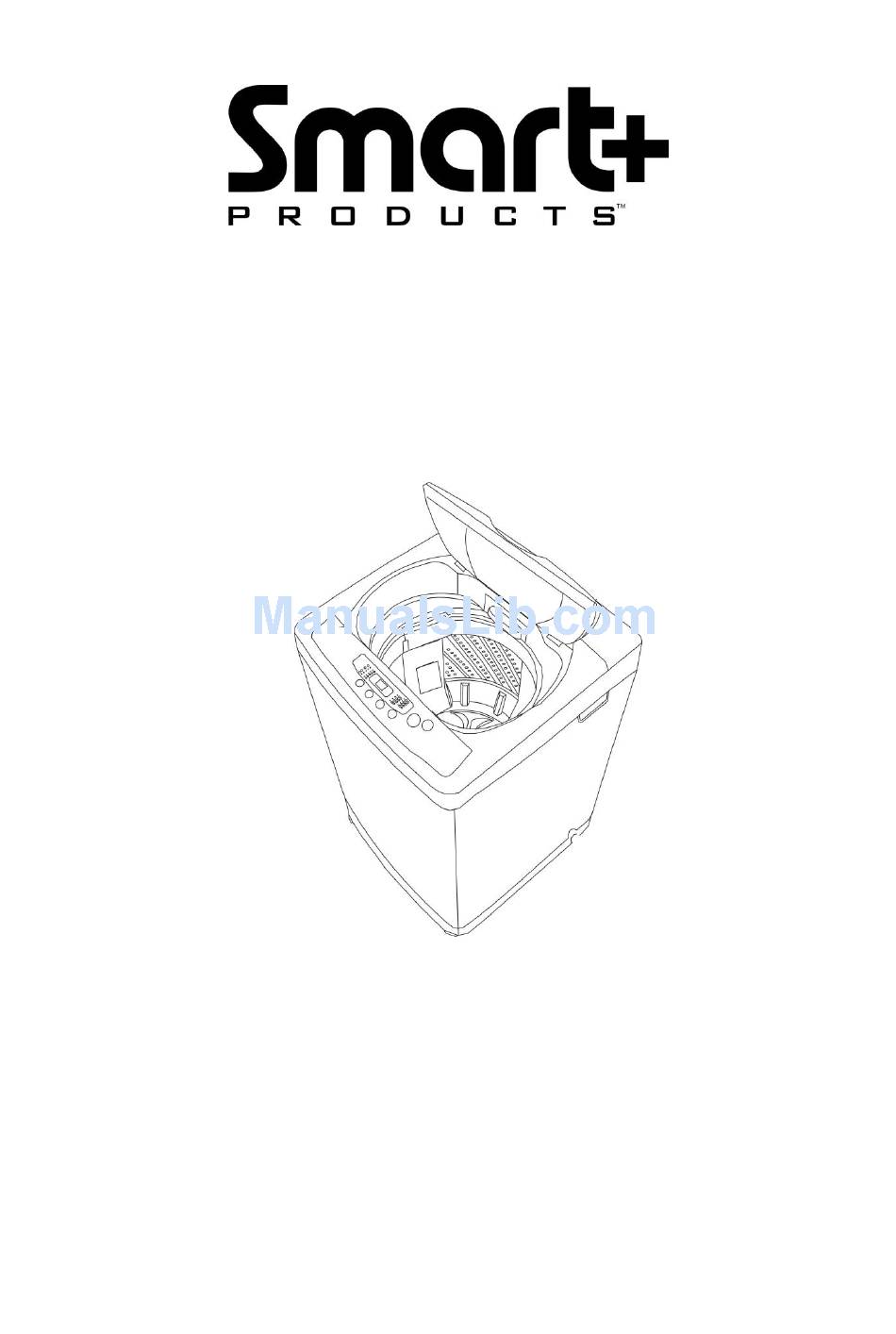

Page 1: Instruction Manual
INSTRUCTION MANUAL Model Number: SPP55AW PORTABLE WASHER BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. -
Page 2: Table Of Contents
Manual Function (Custom Washing Cycle) /Automatic Wash Program 16 – 17 Wash Program Time Chart Delayed Start (Preset) Setting / Child-Proof Setting Care and Maintenance Problems with Your Portable Washer Troubleshooting Guide / Service for Your Portable Washer Your Smart+ Products Warranty / What is not Covered... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. -
Page 4: Important Safeguides
IMPORTANT SAFEGUIDES Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following: ... - Page 5 PARTS & FEATURES Models: SPP55AW Color: White Capacity: Cubic Feet: 1.65 Pounds: 12 Lbs ACCESSORIES (INCLUDED)
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your portable washer, follow WARNING these basic precautions: Read all instructions before using the portable washer. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. -
Page 7: Installation Instructions
(ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Smart+ Products service center. SELECTING A LOCATION Before you install the portable washer, select a location with the following characteristics: ... -
Page 8: Installing The Noise Damper Plate
INSTALLING THE NOISE DAMPER PLATE... -
Page 9: Connecting The Water Supply Hoses / Sink Faucet Connection
CONNECTING THE WATER SUPPLY HOSES The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose. -
Page 10: Disconnecting The Water Supply Hoses / Positioning The Drain Hose
SINK FAUCET CONNECTION For normal kitchen-sink tap only use the inlet hose with cold water inlet. Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly. Make sure to insert the rubber ring enclosed. Then connect tightly to your sink. Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below. -
Page 11: Electrical Connection / Extension Cords
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Smart+ Products Products service center. This appliance should be properly grounded for your safety. -
Page 12: Control Panel / Functions Description
CONTROL PANEL 1. Water Temperature Indicator 2. Water Level Indicator 3. Delay Time Indicator 4. Wash Time Indicator 5. LED Display 6. Hour Indicator 7. Minute Indicator 8. Function Indicator 9. Water Temperature Selection Button 10. Water Level Selection Button 11. - Page 13 FUNCTION DESCRIPTIONS...
-
Page 14: Operating Your Portable Washer
OPERATING YOUR PORTABLE WASHER PREPARATION 1. Connect the water inlet hose 3. Insert the plug into the 4. Insert the end of drain hose to the water faucet. Don’t socket. For safety the plug into the hook shelf, and hang switch on the power if the should have ground the drain hose over a drain... - Page 15 BEFORE WASHING Make sure that you follow all manufacturer instructions for washing:...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS PRESS THE POWER BUTTON. PRESS THE WATER LEVEL BUTTON. Choose appropriate water level according to wash load quantity. WATER TEMPERATURE CHOICE. Press the water temperature selection button, you can choose to from cold, warm, and/or hot water. NOTE: The washer will provide a cold rinse in all TEMPERATURE settings. Indicator Description Light Shown... -
Page 17: Wash Program Time Chart
RINSE AND SPIN Press down the POWER button. Press the function button until the RINSE & SPIN indicators are ON. Press the water level button to select the appropriate water level setting. Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course. -
Page 18: Delayed Start (Preset) Setting / Child-Proof Setting
Note: The default function is WASH, RINSE and SPIN, if you need the SOAK function, please press the function button to choose the SOAK function. Close the lid, or the washing machine will buzz during wash and spin cycle. In the event the clothing loaded becomes unbalanced, the safety switch will be triggered causing the washing machine to automatically refill with water to adjust the imbalance. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE CLEANING YOUR PORTABLE WASHER Clean the surface of your portable washer regularly with soft fabric. Clean the inner tub regularly, especially immediately after starch or bleach operation. Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging. Remove the inlet hose and clean Clean the surface of Unplug the power cord. -
Page 20: Problems With Your Portable Washer
Smart+ Products portable washers. With the purchase of your Smart+ Products portable washer, you can be confident that if you ever need additional information or assistance, the Smart+ Products Customer Service Team will be here for you. Just visit www.smartplusproducts.com for more details and contact information.
