Summary of Contents for Invision Generation G9

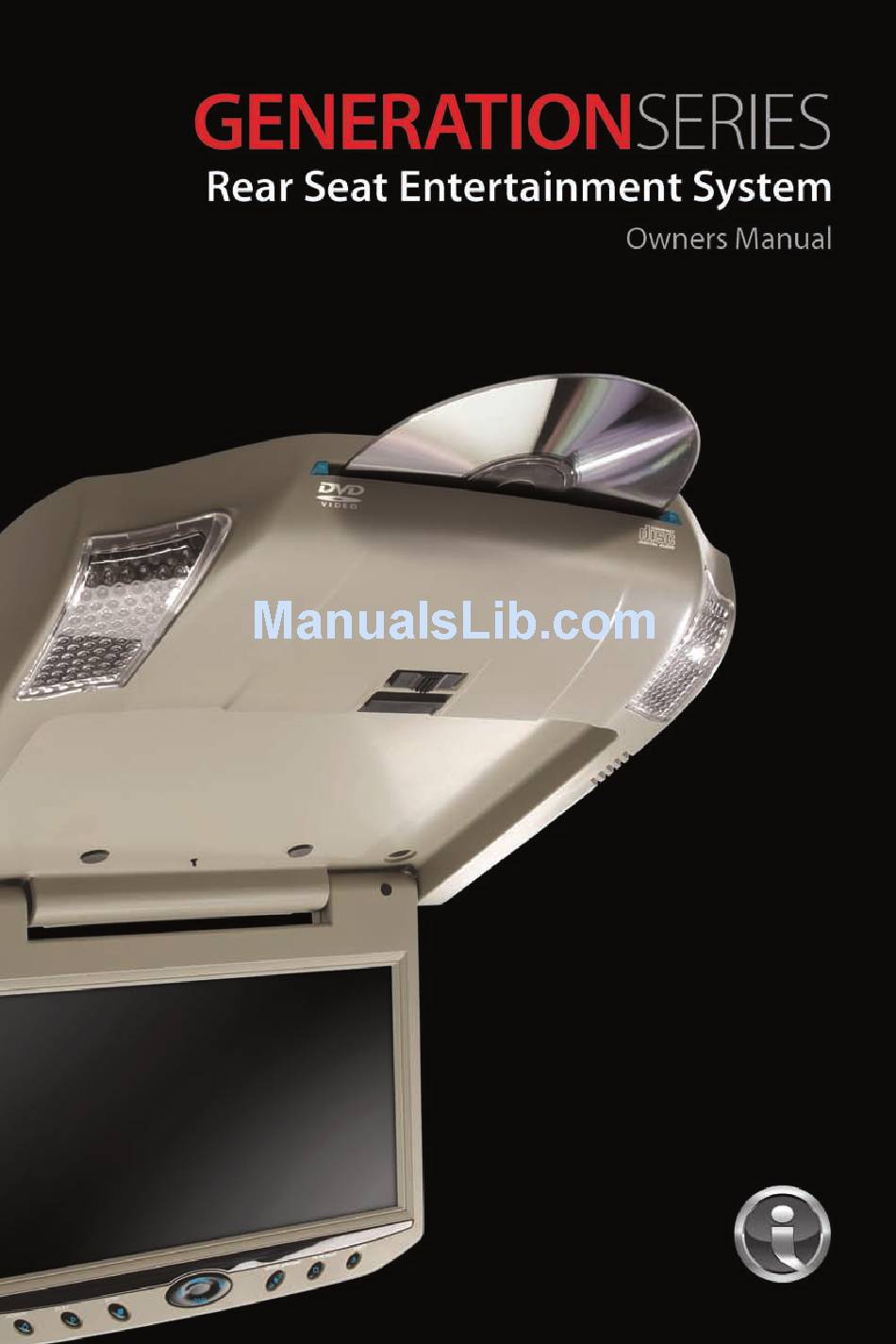

Page 2 GENERATIONSERIES Rear Seat Entertainment System Owner’s Manual...
Page 3 G9 & G10 Owner’s Manual Manual del usuario del G9 y G10...
Page 4: Table Of Contents
Connecting a USB Device Troubleshooting Speciﬁcations FCC Notice WEEE Notice Dolby Stereo Compatibility Macrovision Notice Notes © 2008 INViSiON Industries, Inc. All rights reserved. This manual, or any portion thereof, may not be reproduced without the express written permission of INViSiON Industries, Inc.
Page 5: Welcome
Product Features overhead video monitor with built-in DVD player. Before operating this system, read this • G9 - 9 in TFT (Thin Film Transistor) Active manual thoroughly and retain it for future Matrix LCD ( Liquid Crystal Display ) Monitor reference.
Page 6: Optional Accessories
DVD player, video game system, or other audio/video devices. To play the second AV source, turn the G9 or G10 on and press the SOURCE button on the remote control until "AV1 or AUX" is displayed on the screen. Turn the source component on with its power button or remote control.
Page 7: Control Description Of The Front Panel
Control Descriptions of Front Panel Control Descriptions of Front Panel...
Page 8 20. IR Sensor-Forward Sensor Eye : Allow consult the DVD Basics section of this the remote control to operate the Owner’s Manual. G9 & G10 OSD (On Screen Display) and to control the other accessories. 5. Stop : Stop playing 21. Dome Light 6.
Page 9: Remote Control Operations
-) is observed. 3. Slide the cover back until it clicks. The remote control will operate the G9 or G10 only. It is not a universal remote control and will not control equipment from other manufacturers.
Page 10: Button Function Descriptions
Button Function Descriptions /CH+ In the DVD Mode, use this button to scroll the OSD menu upwards. 7. MENU Disc Menu. 8. ENTER Conﬁrm a selection /Vol- In the DVD mode, use this button scroll menu left. 10. RETURN Select return Menu. 11.
Page 11 19. FF 30. ERASE/ADD Press button to search disc backward continuously. Erase the channel display or add the channel display in TV mode. 20. SOURCE Any video equipment connected to the AV 31. AUDIO inputs can be used with the monitor by Change the audio language to another pressing this button.
Page 12 Note: The remote control incorporates an infrared sensor that relays signals from the remote control to be controlled simply by pointing the remote control at the remote sensor eye. This does not provide control of auxiliary equipment such as a video DVD player. The infrared sensor cannot relay signals from any other manufacturer’s remote control to its respective component connected to the AUX input, such...
Page 13: General Operating Instructions
Turning the Device ON or OFF Overhead Dome Lights 1. Sliding the screen release lock forward will The lights integrated into the G9 & G10 are unlock the LCD screen and it will drop down controlled by push-button switches. Push the slightly.
Page 14 • Inability to eject a disc (due to a label or Loading and Playing Discs sticker peeling oﬀ and jamming the eject Before you load a disc, make sure that it is mechanism). compatible with the player. Note that the following discs CANNOT be used with this player: •...
Page 15: How To Use The Dvd Osd Menu
How to use the DVD OSD Menu This section describes how to set and adjust General Setup Page settings using the on-screen setup pages included in the OSD Menu. You can use the Setting the Language for OSD menu screen to adjust all the settings on On-Screen Display your screen.
Page 16 Normal/LB (Letter-Box) Note: The lower the value, the more strict the This displays the wide picture with black bands limitation. on the upper and lower portions of the screen. 2. Press the ENTER button on the remote Wide (16:9) control to conﬁrm the selection. This option displays the full widescreen picture if the LCD panel is widescreen.
Page 17 Old Password Input the old password or the default password (4 digits). New Password Input a new password (4 digits) using numeric buttons. Conﬁrm PWD Conﬁrm the new password by entering the same new password again. Then scroll to the OK button and press the ENTER button on the remote control.
Page 18: Playing An Audio Cd
Playing an Audio CD When playing an audio CD, the DISPLAY Using the REPEAT Feature banner appears automatically. It displays the current track and the amount of time the track The default mode for the REPEAT feature is has been playing, the total amount of time on OFF.
Page 19: Playing An Mp3 Disc
Playing an MP3 Disc MP3 is the format for storing digital audio. An go through the folder list on the left side audio CD-quality song can be compressed into of the navigation screen. the MP3 format with very little loss of quality, while talking up much less space.
Page 20: Connecting A Usb Device
Connecting a USB Device Connecting a USB Device to your G10 Unit You can connect a USB (v1.1) mass storage class device such as a USB memory stick, digital audio player (USB mass storage class device) etc. to the USB port of the G10 unit. Selecting Folders and Files When an USB device is inserted in the port, the navigation screen appears automatically unless...
Page 21: Troubleshooting
Troubleshooting Symptom Remedy • Is ignition turned “ON”? Device does not power “ON” • Is parental switch in rear of player in “on” position? • Verify that the batteries in both the remote control and wireless headphones are good. • Verify that the remote sensor eye is not IR sensor inoperative obstructed.
Page 22: Speciﬁcations
Speciﬁcations Dimensions 43.0 mm x 295.0 mm x 308.0 mm 43.0 mm x 312.0 mm x 330.0 mm Weight 5.6 lbs 5.65 lbs PARASITIC DRAW=0.0 AMPS PARASITIC DRAW=0.0 AMPS STANDBY=110 ma STANDBY=110 ma Power Consumption DVD PLAYING=2.17AMPS DVD PLAYING=2.17AMPS MAX DRAW=2.44AMPS5.65 MAX DRAW=2.44AMPS5.65 LCD Backlight Edge Light Tube CCFL...
Page 23: Fcc Notice
FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 24: Weee Notice
WEEE Notice Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that device shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Page 25: Dolby Stereo Compatibility
Dolby Stereo Compatibility When using this unit with a multi-channel processor, you can enjoy the atmosphere and excitement provided by DVD movie and music software featuring stereo 2-channel recordings. Manufactured under license from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.
Page 26: Macrovision Notice
Macrovision Notice This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
Page 27: Notes
Notes Notes...
Page 28 Notes Notes...
