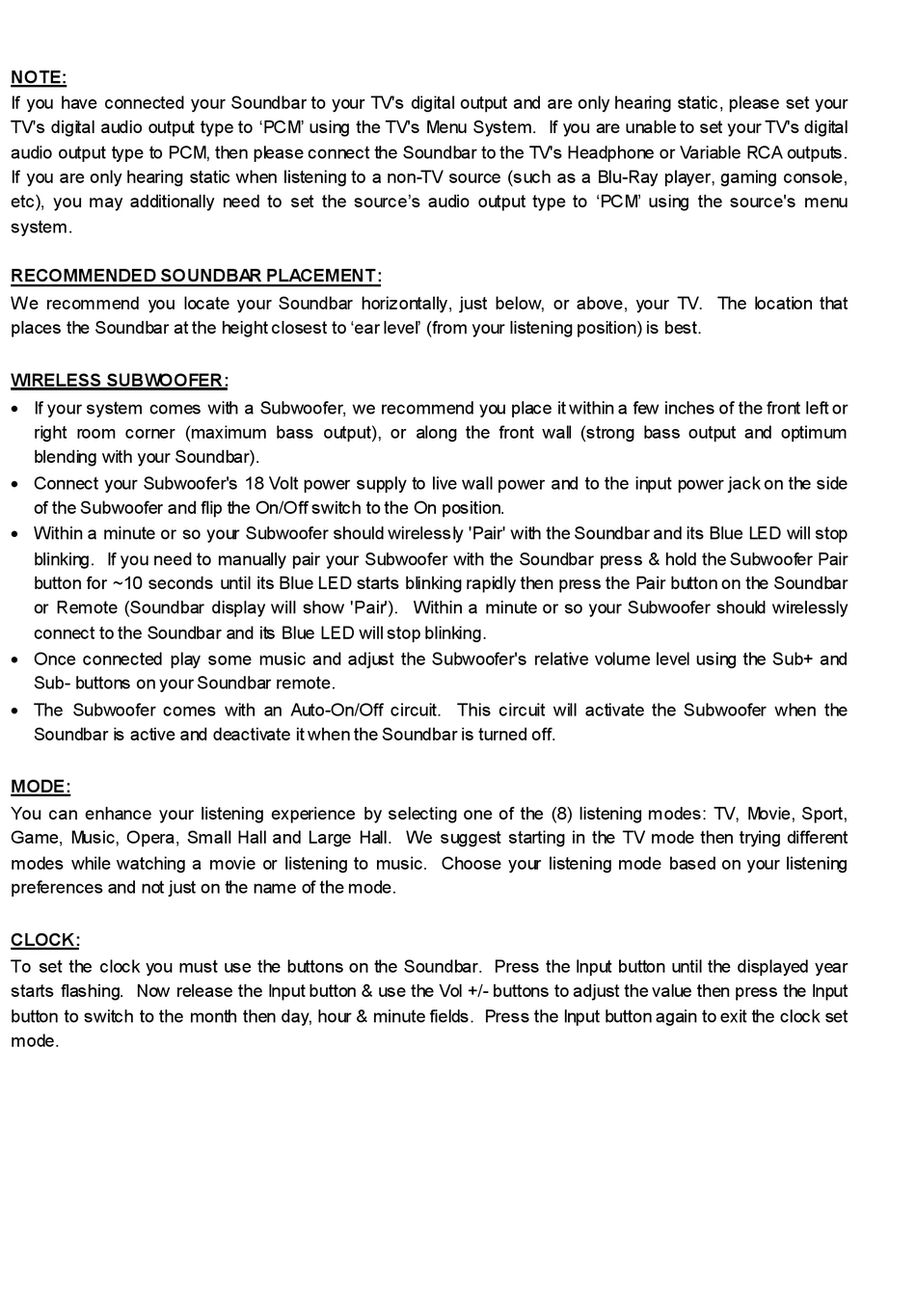

Recommended Soundbar Placement; Wireless Subwoofer - Pinnacle Speakers Powered Soundbar System Owner's Manual

NOTE:
If you have connected your Soundbar to your TV's digital output and are only hearing static, please set your
TV's digital audio output type to 'PCM' using the TV's Menu System. If you are unable to set your TV's digital
audio output type to PCM, then please connect the Soundbar to the TV's Headphone or Variable RCA outputs.
If you are only hearing static when listening to a non-TV source (such as a Blu-Ray player, gaming console,
etc), you may additionally need to set the source's audio output type to 'PCM' using the source's menu
system.

RECOMMENDED SOUNDBAR PLACEMENT:

We recommend you locate your Soundbar horizontally, just below, or above, your TV. The location that
places the Soundbar at the height closest to 'ear level' (from your listening position) is best.

WIRELESS SUBWOOFER:

 If your system comes with a Subwoofer, we recommend you place it within a few inches of the front left or
right room corner (maximum bass output), or along the front wall (strong bass output and optimum
blending with your Soundbar).
 Connect your Subwoofer's 18 Volt power supply to live wall power and to the input power jack on the side
of the Subwoofer and flip the On/Off switch to the On position.
 Within a minute or so your Subwoofer should wirelessly 'Pair' with the Soundbar and its Blue LED will stop
blinking. If you need to manually pair your Subwoofer with the Soundbar press & hold the Subwoofer Pair
button for ~10 seconds until its Blue LED starts blinking rapidly then press the Pair button on the Soundbar
or Remote (Soundbar display will show 'Pair'). Within a minute or so your Subwoofer should wirelessly
connect to the Soundbar and its Blue LED will stop blinking.
 Once connected play some music and adjust the Subwoofer's relative volume level using the Sub+ and
Sub- buttons on your Soundbar remote.
 The Subwoofer comes with an Auto-On/Off circuit. This circuit will activate the Subwoofer when the
Soundbar is active and deactivate it when the Soundbar is turned off.
MODE:
You can enhance your listening experience by selecting one of the (8) listening modes: TV, Movie, Sport,
Game, Music, Opera, Small Hall and Large Hall. We suggest starting in the TV mode then trying different
modes while watching a movie or listening to music. Choose your listening mode based on your listening
preferences and not just on the name of the mode.
CLOCK:
To set the clock you must use the buttons on the Soundbar. Press the Input button until the displayed year
starts flashing. Now release the Input button & use the Vol +/- buttons to adjust the value then press the Input
button to switch to the month then day, hour & minute fields. Press the Input button again to exit the clock set
mode.
