Summary of Contents for Gefen EXT-PS5-4R

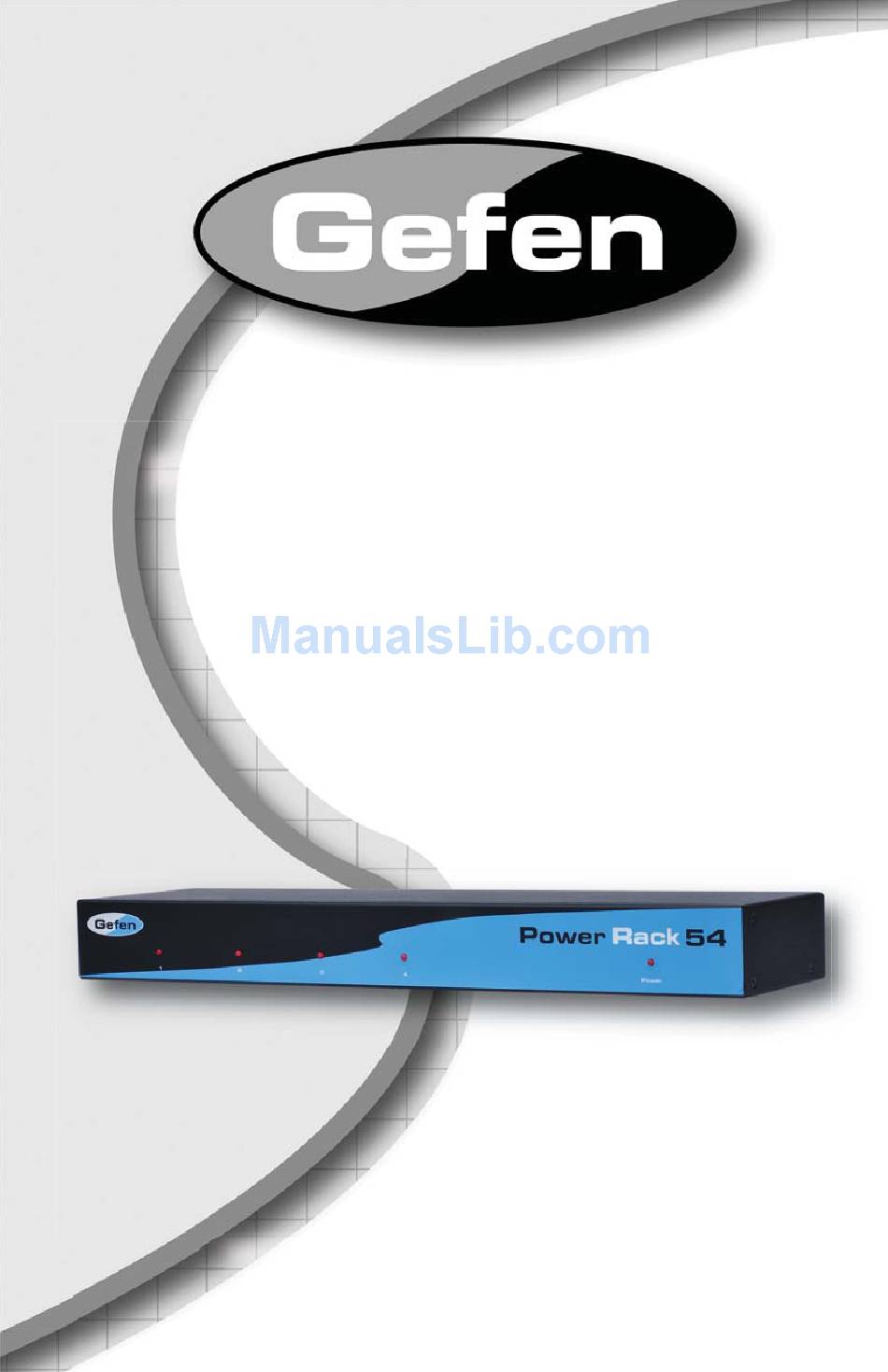

- Page 1 Power Rack 54 EXT-PS5-4R User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Power Rack 54 is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The Power Rack 54 Specifi cations Warranty... -
Page 4: Introduction
How It Works The Gefen Power Rack 54 is rack mounted in a single 1U rack space near up to four 5V DC / 2.5A rated devices. The 24-Volt power supply of the Power Rack 54 is connected to a wall outlet or power strip and a red LED appears on the front panel, indicating successful power-on. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE POWER RACK 54 • The Power Rack 54 can supply power to up to four 5V Gefen products that do not exceed 2.5 amps/12.5 Watts (max). • The LED indicators will indicate the status of each of the power outputs. A GREEN LED will indicate a good status. -
Page 6: Features
FEATURES Features • Rack-mounted central power distribution eliminates multiple power supplies and messy cables • Four individual 5V DC / 3A max. power outputs for powering external devices • Four dual-state red/green LED lights indicate correct voltage range for each power output •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
The included 24V DC power supply will connect between this port and an open wall power socket. Only use the included power supply with this unit. Power Output Receptacles 1-4 4 power supply ports are provided for use with 5V Gefen devices. 4 locking cables with locking connectors are provided. -
Page 9: Connecting And Operating The Power Rack 54
Connect up to 4 power output cables (4 are included) to the Power Rack 54 unit. Connect the opposite ends of the power output cables to compatible Gefen products. NOTE: The amperage draw of each connected device must not exceed 2.5A. -
Page 10: Specifi Cations
SPECIFICATIONS Power Input Voltage ............24V / 3A power supply Power Output Voltage ..........5V DC / 2.5A max. per output Power Consumption ..............60 Watts (max.) Power Outputs ..........Locking screw-down type, 1/4” dia. Dimensions ..............17.1” W x 1.7” H x 4.25” D Shipping Weight .....................
