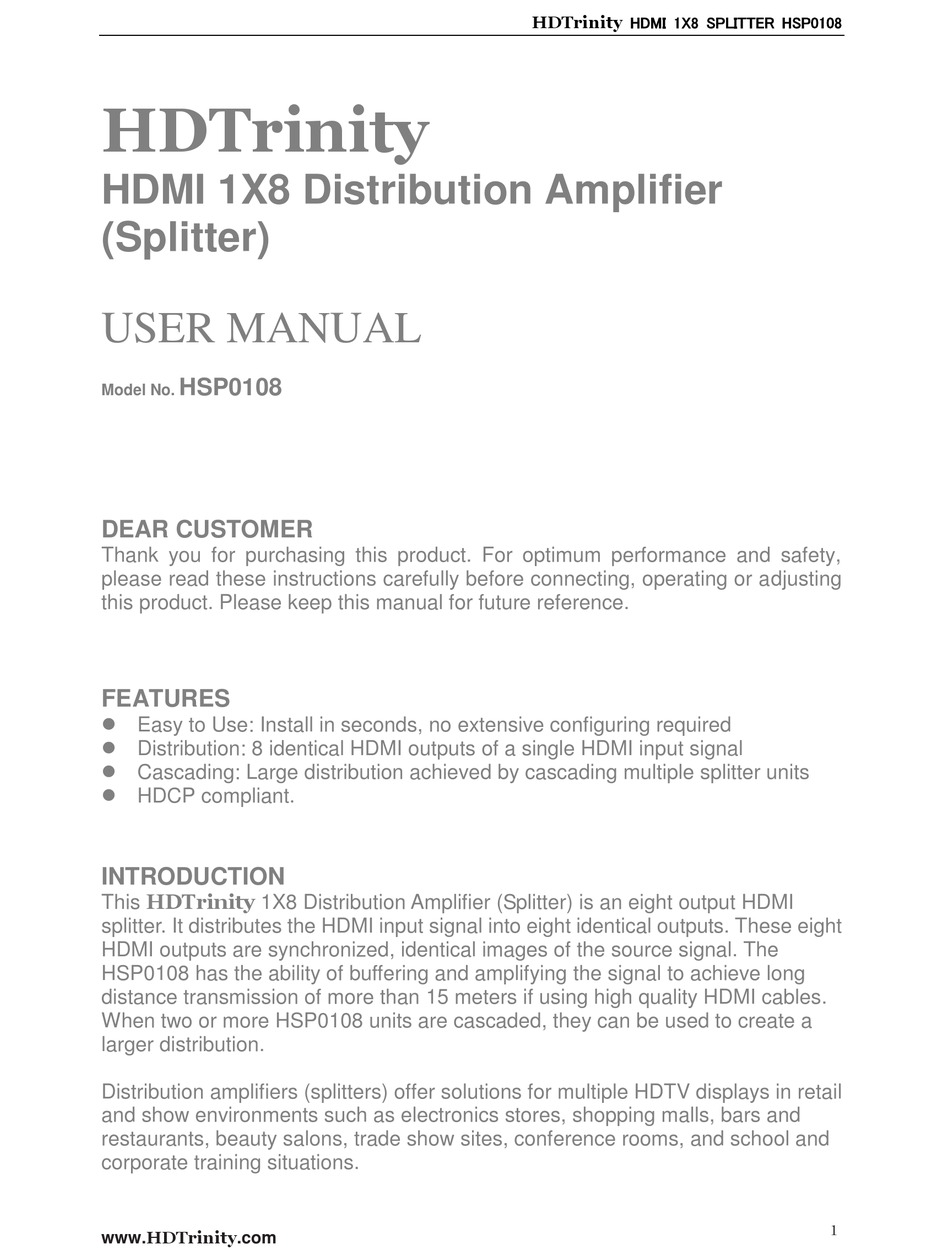

HDTrinity
HDMI 1X8 SPLITTER HSP0108
HDTrinity
HDMI 1X8 Distribution Amplifier
(Splitter)

USER MANUAL

HSP0108
Model No.
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
 Easy to Use: Install in seconds, no extensive configuring required
 Distribution: 8 identical HDMI outputs of a single HDMI input signal
 Cascading: Large distribution achieved by cascading multiple splitter units
 HDCP compliant.
INTRODUCTION
This HDTrinity 1X8 Distribution Amplifier (Splitter) is an eight output HDMI
splitter. It distributes the HDMI input signal into eight identical outputs. These eight
HDMI outputs are synchronized, identical images of the source signal. The
HSP0108 has the ability of buffering and amplifying the signal to achieve long
distance transmission of more than 15 meters if using high quality HDMI cables.
When two or more HSP0108 units are cascaded, they can be used to create a
larger distribution.
Distribution amplifiers (splitters) offer solutions for multiple HDTV displays in retail
and show environments such as electronics stores, shopping malls, bars and
restaurants, beauty salons, trade show sites, conference rooms, and school and
corporate training situations.
