TM
I N S T A l l A T I o N
G u I d e
Cynema Soundfield
SoundBaR SyStem
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cynema Soundfield and is the answer not in the manual?

Questions and answers

Related Manuals for Niles Cynema Soundfield

Summary of Contents for Niles Cynema Soundfield

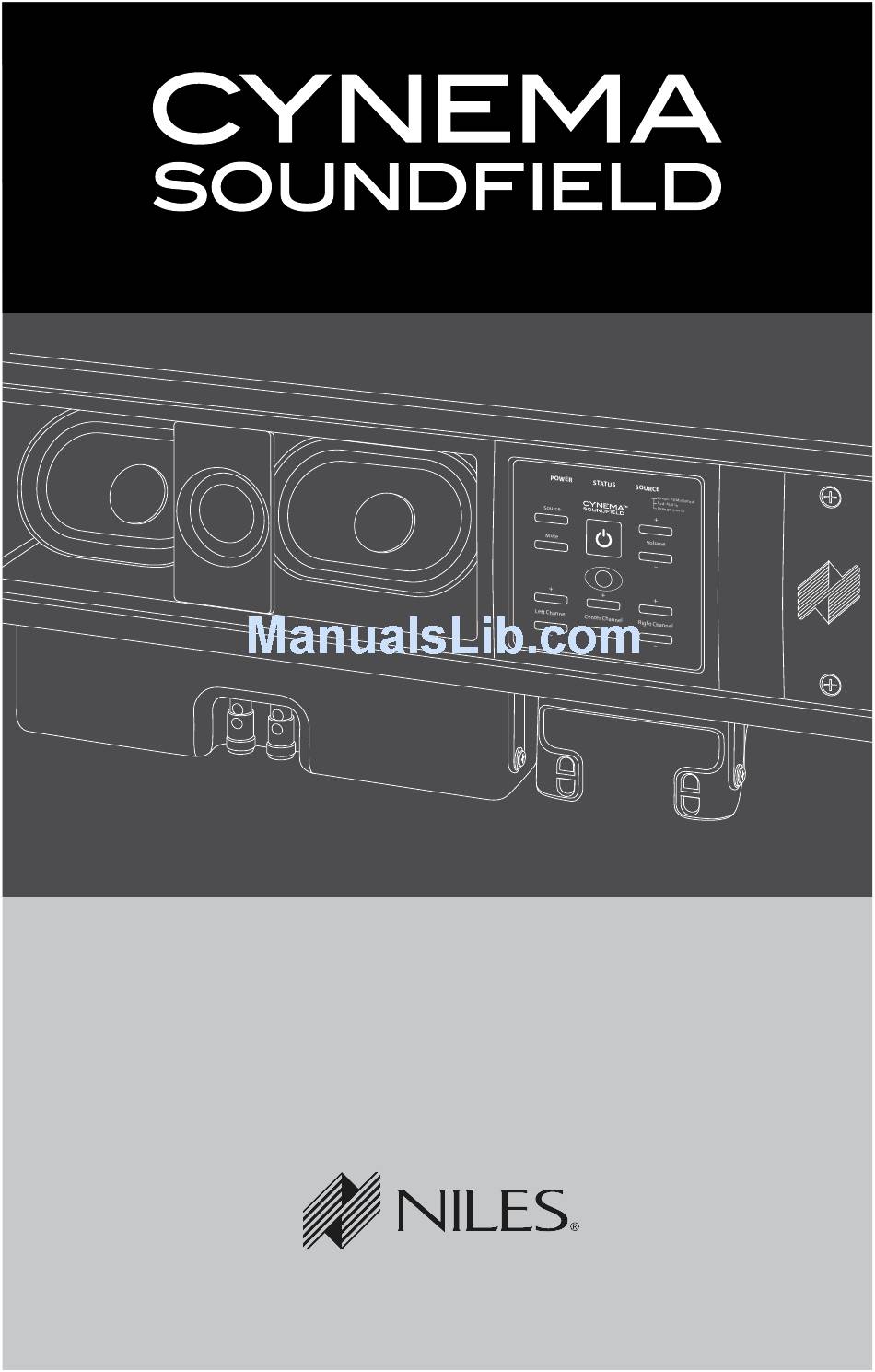

  • Page 1 I N S T A l l A T I o N G u I d e Cynema Soundfield SoundBaR SyStem ™...

  • Page 2: Table Of Contents

    Thank you for choosing Niles Cynema Soundfield™, a unique and powerful solution for modern installations. Like all Niles products, Cynema Soundfield is built to the highest standards of quality and reliability. With proper installation and operation, you will experience years of high-performance, trouble-free use. For information on the complete line of innovative Niles products, please visit us at: www.nilesaudio.com.
  • Page 3 17. The power supply cord (sometimes referred to as the “Mains Plug”) is used as the disconnect device and shall remain accessible and operable at all times. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. NILES – 1-800-472-5555 – 1-760-268-9860...

  • Page 4: Introduction

    Cynema Soundfield delivers both unobtrusive appearance and high performance. We created the new term Cynema Soundfield to describe the system because it is more than just a soundbar or a collection of independent speakers. Much more versatile than a traditional soundbar, speakers can be placed in a variety of configurations to optimize audio performance.

  • Page 5: Features And Benefits

    Superior Sound to typical SoundbarS and vaStly Superior to the SpeakerS built into flat panelS The Cynema Soundfield system is designed to utilize enclosures built into component speaker modules that tuck down and into the wall for outstanding performance in any wall environment. In powered models, a fully optimized, 30W x 3 Channel Amplifier Module with Dolby Digital processing powers the system’s LCR...

  • Page 6: Specifications

    (1) In-Wall Mounting System with Grille (1) Cutout Template for In-Wall Power Supply Box (1) Cutout Template for In-Wall Mounting System (1) Niles SWT Bracket (1) Warranty Card (1) Toslink Optical Cable 3m (1) Stereo 3.5mm to dual RCA Cable (1) DC power cable for wireless transmitter 1.5m...

  • Page 7: Parts Guide

    LINE IN Subwoofer Transmitter Power 0<5V Use With Wireless Transeiver Aux Stereo Input HDMI Output (Pass-through) DC5V/100mA OUT IR IN AUX IN HDMI Input HDMI OUT HDMI OUT HDMI IN HDMI IN External IR Receiver Input NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 8 Supply box (powered modelS) 24V DC Power Cable Mounting Clamps Removable IEC Power Cord 100-240V AC, 50/60 Hz in-wall mounting SyStem and grill Niles SW-T Bracket (For powered models only, optional wireless subwoofer In-Between Cover system from Niles) In-Between...

  • Page 9: Installation Considerations

    Code and any applicable provisions of the local building code. If you are unsure of the correct installation techniques, wire jacket, or type of conduit to use, consult a professional audio/video installer, building contractor, or the local building and inspection department. NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 10 Speaker Module’s Rear Wave Control enclosure in-wall mounting SyStem The Cynema Soundfield’s In-wall Mounting System is uniquely designed to install as a single unit across multiple 16” centered wall studs while being located below, and centered with, a wall mounted flat panel TV.
  • Page 11 Figure 2: 55” Wall Mounting System centered below a TV and shown without Grille Studs Screw Down Clamp Down Brackets End Bracket MODeL gRILLe DIMeNSIONS ( H x W ) cSF48p 5-1/4" x 48" cSF48A 5-1/4" x 48" cSF55A 5-1/4" x 55" cSF65A 5-1/4" x 65" NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 12 INSTAllATIoN CoNSIdeRATIoNS CoNTINued... important inStallation conSideration for 48” and 55” modelS: When installing the 48” model the TV’s center must be at least 3 3/4” to the right or left of the wall stud center. When installing the 55” model the TV’s center must be at least 1/4” to the right or left of the wall stud. This allows for proper installation of all three speaker modules into the In-Wall Mounting System.
  • Page 13 INSTAllATIoN CoNSIdeRATIoNS CoNTINued... in-wall mounting SyStem The Cynema Soundfield In-Wall Mounting System includes two rails that are connected together using up to four Screw Down Slide Brackets as shown in Figure 2 on page 11. There will be installations where the right and left end of the rails do not fall directly on a stud. Two Clamp Down End Brackets are included to secure rail ends that fall 3 or more inches from the nearest Screw Down Sliding Bracket by clamping the drywall as shown in Figure 2 on page 11.
  • Page 14 INSTAllATIoN CoNSIdeRATIoNS CoNTINued... in-wall power Supply box (powered modelS only) All Powered Cynema Soundfield models (CSF48A, CSF55A and CSF65A) include one In-Wall Power Supply Box. The In-Wall Power Supply Box incorporates the Amplifier Module power supply in a flush mounted electrical box.

  • Page 15: Installing The System

    Cynema Soundfield In-Wall Mounting System and In-Wall Power Supply Box. Use the outside dimensions of the included Speaker Grille to determine the final location of the Cynema Soundfield Speaker System (see Page 11 Figure 2 for dimensions). The design of the magnetically attached Speaker Grill provides plus or minus 1”...
  • Page 16 INSTAllING THe SySTem CoNTINued... inStall the in-wall power Supply box (powered modelS only) 1. Choose a location to install the In-Wall Mount Power Supply that is power Supply cutout either behind or below the TV and adjacent to an existing AC outlet Dimensions (HxW): (page 14 Figure 6), Perform the steps listed on page 15 at the proposed 3-11/16”...
  • Page 17 Niles Wireless Subwoofer Transmitter (Optional): Route the supplied DC power cable for the wireless transmitter and a mono RCA audio cable (not supplied) from the Niles SWT location to the Amplifier Module location. If necessary, utilize the space between the Screw Down Slide Brackets and the wall stud to route the wire from one stud bay to another (see Figure 8).
  • Page 18 INSTAllING THe SySTem CoNTINued... poSition the Speaker moduleS in the in-wall mounting SyStem (all modelS) The Speaker Modules have small “L” shaped brackets on each side for you to use as an installation aid. These “L” brackets enable you to temporarily “hang” the Speaker Modules on the In-Wall Mounting System making the speaker connection terminals easy to see and connect.
  • Page 19 1. Rotate the left and right “L” brackets out to serve as hangers from the In-Wall Mounting System. Hang the Amplifier Module in the position it will be inserted as shown in Figure 9. 2. Affix the Niles SWT to the backside of the SWT Bracket with the supplied double sided tape (see Figure 11 A) 3.
  • Page 20 INSTAllING THe SySTem CoNTINued... connect the amplifier module and nileS Swt (powered modelS) 1. Prepare the speaker wire by stripping 1/4” from each conductor (see Figure 10 on page 18). Twist the strands or tin the leads with solder to ensure there are no stray strands that could short and possibly harm the amplifier.
  • Page 21 Speaker Module is shown in Figure 14. 3. Plug the AC Power cord into the face plate of the In-Wall Power Supply Box and into an AC outlet. NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 22 INSTAllING THe SySTem CoNTINued... Secure the in-wall mounting SyStem (all modelS) 1. Use a cordless screwdriver to firmly tighten the screws on the Screw Down Slide Brackets as shown in Figure 30 being careful to maintain proper level and alignment and that cabling is not being pinched. 2.
  • Page 23 NOTE: To remove a Speaker and Amplifier Module installed in the same stud bay remove the Screw Down Slide Bracket from an adjacent stud. 2. Grasp the side(s) of the Speaker or Amplifier Module and pull it forward and out of the In-Wall Mounting System. NILES – 1-800-472-5555 – 1-760-268-9860...

  • Page 24: System Applications

    TV with HDMI. An auxiliary stereo input on the Amplifier Module is used for music players such as iPods and Smart Phones or the connection of a whole house audio system. The Niles SWT/SWR Wireless Subwoofer system has dedicated connections on the Amplifier Module for audio signal and DC power.
  • Page 25 Cable Boxes connect to the TV with HDMI. An auxiliary stereo input on the Amplifier Module is used for music players such as iPods and Smart Phones or the connection of a whole house audio system. The Niles SWT/ SWR Wireless Subwoofer system has dedicated connections on the Amplifier Module for audio signal and DC power.
  • Page 26 HDMI to a TV. An auxiliary stereo input on the Amplifier Module is used for music players such as iPods and Smart Phones or the connection of a whole house audio system. The Niles SWT/SWR Wireless Subwoofer system has dedicated connections on the Amplifier Module for audio signal and DC power.
  • Page 27 Bluray and HD Satellite/Cable Boxes connect with HDMI to the AV receiver which connects with HDMI to the TV. Audio source components and audio accessories, such as iPods, smart phones and subwoofers are included for added listening options. Figure 20: Passive Cynema Soundfield System In-Wall Mounted System Home Theater...

  • Page 28: Operation Powered Systems

    SySTemS powered cynema Soundfield SyStemS The Amplifier Module included with Powered Cynema Soundfield Systems amplifies the sound for the Speaker Modules. Signal activation and priority input switching automatically turn the Amplifier Module on and select a prioritized input for simple operation. Push buttons provide manual control from the front panel and a built in infrared receiver provides control from a learning IR remote control or the remote control included with the Flat Panel TV.
  • Page 29 Video Input (Optical/HDMI/Line) or the Aux Input. the individual level of each speaker module to Manual selection of input using the Source Buttons compensate for asymmetrical speaker placement in overrides the Amplifier Module’s automatic input the In-Wall Mounting System. selection. NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 30 opeRATIoN poweRed SySTemS CoNTINued... infrared remote control Infrared remote control commands that operate the Amplifier Module are available for download at www.nilesaudio.com. These remote control commands are available in formats compatible with most learning remote controls. Refer to Figure 23 for a list of the remote control commands and a description of their Amplifier Module function.

  • Page 31: Operation Passive Systems

    Note for cable/satellite users: If you plan to use the universal remote supplied with your cable/satellite box to operate your Cynema Soundfield System, that universal remote itself may not be able to properly program the Cynema Soundfield System. Instead, use the original remote control supplied with the television.

  • Page 32: Warranty

    Niles dealer (with proof of purchase – claims made without proof of purchase will be denied) who will test the product and if necessary, forward it to Niles customer service. If there are no authorized Niles dealers in your area, you must contact Niles customer service to receive a factory Return Authorization Number.
  • Page 33 By PHone (outSide uSa) 1-760-268-9860 CuStomeR SeRviCe HouRS 8:00 am to 5:30 pm pt teCHniCal SuPPoRt HouRS 6:00 am to 4:00 pm pt on tHe weB w w w.nilesaudio.com email teCHniCal SuPPoRt techsupport@nilesaudio.com email foR PRoduCt SuggeStionS productsuggestions@nilesaudio.com NILES – 1-800-472-5555 – 1-760-268-9860...
  • Page 34 ©2014 Core Brands, llC. All rights reserved. Niles® is a registered trademark of Core Brands, llC, a Nortek company. Cynema Soundfield is a trademark of Core Brands, llC. All other trademarks are the property of their respective owners. we reserve the right to change specifications, descriptions and prices without notice.
