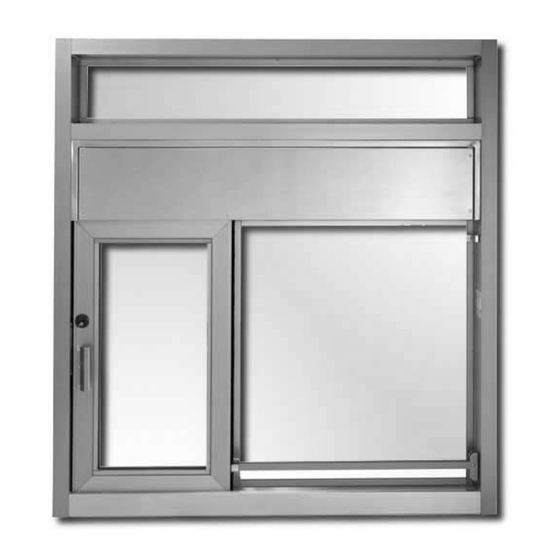

SST-4035E Service Manual SST - 4035E 15” Opening Service Manual Click the Procedure to View Operation and Maintenance Procedures Component Rack Assembly Limit Switch and Door Flag Adjustment Window Does Not Operate Motor runs, but Door Does Not Operate Door or Doors Stay in the Open Position...
SST-4035E Service Manual Automatic Slider Operation and Maintenance Procedures Operation Procedures: General Maintenance: • Unlock all locking mechanisms and ensure that the doors are free of obstructions. • Slide rail system should be kept clean and re- oiled with lightweight oil every six (6) months.
SST-4035E Service Manual Warning: For your own safety, turn power CAUTION: Power Supply = 0 V switch OFF before removing access panel Figure 2 Component Rack Assembly Please refer to the TROUBLE SHOOTING To remove the component rack assembly - see CHARTS (pg.
SST-4035E Service Manual Figure 3 Warning: For your own safety, turn power switch OFF before removing access panel Limit Switch and Door Flag Adjustment The location of the limit switch can be adjusted by Note: One of the red LED lights on the PC Board loosening the two () screws in the bracket and by should only be “ON”...
SST-4035E Service Manual Figure 4 Left Hand Unit Shown Figure 5 Trouble Probable Cause Probable Solution 1. No power to the unit Check the circuit breaker Window Does Not Operate 2. Power Switch is off or defective Turn on switch or replace (Fig. 4-A) 3.
SST-4035E Service Manual Figure 4 Left Hand Unit Shown Figure 6 Trouble Probable Cause Probable Solution 1. Close limits switch is defective or disconnected Replace or reconnect (Fig. 4-e) Door or doors 2. Eye assembly is unplugged or disconnected Check connection points and connect (Fig. 6-C)
SST-4035E Service Manual Figure 3 Trouble Probable Cause Probable Solution 1. No power to the unit Check the circuit breaker Window Does Not Operate 2. Power Switch is off or defective Turn on switch or replace (Fig. 4-A) 3. Fuse in switch or PC Board Blown Check and replace (Fig.
SST-4035E Service Manual Figure 8 Replacement Parts for Single Sliding Door Key No. Part No. Description 4413 On/Off Switch 4425 1/2A 250V in line fuse 5615 Drive Motor Assembly 4451 Limit Switch (2) 4460 P.C. Board 1052 Drive Belt 4401...
SST-4035E Service Manual Eye Set Hookup Figure 9 Important Wire connection must be made as shown. Failure to make the correct connection could result in eye set damage or improper operation. Warning For your own safety, turn power switch OFF before removing the access panel.
SST-4035E Service Manual Warranty Service Policy 1. Quikserv Corp. MUST be notified of a war- 7. Quikserv Corp. needs to be notified of any ex- ranty situation before any work is performed. tra parts - either to be sent back or to be kept Otherwise, Quikserv Corp will not be respon- by the service technician.
