PROFESSIONAL USB MP3 PLAYER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uSolo Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DJ-Tech uSolo Pro

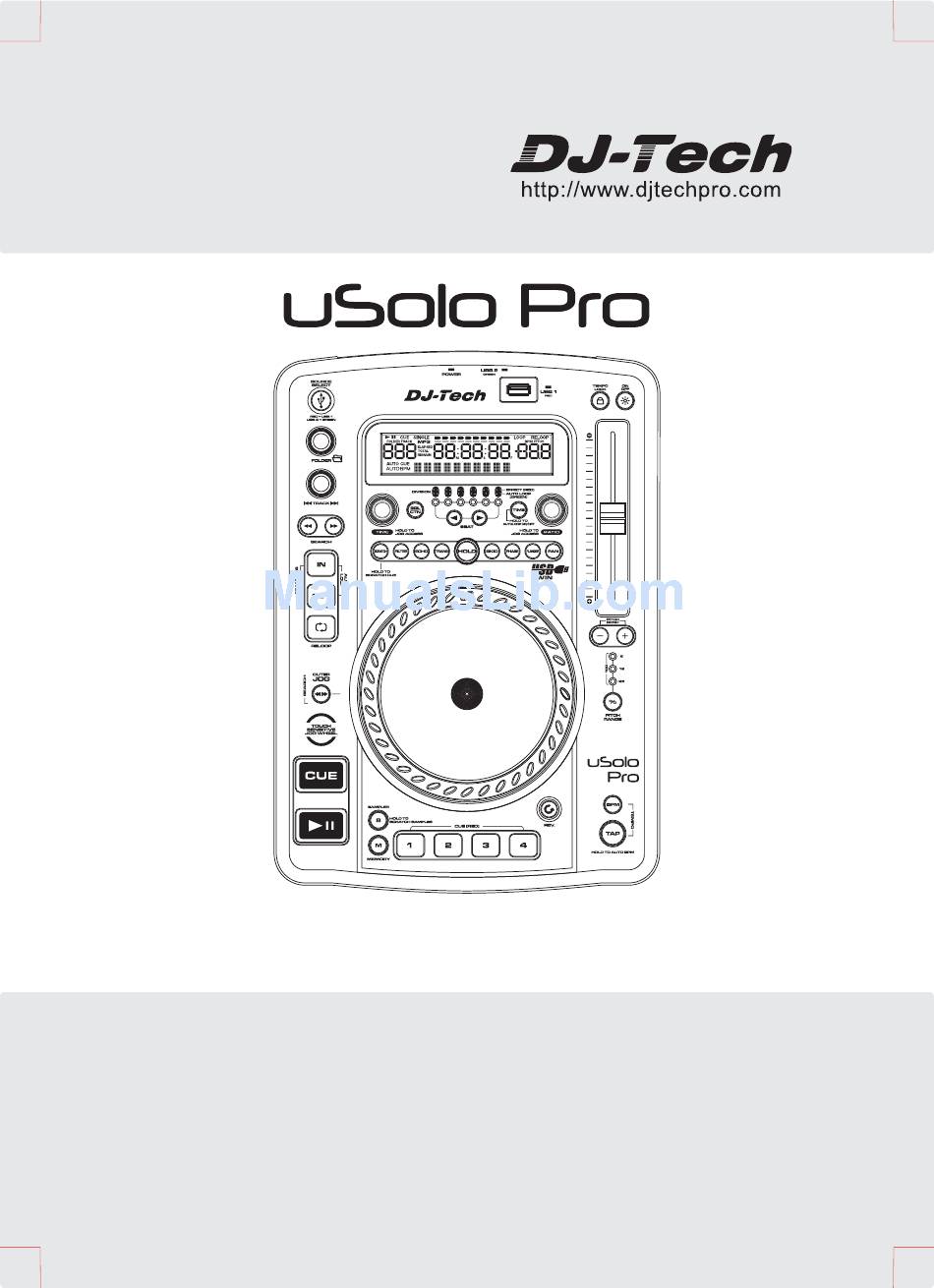

  • Page 1 PROFESSIONAL USB MP3 PLAYER USER MANUAL...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 3: Main Features

    MAIN FEATURES 9 Effects (can be combined): Scratch, Flanger, Echo, Filter, Pan, Trans, Phase, Skid and Brake 4 banks Sampler with mixer 4 Hot Cues Cue points can be Stored into the USB device and Recall. (4 Cues per folder) Dual SCRATCH mode Touch sensitive and multi mode jog wheel Reverse play...
  • Page 4 CONTROLS AND FUNCTIONS TOP PANEL 1. SOURCE SELECT BUTTON - This button lets you toggle between USB Port 1 and 2 for the MP3 File source. The color of LED shows which source is activated. Glowing red LED refers to USB 1 port; glowing green LED refers to USB 2 port.
  • Page 5 CONTROLS AND FUNCTIONS TOP PANEL 14. CUE BUTTON - Pressing the CUE button during playback immediately pauses playback and returns the track to the last set cue point. In pause mode and the music is at the cue point, press the CUE button to provide cue monitor.
  • Page 6: Rear Panel

    CONTROLS AND FUNCTIONS TOP PANEL SCRATCH CUE IN PLAYBACK MODE: While in play mode and when the touch sensitivity function is active, the JOG WHEEL can be used to return the unit to last cue point. Simply touch the JOG WHEEL and unit will immediately return to the last set cue point and allow you to scratch at this cue point.
  • Page 7: Lcd Display Panel

    LCD DISPLAY PANEL 1. AUTO CUE - This will indicate if the Auto Cue is on or off. Press and hold the SGL/CTN for 1 sec. to turn the Auto Cue function on and off. 2. TRACK METER - Indicates the number of the currently playing track or folder. 3.
  • Page 8 OPERATION INSTRUCTION 1. SELECTING TRACKS Select desired track by turning the TRACK SEARCH knob once to move to one higher or lower track or press and hold the TRACK knob to change tracks continuously at a +10 tracks higher speed. When a new track is selected during playback, playback begins as soon as the search operation is completed.
  • Page 9 OPERATION INSTRUCTION RECALLING THE HOT CUE AND SAMPLES (1). Activate the Memory mode by pressing the MEMORY Button (MEMORY Button lit in red) (2). Insert the USB Device containing Hot Cue and Samples database. (3). “Recall” will be shown on LCD indicating that the unit is reading the Hot Cues and Samples from the first folder.
  • Page 10 OPERATION INSTRUCTION 10. TIME DISPLAY During normal play, each time you press TIME button, the display information changes between time elapsed and time remain. 11. PITCH BENDING There are 2 ways to pitch bend the playing song: (1) The speed increases or decreases respectively while the PITCH BEND “+” or PITCH BEND “-” button is pressed.
  • Page 11 OPERATION INSTRUCTION 16. SYSTEM SETTING Press and hold TIME button then press TIME or RATIO knob enter system setting. Turn and press TIME or RATIO knob to enter item and confirm, press TIME button to leave mode. 1. Version ....CON: VerXX( control version) DSP: VerXX( DSP version) 2.
  • Page 12 OPERATION INSTRUCTION 1. GENERAL SECTION PRODUCT: USB MP3 PLAYER POWER SOURCE: AC100 - 240V, 50/60Hz POWER CONSUMPTION: DIMENSIONS: 246 (W) x 346(D) x 105(H) mm WEIGHT: 2. AUDIO CHARACTERISTICS (TEST SIGNAL FORMAT: MP3,128KBPS, LOAD=100KOHM) ITEM TYPICAL LIMIT CONDITION 1.4V +/-0.5dB 1.4V +/-1dB 1KHz, 0dB, TCD-782 TRK2 OUTPUT LEVEL...
