USER GUIDE AND INSTALLATION MANUAL
KL700
channel system
7
KL1000
10
channel system
KL1600
16
channel system
KL1800
18
channel system
CODE LEARNING
Power ON, Parking lights (CH18 yellow wire) will flash 1 time to enter
code learning mode. Press any button on the remote transmitter within 4
seconds. Parking lights will flash 2 times. If over 4 seconds, the system will
exit code learning mode automatically. Up to 4 transmitters can be learned
per module.
DIP SWITCH SETTINGS
Autoloc's KL700–KL1800 units offer several programmable features in
order to customize your remote system. The KL700–KL1800 come set from
the factory with all dip switch settings in the ON position. To change a
setting:
1. Slide the dip switch to the desired position.
2. Press button #1 on the remote.
3. Press button #2 on the remote.
4. Press button #1 on the remote again.
DIP SWITCH 1 (Channel 1- 9 Outputs)
ON: Channels 1-9 have pulsed outputs. When selected the output will
pulse for 1 second.
OFF: Channels 1-9 have constant outputs. When selected the output will
remain on for as long as you hold down the transmitter button.
DIP SWITCH 2 (Channel 10-18 Outputs)
ON: Channels 10-16 have pulsed outputs. When selected the output will
pulse for 1 second.
OFF: Channels 10-16 have constant outputs. When selected the output will
remain on for as long as you hold down the transmitter button.
DIP SWITCH 3 (Shaved Door Handle Safety Mode)
ON: When the Ignition is turned on channel 1&2 become inactive.
OFF: Channels 1&2 are active all the time.
DIP SWITCH 4 (Channel 9-10 Latching Outputs)
ON: Channels 9-10 have latching outputs. Once selected, they will stay on
until selected again.
OFF: Channels 9-10 have standard outputs.
DIP SWITCH 5 (Channel 1&2 Shaved Door Handle Mode)
ON: Shaved Door Handle Mode Activated for Channels 1&2. The selected
channel (1or 2) will pulse 3 consecutive 1second pulses, per each push of
the remote.
OFF: Shaved Door Handle Mode Inactivated.
©2003 The Hoffman Group L.L.C. All rights reserved.
The above instructions are for reference only. THG LLC is not responsible for any inaccuracies in the above instructions. THG LLC is also not responsible for any property damage or personal injuries resulting from the above
instructions. Installation by qualified automotive professionals is highly recommended.
WWW.AUTOLOC.COM
KL 1800 - 1 of 4
Revised 5/21/03 V.3
IMPORTANT
NOTICE:
installation, you may have extra unused wires on the
wiring harness. Do not be concerned. These wires are
used for features available on other models.

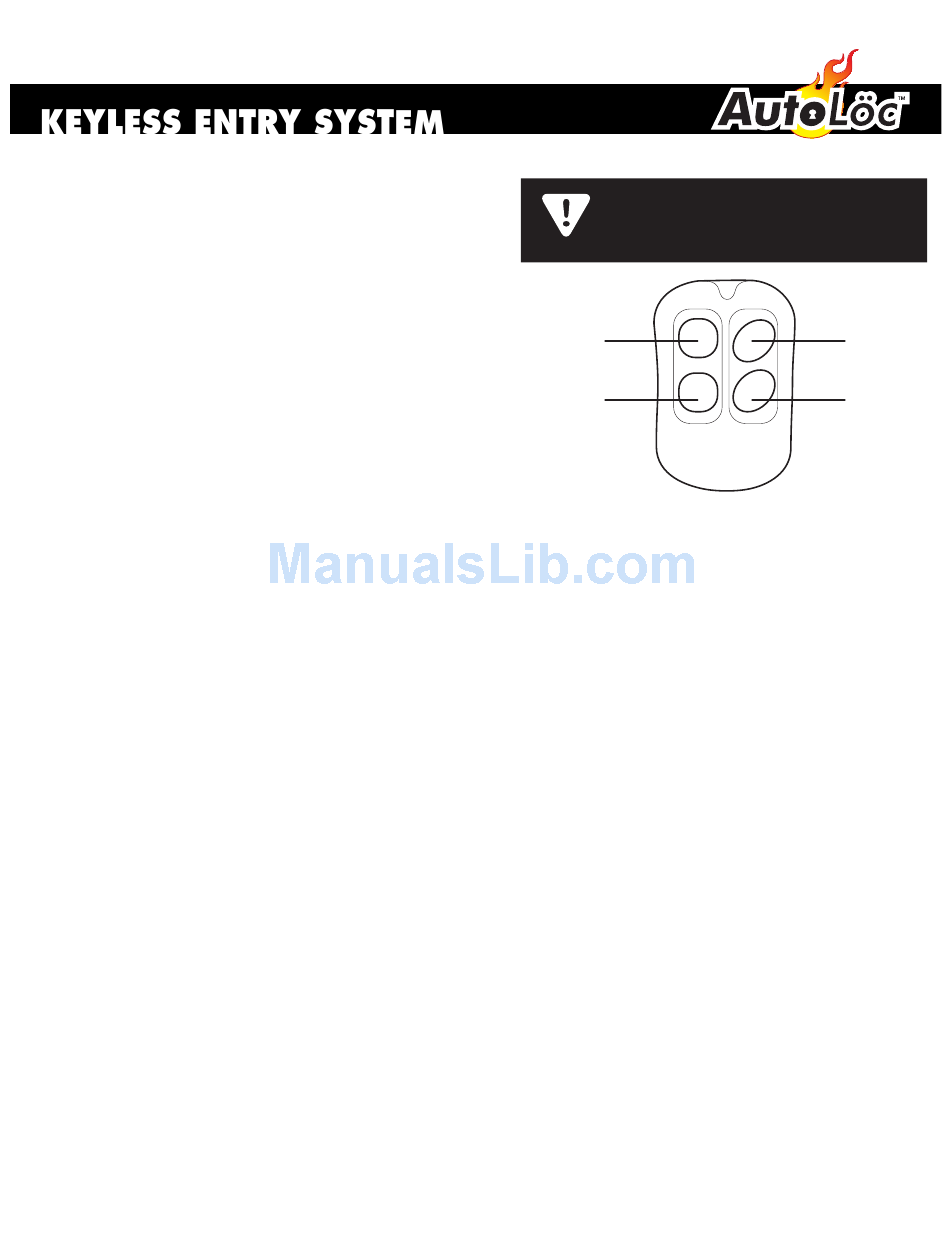

Button 1
Button 3
Remote Transmitters are
pre-programmed from the factory.
NORMAL OPERATION
Channel 1: Push Button 1
Channel 2: Push Button 2
Channels 3-18: Simply press button 3 on the remote transmitter the
channel you desire, then push button 4 to send that selected channel.
EXAMPLE: To access channel 5, push button 3 of the remote transmitter
5 times. Your parking lights will flash after each push for confirmation.
Now push button 4 of the remote transmitter to activate channel 5.
NOTE: You may also press and hold button 3 on the remote and count
the number of times your parking lights flash. This number will equal the
channel selected. Then push button 4 of the remote transmitter to activate
that channel.
NEW MULTIPLE BUTTON OPERATION
NEW FEATURE: Remove jumper 6 for multiple button operation.
Button 1 = Channel 1 output
Button 2 = Channel 2 output
Button 3 for 2 sec = Channel 3 output
Button 4 for 2 sec = Channel 4 output
Button 1 & 2 = Channel 5 output
Button 1 & 3 = Channel 6 output
Button 1 & 4 = Channel 7 output
Button 2 & 3 = Channel 8 output
Button 2 & 4 = Channel 9 output
Button 3 & 4 = Channel 10 output
Push Button 4 Twice then Button 1 = Channel 11 output
Push Button 4 Twice then Button 2 = Channel 12 output
Push Button 4 Twice then Button 3 = Channel 13 output
Push Button 3 Twice then Button 1 = Channel 14 output
Push Button 3 Twice then Button 2 = Channel 15 output
Push Button 3 Twice then Button 4 = Channel 16 output
Push Button 4, Push Button 3 then Button 1 = Channel 17 output
Push Button 4, Push Button 3 then Button 2 = Channel 18 output
Upon
completion
of
Button 2
