Summary of Contents for Impact Acoustics 40971

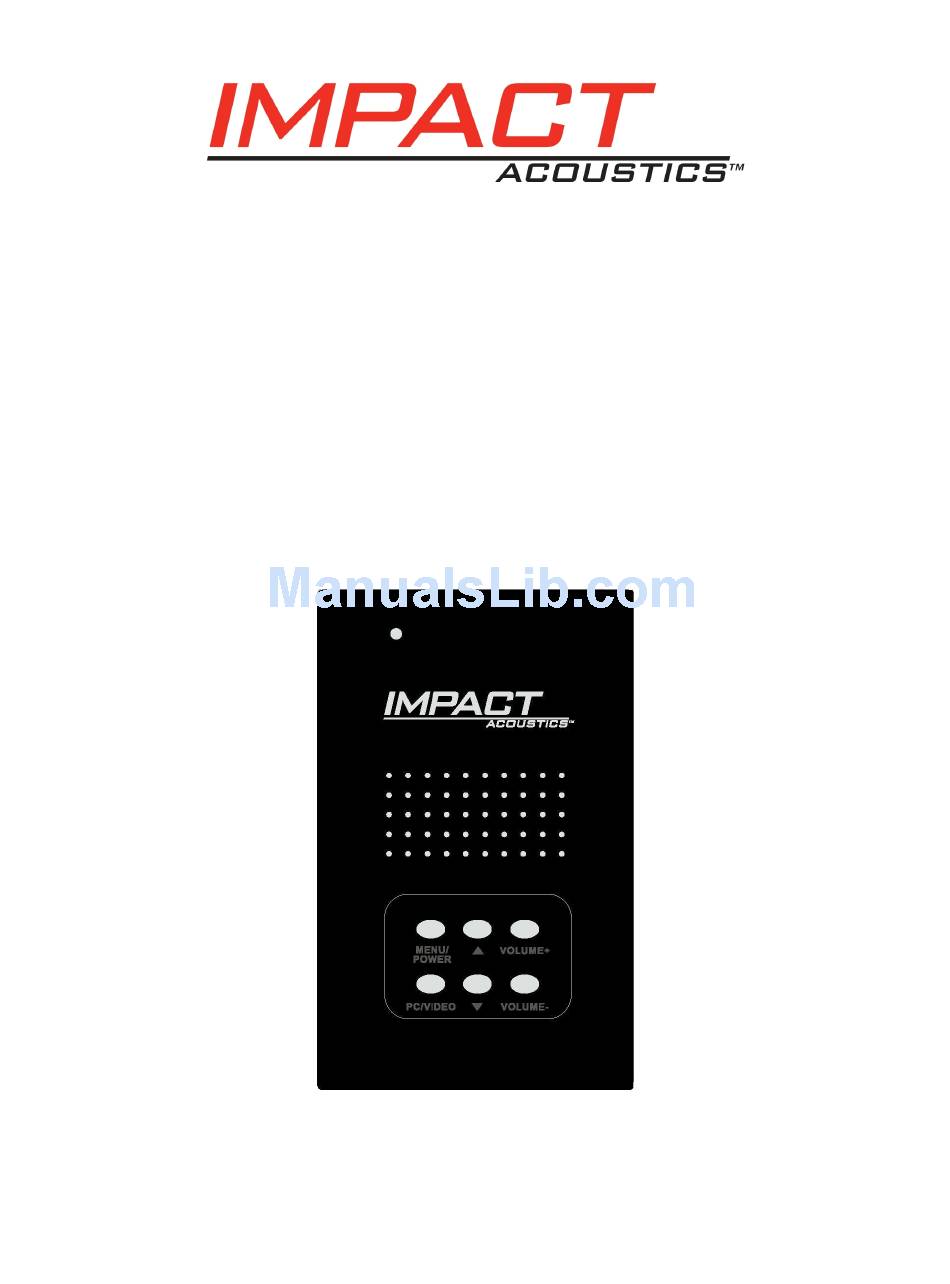

- Page 1 Video to PC Adapter Model: 40971 Operation Manual...
-
Page 2: Function
Video to PC Adapter Connect a video source with analog outputs to a monitor with a VGA input Model: 40971 Thank you for purchasing the Video to PC Adapter. We recommend that you read this manual thoroughly and retain for future reference. -
Page 3: Table Of Contents
Table of Contents Function...…………………………………………………………………………...ii Package Contents………………………………………………………………..ii Features……………………………………………………………………………..1 Connecting Devices…….………………………………………………………….1 Operating the Video to PC Adapter……………………………………………..3 Menu Details………………………………………………………………...4 Troubleshooting…………………………………………………………………..5 Specifications……………………………………………………………………..5 Replaceable parts…………………………………………………………………..5 Warranty/Important Safety Information…………………………………………..6... -
Page 4: Features
Features: Next generation digital de-interlace chip • Provides high picture quality Multiple Resolution Settings • Can display many resolution settings including VGA, SVGA, XGA, and SXGA Picture Freeze Function Support • Through video conversion, the adapter will allow you to maintain the ability to freeze the picture on your display (only applicable for displays with picture freeze feature). - Page 5 Diagram of connections:...
-
Page 6: Operating The Video To Pc Adapter
Operating the Video to PC Adapter: 1. After connecting the devices to the adapter as stated above, turn on all devices and press the Menu/Power button on the Video to PC Adapter. The LED light will flash Red, Green, Red, then remain Green indicating it is functioning. -
Page 7: Menu Details
Menu Details s You can access the menu through either the CVBS or S-Video input. To navigate through the You can access the menu through either the CVBS or S-Video input. To navigate through the menu, use the up/down arrows to scroll vertically through the menu. To advance to the Sub menu, use the up/down arrows to scroll vertically through the menu. -
Page 8: Troubleshooting
Troubleshooting: Problem Solution No Operation 1. Verify the 5V power supply is connected to the unit. 2. If you have the power supply connected to a surge protector, verify that the surge protector is turned on and functional. No picture or signal; Poor 1. -
Page 9: Warranty/Important Safety Information
Impact Acoustics™ One Year Warranty At Impact Acoustics, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. To request a Return Merchandise Authorization (RMA) number, contact customer service at 877-AV-EXPERT or www.impactacoustics.com.
