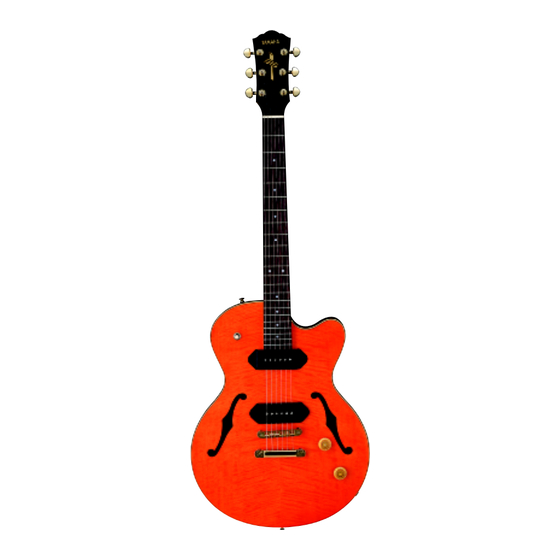

Yamaha AEX502 Service Manual

Yamaha aex502 electric guitars service manual

Download this manual

011455

19980708-330000

ELECTRIC GUITAR

AEX502

SERVICE MANUAL

CONTENTS

OVERALL ASSEMBLY

PARTS LIST

CIRCUIT DIAGRAM

WIRING

....................................................................... 4

SPECIFICATIONS

............................................... 2

.................................................... 3

.................................................... 4

HAMAMATSU, JAPAN

0.9K-19

Printed in Japan '98.12

Table of Contents

Page 1 ELECTRIC GUITAR AEX502 SERVICE MANUAL CONTENTS OVERALL ASSEMBLY ..........2 PARTS LIST ............ 3 CIRCUIT DIAGRAM ............ 4 WIRING ............... 4 SPECIFICATIONS ............ 4 011455 HAMAMATSU, JAPAN 19980708-330000 0.9K-19 Printed in Japan ’98.12...
Page 2: Overall Assembly
AEX502 OVERALL ASSEMBLY Bridge Assembly : TP6-3 GOLD (QC466600) A seal is attached on the rear of the neck. AEX502 E01 E02 NOTE : This unit cannot be disassembled, and is only available as a pre-assembled unit. E33 E34 E06 E07...
Page 3: Parts List
AEX502 PARTS LIST PART NO. DESCRIPTION REMARKS REF NO. RANK OVERALL ASSEMBLY AEX502 DX809770 Neck Assembly A01a Seal (QC47830) Body QA170800 Tuning Machine Assembly RM-1271 (GVR) 1set 03704070 Round Head Wood Screw 2.4X10 GOLD (GL) VQ014700 43mm (Ivory) VQ011800 Rod Cover...
Page 4: Circuit Diagram
AEX502 CIRCUIT DIAGRAM WIRING FRONT PICKUP PICKUP SWITCH REAR PICKUP FRONT to rear pickup cavity PICKUP PICKUP SWITCH to tailepiece to front pickup cavity (3P Toggle) TONE VOLUME OUTPUT VOLUME 15A 500K REAR PICKUP 0.022uF TONE 05A 250K OUTPUT (GP02-02)
