Summary of Contents for Devon IT TC5c
- Page 1 TC5Xc, TC5Dc Mount the thin client in its vertical orientation for best performance. If it is necessary to mount the unit horizontally, make sure the unit is properly ventilated. Improper mounting can cause the unit to overheat and become damaged.
- Page 2 DVI Video Splitter Cable Inspect all parts visually for damage. If anything is damaged, please contact Devon IT immediately to report the issue. You may use our web form (http://www.devonit.com/support) to create an inquiry ticket with the Devon IT Technical Support Department, or contact us by phone at 1-(800)-369-7290.

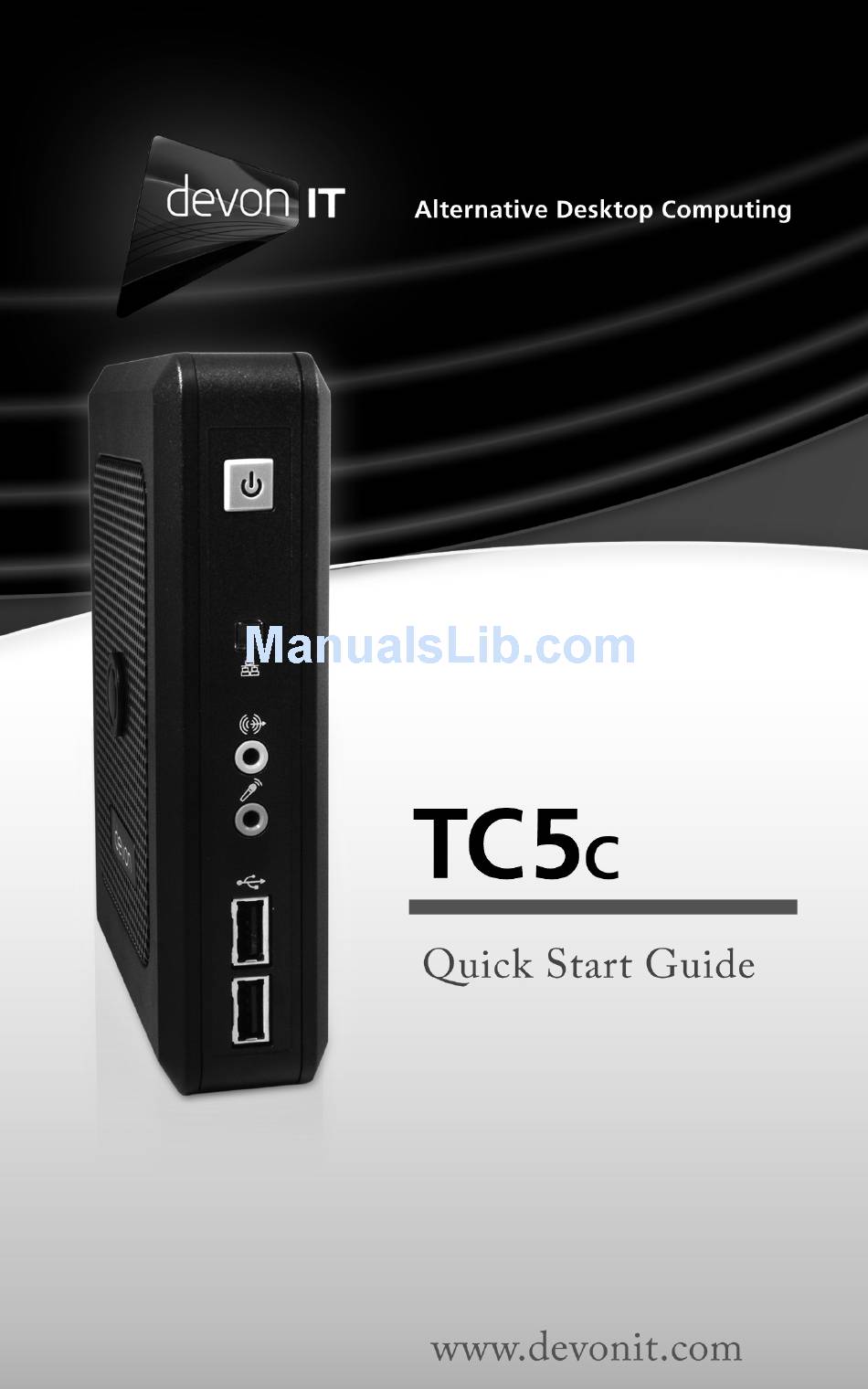

- Page 3 Quick Start Guide version1 Setup 1. Place the TC5c in the supplied terminal stand. The stand will keep the unit in a stable, vertical position. 2. Connect the monitor to the DVI Port on the back of the unit. 3. Connect the mouse and keyboard to the PS/2 or USB ports depending on what type you have.
-
Page 4: System Start
Alternative Desktop Computing Windows Embedded Standard (WES) Instructions for TC5c Terminals Running WES System Start Two local user accounts exist on the system: • Administrator – The default password is Administrator (case sensitive) • User – By default, there is no password required for this account. -
Page 5: Dual Monitors
Instructions for TC5c Terminals Running WES (continued) Dual Monitors You can attach two monitors to the TC5c by using the supplied DVI Video Splitter Cable. • With the unit turned off, attach the splitter to the DVI port of the terminal. -
Page 6: Installing Additional Software
WES - Instructions for TC5c Terminals Running WES (continued) FBWF Manager (continued) The TC5c includes a management utility for configuring FBWF. Only Administrators can access this utility. To open the FBWF Manager: • Log in as Administrator. • Choose “Start Menu -> All Programs -> FBWFGUI”... -
Page 7: Where To Go From Here
Devon IT TC5c Terminal Quick Start Guide version1 WES - Instructions for TC5c Terminals Running WES (continued) Where to Go From Here Please visit the support page on our website, http://www.devonit.com/support, to download the latest documentation for the Windows Embedded Standard operating system. - Page 8 Alternative Desktop Computing DeTOS Instructions for TC5c Terminals Running DeTOS System Start 1. Press the Power Button to turn on the terminal. 2. Once the boot process is finished, your thin client will display the DeTOS desktop and taskbar. 3. The network configuration is set to DHCP by default. To check the network connection status, click the DeTOS button that is located on the bottom right- hand corner of the screen, and then select DeTOS Control Panel.
- Page 9 Dual Monitors You can attach two monitors to the TC5c by using the supplied DVI Video Splitter Cable. 1. With the unit turned off, attach the splitter to the DVI port of the terminal. Connect the monitors to the other ends of the cable, and then power on the terminal.
-
Page 10: System Password
Alternative Desktop Computing DeTOS - Instructions for TC5c Terminals Running DeTOS (continued) System Password A System Password can be set to restrict access to the DeTOS Control Panel. To set the Password: 1. Select DeTOS → DeTOS Control Panel 2. Click the Management icon on the left hand side of the Setup window. - Page 11 DeTOS - Instructions for TC5c Terminals Running DeTOS (continued) Where to Go From Here (continued) Warranty information and registration can be found at: http://www.devonit.com/products/products-warranty.php © 2010 Devon IT, Inc. All Rights Reserved Visit us on the web: http://www.devonit.com...
- Page 12 Devon IT, Inc. 1100 First Ave. King of Prussia, PA 19406 devonit.com...
