Subscriber Networks
Model D9479 Gigabit QAM Modulator
Description

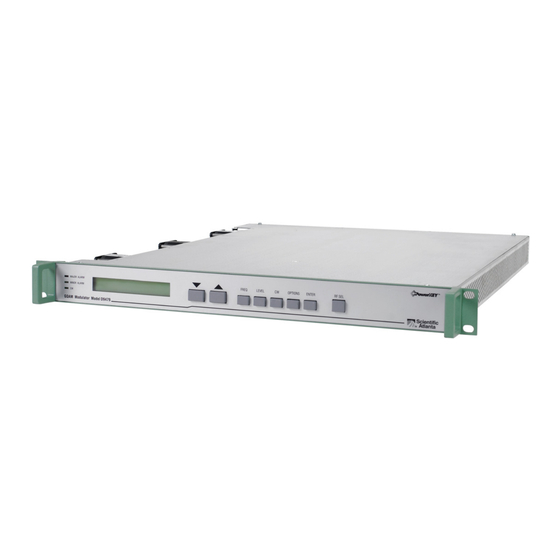

The Model D9479 Gigabit QAM Modulator (GQAM)
represents an innovation in video transmission
technology. The GQAM contains five input ports
including four digital video broadcasting (DVB)
standard asynchronous serial interface (ASI) inputs
and a Gigabit Ethernet (GbE) port.
The GQAM contains the core functionality of four of our Model D9477 MQAM Modulators.
One GQAM frees up a total of seven additional rack unit (RU) openings, thereby making
the GQAM an exceptional product for mass deployment of video-on-demand (VOD),
anything-On-Demand (xOD), and other interactive broadcast services.
The four ASI inputs allow for direct connection to current generation video servers,
encoders, integrated receiver-decoders (IRDs), and other digital video sources at the
headend. The GbE interface allows for connection to the next generation of video
servers, either linked locally with the GQAM or remotely through a network.
Features
•
Contains the core functionality of the MQAM modulator
•
Includes 5 input ports and can provide up to 16 QAM outputs to achieve the
broadcast capacity of 4 MQAM modulators or 16 QAM modulators
•
Enables direct connect to both DVB ASI and Gigabit Ethernet video sources at the
same time and the capacity to create transport streams from any combination of the
5 inputs
•
Provides 4 DVB ASI inputs (216 Mbps each) and 1 plug-in Gigabit Ethernet input
(GBIC) to multiplex content from any input to any of the 16 outputs (channels)
•
Uses an output center frequency range of 91 MHz to 867 MHz
•
Incorporates PowerKEY
•
Enables higher rack density to save space
•
Optimizes system management with provisioning and monitoring by the DNCS
•
Facilitates deployment in either a headend or a hub
®
DES and DVB Common Scrambling Algorithm options
