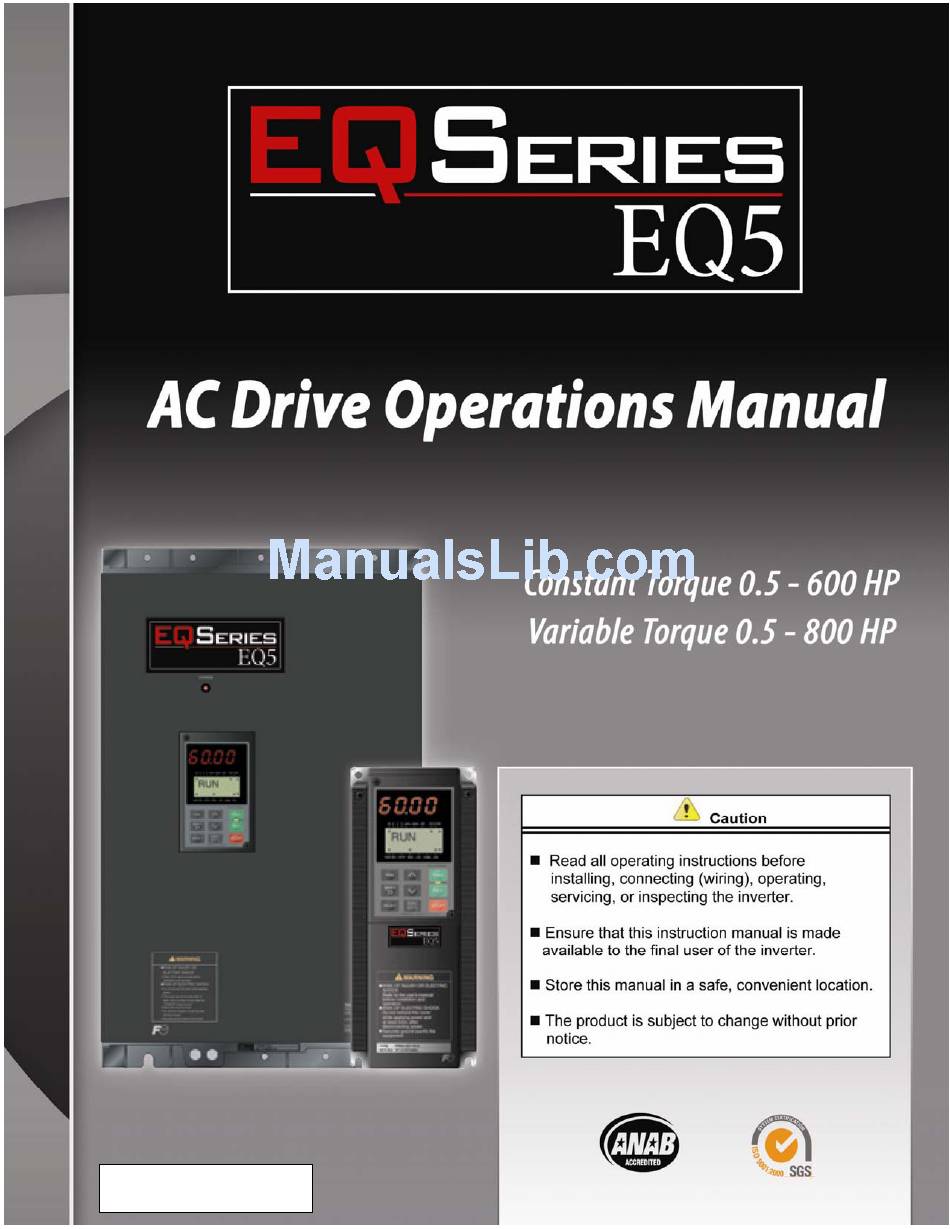

EQ5 AC Drive Operations Manual
Document: TWMC-EQ5OM
Revision: 001P0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anab EQ5 and is the answer not in the manual?

Questions and answers

Summary of Contents for TECO-Westinghouse Motor Anab EQ5

  • Page 1 EQ5 AC Drive Operations Manual Document: TWMC-EQ5OM Revision: 001P0...

  • Page 2: Safety Instructions

    Preface Thank you for purchasing our EQ5 series inverter. This product is used to drive a 3-phase electric motor at variable speed. As incorrect use of this product may result in personal injury and/or property damage, please read all safety and operating instructions before using. Safety Instructions Please read this manual carefully before installing, connecting (wiring), operating, servicing, or inspecting the inverter.
  • Page 3 • Turn off the power before starting the wiring, otherwise electric shock may result. • Wire the inverter after installation is complete, otherwise electric shock or injury may occur. • Confirm that the phases and rated voltage of this product match those of the AC power supply, otherwise injury may result.
  • Page 4 Instructions on maintenance, inspection, and replacement: • Wait a minimum of five minutes (30HP/CT, 40HP/VT or less) or ten minutes (40HP/CT, 50HP/VT or more) after power has been turned off (open) before starting an inspection. (Also confirm that the charge lamp is off and that DC voltage between terminals P (+) and N (-) does not exceed 25V.) Otherwise electrical shock may result.
  • Page 5 Connector must be fixed using the crimp tool specified by the connector manufacturer. * Connect the power supply to main power supply terminals via the Molded-case circuit breaker (MCCB) or a ground fault circuit interrupter (GFCI) to conform to the UL Listing Mark.

  • Page 6: Table Of Contents

    Contents Before Using This Product ···························· 1 1-1 Receiving Instructions ·························· 1 1-2 Appearance ······································· 1 1-3 Handling the Product ························· 2-3 1-4 Carrying and Moving the Product ··········· 3 1-5 Storage ·········································· 3-4 2. Installation and Electrical Connections ·········· 5 2-1 Operating Environment ························...

  • Page 7: Before Using This Product

    1. Before Using This Product 1-1 Receiving Instructions Unpack and check the product as explained below. If you have any questions about the product, contact the nearest TWMC sales office or your local distributor where you purchased the unit. 1. Check the ratings on the nameplate to confirm that the delivered product is the one that was ordered.

  • Page 8: Handling The Product

    1-3 Handling the Product 1. Removing the cover For drives rated 30HP/CT, 40HP/VT or less, loosen the mounting screws of the cover, then remove by pulling the top (see Fig. 1.3.1). Fig. 1-3-1 Removing the Surface Cover (for inverters rated 30HP/CT, 40HP/VT or less) For drives of 40HP/CT, 50HP/VT or more, first remove the six mounting screws, then remove the cover (see Fig.

  • Page 9: Carrying And Moving The Product

    For drives 40HP/CT, 50HP/VT or more, loosen the mounting screws of the digital operator and remove using the finger holds on the digital operator case (see Fig. 1-3-4). Fig. 1-3-4 Removing the Digital Operator (40HP/CT, 50HP/VT or more) 1-4 Carrying and Moving the Product 1.

  • Page 10: Storage

    If the product is to be stored for an extended period of time after purchase, the method of storage depends primarily on storage location. The general long-term storage method is as follows: 1. The above conditions for temporary storage must be satisfied. When the storage period exceeds three months, the upper limit of ambient temperature must be reduced to 30º...

  • Page 11: Installation And Electrical Connections

    2. Installation and Electrical Connections 2-1 Operating Environment Install this product in a location that meets the conditions listed in Table 2-1-1 Table 2-1-1 Operating Environment Item Specifications Location Indoors -10Cº to +50ºC (14ºF to 122ºF) - For products of 30HP/CT, 40HP/VT or less, the ventilating Ambient covers must be removed if the...
  • Page 12 5. When installing this product in a control panel, ensure that the ventilation is sufficient to prevent the ambient temperature of the inverter from exceeding the specified value. Do not install the product in an area where there is inadequate ventilation, 6.
  • Page 13 *3 Do not use the bottom brackets in the bottom surface mount Installation. Fig. 2-2-3 40HP/CT, 50HP/VT or more Removing Upper and Lower Brackets 8. For inverters of 30HP/CT, 40HP/VT or less, remove the ventilating covers if ambient temperature exceeds +40°C (104°F) (1) Removing the ventilating covers: One ventilating cover is mounted on top of the inverter and the other two or three are mounted at the bottom.

  • Page 14: Electrical Connections

    2-3 Electrical Connections To access the terminal blocks remove the cover in accordance with the instructions in this manual. 2-3-1 Basic Power Electrical Connections 1. Always connect input power to the main circuit power terminals L1/R, L2/S, and L3/T of the inverter. Check that the input voltage to be applied is within the maximum allowable voltage marked on the nameplate.
  • Page 15 EQ5 AC Drive Operations Manual ______________________________________________________________________ TECO – Westinghouse Motor Company Basic Wiring Diagram...

  • Page 16: Ground Terminals

    EQ5 AC Drive Operations Manual 2-3-2 Connecting the Input Power, Motor Output Power, and Ground Terminals The following shows the terminal arrangements for the various HP ranges of the EQ5. The terminal screw sizes are also shown for reference. ______________________________________________________________________ TECO –...
  • Page 17 DC link circuit terminals Inverter ground terminal 1. Main circuit input power terminals (L1/R, L2/S, L3/T) a. For circuit (wiring) protection, connect these terminals to the input power supply using a molded-case circuit breaker or a ground-fault circuit interrupter. Phase-sequence matching is unnecessary.
  • Page 18 2. Inverter output terminals (U, V, W) a. Connect these terminals to a 3-phase motor in the correct phase sequence. If the direction of motor rotation is incorrect, swap any two of the U, V, and W phases. b. Do not connect a power factor correction capacitor or surge suppressor to the inverter output.
  • Page 19 T0 should be connected to the output side of the RCD. If they are connected to the input side, the RCD will malfunction because the power supply of the inverter is three phase and the R0 and T0 input is single phase. If it is required to connect terminals R0 and T0 are to the input side of the RCD, an isolation transformer is required as shown on the Fig.
  • Page 20 DANGER- When terminals P (+) and N (-) of the inverter are not used, leave terminals open. If P(+) is connected to N (-) the bus voltage will be shorted, or if braking resistor is connected directly, the resistor can cause fire.
  • Page 21 EQ5 AC Drive Operations Manual NOTES ______________________________________________________________________ TECO – Westinghouse Motor Company Power Terminal Designations & Wiring...
  • Page 22 The connectors are mounted on the power PCB above the control PCB as shown on the right. Note: To remove a connector, squeeze the locking mechanism and pull. To mount a connector, push the connector down until it locks (clicks). <Enlarged view of part A>...

  • Page 23: Connecting The Control Terminals

    Table 2-3-3 lists the functions of the control circuit terminals. The connections to the control terminals will be in accordance with its function setting. Table 2-3-3 Control Terminal Functions Terminal Classification Terminal Name Symbol Potentiometer power supply Voltage input 1 Voltage input 2 Analog input Current input Analog input common _____________________________________________________________________ TECO –...

  • Page 24: Section 5.3 Function Explanation

    Common terminal for digital inputs ,FMP and P24. +24VDC power supply for control input. Maximum output current 100mA Used to connect to a PLC power supply output 22 to 27 VDC, input signals set to sink logic operation. Analog output DC voltage 0 to +10V DC.
  • Page 25 Frequency monitor Pulse output (CM Com) (pulse output) Transistor output1 Transistor output2 Transistor output3 Transistor output4 Transistor output Transistor output common 30A,30B, Alarm output for any fault Relay outputs Multipurpose-signal Y5A,Y5C relay output RS485 DX+, DX- Modbus RTU communication Communication Communication- cable shield connection terminal...
  • Page 26 (P24) +24V (source logic) or to (CM) 0V (sink logic). If the digital input terminals are turned on or off by a PLC with open collector using an external power supply, a resulting bypass circuit may cause the inverter to malfunction. To prevent this, connect the PLC terminal as shown in Fig.
  • Page 27 EQ5 AC Drive Operations Manual Fig. 2-3-11 Control Cable Routing and Securing for 40HP/CT, 50HP/VT and Greater NOTES ______________________________________________________________________ TECO – Westinghouse Motor Company Control Terminal Designations & Wiring...

  • Page 28: Input Protection Device Ratings

    2-3-4 Input Protective Device Ratings. Input HP Rating Voltage (VT / CT) 0.25 / 0.25 0.5 / 0.5 1 / 1 2 / 2 3 / 3 5 / 5 7.5 / 5 10 / 7.5 15 / 10 20 / 15...

  • Page 29: Cable Size

    2-3-5 EQ5 Terminal Tightening Torque and Cable Size Terminal Tightening Torque Ib – in (Nm) L1/R, Rating L2/S, L3/T, U, (CT / VT) V, W, P1 & P(+) 0.25 / 0.25 0.5 / 0.5 10.6 (1.2) 1 / 1 2 / 2 3 / 3 20.8 (2.36) 5 / 5...

  • Page 30: Dc Link Choke Wattage Loss

    460V Notes: • EQ5 Drives rated 100 Hp and above are furnished with a DC link choke. This choke must be installed between terminals P1 and P+ prior to applying power to the Drive. • The weight of the DC Link Reactor is not included as part of weight referenced for the Drive.

  • Page 31: Initial Operation

    1. Check that all the electrical connections are secure and correct. (Fig. 3-1-1) In particular, check that the input power supply is not connected to any of the U, V, and W output terminals to the motor and that the ground terminal is securely grounded.

  • Page 32: Trial Run

    4. Power down the inverter and following safety precautions, connect the motor. Power-up the drive and repeat steps 1-3 and check the following. a. Is the direction of rotation correct? b. Is the motor rotating smoothly with no buzzing or abnormal vibration ? c.

  • Page 33: Digital Operator

    4. Digital Operator The Digital Operator has various functions for inputting, controlling, and displaying operations such as frequency setting, run/stop command, confirming and changing function data, confirming status, and copying. Please review and become familiar with each function before attempting to operate the drive. The Digital Operator can be removed or inserted during inverter operation, however, if it is removed during a keypad operation (e.g., run/stop, frequency setting), the inverter will stop and initiate an alarm.

  • Page 34: Digital Operator Lcd Screen

    Table 4-1-1 Functions of Operation Keys Operation Key Used to switch the current screen display to the menu screen or switch to the initial display screen in the operation/trip mode. Used to switch the LED monitor or to determine the entered frequency, function code, or data.
  • Page 35 Table 4-2-1 Overview of Contents Displayed for Each Level Level Name Operating This screen is for normal operation. Frequency setting by keypad panel and the LED display mode switching are possible only when this screen is displayed. Program menu Menu name DATA SET DATA CHECK OPR MNTR...

  • Page 36: Digital Operator Keypad Navigation

    4-3 Digital Operator Keypad Navigation 4-3-1 Operation Mode The LCD screen for normal inverter operation displays the inverter operating status and an operation guide. A second screen is available which graphically displays the operating status in the form of a bar graph. Switching between screens is possible by setting the value of parameter E45 (=1 operation guide), (=2 bar graph).

  • Page 37: Switching To The Led Monitor

    When stopped (E44 = 0) (E44 = 1) Setting Output frequency 1 (before slip frequency compensation) Setting Output frequency 2 (after slip compensation) frequency Setting Setting frequency frequency Output current Output current Output voltage Output voltage (specified value) (specified value) Synchronous speed setting Synchronous speed...

  • Page 38: Setting The Parameter Values

    4-3-5 Setting the Parameter (function code) Value On the program menu screen, select 1. DATA SET as in para. 4-3-3. The parameter select screen appears. Select the desired parameter and set value as follows. PRG PRG MENU SHIFT F / D The parameter designations (function codes) consist of alphanumeric characters with unique alphabetical letters assigned to each parameter group as in table 4-3-1 below.

  • Page 39: Checking Parameter Data

    Display Reason for No Modification Currently writing from RS-485/RTU LINK ACTIVE option to function is being made. The edit enabling command NO SIGNAL(WE) function is selected using a general-purpose input terminal. Data protection is selected by DATA PRTCTD parameter F00. An attempt is made to change a INV RUNNING function that cannot be changed...

  • Page 40: I/O Check

    PRG PRG MENU SHIFT F / D Output Terminal Status Analog Input Voltage Value 12 = + XX.XV 22 = + XX.XV 32 = + XX.XV V2 = + XX.XV DIO Option I/O Status AO = XX.XV CS = XX.XmA DI = XXXXH DO =...

  • Page 41: Maintenance Information

    PRG PRG MENU SHIFT F / D NOTES _______________________________________________________________________ TECO – Westinghouse Motor Company EQ5 AC Drive Operations Manual Checking Maintenance Information...

  • Page 42: Load Rate Measurement

    PRG PRG MENU SHIFT F / D T= 150s Imax 0.00A Iave 0.00A BPave T= 3600s Imax 56.4A Iave 23.5A BPave 10.4% NOTES _______________________________________________________________________ TECO – Westinghouse Motor Company Start Measuring Displays remaining measurement time. When = 0 measurement 0.0% ends.

  • Page 43: Alarm Information

    PRG PRG MENU SHIFT F / D _______________________________________________________________________ TECO – Westinghouse Motor Company EQ5 AC Drive Operations Manual Alarm Information...

  • Page 44: Reasons

    PRG PRG MENU SHIFT F / D Alarm Code of the selected alarm LOW SUP V PWR FAILURE EXCESS LOAD PHASE LOSS NOTES _______________________________________________________________________ TECO – Westinghouse Motor Company 5.MAINTENANCE FUNC 6.LOAD FCTR DATA 7.ALM INF 8.ALM CAUSE FUNC Display DATA Example: Latest alarm LU is selected.

  • Page 45: Processing

    Select Data Copy (DATA COPY) on the main menu screen. Press Data Copy (READ) screen. Press remove the Digital Operator and attach to inverter 2. Power up and again select 9. Press . On the Data Copy screen press complete the data transfer done. The (VERIFY) feature which is covered on the next page also mkes it possible to compare and check differences in the data stored in the Digital Operator and the data stored in the inverter.
  • Page 46 Verify Data PRG PRG MENU SHIFT F / D 6.LOAD FCTR 7.ALM INF 8.ALM CAUSE 9.DATA COPY FUNC DATA <DATA COPY> 30 HP-2 READ <DATA COPY> 30 HP-2 VERIFY FUNC DATA <DATA COPY> 30 HP-2 VERIFY COMPLETE _______________________________________________________________________ TECO – Westinghouse Motor Company...

  • Page 47: Alarm Mode

    NOTES _______________________________________________________________________ TECO – Westinghouse Motor Company No. 5 alarm No. 4 alarm No. 3 alarm No. 2 alarm No. 1 alarm (more than two alarms have occurred.) Blank Latest alarm (only one alarm has occurred / alarm release) Blank Previous alarm history Blank Alarm history before previous alarm...

  • Page 48: Parameters F,E,C,P,H, A And U

    START Hz 0.1 to 60.0Hz HOLDING t 0.0 to 10.0s STOP Hz 0.1 to 60.0Hz MTR SOUND 0.75 to 15kHz (Vary by HP) SOUND TONE 0 to 3 FMA V-ADJ 0 to 200% FMA FUNC 0 to 11 FMP PULSES...
  • Page 49 Para. NAME E01 X1 terminal function E02 X2 terminal function E03 X3 terminal function E04 X4 terminal function E05 X5 terminal function E06 X6 terminal function E07 X7 terminal function E08 X8 terminal function E09 X9 terminal function E10 Acceleration time 2 E11 Deceleration time 2 E12 Acceleration time 3 E13 Deceleration time 3...
  • Page 50 GAIN 12 0.0 to +200.0% REF FILTER 0.00 to 5.00s P Parameters M1 POLES 2 to 14 Up to 30[HP]: 0.01 to 60HP M1-CAP 40[HP] and above: 0.01 to 800HP M1-Ir 0.00 to 2000A M1 TUN1 0, 1, 2 M1 TUN2...
  • Page 51 Para. NAME A01 Maximum frequency 2 A02 Base frequency 2 A03 Rated voltage 2 (at Base frequency 2 ) A04 Maximum voltage 2 (at Base frequency 2) A05 Torque boost2 A06 Electronic thermal overload relay for motor 2 (Level) (Thermal time constant) A09 Torque vector control 2 A10 Number of motor-2 poles...

  • Page 52: Parameter Explanation

    5-2 Function Explanation Data protection  Setting can be made so that a set value cannot be changed by keypad panel operation. F 0 0 D A T A P R T C Setting range 0 : The data can be changed. 1 : The data cannot be changed.

  • Page 53: Function Explanation

    LE Frequency setting Hz2/Hz1 Frequency setting by keypad panel   Gain Bias 12 C1 V2 V1 Option Analog input filter IVS UP UP/DOWN control DOWN D/I or pulse train (optional) Pattern operation control SS1 SS2 Switching SS4 command SS8 JOG...
  • Page 54 Maximum frequency 1 This function sets the maximum output frequency for motor 1. This is a function for motor 1. F 0 3 M A X Setting range EQ5: 50 to 120Hz Setting a value higher than the rated value of the device to be driven may damage the motor or machine.
  • Page 55 Torque boost 1 This is a function for motor 1. The following can be selected: F 0 9 T R Q B O O S T 1 -- Selection of load characteristics such as automatic torque boost, square law reduction torque load, proportional torque load, constant torque load.
  • Page 56 75HP to 125HP 110kW or above Fe x 0.33 Fe x 0.83 Operation level current and output frequency 110kW or above 150HP or above Fe x 0.83 Fe x 0.33 Operation level current and output frequency The time from when 150% of the operation level current flows continuously to when he electronic thermal O/L relay activates can be set.
  • Page 57 Restart mode after momentary power failure This function selects operation if a momentary power failure occurs. The function for detecting power failure and activating protective operation (i.e., alarm output, alarm display, inverter output cutoff) for undervoltage can be selected. The automatic restart function (for automatically restarting a coasting motor without stopping) when the supply voltage is recovered can also be selected.
  • Page 58 Power failure Set value : 0 Main circuit DC voltage Under voltage Output frequency LV trip Set value : 1 Main circuit DC Under voltage voltage Output frequency LV trip Operation continuation level Set value : 2 Main circuit DC voltage Output frequency...
  • Page 59 Frequency limiter Frequency limiter This function sets the upper and lower limits for the setting frequency . F 1 5 I M I T E R F 1 6 I M I T E R Setting range EQ5: 0 to 120Hz Set frequency + Maximum frequency Upper limit value...
  • Page 60 Starting frequency Start frequency (Holding time) Stop frequency The starting frequency can be set to reserve the torque at startup and can be sustained until the magnetic flux of the motor is being established. Frequency: This function sets the frequency at startup. F 2 3 S T A R T Setting range: 0.1 to 60Hz...
  • Page 61 (pulse rate) (voltage adjust) FMP terminal (function) Monitor data (e.g.,output frequency, output current) can be output to terminal FMP as pulse voltage. data can also be sent to an analog meter as average voltage. When sending data to a digital counter or other instrument as pulse output, set the pulse rate in F33 to any value and the voltage in F34 to 0%.
  • Page 62 WARNING When the torque limit function is selected, an operation may not match the set acceleration and deceleration time or set speed. The machine should be so designed that safety is ensured even when operation does not match set values. Otherwise accidents may result.
  • Page 63 X1 Terminal function ～ ～ X9 Terminal function Each function of digital input terminals X1 to X9 can be set as codes. E 0 1 F U N C E 0 2 F U N C E 0 3 F U N C E 0 4 F U N C E 0 5...
  • Page 64 Coast-to-stop command [BX] When BX and P24 are connected, inverter output is cut off immediately and the motor starts to coast-to-stop. alarm signal is neither output nor self-held. If BX and P24 are disconnected when the operation command (FWD or REV) is on, operation starts at the start frequency.
  • Page 65 Torque limit 2/torque limit 1 [TL2/TL1] This function switches the torque limit value set in function codes F40 and F41, and E16 and E17 by an external digital input signal. Set value input signal Torque limit value selected F40 DRV TRQ1 F41 BRK TRQ1 E16 DRV TRQ2 E17 BRK TRQ2...
  • Page 66 Inverse mode changeover [IVS] The analog input (terminals 12 and C1) can be switched between forward and inverse operations by an external digital input signal. Set value input signal Function selected Forward operation when forward operation is set and vice versa Inverse operation when forward operation is set and vice versa This function is invalid when the PID control is...
  • Page 67 Frequency setting 1 / Frequency setting 2 [Hz1/Hz2] This function switches the frequency setting method set in function codes F01 and C30 by an external digital input signal. This reverse-logic "11"(Frequency setting 2/Frequency [Hz2/Hz1]). Set value input signal Frequency setting method selected C30 FREQ CMD2 F01 FREQ CMD1 Note: It can not be used with set value "11"...
  • Page 68 Y1 terminal function ～ ～ Y5A and Y5C terminal function Some control and monitor signals can be selected and output from terminals [Y1] to [Y5]. Terminals [Y1] to [Y4] use transistor output; terminals[Y5A] and [Y5C] use relay contacts. E 2 0 F U N C E 2 1 F U N C...
  • Page 69 Inverter stopping [STOP] This function outputs an inverted signal to Running (RUN) to indicate zero speed. An ON signal is output when the DC injection brake function is operating. Ready output [RDY] This function outputs an ON signal when the inverter is ready to operate.
  • Page 70 4. When the option card is operated . 5. When RS-485 communication is operated . 6. When the power supply is turned off with digital input (FWD, REV, X1-X9) of a control terminal being ON. In the case of "3", "4", "5" and "6", life judgment is enabled by adjusting the function both code:U08 and U09.
  • Page 71 OL function signal (mode select) selection Select one of the following two types of overload early warning: early warning by electronic thermal O/L relay function or early warning by output current. E 3 3 W A R N Set value 0: Electronic thermal O/L relay 1: Output current Function...
  • Page 72 Load speed (r/min) value (r/min) Calculated torque value (%) Output power (HP) PID target value 1 (direct input from keypad panel) PID target value 2 (input from "F02 Frequency 1") PID feedback amount Note: For the values 10 to 12 set to E43, the data is displayed only when selected in "H20 PID control...
  • Page 73 Jump frequency 1 Jump frequency 2 Jump frequency 3 Jump frequency (Hysteresis) This function makes the set frequency jump so that the inverter's output frequency does mechanical resonance point of the load. Up to three jump points can be set. This function is ineffective when jump frequencies 1 to 3 are set to 0Hz.

  • Page 74: Setting Example

    JOG frequency This function sets the frequency for jogging operation of motor, which is different from the normal operation. C 2 0 J O G Setting range EQ5 : 0.00 to 120.00 Hz Starting with the jogging frequency is combined with jogging select signal input from the keypad panel or control terminal.
  • Page 75 Pattern operation setting example Function Set value Operation frequency to be set C21 (operation selection) C22 (stage 1) 60.0F2 Multistep frequency 1 (C05) C23 (stage 2) 100F1 Multistep frequency 2 (C06) C24 (stage 3) 65.5R4 Multistep frequency 3 (C07) C25 (stage 4) 55.0R3 Multistep frequency 4 (C08) C26 (stage 5)
  • Page 76 Analog signals input from control terminal 12 or C1 may contain noise, which renders control unstable. This function adjusts the time constant of the input filter to remove the effects of noise. C 3 3 R E F L T E R Setting range: 0.00 to 5.00 seconds An excessive setting delays control response though stabilizing control.

  • Page 77: Tuning Procedure

    Number of motor 1 poles This function sets the number of poles of motor 1 to be driven. If this setting is not made, an incorrect motor speed (synchronous speed) is displayed on the LED. P 0 1 P O L E S Set values: 2, 4, 6, 8, 10, 12, 14 Motor 1 (capacity) The nominal applied motor capacity is set at the factory.
  • Page 78 Note1: If REMOTE operation(F02: 1) is selected, operation signal is given from terminal [FWD] or [REV]. Note2: Use function "A13 Motor 2 (auto tuning)," to tune motor 2. In this case, set values described in 1 and 2 above are for the function (A01 - ) of motor 2.
  • Page 79 High Performance functions (H:High Performance function) Data initializing This function returns all function data changed by the customer to the factory setting data. (initialization). H 0 3 D A T A Set value 0： Disabled. 1： Initializing data. To perform initialization, press the together to set 1, then press the values of all functions are initialized.
  • Page 80 ACC/DEC （Mode select） pattern This function selects the acceleration and deceleration pattern. H 0 7 A C C P T N Set value 0: Inactive (linear acceleration and deceleration) 1: S-shape acceleration and deceleration (mild) 2: S-shape acceleration and deceleration (*) 3: Curvilinear acceleration and deceleration * The S-shape range is set by the function: U02 to U05 when the set value "2"...
  • Page 81 Start mode This function smoothly starts the motor which is coasting after a momentary power failure or after the motor has been subject to external force, without stopping motor. At startup, this function detects the motor speed and outputs the corresponding frequency, thereby enabling a shock-free motor startup.
  • Page 82 H O L D Setting range 230 V series: 200 to 300V 460 V series: 400 to 600V When power supply voltage to the inverter is high, control can be stabilized even under an excessive load by raising the operation continuation level.
  • Page 83 PID control (Mode select) ～ ～ PID control (Feedback filter) PID control detects the amount of control (feedback amount) from a sensor of the control target, then compares it with the target value (e.g., reference temperature). If the values differ, this function performs a control to eliminate the deviation.
  • Page 84 PID control (P-gain) PID control (I-gain) PID control (D-gain) These functions are not generally used alone but are combined like P control, PI control, PD control, and PID control. P operation Operation using an operation amount (output frequency) proportional to deviation is called P operation, which outputs an operation amount proportional to deviation, though it cannot eliminate deviation alone.
  • Page 85 -To suppress vibration with a frequency roughly equivalent to the value "H24 D-gain," decrease the value of H24. If there is residual vibration with 0.0, decrease the value of "H22 P-gain." Before adjustment PID control (Feedback filter) This filter is for feedback signal input from terminal [12] or [C1].
  • Page 86 Serial link (Function select) The link function (communication function) provides RS-485 (provided as standard) and bus connections (optional). The serial link function includes: 1) Monitoring (data monitoring, function data check) 2) Frequency setting 3) Operation command (FWD, REV, and other commands for digital input) 4)Write function data H 3 0 I N K...
  • Page 87 Maximum frequency2 This function sets the maximum frequency for motor 2 output by the inverter. This function operates the same as "F03 Maximum frequency 1." For details, see the explanation for F03. A 0 1 M A X Base frequency 2 This function sets the maximum output frequency in the constant-torque area of motor 2 (i.e., output frequency at rated output voltage).
  • Page 88 And, the result is stored in function code U09. t[s] tdec When the power supply is turned off under the conditions as follows, decrement rate (%) to the factory shipment can be measured. Conditions: which has been described to "*Estimation of life expectancy based on maintenance information"...
  • Page 89 2. Cooling fan ON/OFF control is used. (function code : H 06= 1) Turn off the power supply of inverter, on the conditions at which the inverter has stopped, and a cooling fan is operated. It is not necessary to remove an option card and the connection with a control terminal.

  • Page 90: Integral Gain

    Active (without reactor (ACR/DCR)) Active (with reactor (ACR/DCR)) Inactive When "2" is set to U48, protection operation of the inverter to input phase loss or power supply voltage unbalance △ ！ CAUTION does not work. If you use it as it is,...
  • Page 91 PC board, normal operation may not be able to be performed. (Offset adjustment) Confirm that the main power supply is turned ON, the motor wiring are connected and the motor has stopped (inverter operation command is OFF).
  • Page 92 (Gain adjustment) Drive the motor in an arbitrary frequency of about 10 to 60Hz (However, constant speed) after executing the above-mentioned offset adjustment. (U61:1) At this time, gain adjustment is available unrelated to the load state. When the data of U61 is changed to "2", and the FUNC/DATA key is ON, the gain self adjustment is started.

  • Page 93: Ground Fault

    6. Alarm Codes, Causes and Troubleshooting The drive’s built-in protective features protect the drive against operation outside its design limits. 6-1 Alarm Codes and Causes Upon activation of an Alarm, the LED display shows the alarm code and the motor coasts to a stop. A list of alarm codes and causes are shown in the following table.
  • Page 94 Overheating of heat FIN OVERHEAT sink External alarm EXT ALARM Inverter internal HIGH AMB TEMP overheating Overheating of DBR OVERHEAT braking resistor Motor 1 MOTOR1 OL overload Motor 2 MOTOR2 OL overload Inverter INVERTER OL overload Blown fuse DC FUSE OPEN Memory error MEMORY ERROR Digital Operator...

  • Page 95: Alarm Reset

    DANGER NOTES _______________________________________________________________________ TECO – Westinghouse Motor Company If an alarm reset is activated when the operating signal is ON, the inverter can restart suddenly, which may be dangerous. To ensure safety to personnel, disable the operating signal before resetting the alarm. EQ5 AC Drive Operations Manual Alarm Resetting...

  • Page 96: Troubleshooting Alarm Codes And Causes (Flowcharts)

    6-3.Trouble shooting 6-3-1 Protective function activation (1) Overcurrent Remove the short-circuit and ground fault. Reduce the load or increase the inverter capacity. Can the torque boost amount be reduced? Reduce the torque boost. Faulty inverter or error due to noise. Consult with TWMC.
  • Page 97 (4) Overvoltage Overvoltage during acceleration Reduce the supply voltage to less than the specified Is the power supply voltage within the specified value? upper limit. Does OU activated when the load is suddenly removed? Faulty inverter or error due to noise.

  • Page 98: Troubleshooting Chart

    (6) Overtemperature at inside air (6) Overtemperature at inside air and overheating at heatsink. and overheating at heatsink. Overtemperature at inside air Overtemperature Overheating at inside air OH3 at heatsink OH1 Is between the control Is between the control terminals 13-11 closed? terminals 13-11 closed? Check the temperature of Remove the short circuit.
  • Page 99 Is the wiring of CNRXTX(RED) correct on the power PCB? Connect (When DC power supply, connect it to the correctly R0-T0 side and AC power input is the cable. connected to the auxilialy power input terminal.)
  • Page 100 TECO – Westinghouse Motor Company EQ5 AC Drive Operations Manual Are the circuit breaker and magnetic contactor on the power supply side switched on? Are the voltages on the power terminals (R/L1, S/L2, T/L3) normal? Is a jumper or DC reactor...
  • Page 101 (2) If the motor rotates but the speed does not change The motor rotates but the speed does not change. Change the setting. Pattern operation Is the timer timing too long? Is the pattern operation complete? Are all acceleration and deceleration times identical? Faulty inverter or error due to noise, etc.
  • Page 102 (3) If the motor stalls during acceleration The motor stalls Is the acceleration during acceleration. Is the inertia moment of the motor or the load excessive? Use a thicker cable between the inverter Has the motor terminal and the motor or voltage dropped? shorten the cable length.

  • Page 103: Maintenance And Inspection

    30HP/CT, 40HP/VT or less, and ten minutes for inverter rated at 40HP/CT, 50HP/VT or more. (Check that the charge lamp (CRG) is off, and that the voltage is 25V DC or less between terminals P(+) and N(-).
  • Page 104 Terminal block Is there damage? 1) Is there electrolyte leakage, discoloration, crazing, or swelling of the case? 2) Is the safety valve not protruding or are valves protruding too far? 3) Measure the capacitance if necessary. Main DC Capacitor(s) 1) Is there unusual odor or damage to the insulation by overheating? 2) Is there an open circuit? Resistor...
  • Page 105 Turn on the main power supply. Confirm that the cooling fan is rotating and that the inverter is not operating. (There is no problem if the "OH2 External thermal relay tripped" trip function is activated due to the digital input terminals being disabled.)

  • Page 106: Inspection Notes And Records

    Inspection Notes and Records DATE ITEM ________________________________________________________________________________ _______________________________________________________________________ TECO – Westinghouse Motor Company Inspection Notes & Records...

  • Page 107: Main Circuit Voltage, Current And Power Measurements

    − Table 7-3-1 Meters Used for measuring Main Circuit Values Input (power supply) Side Voltage Current* Item...

  • Page 108: Insulation Test

    7- 4 Insulation Test It is not necessary to do an insulation test on the inverter as this was completed at the factory. If an insulation test with a megger test must be completed, then proceed as described below as an incorrect testing method may result in product damage.

  • Page 109: Inquiries About Damaged Products

    7-6 Inquiries About Damaged Products If there is damage, a fault in the product, or questions concerning the product, contact your local distributor or nearest TWMC sales office with the following information: a - Inverter type (Model No.) b - Serial No. (equipment serial number) c - Purchase date d - Problem details (e.g., damaged part, extent of damage, questions, status of fault) 7-7 Warranty...

  • Page 110: Specifications

    8. Specifications 8-1 Standard Specifications Type Applied Motor 0.25 Nominal (HP) Model EQ5-2XXX-XX Rated output capacity [kVA] (*1) Rated output current [A] (*2) Overload 150% of rated output current for 1 min. capability 200% of rated output current for 0.5 s...
  • Page 111 Type Applied Motor Nominal (HP) Type 001- 002- EQ5-4XXX-XX Rated capacity 1.2 2.0 2.9 4.4 7.2 7.2 10 [kVA] (*1) Rated output 1.5 2.5 3.7 5.5 current [A] (*2) Overload 150% of rated output current for 1 min. capability 200% of rated output current for 0.5 s...
  • Page 112 (*4) The taps within the inverter must be changed for an input power supply rated at 380 to 398V/50 Hz or 380 to 430V/60 Hz. (*5) If the imbalance between phases exceeds 2%, use a power-factor correcting DC reactor (DCR).

  • Page 113: Common Specifications

    8-2 Common Specifications Item Control method Sinusoidal wave PWM control (with V/F control, torque vector control, PG feedback vector control (option)) Maximum 50-120Hz variable setting frequency Base frequency 25-120Hz variable setting Starting 0.1 to 60Hz variable setting frequency Carrier 0.75 to 15kHz (30HP/CT, 40HP/VT or less) 0.75 to 10kHz (40 to 100HP/CT, 50 to 125HP/VT) 0.75 to 6kHz (125HP/CT, frequency 150HP/VT or more) Accuracy...

  • Page 114: Outline Dimensions And Weights

    8-3 Dimensions and Weights 8-3-1 230V and 460V Series NEMA 1 (up to 30HP/CT, 40HP/VT ) Model EQ5- 2XXX-N1 0P2 & 0P5 10.2/260 4.33/110 10.2/260 4.33/110 002,003 & 005 10.2/260 5.90/150 007, 010 & 015 10.2/260 8.66/220 020, 025, &030 15.7/400 9.84/250 Model...
  • Page 115 8-3-2 230V and 460V Series Open Chassis (30 – 350HP CT and 40 – 450HP VT) Model EQ5- 2XXX-C 13.4 9.45 12.8 40 & 50 (340) (240) (326) 14.8 10.8 14.2 (375) (275) (361) 14.8 10.8 14.2 75 & 100 (375) (275) (361)
  • Page 116 8-3-3 460V Series Open Chassis (400 – 600HP CT and 500 – 800HP VT) Model EQ5- 4XXX-C 26.8 22.8 500 & 600 (680) (580) (660) 34.6 30.7 33.9 700 & 800 (880) (780) (860) Con’t 17.7 11.2 0.25 500 & 600 (450) (285) (6.4)
  • Page 117 8-3-4 DC Link Choke for (75 –600HP CT and 100 – 800HP VT) Inverter Model DC Choke EQ-2XXX-C Model 7.87 6.69 DCR2-75B (200) (170) 7.09 5.91 DCR2-90B (180) (150) 7.48 6.30 DCR2-110B (190) (160) Inverter Model DC Choke EQ-4XXX-C Model 7.48 DCR4-75B (190)

  • Page 118: Modbus Rtu Serial Communications

    8-4 RS-485 Modbus RTU Serial Communications The serial communications interface supports operation, configuration and monitoring of inverter functions through an EIA/RS-485 connection. The serial interface is based on Modbus RTU protocol. This protocol allows the inverter to function as an RTU slave on an industrial network. 8- 4-1 Transmission Specifications Physical level Transmission distance...

  • Page 119: Inverter Function Code Access

    8-4-5 Inverter Function Code Access All of the inverter function codes are accessible through the RS-485 serial interface. Inverter function codes are mapped to RTU holding registers. An inverter function code RTU address is 2 bytes in length. The high byte corresponds to a code that represents the inverter parameter sort (F–M).
  • Page 120 Function data Registers Address Code Name Acceleration time F07 1800 Deceleration time F08 1801 Torque limit level 1 1802 (driving) F40 Torque limit level 2 1803 (braking) F41 Notes: 1) The writing of data out of range is treated as out of range error. 2) Use a value of 7FFF Monitoring parameter registers Address Code...

  • Page 121: Data Format Specification

    2073 M25 ROM version 2074 M26 Transmission error processing code Frequency command at alarm (final 2075 M27 command) Frequency command at alarm (final 2079 M31 command) Actual frequency at alarm 2080 M32 2081 M33 Actual torque at alarm 2082 M34 Torque current at alarm 2083 M35 Output frequency at alarm 2084 M36 Motor output at alarm (input power)
  • Page 122 Blown DC fuse Output wiring error Overheat, heat sink, inverter Overheat, outside thermal Overheat, unit inside temp. Data format [11] Capacity code: Capacity Code (HP) 0.07(spare) 0.15(spare) 0.25 1000 1500 _______________________________________________________________________ TECO – Westinghouse Motor Company EQ5 AC Drive Operations Manual - 85.38 X 100= - 8538=DEA6...
  • Page 123 Data format [12] Index data (ACC/DEC time, display coefficient): Polarity Index portion 0: Positive (+), 0: 0.01 1: 0.1 1: Negative ( - ) 2: 1 3: 10 Example: F07 (acceleration time 1) = 20.0 s 10.0 < 20< 99.9 → index =1 20.0 = 0.1 X 200 →...
  • Page 124 Data format [16] Operating state: BUSY ALM DEC ACC (All bit are ON or active by 1) FWD: Forward operation REV: Reverse operation EXT: DC braking active (or pre-excitation) INT: No Output BRK: Braking active NUV: DC link voltage is established (undervoltage at 0) Torque limiting Voltage limiting...

  • Page 125: Communication Errors

    Data format [20] Transmission error code: Code FC (function code) error Illegal address Illegal address (Data range error) -Priority for comm. -No privilege for writing error -Forbidden writing error Data format [21] Auto tuning: 0: Without forward rotation command 1: With forward rotation command. 0: Without reverse rotation command.

  • Page 126: Options

    9. Options The inverter supports two internally mounted cards. One option card is mounted under the main cover (Location A) and the other option card is mounted in a special adapter under the keypad (Location B). Only one card can be mounted in these locations. There are two different types of option cards, Type 1 and Type 2.

  • Page 127: Electromagnetic Compatibility (Emc)

    10. Electromagnetic Compatibility (EMC) 10-1 General In accordance with the provisions described in the European Commission Guidelines Document on Council Directive 89/336/EEC, the EQ5 series of inverters is chosen to be classified as "Complex Components". Classification as a "Complex Components" allows a product to be treated as an "apparatus", and thus permits compliance with the essential requirements of the EMC Directive to be demonstrated to both an integrator of EQ5 Inverters and to his customer or the installer and the user.

  • Page 128: Rfi Filter

    Inverter Filter Type Model No. EQ5 – 40P5 – N1 FS5536-5-07 EQ5 – 4001 – N1 (EFL-0.75G11-4) EQ5 – 4002 – N1 FS5536-12-07 EQ5 – 4003 – N1 (EFL-4.0G11-4) EQ5 – 4005 – N1 EQ5 – 4007 – N1 FS5536-35-07 EQ5 –...
  • Page 129 Filter Type RF3100-F11 RF3180-F11 _________________________________________________________________________ TECO – Westinghouse Motor Company EQ5 AC Drive Operations Manual Dimensions [inch(mm)] 7.87 (200) 6.54 (166) 17.1 (435) 7.87 (200) 6.54 (166) 19.5 (495) Fig.10-2-2 Outline Dimensions 16.1 (408) 5.12 (130) 18.4 (468) 6.30 (160) EMC Compatibility...
  • Page 130 Metal enclosure RCD or MCCB L1 L1’ L2 L2’ L3 L3’ Power supply _________________________________________________________________________ TECO – Westinghouse Motor Company Fig.10-2-3 Outline Dimensions Fig.10-2-4 Outline Dimensions Inverter Shielded motor cable L1/R U L2/S V L3/T W Shielding must be electrically continuous and grounded at the cabinet and the motor.

This manual is also suitable for:

Anab eq series

Table of Contents
