Summary of Contents for Balance 272785

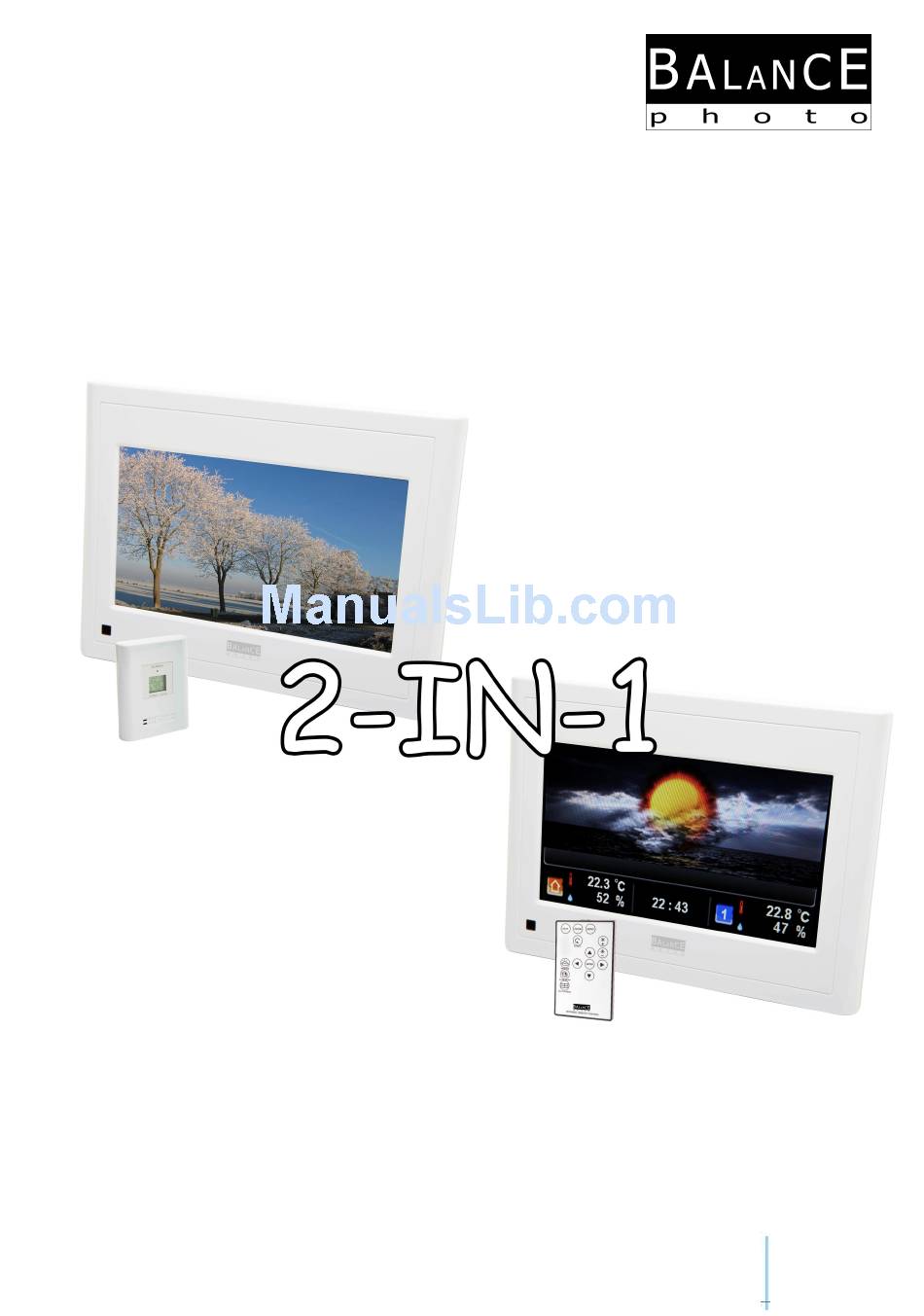

- Page 1 Digital Photo Frame with Color Weather Station 272785 User Guide...
-
Page 2: Technical Specifications
Part 1: Digital Photo Frame 1. Technical Specifications Picture/Display 7-inch LCD Resolution: 480x234 pixels Connectivity USB Host 2.0 Storage Media Memory Stick, Memory Stick Pro*, Memory Stick (Pro) Duo*, Multimedia Card, Secure Digital, SDHC, USB Flash Drive * Card adaptor needed Convenience Photo format supported: JPEG (Up to 12 Mega pixels) OSD Languages: English, French, Denmark, Italian, Spanish, Netherlands... -
Page 3: Getting Started
2. Operations GETTING STARTED The 272785 Digital Photo Frame with Color Weather Station was designed for easy set up. For best operation, the following steps are required to be done in the proper sequence. Connect the adaptor power plug into the power socket of the Frame unit, then plug in the power adaptor into the wall Jack. - Page 4 Key layout of IR remote control is shown below. IR remote control battery replacement: 1. Remove the Battery Holder by pressing the retaining clip sideways (1) and pulling the holder out (2) (see diagram at right); 2. Note the orientation of the old battery before removing it from the Battery Holder;...
-
Page 5: Photo Mode
PHOTO MODE Press [ENTER] button to enter photo viewer mode Press [ENTER] button to view full screen photo Press [ ] butto to begin a four-image slide show... -
Page 6: Control Panel
Table 1 Photo mode functions table with remote control Function Button ENTER View photo in full screen View previous photo when viewing photo in full screen View next photo when viewing photo in full screen Cropping images to fit screen Showing images without cropping to fit hot key, enter Weather Forecast &... -
Page 7: Setup Menu
1. [ M ] Button: Enter menu setup mode. 2. [ ] Button: Move right. 3. [ ] Button: Move up. Show cropping to fit. 4. [ ] Button: View photo in full screen. View the slide show photo. 5. [ ] Button: Move down. - Page 8 [SETUP] Press the [SETUP] button on the Remote Control to access the setup menu. [ ] [ ] Use the [ ] and [ ] buttons to select a menu item. Press the [ ] button on the Remote Control back to last menu. Press the [ ] button on the Remote Control to access an item’s submenu choices.
- Page 9 Images will display in random order. Off: Images will display in alphanumeric order. Crop to Fit: Show images with cropping to fit. Off: Show images without cropping to fit. Start Slide Show: Start Full Screen: View photo with full screen. Start Split Screen: View photo with split screen.
- Page 10 4. Three drive letters entitled ‘Removable Disc’ will appear under the ‘My Computer’ icon in Windows; one for each of the memory card slots on the Digital Picture Frame. With a card inserted, double-click the appropriate ‘Removable Disc’ icon to access that card to copy and delete files between your computer and all installed memory cards.
- Page 11 Part 2: Weather Forecast & Clock A. Basic Operation Press [ENTER] button to enter Weather Forecast & Clock Table 2 Weather Forecast & Clock mode functions table Button Function Press to scroll or pause the display of outdoor thermo sensor ENTER while the outdoor temperature is being displayed in the right-bottom corner...
- Page 12 Button Function lower part of the screen Hot key, enter Weather Forecast & Clock show Invoke setup menu, press the Arrow Buttons to select menu SETUP function, press [ENTER] button on the remote control to confirm your selection. Hot key, start slide show under Weather Forecast & Clock mode Hot key, display 4 photos in a split screen to playback of all images under Weather Forecast &...
- Page 13 Set Date/Time: 1. While “Set Date/Time?” appears in the screen, press [ENTER] button on Remote Control or top panel to enter “Set Hour”. 3. Press [ ] or [ ] button to increase or decrease hour digits. 4. Press [ ] button to enter “Set Minute”, press the [ ] or [ ] button to increase or decrease...
- Page 14 DCF 77 RADIO CONTROLLED CLOCK The remote sensor receives the time signal transmitted by Physikalisch-Technische Bundesanstalt (PTB) of Germany, which is regulated by 4 atomic clocks and in average deviates less than 1 second in 2 million years. PTB transmits the time signal (DCF77, 77.5kHz) continuously from Mainflingen, 25 km southeast of Frankfurt (am Main).
- Page 15 C. Weather forecast icon The weather station forecasts the weather condition for the next 12~24 hours based on the local air pressure changes. There are 5 kinds of weather conditions forecasted: Sunny, Sunny cloudy, Cloudy, Rainy and Stormy. Sunny Sunny cloudy Cloudy Rainy...
- Page 16 Stormy Main unit Displayed temperature range 0°C to +50.0°C (32°F to +122°F) Temperature resolution 0.1°C (0.2°F) Displayed humidity range 20-90% Humidity resolution RF reception frequency 868MHz Remote sensor (272790) Displayed temperature range -20.0°C to +60.0°C (-4°F to +140°F) RCC reception temperature range 0°C to +50.0°C (32°F to +122°F) Temperature resolution 0.1°C (0.2°F)
