- Page 1 Keyboard PC User Manual Version 1.0 Jun. 2010 DMP Electronics Inc. http://www.toypc.tw...
- Page 2 Manual No.: IUMeKPC-01 Ver.1.0 Issued Date: Jun, 17, 2010 Trademarks Acknowledgment The Keyboard PC is the registered trademarks of DMP Electronics Inc. Microsoft®, Windows® and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/or other countries respectively.
-
Page 3: Table Of Contents
C o n t e n t s Chapter 1 Introduction..…………………….………………………..4 1.1 Specifications..…………………….…………...…..4 1.2 Safety Precaution...……………………..………..5 1.3 Notes for Keyboard PC ……....6 …………… 1.4 Package and options of Keyboard PC....7 Chapter 2 Structure……………………………………….……………8 2.1 Keyboard PC Outline………………… ……..…….8 … 2.2 Power Switch & LEDs Summary………….……….10 Chapter 3 Installation...………………………... -
Page 4: Chapter 1 Introduction
SD Socket x 2 (Bootable only, but no Hot-Swappable support) Fanless Designed DC input 15V, External Power Adapter Power Input 0.9 Kg Weight Support Windows XP / Linux (Option-1: Windows XP Home Edition) Operating System (Option-2: Ubuntu 9.04) DMP Electronics Inc. http://www.toypc.tw... -
Page 5: Safety Precaution
Do not operate during a gas leak. Do not drop or place any object upon the top side of Keyboard PC. Do not Keyboard PC of the ambient temperature should be 5℃(41 ) to ℉... -
Page 6: Notes For Keyboard Pc
Therefore, in order to comply with the CE and FCC regulations, you must use shielded cables with your installation. ◆ Operating System Customer can order Keyboard PC with operating system of Windows XP Home Edition or Ubuntu 9.04 as optional directly, but users must be backup the original operating system by themselves. We recommend customers use GHOST.EXE... -
Page 7: Package And Options Of Keyboard Pc
Package of Keyboard PC ▲ Package List Keyboard PC 1 piece External Power Adapter 1 piece (15Vdc) DMP Electronics Inc. http://www.toypc.tw... -
Page 8: Chapter 2 Structure

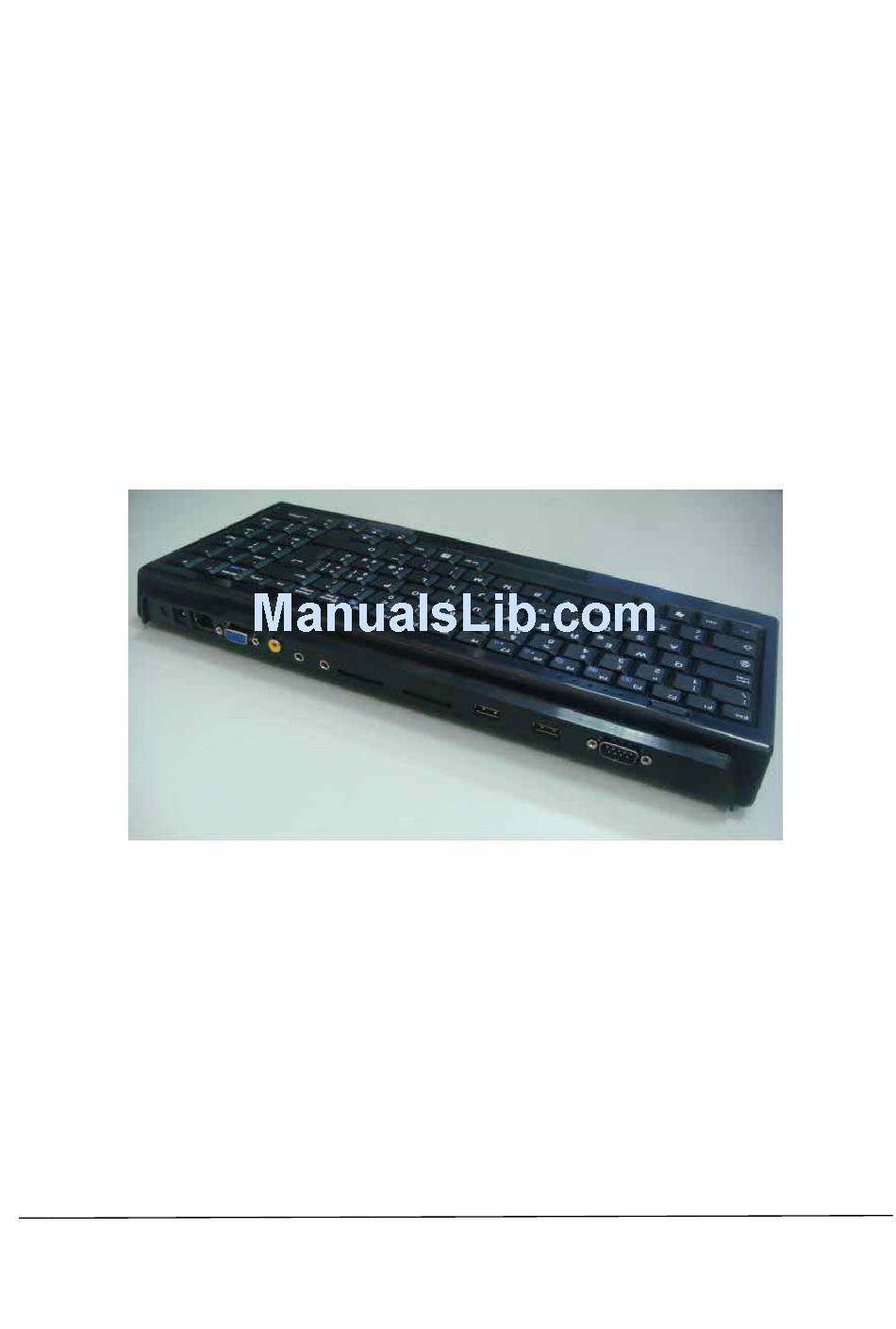

C h a p t e r 2 Structure Keyboard PC Outline (A) Power Push Button (B) Keyboard (C) LEDs. (Please refer the page-10 for more detail information.) DMP Electronics Inc. http://www.toypc.tw... - Page 9 (E) Power Jack for external 15V power adapter. (F) 10/100Mbps Ethernet Port. (RJ45) (G) VGA/CRT output. (H) TV-Out. Line-Out. (J) Mic-In. (K) SD Socket. (Master) (L) SD Socket. (Slave) (M) USB 2.0/1.1 port (N) RS232 Port. DMP Electronics Inc. http://www.toypc.tw...
-
Page 10: Power Switch & Leds Summary
◆ Power Switch After press this switch once, the system will be power on. For power off, please press this switch about 6 seconds. ◆ LEDs Power Indicator. SD/SATA-HDD Indicator. Caps Lock. Num Lock. Wireless –Active Indicator. DMP Electronics Inc. http://www.toypc.tw... -
Page 11: Chapter 3 Installation
Storage Setup 3.1.1 Install SD Card ▲ Please plug SD Card(s) upon Keyboard PC before power on. Note: (1) Keyboard PC only supports SD Card booting, but no hot swappable support. (2) Support SDHC-32GB or less. DMP Electronics Inc. http://www.toypc.tw... -
Page 12: Install Sata Hard Disk And Settings
3.1.2 Install SATA Hard Disk and settings ▲ (1) Removing six screws on the back side. (2) Removing the iron shell. DMP Electronics Inc. http://www.toypc.tw... - Page 13 (3) Taking the plastic shell out. (4) Pulling up jack panel to remove cable from daughter board. DMP Electronics Inc. http://www.toypc.tw...
- Page 14 (5) Removing 2 screws from daughter board. (6) Taking the silver board out from six points of daughter board. DMP Electronics Inc. http://www.toypc.tw...
- Page 15 (7) Connecting SATA HD to Keyboard PC. DMP Electronics Inc. http://www.toypc.tw...
- Page 16 (8) Put silver board back and connect the six points with daughter board and also put cable and screws back. DMP Electronics Inc. http://www.toypc.tw...
- Page 17 (9) Connecting plastic shell back with chassis. It must press with “click”. (10) Tightening six screws to complete the installation. DMP Electronics Inc. http://www.toypc.tw...
- Page 18 Please press Power Switch to power on and then press “Del” into the BIOS settings. (ii) Choose the selection of “Advanced” and “IDE Configuration”, and set “Primary IDE Pin Select” to “Parellel IDE”. (iii) Press “F10” to save the BIOS settings. DMP Electronics Inc. http://www.toypc.tw...
-
Page 19: Install Windows Xp
3.2.1 BIOS settings for Windows XP ▲ Please make sure three selections to be correct setting. (1) At “IDE Configuration”, set “OnBoard IDE Operate Mode” to “Native Mode” (2) At “USB Configuration”, set “USB 2.0 Controller Mode” to “FullSpeed”. DMP Electronics Inc. http://www.toypc.tw... -
Page 20: Install By A Usb Dvd/Cd Rom
▲ (1) Put the Windows XP CD Disk into the USB DVD/CD ROM. (2) Plug in a USB DVD/CD ROM. (3) Power on Keyboard PC. (4) Press “F11” to choose USB DVD/CD ROM as a first boot device. (5) Follow the steps to install Windows XP. -
Page 21: Drivers Download And Install
“Install from a list or specific location (Advanced)” => Tick “Include this location in the search” => click “Browse” and choose the driver location => “Next” => “Finish”. For Linux, please download the driver by http://www.toypc.tw/files/KPC_drivers_linux.zip. DMP Electronics Inc. http://www.toypc.tw... -
Page 22: Optimizing Windows Xp
◆ Settings in Windows XP ● Adjust for best performance (1) Go to “Control Panel” -> “System” -> “Advanced” -> Performance -> Setting. (2) Please change to "Adjust for best performance" and then "Apply" and "OK". DMP Electronics Inc. http://www.toypc.tw... - Page 23 Please change to "No Sound" and then "Apply" and "OK". ● Mouse Settings (1) Go to “Control Panel” -> “Mouse” -> “Hardware” -> “Microsoft PS/2 Mouse” -> “Properties” -> “Advanced Setting”. Please do NOT select the " Fast Initialization" and press "OK" DMP Electronics Inc. http://www.toypc.tw...
- Page 24 (1) Go to “Control Panel -> “Administrative Tools” -> “Services” ->Click "Themes" -> Press the right key of mouse -> “Properties” -> Please "stop" the Service Status and "Disable" the Startup type. (2) Choose “Apply" and then "OK". DMP Electronics Inc. http://www.toypc.tw...
- Page 25 (3) Click "Terminal Services" -> Press the right key of mouse -> “Properties” -> Please "Disable" the Startup type. (4) Choose “Apply" and then "OK". DMP Electronics Inc. http://www.toypc.tw...
- Page 26 (5) Click "System Restore Service" -> Press the right key of mouse -> “Properties” -> Please "stop" the Service Status and "Disable" the Startup type. (6) Choose “Apply" and then "OK". DMP Electronics Inc. http://www.toypc.tw...
- Page 27 (1) Go to “My Computer” -> Local Drive (C:) -> Press the right key of mouse -> “Properties” -> “Disk Cleanup” -> “OK”. (2) Please be sure to clean up all the useless files and keep the maximum free space on your Drive C:. DMP Electronics Inc. http://www.toypc.tw...
-
Page 28: Switch Display To Tv Or Crt
The TV version of Keyboard PC includes TV-Out and CRT-Out functions as below. The part number for order is “KPC-T”. [If your Keyboard PC can’t switch TV or CRT in the BIOS settings or Graphic utility of Windows XP, please make sure that you order part number is “KPC-T”, or contact your sales direct... -
Page 29: Switch Display To Tv Or Crt In The Bios Settings
Press “C” key: System will display and output to “CRT” (VGA). Press “N” key: System will display and output to “TV (NTSC)”. Press “P” key: System will display and output to “TV (PAL)”. DMP Electronics Inc. http://www.toypc.tw... - Page 30 Power on and press “Del” key into the BIOS settings. Choose “Boot” and “Boot Settings Configuration” selections. Set “TV” or “CRT” upon “Boot Display Device” selection. (Please do not choose “VBIOS” or “Panel…” functions.) Press “F10” to save the BIOS settings and exit. DMP Electronics Inc. http://www.toypc.tw...
-
Page 31: Switch Display To Tv Or Crt In Windows Xp
Please just click that icon by a USB mouse. (4) You can plug in a CRT (VGA) Monitor and choose “CRT” to display and choose “Apply” and “OK” to be CRT (VGA) Output. Certainly, you can switch back to “TV” for TV output. DMP Electronics Inc. http://www.toypc.tw... -
Page 32: Set Tv Resolution To 640X480 In Windows Xp
640x480 for bigger words in Windows XP. Please look at the steps to adjust it as below. (1) In desktop of Windows XP, please click the right key of USB mouse and choose “Properties”. (2) Go to “Settings” and choose “Advanced”. (3) Choose “Adapter” and “List All Modes…”. DMP Electronics Inc. http://www.toypc.tw... - Page 33 (4) Choose “640 by 480, High Color (16 bit), 60 Hertz” and “OK”. (5) Choose “Apply” and “OK”. DMP Electronics Inc. http://www.toypc.tw...
- Page 34 (6) Choose “OK” and exit Display Properties. (7) For Internet Explorer, you can download IE7.0 (or above version) by Microsoft Website and extend the webpage from 100% to 150% for getting bigger words. DMP Electronics Inc. http://www.toypc.tw...
-
Page 35: Boot From Lan
Boot From LAN User can choose the Keyboard PC to boot from LAN. Please press “Del” key to get into the BIOS settings after power on, and then choose “Boot” and “Boot Settings Configuration” selections and set “Boot From LAN” immediately. -
Page 36: Chapter 4 Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. DMP Electronics Inc. http://www.toypc.tw...
