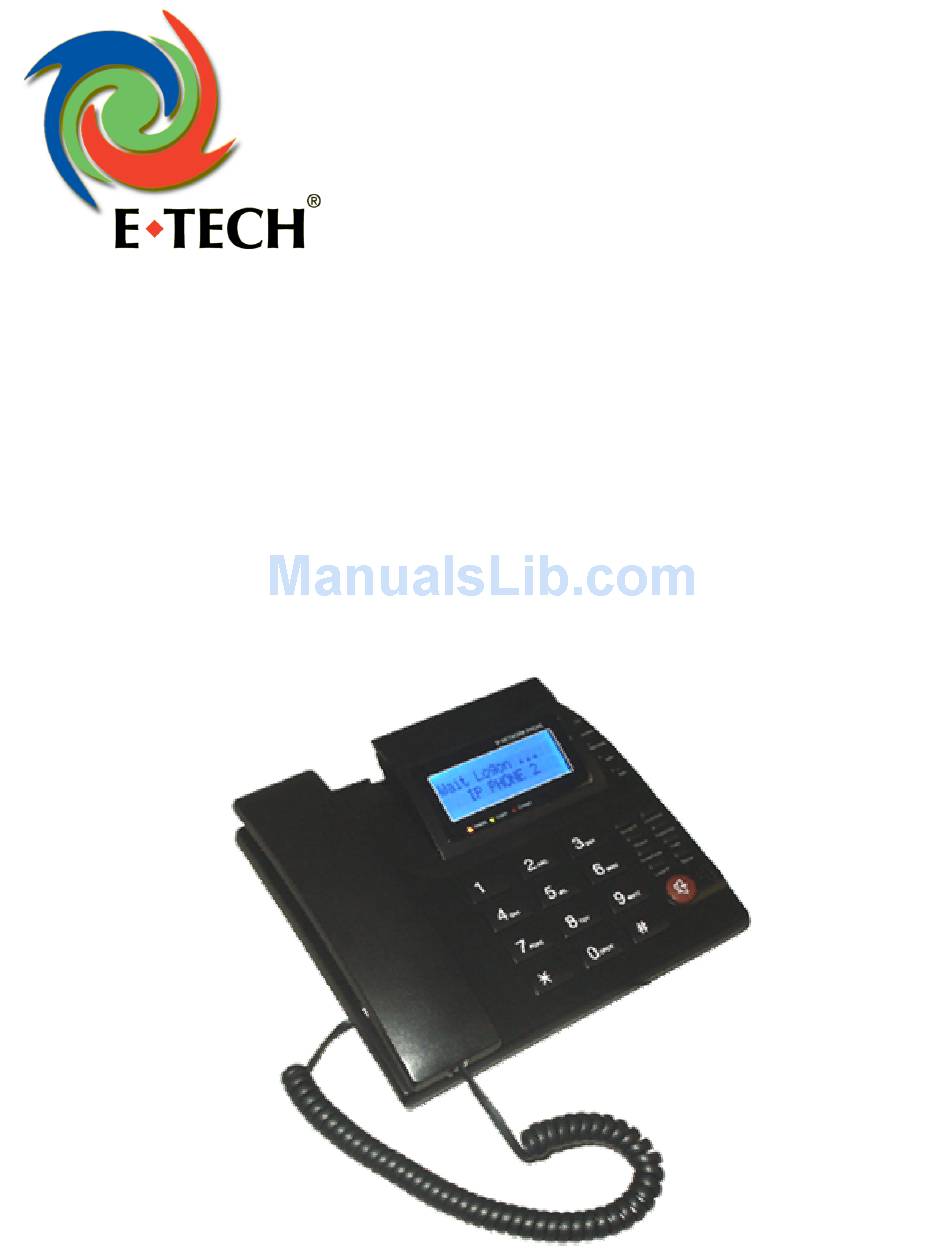

- Page 1 Professional VoIP Phone VPPH01 User Manual...
-
Page 2: Table Of Contents
Table of Contents Page Introduction Functions and features Standard and Protocol Function Keys Installation Configuration Phone Keypad set Configured by WEB Upgrade your phone View Records Usage of the phone E-Tech VPPH01 Manual... -
Page 3: Introduction
1.0 Introduction Congratulations on your purchase of this high-quality E-Tech product! This product has been extensively tested by E- Tech’s technical experts. Should you experience any problems with this product, you are covered by a five-year E- Tech warranty. Please keep this manual and the receipt in a safe place. -
Page 4: Standard And Protocol
Power on the phone. Turn on the phone by pulling the switch to ON. Verify that yellow, green and red • lights are on together, and then red light is off; green light blinks or is off; yellow light blinks or is on which behalf the success of starting phone and phone enter into normal standby. E-Tech VPPH01 Manual... -
Page 5: Configuration
It indicates that you can change the setting of this item. Then press 409466193597 keys once respectively to input the password, and then press Spk to confirm. After above operation, pin 409466193597 will be displayed on the LCD. E-Tech VPPH01 Manual... -
Page 6: Configured By Web
19750407, please ask for the provider of the IP phone). With Debug set 0[disable], please input super password; while Debug is not set as 0[disable], please input ordinary password. Then click button. The following configured pages will popup. E-Tech VPPH01 Manual... - Page 7 - dhcp: Select this item to enable DHCP mode. With this system, your LAN or router automatically assigns all the required network parameters to any device connected to it when the device log on. The E-Tech VPPH01 IP phone is shipped from the factory with DHCP on.
- Page 8 2: With static ip selected in iptype drop down list, please enter IP address of backup DNS server here. mac: MAC address is the physical address supplied by the Ethernet NIC. The E-Tech VPPH01 phone is shipped from the factory with a unique algorism MAC address printed on the back of the base.
- Page 9 Internet, please select an item from dropdown list to set the proxy used by the phone. - disable: Select this item when the log in server and IP phone in the same LAN, or the log in system supports the IP phone working behind the LAN. E-Tech VPPH01 Manual...
- Page 10 SIP proxy server every “register ttl” seconds. The minimum value is 10, maximum value is 255. Default is 60. Rtp tos: Set the TOS field of the IP header of the RTP packets. The bigger this value is, the higher priority the packet E-Tech VPPH01 Manual...
- Page 11 - enable: Use dial plan by selecting this item. - dialnum: Use dial number by selecting this item. With this item selected, please enter the dial prefix into dial number field. - prefix: Use 179XX service by selecting this item. E-Tech VPPH01 Manual...
- Page 12 Enable/disable multi-settings by selecting corresponding items from dropdown list. The VPPH01 IP phone allows saving 5 settings totally. - disable: Disable multi-settings by selecting this item, then the phone will call out using current setting.
- Page 13 Output all bug information and data in test window by selecting this item. remote debug: Save the bug information in SDRAM of IP phone by selecting this item. no check: Disable checks the mark by selecting this item. E-Tech VPPH01 Manual...
- Page 14 Note With H323 protocol used, if the phone dose not login Gatekeeper or Gateway; or with SIP protocol used, the phone dose not login Server Proxy, you can save IP address of other phone into phone number field. Please use “*”instead of “.”. For example, save IP address 192.168.1.221, please input 192*168*1*221. E-Tech VPPH01 Manual...
-
Page 15: Upgrade Your Phone
Note: Please refer to PalmTool User Guide to learn how to write digitmap or just download TXT file from our site. Then please save it as “phone type. map” file, such as the VPPH01 map. 5.0 Upgrade your phone Set FTP server FTP server can be supplied by the server provider as well as setup by the users in LAN. -
Page 16: Usage Of The Phone
Place a call without login the Gatekeeper If The E-Tech VPPH01 IP phone does not login the Gatekeeper, you can place a call by lifting the handset or pressing Hand free and then inputting the IP address of the other party, and then pressing # or Call... - Page 17 “#” or “call” key to place a call directly. Note: The E-Tech VPPH01 phone supports saving 127 entries unanswered call, dialed call and received call ranged from 0-126 at best. When the entries arrives 127, the latest record will cover the first one. The record will be lost when the phone restarts or turned on.
