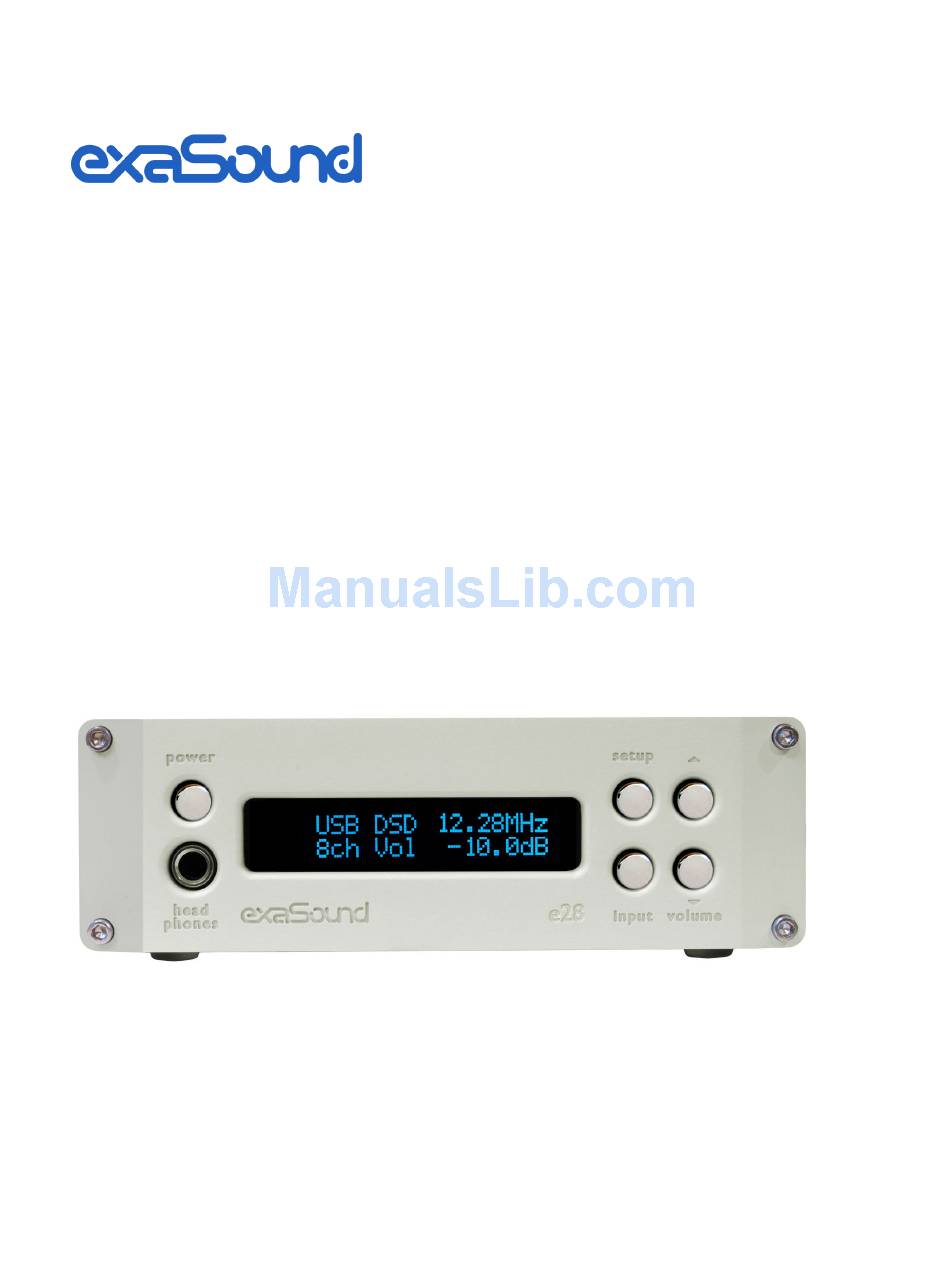

- Page 1 Digital to Analogue Converter 8 Channel | PCM 32 bit - 384 kHz DSD 64 Fs: 2.8224 MHz / 3.072 MHz DSD 128 Fs: 5.6448 MHz / 6.144 MHz Owner’s Manual (Mac OS X) PLEASE READ BEFORE OPERATION REV. 1.0.1d – 03/2014...
-
Page 2: Table Of Contents
Analogue Interconnect Recommendations .................... 13 Connecting the Power Adapter....................... 13 Surge Protectors ............................. 13 Isolating the Cable TV Ground ........................ 13 Remote Control Setup ....................14 Setup of exaSound e28 Driver and Dashboard for OS X ........ 15 Page | 2... - Page 3 Using the e28 DAC ...................... 19 Using the Asynchronous USB Input ......................19 Volume Control ............................20 Playing Music From SPDIF Sources ......................21 Specifications ....................... 22 Limited One Year Warranty ..................24 Copyright © 2011-2014, exaSound Audio Design. All rights reserved. Page | 3...
-
Page 4: Safety Information
Safety Information Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 5 Unplug the power adapter if you are not going to use the device for an extended period of time. • Hold the power adapter when unplugging. Do not pull on the cord. The power adapter is used as the mechanism for cutting off power, therefore make sure it is easy to •...
- Page 6 This product, when no longer usable, can’t be treated as generic garbage. It must be disposed of at a collection point for recycling of electrical and electronic equipment, in compliance with the WEEE regulation (Waste of Electrical and Electronic Equipment). By making sure that this unit is correctly recycled, you will help preventing potential damage to environment and human health, which could be caused by the incorrect treatment of this product as generic garbage.
-
Page 7: Welcome
The e28 DAC brings the highest quality of stereo and multichannel music reproduction to computer audiophiles. When used with Mac computers and OS X, the e28 supports PCM at sampling rates up to 32 bit/384 kHz and DSD from 2.82 to 6.14 MHz. -
Page 8: Quick Start
Quick Start Package Contents The following items should be in the box: e28 DAC • Power supply • Classic A-B USB cable • IR Remote Control • Proper Device Placement Place the device on a stable solid base, far from heat sources. Do not expose the device to direct sunlight. -
Page 9: Rear Panel Connectors
Rear Panel Connectors Coaxial SPDIF IN 1 USB IN Optical SPDIF IN 2 RCA Line Outputs Power Adapter Connector Rear Panel Connectors - Mini-XLR Coaxial SPDIF IN 1 USB IN Mini-XLR Line Outputs Optical SPDIF IN 2 Power Adapter Connector SPDIF IN1 - Coaxial SPDIF Input USB - Classic USB connector SPDIF IN2 - Optical TOSLINK SPDIF Input... -
Page 10: Infrared Remote Control
Your unit is pre-programmed to work with the supplied remote control. The e28 DAC can be re-programmed to work with most infrared remote controls using Sony and NEC IR protocols, for example the Sony RM-EZ4 Universal Remote, or the Apple Remote Control. -
Page 11: Features
In the case of the e28 DAC, sound data is requested by the FPGA core and stored in the device FIFO memory buffer. The FPGA core makes sure that the buffer never gets empty during playback. Data from the buffer is streamed to the DAC chip. -
Page 12: Connecting And Powering The E28 Dac
RCA Line Outputs 1 to 8 - Connect the line outputs of the e28 DAC to the amplifier RCA line • inputs. XLR Line Outputs 1 to 8 - Connect the Mini- XLR line outputs of the e28 DAC to the amplifier XLR • line inputs. -
Page 13: Analogue Interconnect Recommendations
A better unit may allow you to squeeze the last bit of performance from the e28 DAC. Please be advised that using a different power supply than the one included in the package may void the warranty. No warranty claim will be acknowledged for damages due to the use of power supply different from the one included in the package or other units supplied by us. -
Page 14: Remote Control Setup
The e28 DAC is pre-programmed to work with the supplied remote control. If you like, you can reprogram the e28 DAC to work with a different IR remote control. The exaSound e28 DAC can be trained to recognise commands from most infrared remote controls using Sony and NEC IR protocols. -
Page 15: Setup Of Exasound E28 Driver And Dashboard For Os X
10 GB - mainly for music files Software Installation 1. Don’t connect the e28 DAC to your Mac until the driver is installed. Don’t worry if you’ve connected the device already. Just disconnect it. 2. You should have received an email from us with username and password. Please login on our support website at http://support.exasound.com. - Page 16 • defaults on the following screens. 5. Locate the exaSound Dashboard icon on the menu bar. The red exclamation mark indicates that the USB cable is disconnected: 6. Connect the USB cable of the exaSound DAC. The red exclamation mark should disappear from the exaSound Dashboard icon.
- Page 17 8. Click on the exaSound Dashboard icon and make sure that Core Audio is checked. 9. Go to Applications -> Utilities and open Audio MIDI Setup. Select the exaSound driver. By default the driver is set to 2-channel mode. Select 8ch-32-bit Integer.
- Page 18 10. Make the exaSound driver the default sound output device. 11. Make sure that the volume is set to less than -25db. At this point you can play some music with iTunes. Note: Configuration instructions for Audirvana Plus J River are available on the exaSound website.
-
Page 19: Using The E28 Dac
• panel display will light up. After powering on the USB Input is selected by default. Lower the volume to at least -25 db. The volume on the e28 DAC can be controlled from the • Mac screen, from the device front panel, or with the remote control. -
Page 20: Volume Control
Volume Control The e28 DAC volume is controlled by the ES9018 DAC chip. It is independent from the Mac software volume control and it preserves the maximum possible signal to noise ratio. The volume level changes in steps of 0.5 dB. At first power on, the volume level is set to match the volume level of your Mac. -
Page 21: Playing Music From Spdif Sources
Playing Music From SPDIF Sources The e28 DAC can improve the sonic clarity and fidelity from existing SPDIF sources. The sound improvement is the result of outstanding jitter cancelling capability, superb signal to noise ratio and low distortion levels of the e28 DAC. -
Page 22: Specifications
Specifications D/A Converter IC ESS Technology ES9018S Sabre32 Reference DAC PCM Sampling Rates - 44.1kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, Asynchronous USB ASIO 352.8 kHz, 384 kHz DSD 64 Fs: 2.8224 MHz, 3.072 MHz DSD Sampling Rates - DSD 128 Fs: 5.6448MHz, 6.144 MHz Asynchronous USB ASIO DSD 256 Fs: 11.2896 MHz;... - Page 23 Volume Matching between Better than 0.1 dB Channels Unbalanced (RCA) or Balanced (Mini -XLR), gold-plated Line Output contacts 4 Vrms (balanced) Line Output Level 2 Vrms (unbalanced) Line Output Impedance 200 ohms Line Output Offset < 5 mV Headphone Amp Current Output 200 mA peak Headphone Amp Output 1 Ohm, 20Hz-20KHz...
-
Page 24: Limited One Year Warranty
If in our assessment the defect is covered by our Warranty, the defective item will, at our sole option, be repaired, replaced with the same item or its functional equivalent, or the purchase price will be refunded. ExaSound in its sole and absolute discretion shall be the sole determiner of whether a product is in fact defective. - Page 25 • Pack the product securely in the original packaging, with your assigned RMA number marked clearly on the outside of the package. Send the package pre-paid and insured to the exaSound to obtain warranty service. • All returns must comply with our Return Policy displayed at http://exaSound.com/Terms.aspx.
