SmartLinQ GT100 User Manual

Personal safety mobile
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GT100
Your personal safety mobile
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmartLinQ GT100

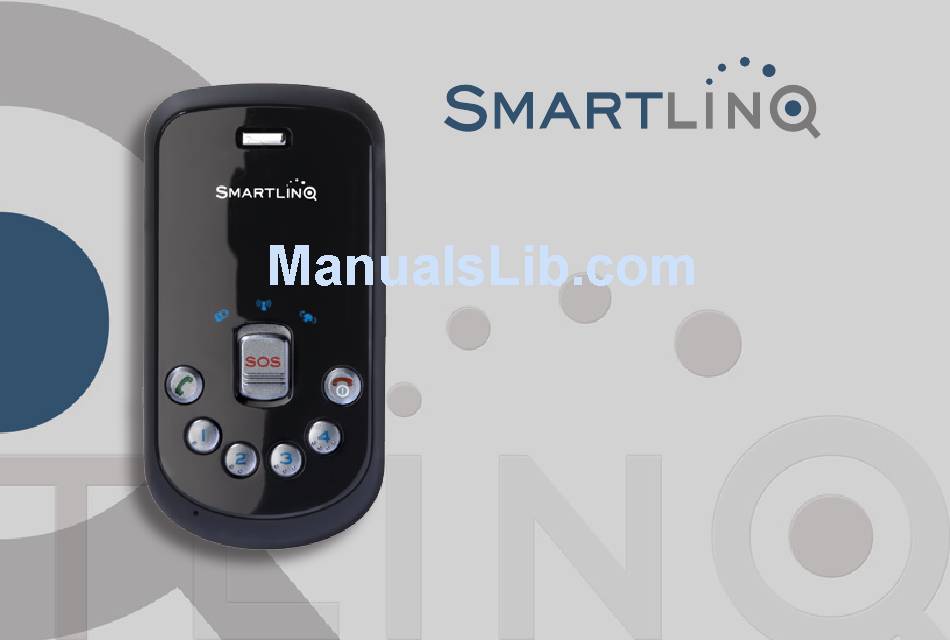

  • Page 1 GT100 Your personal safety mobile User Guide...
  • Page 3 GT100 Powered by Your personal safety mobile User Guide www.safelinq.com...

  • Page 5: Table Of Contents

    Compliance 7.2 Button description The SafeLinQ Service LED’s and Connectors Introduction Operating your SmartLinQ mobile Features 9.1 Switching your SmartLinQ mobile on/off Components 9.2 Call/Answer The SmartLinQ 9.3 Adjust the volume Installing the SIM card 9.4 Make a phone call Install/De-install battery 9.5 Emergency Button...

  • Page 6: Precautions And Notices For Safety

    • Turn your SmartLinQ off in a hospital. a TTA certified mark. • Be aware of the details on electromagnetic • Do not keep your SmartLinQ in or near a source waves of your SmartLinQ. of heating, like an oven or microwave oven.

  • Page 7: Compliance

    Compliance This equipment is designed to comply with the local legislation in the country it is being sold. If you require any compliance documentation, please contact your local distributor.

  • Page 8: The Safelinq Service

    The SafeLinQ Service The SmartLinQ mobile has been exclusively developed by SafeLinQ. For full details of the functionality of your SmartLinQ mobile go to www.safelinq.com. It should be noted that the SmartLinQ mobile will only operate in conjunction with the SafeLinQ service.
  • Page 9 Getting started...

  • Page 10: Introduction

    1. Introduction The SmartLinQ mobile is a powerful GPS location device which is small in size and lightweight. It is designed for personal security and has an inbuilt emergency button as well as a motion sensor. Both these features ensure direct contact to your chosen control centre or emergency number should you encounter a difficult or threatening situation.

  • Page 11: Features

    2. Features GPS (global positioning system) receiver Emergency button Motion sensor alert Low battery alert Speed sensor alert Four pre-programmable buttons Auto answer...

  • Page 12: Components

    3. Components 1 SmartLinQ mobile Always use an approved SafeLinQ charger and 2 Battery battery. 3 Handsfree headset 4 AC-power adapter Do not use non genuine parts as it could damage 5 This User Guide the battery or cause an explosion.

  • Page 13: The Smartlinq

    4. The SmartLinQ Earphone jack Button Lock Volume GSM LED Speaker Power LED GPS LED Emergency button Call/Answer Power/Hang up Microphone Pre-programmable speed dial buttons Power adapter/connector...

  • Page 14: Installing The Sim Card

    Put the Simcard into seat Simcard seat 2 Slide the battery back in at the top of the SmartLinQ mobile and push it down to lock it into position. Rotate the cover of the Lock the cover of the Simcard seat...

  • Page 15: Install/De-Install Battery

    Once charged, the Power LED will stay constant. 6.2 DE-INSTALL THE BATTEry The SmartLinQ will beep as follows release the battery de-install button in the direction indicated to alert the user that the battery is by the arrow and remove the battery.

  • Page 16: Buttons

    7. Buttons 7.1 BUTTON OvervIeW The phone panel consists of nine buttons. • Power/Hang up Button • Call/Answer Button • emergency Button • Four pre-programmable Buttons • volume Button • Lock Button...

  • Page 17: Button Description

    • To refuse an incoming call. To activate, slide the emergency button Press while ringing. up and the SmartLinQ will immediately call and send its location information to the nominated • To end a call. emergency telephone number or control centre.
  • Page 18 7. Buttons Pre-programmable buttons To call the number programmed behind one of the four pre-programmable buttons, press the relevant button, wait for a beep and then press the call/answer button. Volume • To increase the volume of a call. Press the upper part of the volume button. •...

  • Page 19: Led's And Connectors

    GSM connection, the LeD will flash quickly. charged. Once charged, the Power LeD will stay constant. • If the SmartLinQ mobile is connected to the GSM network, the LeD will flash slowly. GPS LED While the SmartLinQ mobile is searching for a GPS Headset connector connection, the GPS LeD will flash quickly.

  • Page 20: Operating Your Smartlinq Mobile

    GSM will flash slowly. It will continue to Flash at a slow pace. • To turn off: Press the Power/Hang up button for at least 3 seconds to switch the SmartLinQ mobile off. 9.2 CALL/ANSWEr • Press the Call/Answer button to answer an...

  • Page 21: Adjust The Volume

    9.4 MAkE A PHONE CALL • you can store four pre-programmed numbers in your SmartLinQ mobile. • When you want to call one of the numbers, first press the relevant short dial button, wait for the beep and then press the Call/Answer button.

  • Page 22: Emergency Button

    9. Operating your SmartLinQ mobile 9.5 eMerGeNCy BUTTON When activated, the SmartLinQ emergency button will immediately call and send its location information to the nominated emergency telephone number or control centre.

  • Page 23: Auto Answer

    9.6 AUTO ANSWer The Auto Answer function can be used when a user is in an emergency and unable to receive a call by pressing the Call/Answer button. The Auto Answer function is set up on the SafeLinQ website. Please note: Auto Answer can only be accessed by the numbers which are programmed into the pre-programmed buttons 1 and 2.

  • Page 24: Technical Specifications

    10. Technical Specifications Earphone jack Button Lock Volume GSM LED Speaker Power LED GPS LED Emergency button Call/Answer Power/Hang up Microphone Pre-programmable speed dial buttons Power adapter/connector...
  • Page 25 General Dimension (mm – H/W/D) 86 x 46 x 16.8 mm Weight (g) Talktime 3 hours Standby 100 hours Hardware GPS Baseband SIrF GSC3F Band Quad band GSM 850/900/1800/1900 receiver 20 x 11 mm Speaker 20 x 11 mm Screen Indicator light x 3 Charge light GSM status indicator light...
  • Page 26 10. Technical Specifications GSM Antenna Internal antenna GPS Antenna Internal antenna Memory 32M bits FLASH + 16M bits rAM System Interface Proprietary Earphone Interface 2.5 mm jack rF Test Interface For use by mobile network operators for rF network testing Temperature Normal working conditions: -10 to 55˚C Limited working conditions: 55 to 65˚C...
  • Page 27 Standard GPS mode: - Hot start <10 seconds, average in open sky - Warm start <38 seconds, average in open sky - Cold start <42 seconds, average in open sky Over the air command settings from the SafeLinQ server using the SafeLinQ proprietary protocol Motion Sensor When activated, sends alert information when the sensor detects...

  • Page 28: Troubleshooting And Safety Info

    11. Troubleshooting and Safety info Problem TrOUBLeSHOOTING Problem The location of the SmartLinQ mobile cannot be After the SmartLinQ mobile is turned on, the GSM found. LED continually flashes rapidly. Reason Reason The SmartLinQ mobile is not in satellite coverage.
  • Page 29 • Do not allow the SmartLinQ mobile to Press the Power/Hang Up button for at least overheat. 3 seconds in order for the SmartLinQ mobile • Do not keep your SmartLinQ mobile in a to switch on. humid place. • Do not expose the SmartLinQ mobile to direct sunlight.

  • Page 30: Warranty Conditions

    12. Warranty conditions SafeLinQ (and/or it’s authorized distributor) warrants this product as free of defects • Upgrading of software due to changes in network parameters. in material, design and workmanship for a 24 month period from the original date • The product has been used with accessories not approved by SafeLinQ for use of purchase.
  • Page 32 www.safelinq.com...
