6505™+ Operation Manual
For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.com.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6505+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peavey 6505+

Summary of Contents for Peavey 6505+

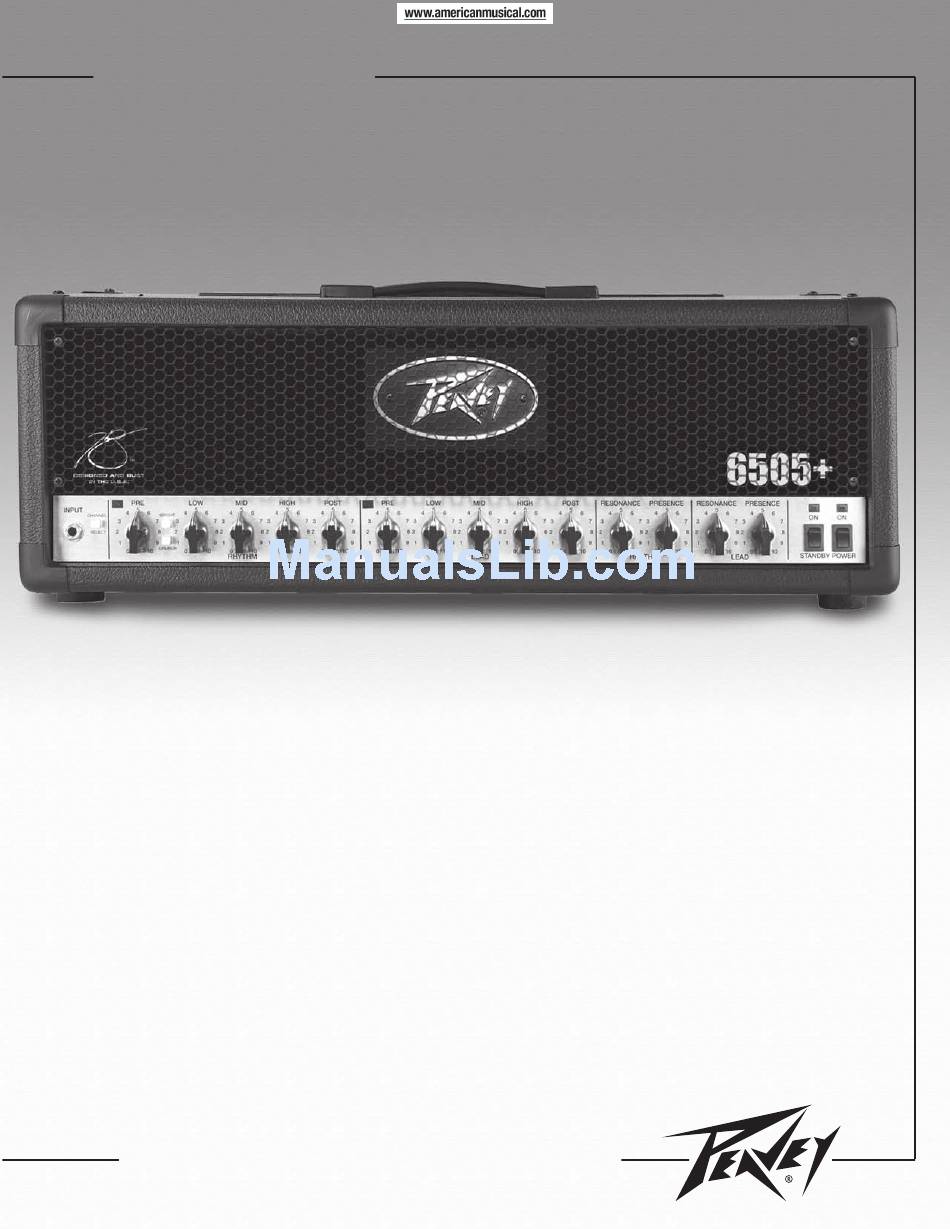

  • Page 1 6505™+ Operation Manual For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.com.
  • Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings.

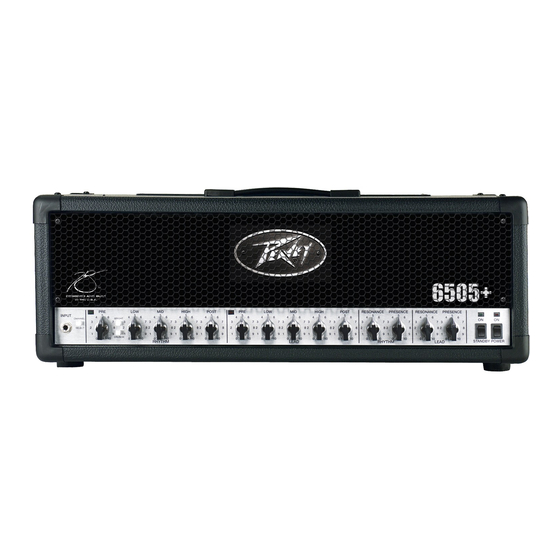

  • Page 4 ENGLISH 6505™+ Tube Guitar Amplifier Congratulations on your purchase of the 6505+. Like the 6505 head, the 6505+ offers two channels. However, the 6505+ adds separate EQ, Resonance, and Presence controls to each channel, giving you more control and flexibility. The new footswitch provides foot control of channel selection, effects loop, and the newly added ability to select the Crunch feature.

  • Page 5: Rear Panel Features

    (zero) position. If hum or noise is noticed coming from the speaker enclosure(s) with the Ground Switch in the center position, place the Ground Switch to positive (+) or negative (-) to minimize hum. Should a hum/ noise problem continue, consult your authorized Peavey dealer, the Peavey factory, or a qualified service technician.

  • Page 6: Front Panel Features

    7/8. EFFECTS SEND/EFFECTS RETURN Signals are supplied to outboard effects or signal processing units by patching from the Effects Send (7) output into the outboard unit(s) and back into the Effects Return (8) input using shielded cables with 1/4" mono phone plugs. Only non-gain effects devices (chorus, reverb, delay, etc.) should be used in the effects loop.
  • Page 7 “in” position to activate. 23/24. RESONANCE / PRESENCE Unique to Peavey instrument amplifiers, the Resonance control (23) can be set to boost the gain of the power amp in the low frequencies at the resonance/attenuation point of the speaker cabinet. In simple terms, the Resonance control works like a low EQ to offset low-end frequency drop out.

  • Page 8: Recommended Settings

    6505™+ RECOMMENDED SETTINGS Southern Rock/Country Southern Rock/Country HP's Signature Setting Signature Setting Activates Activates *Selects Effects Loop Crunch Voicing (toggles) when switch on Rhythm between is pressed when switch Rhythm and LED is pressed illuminates and LED Lead illuminates channels All switches are push on/push off.

  • Page 10: Specifications

    6505™+ SPECIFICATIONS POWER AMPLIFICATION PREAMP SECTION EFFECTS RETURN: Impedance: Very High Z, 470 k ohms The following specs are measured @ SECTION Designed Level: -10 dBV, 300 mV RMS 1 kHz with the controls preset as follows: RATED POWER AND LOAD: Low and High EQ @ 10 120 W RMS into 16, 8, or 4 ohms PREAMP OUT:...
  • Page 11 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
  • Page 12 Features and specifications subject to change without notice. Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com 80303148 ©2005 Printed in the U.S.A. 3/05...
