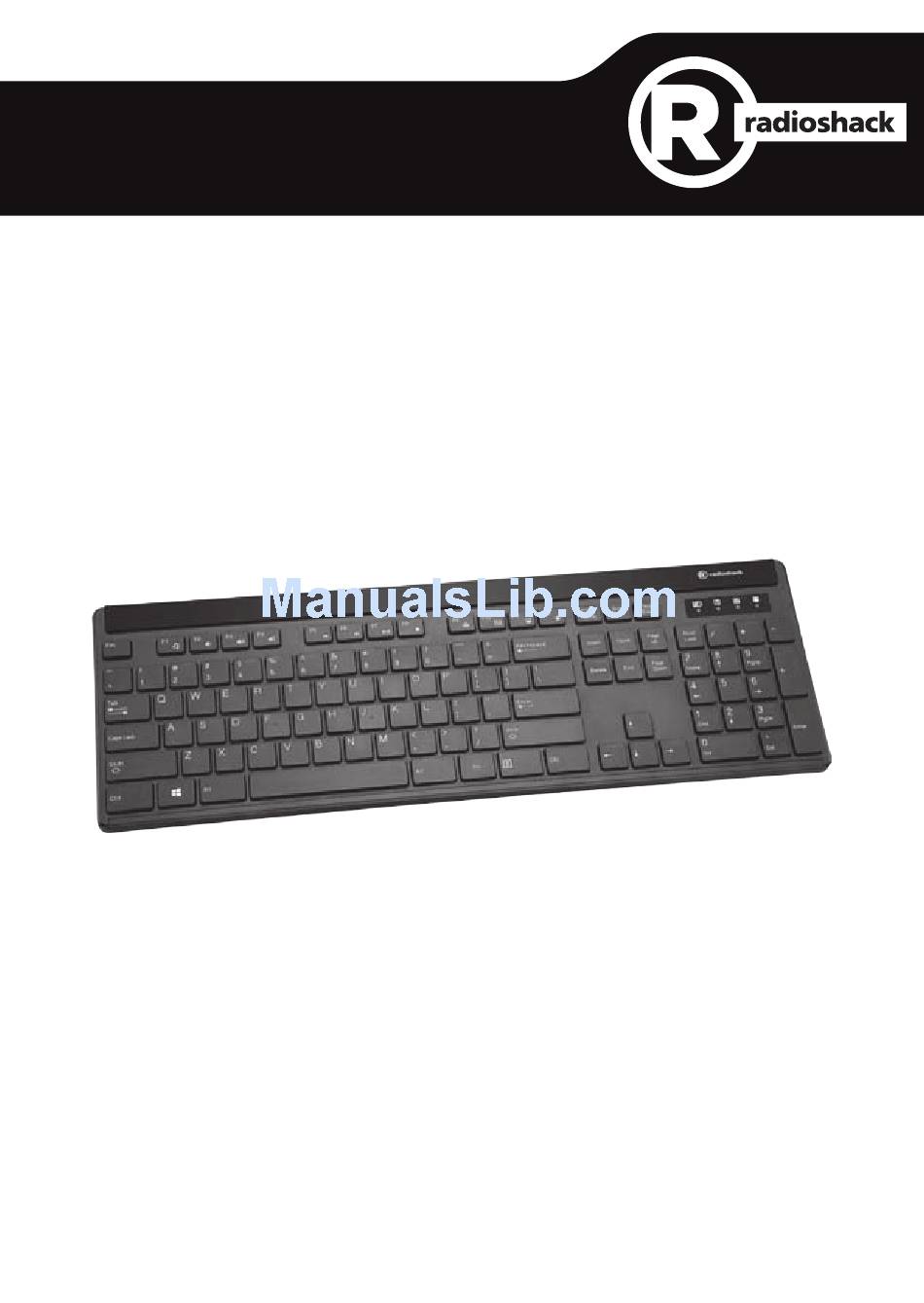

Wireless Slim Keyboard User’s Guide 2603753 ESS TOUCHPAD KEYBOARD AD KEYBOARD COMPACT USB RECEIVER barely protrudes from your computer We hope you enjoy your Wireless Slim Keyboard from RadioShack. Please read this user’s guide before using your new keyboard.
Package Contents • Wireless Slim Keyboard • USB Receiver • User’s Guide Features • 2.4GHz wireless keyboard works with most popular operating systems • Low-profile nano receiver small enough to keep connected at all times • Power save mode conserves battery life when not in Check Compatibility System Requirements • Operating System: Windows Windows 7 ® Windows Vista Windows XP ® Mac OS 10.3 and above ® • Connection: USB Port...
Install Batteries Insert two AAA batteries (not included) into the battery compartment according to the polarity symbols (+ and –) marked inside. Battery Notes: • If the low battery indicator flashes when you operate the keyboard, replace the batteries. • Dispose of batteries promptly and properly. Do not burn or bury them. • Use only fresh batteries of the required size and type. Do not mix old and new batteries, different types of batteries (alkaline, or rechargeable), or rechargeable batteries of different capacities. • If you do not plan to use the keyboard for some time, remove the batteries. Batteries can leak chemicals that can damage electronic parts.
Plug In the Receiver 1. Turn on your computer. 2. Plug the receiver into your computer’s USB port. Your keyboard and receiver will automatically pair after 5 – 10 seconds. Auto sleep If you leave the keyboard idle for 5 minutes, it will automatically enter sleep mode. Press any key to exit. Note: See your operating system’s online help for additional information about keyboard configuration and use. Specifications Operation Range ................26 ft (8 m) USB Compatibility ................USB 1.1 Frequency ..................2.4 GHz Operating Voltage ............3 V, 2 x AAA batteries Operating Current ................≤15mA Current during sleeping mode ............≤0.1mA Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document.
Page 5
Multimedia Hot Keys (Press and hold Fn and the following buttons) Open the media player. Lower speaker volume. Increase speaker volume. Mute sound. Press again to resume. Play the previous track. Play the next track. Play or pause media. Stop playback.
Page 6
Internet Hot Keys Launch the default web browser. F10/ Start standard e-mail. Go to the file manager. F11/ Go to Favorites. F12/ Mode Indicators Low battery indicator Number Lock Caps Lock Scroll Lock...
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RadioShack MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser.
