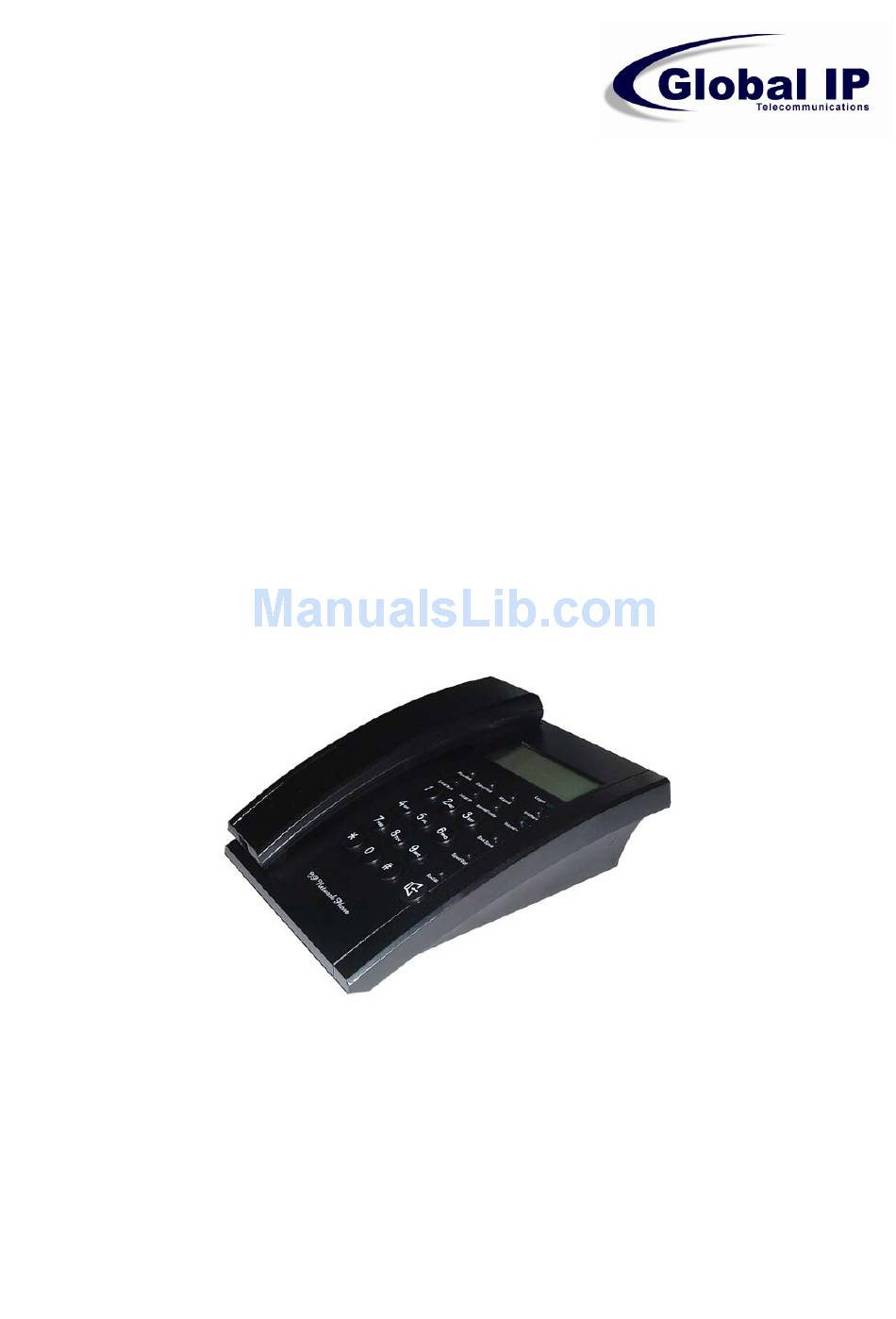

- Page 1 G100 (P100) VoIP Phone User Manual Global IP Telecommunications, Inc • 92 Derrick Road • Bradford, PA 16701 • U.S.A.
-
Page 2: Table Of Contents
G100 User Manual Index Introduction Suitable Uses of G100 IP Phone Appearance Performance and Features Main technical index Standard and Protocol Electric requirements Operating requirements Installation Configuration 1. Phone keypad set 2. Configured by WEB Usage of the Phone Upgrade G100 IP Phone... -
Page 3: Introduction
IP protocol. It can be used for audio communication through LAN, Cable Modem or XDSL and wherever else the internet is available. IP telephony generally comes with a cost advantage. The G100 IP phone features furthermore excellent sound quality. G100 User Manual... -
Page 4: Appearance
G100 User Manual Appearance 1. Front Panel Figure 1 Front Panel 1. LCD 2. Phone Book 3. Dialed 4. Missed 5. Indicator light 6. Volume + 7. Volume - 8. Answered 9. Back Space 10. Local IP 11. Speed Dial 12. -
Page 5: Performance And Features
G100 User Manual 3. Function Keys Function Missed With handset on hook, press this key to review missed number Local Num With handset on hook, press this key to check your phone number Local IP With handset on hook, press this key tocheck phone ip address... -
Page 6: Technical Parameters
G100 User Manual 2×16 LCD with backlight; Status LED; Speed dialing; Adjustable volume for both handset and speaker; Technical parameters VoIP chip: Signal processor, 50Mhz with built-in coprocessor Data storage: 2MB SDRAM; Program memory: 1MB Flash memory; Network interface: 10Base-T/100Base-T, RJ-45 port;... -
Page 7: Installation
G100 User Manual Installation 1. How to connect Handset and Phone Insert Handset cord into handset cord jack of the base. Figure 3 Handset and base of Phone connection 2. Connect Phone and Power Place the phone nearby of Power socket. Plug the power cord adapter into the Power Jack. - Page 8 G100 User Manual Figure 4 Connect Power 3. Connect the phone to the net LAN users: Plug one end of the direct-connecting cable into RJ-45 jack which is located on the back of phone, then connect the other end of cable to a network hub or a network switch .
-
Page 9: Configuration
G100 User Manual Configuration There are three different ways to configure the G100 IP Phone: By using the phone keypad, a standard web browser or through Telnet. 1. Setup through phone keypad Note: Default password for G100 phones is 1234. - Page 10 G100 User Manual (3) Menu Structure G100 User Manual Page 9 of 31...
- Page 11 G100 User Manual G100 User Manual Page 10 of 31...
- Page 12 G100 User Manual G100 User Manual Page 11 of 31...
- Page 13 (4) Setting example We take enabling eTalk prepaid card and setting the ID and pin as an example for how to set up the G100: Enter setting mode Use the keypad to input the password of the phone (when debug is not set as 0[disable], default password is 1234;...
- Page 14 G100 User Manual screen, please press “ to enter change mode, then you will see a cursor Local IP” blinking at the start of the second line. It indicates that you can change the value. Then press 0117 keys once, then for the alphanumeric characters the “3” key thrice, “8”...
- Page 15 2. Configuration using a web browser In order to use this functionality, a computer must be connected to the same network which the G100 IP phone is connected to. Open a web browser (e.g. Microsoft Internet Explorer). Input the IP address of the phone into address line ( ) –...
- Page 16 The G100 IP phone is shipped with DHCP as factory default pppoe: ADSL and Cable Modem users can select this in order to let the IP...
- Page 17 ● MAC address of this telephone: MAC address is the physical address supplied by the Ethernet NIC that is built into the G100 IP phone. Each G100 phone is shipped with a unique MAC address that is also printed on the back of the base.
- Page 18 G100 User Manual 6801; fill account and password of Net2phone card into User name / account and Password /pin fields. Designated Net2phone server IP address are: 216.53.3.52; 4.43.114.39; 4.43.114.38 or 205.228.245.8. Domain names are: call1.net2phone.com; call2.net2phone.com; skip1.net2phone.com; skip2.net2phone.com; skip1.f8g9h0.net or skip2.f8g9h0.net.
-
Page 19: Protocol Settings
G100 User Manual Lucent: Use Lucent’s H.323 system Harbor: Use Harbor’s MGCP system IPN: Use IPN’s H.323 system Yiyang: Use Yiyang’s H.323 system Thinker: Use Thinker’s H.323 system Suntek: Use Suntek’s H.323 system Sipphone: Free SIP service on internet, please visit www.sipphone.com... - Page 20 G100 User Manual ● User name/ account: If the H.323 protocol used with a calling card, please enter the account information on the calling card into this field.. If “Type of account” is set to “md5 account”, enter the ID in “User name/ account”.
- Page 21 65535. It cannot be the same port as the Register port. ● Type of account: If the H.323 protocol is used, this parameter determines how the G100 IP Phone authenticates itself at the gatekeeper. SIP settings are also affected. For SIP, the “automatic” setting should be chosen: Phone number: Use phone number as E.164 and H323 ID to login the GK.
- Page 22 G100 User Manual (3) NAT settings ● NAT: If the G100 IP Phone is part of a network that uses address translation (this is the case for every modern router) and if it needs to communicate with another IP phone which is part of a different LAN (e.g. another IP phone that is connected to the internet, please select an item from dropdown list to set the proxy used by the phone.
- Page 23 G100 User Manual “NAT ttl” is an integer between 10 and 60, default value is 20. (4) Telephone settings ● Use dialplan: Set whether a dial plan is used or if the phone performs standard number dialling. The following options are available: disable: Do not use the dial plan feature by selecting this option.
- Page 24 IP telephone! Enable/disable multi-settings by selecting corresponding option from dropdown list. The G100 IP phone allows to save up to 5 settings in total. disable: Disable multi-settings by selecting this option: The G100 IP phone will operate using the current setting.
- Page 25 ● Forward to telephone number: Enter the IP phone number to which incoming calls are to be forwarded. ● If powered off: Forward calls if the G100 IP phone is powered off by checking this box. Please enter the IP phone number to which incoming calls are to be forwarded in the field “Forward to telephone number”.
-
Page 26: Audio Settings
G100 User Manual (5) Audio settings ● Type of codec: Set coder/decoder (codec) type of the phone by selecting an option from the drop down list. The options are g.729, g.723.1, g.711u, g.711a and auto. “auto” is suggested ! If “auto” is selected, the IP phone will negotiate with the logon server which algorithm is best for incoming and outgoing calls. - Page 27 G100 User Manual minimum, … 15: maximum) ● Handset out: The value entered here represents the output volume of the handset (0: minimum, … 31: maximum) ● Speaker out: The value entered here represents the speaker volume (0: minimum, … 31: maximum) (6) Time settings ●...
- Page 28 ● DEBUG Mode: Sets the debug level of the phone. This parameter is used for finding errors in the firmware of the G100 IP phone or for checking compatibility issues for service providers.
- Page 29 Note Please do not stop a firmware upgrade once it is in progress. The G100 IP phone could e.g. be damaged by power cuts.
-
Page 30: Usage Of The Phone
When the call is over, put the handset back on the hook. Note When you communicate with the other party without lifting the handset, please do not exceed a distance of about 1 to 2 feet from the G100 IP phone. 2. Place a call... - Page 31 (2) Place a call without logging on protocol server If the G100 IP phone does not log on a protocol server , you can place a call by lifting the handset or pressing “Hand free” and then inputting the IP address of the other party, and then pressing “#”...
-
Page 32: View Records
When you read the number you want to dial, please press “#” or “call” key to place a call directly. Note The G100 IP phone supports saving over 100 entries of unanswered call, dialed calls and received calls. When the entries exceed 127, the latest record will overwrite the oldest entry.
