Owner's Manual
MWPG
Instructions for Assembly, Testing, Operation, Servicing, and Storage

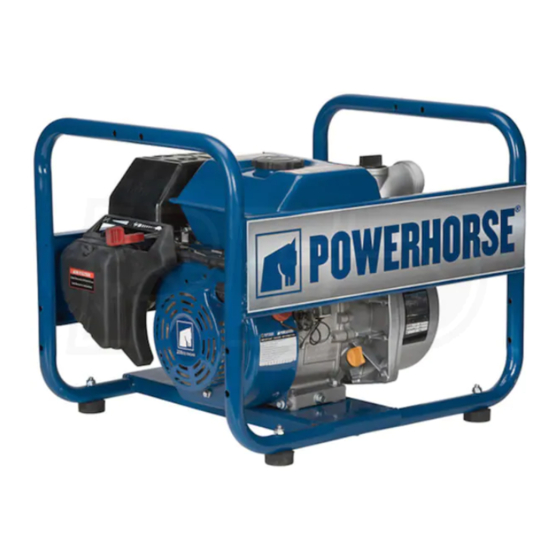

Water Pump: Outdoor agricultural product used for general
READ and UNDERSTAND the Owner's Manual completely before using this water pump. Assemble,
test, and use only in accordance with the Owner's Manual instructions.
WEAR personal protective gear when filling, using, cleaning, and servicing the water pump.
DO NOT START water pump until ready to spray in order to avoid unintentional spray release.
Improper use of the water pump could result in serious injury or illness to the operator or nearby
persons/animals, or could cause damage to the environment.
** This water pump is recommended for use in spraying non-flammable liquids such as water.
Solids capacity will depend on model.
Any Questions, Comments, Problems, or Parts Orders
Call Powerhorse Product Support 1-866-443-2576
purpose water pumping, field irrigation and trash
applications.**
WARNING
109270, 109280, 109290
ITEM NUMBER:
SERIAL NUMBER: _______________
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Powerhorse 109270
Summary of Contents for Powerhorse 109270
- Page 1 ** This water pump is recommended for use in spraying non-flammable liquids such as water. Solids capacity will depend on model. Any Questions, Comments, Problems, or Parts Orders Call Powerhorse Product Support 1-866-443-2576...
- Page 2 Hazard Signal Word Definitions...
-
Page 3: Table Of Contents
Operation - Using the Water Pump ....................13 Storage ............................14 Troubleshooting ...........................15 Specifications ..........................16 Water Pump Exploded View.......................19 109270 Pump Exploded View .....................20 109280 Pump Exploded View .....................21 109290 Pump Exploded View .....................22 Engine Exploded View .........................23 Engine Operation .........................26 Engine Maintenance ........................35... -
Page 4: About Your Water Pump
Follow all safety precautions presented throughout this manual. A summary of important safety information can be found at the end of the manual Contact Powerhorse Product Support at 1-866-443-2576 for any questions about the appropriate use of this water pump and/or optional accessories. -
Page 5: Summary Of Important Safety Information
Summary of Important Safety Information WARNING Read and understand this owner’s manual completely before using the water pump. Improper use of the water pump could result in serious injury or illness for the operator or nearby persons/animals, or cause damage to the environment. LISTED BELOW is a summary of safety information of particular importance. -
Page 6: Warning Label Locations
Warning Label Location Call PowerHorse Product Support at 1-866-443-2576 to order new labels. Item # 109270 Order Part No. 780949 warning decal Item # 109280 Order Part No. 780950 warning decal Item # 109290 Order Part No. 786728 warning decal... -
Page 7: Unpacking
If you have damaged components: Contact the freight company that delivered the unit and file a claim. If you have missing components: Contact Powerhorse Product Support at 1-866-443-2576. The following items are found in the manual bag. Bolts (4) -
Page 8: Assembly
Assembly Attach rubber feet to the base. Using a 3/8” socket, attach the rubber feet to the base with the bolts and nuts. Base Rubber Foot Screw... -
Page 9: Machine Components
Machine Components Engine: The air-cooled engine powers the pump. Prime Port: Fill the priming port to prime the pump. Discharge Fitting: Connect the discharge hose to the discharge fitting. Pump: The pump moves the liquid. Suction Fitting: Connect the suction hose to the suction fitting. Drain Port: Drain the liquid in the pump through the drain port. -
Page 10: Operation - Preparing The Water Pump For Each Use
Inspect and test the water pump thoroughly a. Inspect fittings for cracks and leaks. Replace all damaged fittings with original Powerhorse parts. b. Check to be sure all nuts, bolts, and screws are tight. c. Check oil level in engine. See engine owner’s manual. -
Page 11: Step Two: Fueling
Operation – Preparing the Water Pump for Each Use Step Two: Fueling WARNING Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline. 1. Engine off / cool The engine must be off and allowed to cool at least two minutes before adding fuel. -
Page 12: Step Three: Attach A Suction Strainer
Operation – Preparing the Water Pump for Each Use Step Three: Attach a suction strainer WARNING This pump is design to pump water only. Never use the water pump to pump flammable liquids. 1. Attach suction A suction strainer should be attached to the suction hose. A suction strainer has holes or slots small enough to prevent large debris from working through and strainer damaging the pump. -
Page 13: Operation - Using The Water Pump
Operation – Using the Water Pump Operate the water pump Review the “Operation – Important Safety Information” provided in this manual. 1. Review safety information Using the priming port on the top of the pump, completely fill the pump chamber 2. -
Page 14: Storage
Storage Prepare the water pump for end-of-season storage by running pure water through the system. This will flush out any contaminants and clean the water pump internals. After the water pump has been flushed with pure water, completely drain the water pump of all water to protect from freezing. WARNING Gasoline vapors can ignite and cause a fire. -
Page 15: Troubleshooting
Troubleshooting WARNING Before troubleshooting or attempting to service, read the following safety rules. Before attempting to service the water pump: 1. Review Review the Troubleshooting Table below for the type of problem you are troubleshooting experiencing. However, DO NOT attempt to repair until the steps listed below are followed. -
Page 16: Specifications
Specifications 109270 – 2” Semi-Trash Engine Powerhorse 208cc 2” NPT Suction & Discharge Size Maximum Flow 7860 GPH Maximum Suction Head 23 FT Maximum Total Head 98 FT Maximum Pressure 43.5 PSI 5/8” Passable Solid Size Mechanical Seal Silicon Carbide Overall Dimensions (L x W x H) 21.5"... - Page 17 Specifications 109280 – 3” Semi-Trash Engine Powerhorse 208cc 3” NPT Suction & Discharge Size Maximum Flow 14,160 GPH Maximum Suction Head 23 FT Maximum Total Head 98 FT Maximum Pressure 43.5 PSI 5/8” Passable Solid Size Mechanical Seal Silicon Carbide 23.5”...
- Page 18 The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold. Any Questions, Comments, Problems or Parts Orders Call Powerhorse Product Support 1-866-443-2576...
-
Page 19: Water Pump Exploded View
Water Pump Exploded View *109290 shown Item Part Number Description Model Qty. 784991 Powerhorse 208cc Engine 786751 Water Pump 109270 Frame 109270 786754 Water Pump 109280 Frame 109280 786762 Water Pump 109290 Frame 109290 780948 Powerhorse Decal 2” Semi-Trash Pump... -
Page 20: 109270 Pump Exploded View
109271 Pump Exploded View Item Description Part # Qty. Item Description Part # Qty. Pump Cover 781234 Outlet Flange 782566 Large O-ring 781235 Inlet Flange 782565 Sealing Washer 781236 Inlet Check Valve 781250 Mount Bolt 781237 Inlet Connection Bolt 788866 Mechanical Seal 781238 Pump Body Bolt... -
Page 21: 109280 Pump Exploded View
109281 Pump Exploded View Item Description Part # Qty. Item Description Part # Qty. Pump Cover 781257 Outlet Flange 782568 Large O-ring 781258 Inlet Flange 782567 Sealing Washer 781259 Inlet Check Valve 781271 Mount Bolt 781260 Inlet Connection Bolt 788867 Mechanical Seal 781261 Pump Body Bolt... -
Page 22: 109290 Pump Exploded View
109291 Pump Exploded View Item Description Part # Qty. Pump Body 782569 Plug O-ring 781278 Drain/Prime Plug 781279 T-Handle Bolt 781280 T-Handle O-ring 781281 Inlet Check Valve 781282 Volute 781283 Impeller 781284 Springiness Column Pin 784360 Cushion 784361 Small O-ring 781286 Large O-ring 781287... -
Page 23: Engine Exploded View
Engine Exploded View... - Page 24 Engine Exploded View Item Description Part # Item Description Part # Bolt Kit # 5/# 8 Insulator, carburetor Kit # 2 Recoil Starter Assembly Kit # 8 Packing, intake Kit # 2 Switch Assembly Kit # 8 Cylinder head Kit # 8 Gasket, cylinder head Pulley, Starter Kit # 8...
- Page 25 Engine Exploded View Kit # Description Part # Qty. Air Cleaner Kit 786729 Carburetor Kit 786730 Drain Bolt Kit 783126 Muffler Kit 786732 Valve Cover Kit 786731 Ignition Coil Kit 786735 Tank Kit 786733 Recoil Assembly Kit 786734...
-
Page 26: Engine Operation
Engine Operation CAUTION This engine is shipped without oil. If you start the engine without oil, the engine will be damaged beyond repair and will not be covered under warranty. - Page 27 Engine Operation...
- Page 28 Engine Operation (Electric start models) (Electric start models)
- Page 29 Engine Operation...
- Page 30 Engine Operation...
- Page 31 Engine Operation...
- Page 32 Engine Operation...
- Page 33 Engine Operation...
- Page 34 Engine Operation...
-
Page 35: Engine Maintenance
Engine Operation... - Page 36 Engine Operation...
- Page 37 Engine Operation...
- Page 38 Engine Operation...
- Page 39 Engine Operation...
- Page 40 Engine Operation...
-
Page 41: Engine Specs
Engine Operation... - Page 42 Engine Operation...
- Page 43 Engine Operation...
- Page 44 Engine Operation...
- Page 45 Engine Operation...
-
Page 46: Limited Warranty
Components not manufactured by Powerhorse are guaranteed by their manufacturer and can be serviced at factory- authorized locations near you. Any costs incurred due to replacement or repair of items outside of a Powerhorse approved facility is the responsibility of the buyer and not covered under warranty. Powerhorse can supply you with the service center location in your area. - Page 47 This page left intentionally blank...
- Page 48 Distributed by Northern Tool + Equipment Co., 2800 SouthCross Drive West P.O. Box 1499 Burnsville, MN 55337-0499 Made in China...
