Casablanca KG1K Instructions

READ AND SAVE THESE INSTRUCTIONS
INSTRUCTIONS FOR MOUNTING LIGHT FIXTURES
WARNING: To reduce the possibility of electrical shock, be sure that the power is turned
off at its source (fuse or circuit breaker). All electrical components must be installed in
accordance with national and local electrical codes. To reduce the risk of fire and electrical
shock, this light fixture should be used only with UL, ETL & CUL Certified Casablanca
ceiling fans that are compatible. See your dealer for a compatiblilty chart.
Step 1.
a) Remove switch housing cup from carton
b) Remove plug from bottom of switch housing
cup.
c) Pass the wires from the light fixture through
the outer hole of the switch housing cup, thread
cup onto light fixture threads until tight.
d) Locate the locknut. Pass wires from light fix-
ture through the lock nut and thread on light
fixture until tight.
FAN PULL CHAIN
e) Locate the 2 wires from the switch housing
cup labeled "lights". Remove plastic wire nuts
from switch housing cup wires and strip 1/2"
insulation from both wires (blue & white). Con-
nect the wires from the switch housing cup to
the wires from the light fixture: Blue to Black
and White to White by placing the bare ends of
the wires together and then secure with the
wirenuts. CAUTION: Make sure no bare wires
are exposed. Test the secureness of each splice
by pulling on the wire nut.
f) Reconnect the 9 pin connector from the fan
to the switch housing cover.
g) Remove the 3 screws from the switch hous-
ing mounting bracket.
h) Align switch housing cover with the bracket
holes on the fan, making sure no wires are
pinched in the process.
i) Install the 3 screws removed in step "g". Again
make sure that no wires are pinched in the pro-
cess.
KG1K

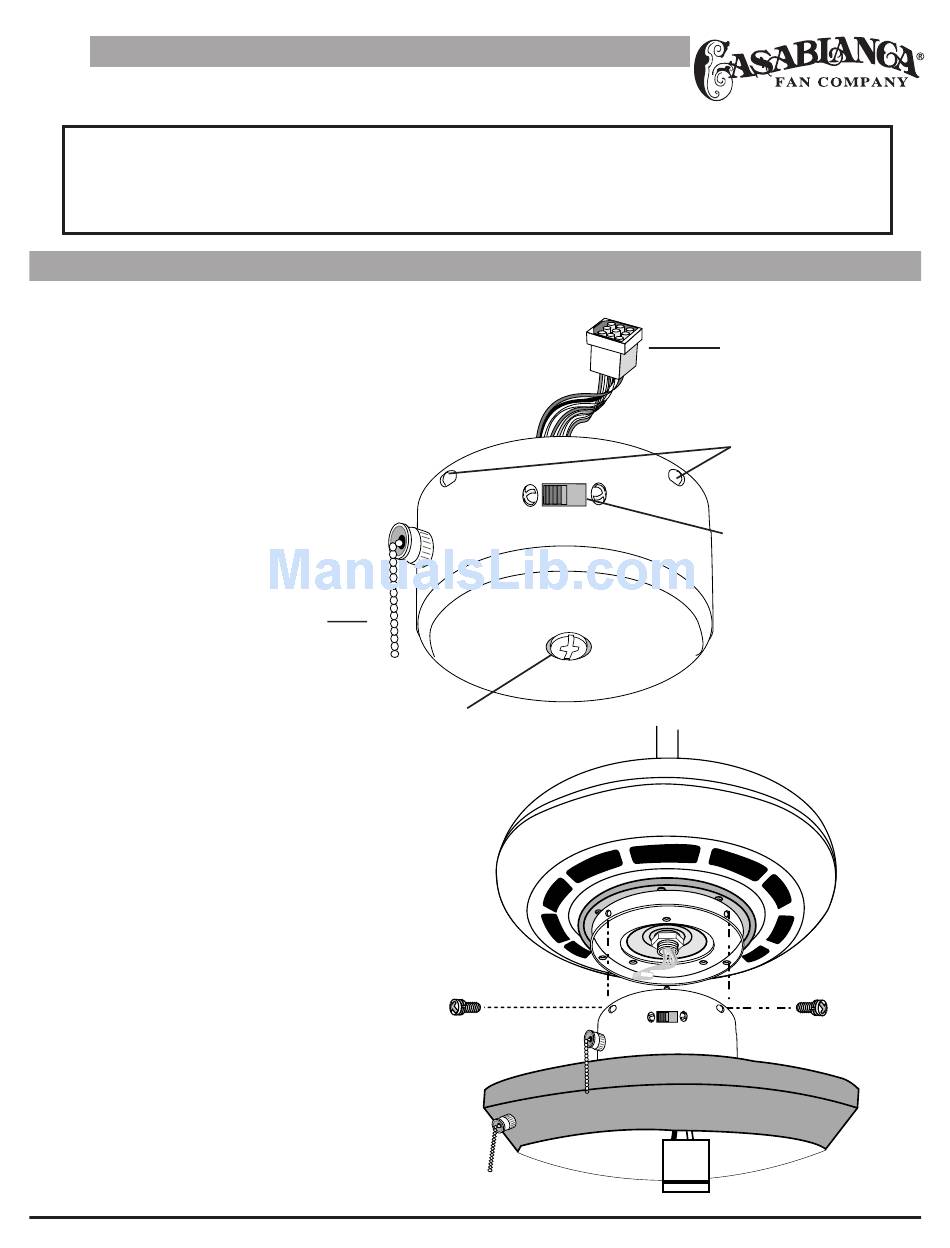

INSTALLING THE LIGHT FIXTURE

PLUG
1
9 PIN CONNECTOR
SCREWS 3 PLACES
REVERSE SWITCH
SWITCH HOUSING CUP
BM1104
