VuPoint SM-FL10-VP User Manual

All-in-one scanner mouse
Hide thumbs
Table of Contents

Advertisement

Quick Links

Scanner Mouse
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-FL10-VP and is the answer not in the manual?

Questions and answers

Summary of Contents for VuPoint SM-FL10-VP

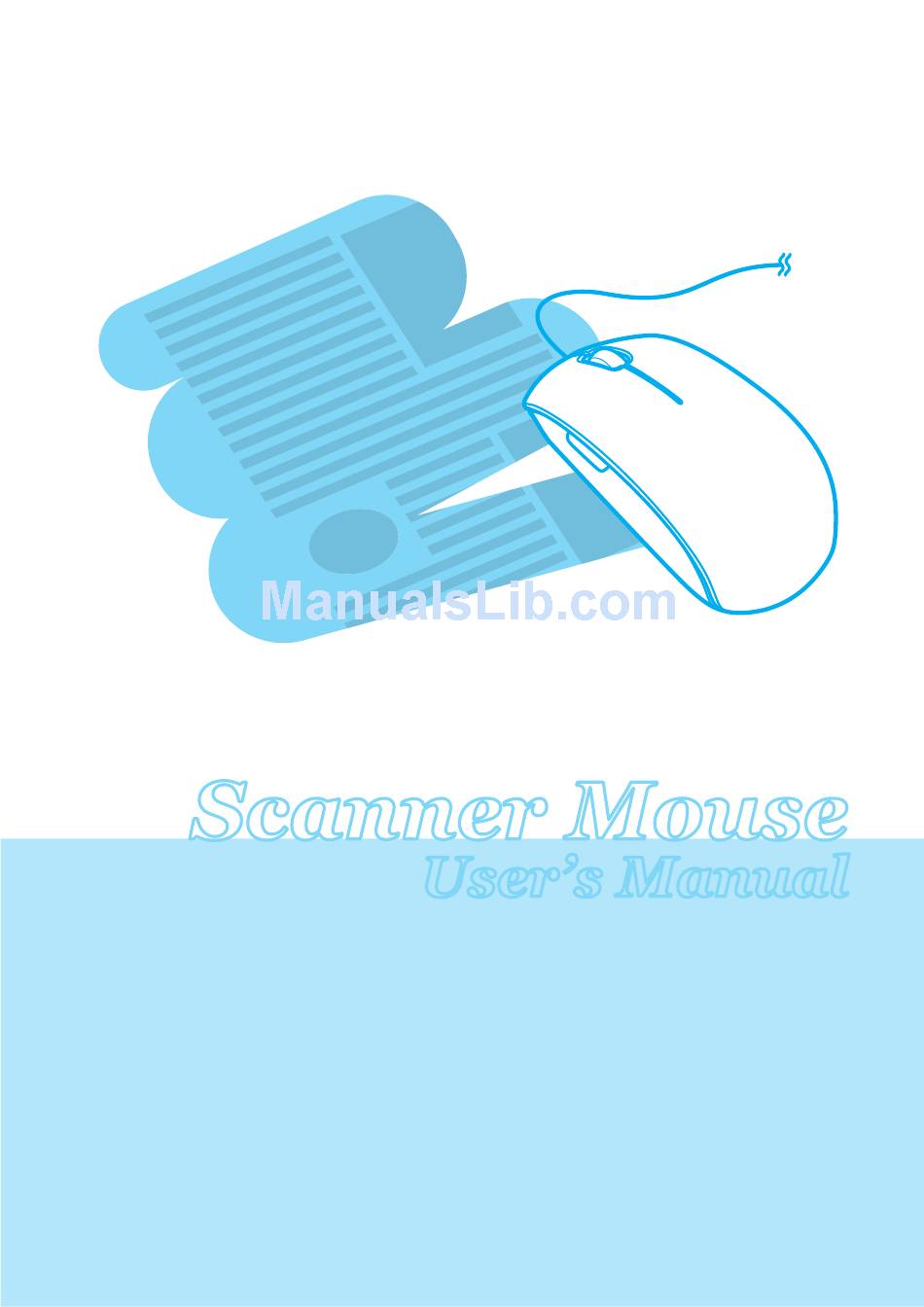

  • Page 1 Scanner Mouse User’s Manual...

  • Page 2: Safety Precautions

    Safety Precautions Before using this device, please read through and follow the Safety Precautions as listed below. y Keep this User’s Manual for future reference. y This device is NOT waterproof. Avoid all contact with water. Avoid placing a container filled with water (or any type of liquids) near the device.

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION .................4 Features ..........................4 Package Contents ....................... 4 Product Overview ....................... 5 SOFTWARE INSTALLATION ..............6 System Requirements ......................6 Installing the Software ...................... 7 USING THE SOFTWARE ..............11 Scanning the Document....................11 Editing Scanned Image ....................13 Saving Scanned Image ....................14 Sharing Files ........................16 Uploading Files to Dropbox/Evernote ...............17 Searching Image via Google Search ................17...

  • Page 4: Introduction

    INTRODUCTION Congratulations on purchasing this All-in-One Scanner Mouse. This device with it’s easy-to-use software lets you scan any type of document or pictures with one click! Once the scanning process is complete, the scanned image is then ready for editing, saving, or sharing with your family or friends. Features y Scan variety types of printed document including text, images, tables, and QR code.

  • Page 5: Product Overview

    INTRODUCTION Product Overview Scroll wheel Right button Left button Scan button Scan window Laser sensor Note: y Be sure to remove the protective film attached on the scan window before using the mouse.

  • Page 6: Software Installation

    SOFTWARE INSTALLATION When using the scanner mouse for the first time, you need to install the software on your computer. System Requirements Before installing the software, be sure that your computer meets the following specifications: Minimum System Requirements Windows  Intel® Core™ Duo 1.2 GHz or AMD Athlon™ 64 X2, 1.7 GHz or better  2 GB of RAM of which at least 512 MB are free  128 MB NVIDIA®...

  • Page 7: Installing The Software

    SOFTWARE INSTALLATION Installing the Software Windows OS Insert the supplied software CD into your CD-ROM drive. The setup wizard appears. Specify the language and click Install. The installation process begins. Read the License Agreement and check the Agreement check box as shown below.
  • Page 8 SOFTWARE INSTALLATION instructions to complete the package installation process. You may then restart the scanner mouse installation process again. The software installation may take a while to complete. Click Finish to complete the installation.
  • Page 9 SOFTWARE INSTALLATION Macintosh OS Insert the supplied software CD into your CD-ROM drive. The setup wizard appears. Click Continue. The installation process begins. Specify the language and click Continue to continue.
  • Page 10 SOFTWARE INSTALLATION Read the License Agreement and click Agree to continue. Follow the instructions to complete the installation process. Note: y On Macintosh OS, refer to the software Help for information about the operating instructions.

  • Page 11: Using The Software

    USING THE SOFTWARE After the software installation is complete, now you are ready to use the scanner mouse. Connect the scanner mouse to the USB port of your computer. Scanning the Document To scan a document, perform the following: Place the mouse on the document that you want to scan.
  • Page 12 USING THE SOFTWARE Scan Screen Scan memory Button guide status Scan frame Scanned image Note: y During scanning, use the scroll wheel to zoom in/out on the scanned image. y When the scan frame turns yellow or red, this indicates the mouse is moving too fast.

  • Page 13: Editing Scanned Image

    USING THE SOFTWARE Editing Scanned Image The editing screen automatically appears after the scanning stops. The system automatically rotates the image and displays it in full screen. Refer to the guidelines below to edit the scanned image. Select to change the Button guide background color.

  • Page 14: Saving Scanned Image

    USING THE SOFTWARE Saving Scanned Image The system can save the scanned image in the following file formats:  PNG (*.png)  Excel (*.xls)  JPEG (*.jpg)  Word (*.doc)  BMP (*.bmp)  TXT (*.txt)  PDF (*.pdf ) Menu bar Quick Menu...
  • Page 15 USING THE SOFTWARE You can also save the image to the desired file type using other methods: a. Click Save tab. Then browse to select the file path/location and specify the desired file type. Click Save to save the file. b.

  • Page 16: Sharing Files

    USING THE SOFTWARE Sharing Files Prior sharing file via popular social networking site, you need to have a Facebook, Flickr, or Twitter account. For sharing file via email, you have to configure the e-mail settings first on your computer. Note: y If you do not have any social network site account, go to the desired social networking page and follow the on-screen instructions to create an account.

  • Page 17: Uploading Files To Dropbox/Evernote

    USING THE SOFTWARE Uploading Files to Dropbox/Evernote Prior uploading file to Dropbox/Evernote, you need to install the related application and register an account first on your computer. Note: y You can also configure the application settings by clicking Options > Manage Apps.

  • Page 18: Configuring Software Settings

    CONFIGURING SOFTWARE SETTINGS To customize the Scan software settings, click Options on the menu bar and select Settings. Display Language and Scan Resolution On Settings screen, click General on the left panel menu. Configure the following settings: y User interface language: Change the display language. y Scan resolution: Select the image resolution.

  • Page 19: Software Window Positions

    CONFIGURING SOFTWARE SETTINGS Software Window Positions On Settings screen, click General on the left panel menu. Configure the following settings: y Always on top: Select Yes to let the software window always stays on top of all other windows. y Window position: Specify the window position. Available options: Right/Left/ Remember last position.

  • Page 20: Software Updates

    CONFIGURING SOFTWARE SETTINGS Configure the following settings: y Filter: Filter the language selection. Available options: Show available languages/Show enabled languages. y Search: Enter several letters in your search text box to narrow down the options. Click the check box to select the desired language(s). Software Updates On Settings screen, click Updates on the left panel menu.

  • Page 21: Appendix

    APPENDIX Specifications Category Specifications MOUSE Sensor Laser Sensor Resolution 800 CPI Button 3 Buttons, 1 Wheel, and 1 Scan Button SCANNER Image Sensor 640 × 480 (VGA) Navigation Sensor 1 Laser Sensor and 1 Gyroscope Sensor Light Source 2 LED Scan Resolution Max.

  • Page 22: Changing The Mouse Cover

    APPENDIX Changing the Mouse Cover Before replacing the mouse cover, unplug the USB cable from the computer. Then perform the following steps to replace the mouse cover. Place your hand on the top of the mouse cover. Using your fingertips, pry the mouse cover to disengage it from the rear side of its main unit.

  • Page 23: Frequently Asked Questions (Faq)

    APPENDIX Frequently Asked Questions (FAQ) If you encounter any problem when using this scanner mouse, try the following solutions before contacting our customer service. Problem Cause Possible Solution(s) Your computer OS Check the list of System does not meet the Requirements on page 6.
  • Page 24 APPENDIX Problem Cause Possible Solution(s) Incorrect user name or Make sure you have entered password. the correct user name and Cannot upload file password. to social networking site. Network is unstable or Check the network connection disconnected. status. The scan window is Wipe it with a dry clean cloth.

  • Page 25: Safety Regulations

    APPENDIX Safety Regulations FCC (Federal Communications Commission) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
