A-Line Acoustics EMMA2K-B Owner's Manual

Small format line array system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
EMMA2K-B Line Array System
EMMA2K-B
Small Format Line Array System
Detailed Product Information
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMMA2K-B and is the answer not in the manual?

Questions and answers

Related Manuals for A-Line Acoustics EMMA2K-B

Summary of Contents for A-Line Acoustics EMMA2K-B

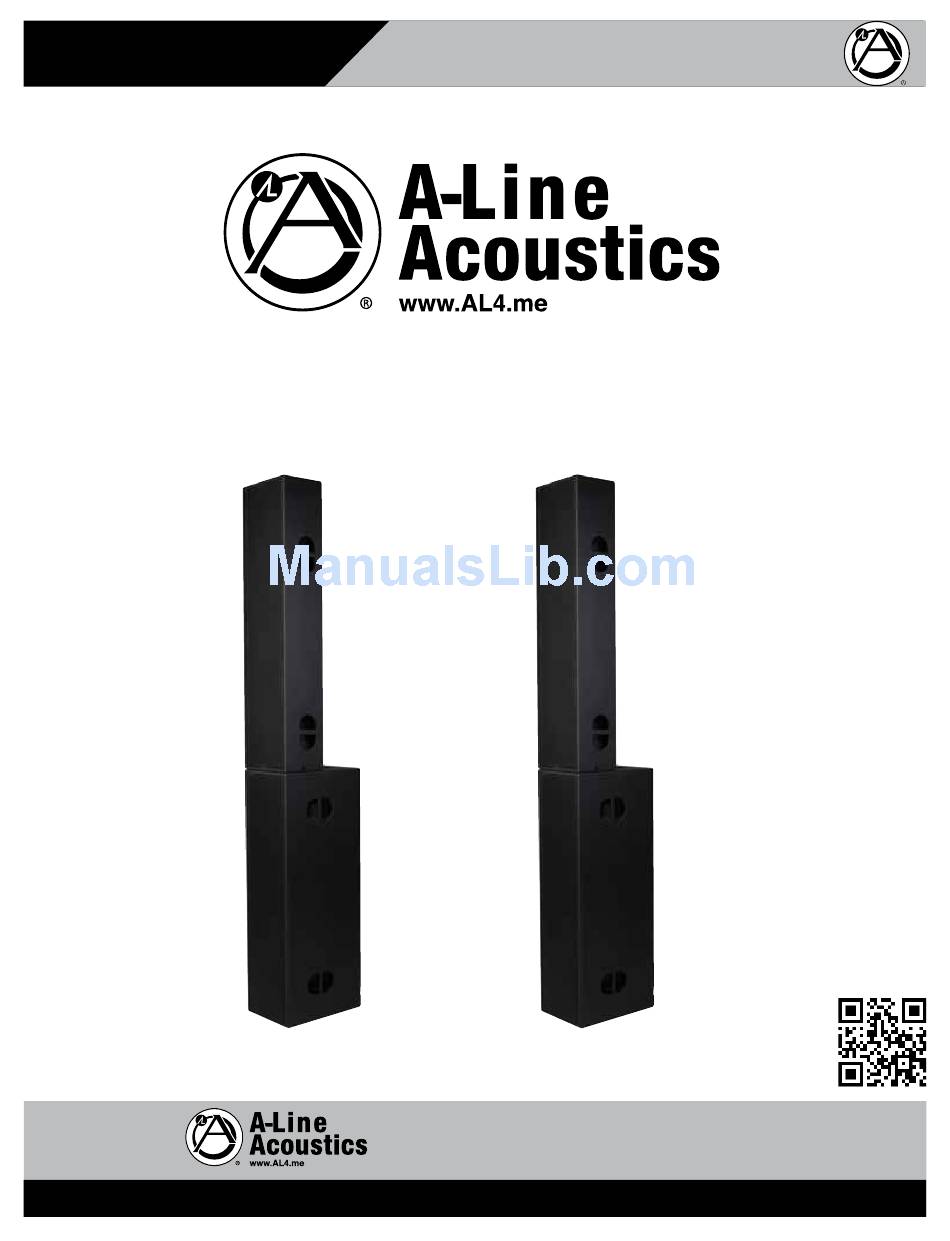

  • Page 1 Owner’s Manual EMMA2K-B Line Array System EMMA2K-B Small Format Line Array System Detailed Product Information 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    Owner’s Manual EMMA2K-B Line Array System Table of Contents Important Safety Instructions ......................... 3 Applications ............................5 Key Features ............................5 EM806A-B Rear Panel ..........................6 EMW410A-B Rear Panel ......................... 7 Installation ............................... 8 Troubleshooting ............................9 Specifications ............................10 Warranty ..............................

  • Page 3: Important Safety Instructions

    Owner’s Manual EMMA2K-B Line Array System Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 Owner’s Manual EMMA2K-B Line Array System WARNING When The Device Is In Use • To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to Atlas Sound. • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound.

  • Page 5: Applications

    Qty 1 EMMA Wrench Each Atlas A-Line Acoustics speaker system has been built to the highest standard and thoroughly inspected before leaving our factories. Carefully inspect the shipping carton, then examine and test your new speaker system. If you find any damage, immediately notify the shipping company.

  • Page 6: Em806A-B Rear Panel

    Owner’s Manual EMMA2K-B Line Array System EM806A-B Rear Panel POWER POWERCON NEUTRIK NAC3FCA MUTE PGM SEL CH 1 CH 2 CLIP MUTE PROT SIGNAL POWER OUTLET LOOPING INPUT VOLUME 12A MAXIMUM OUTPUT 1. Power Switch – Turns unit power ON or OFF.

  • Page 7: Emw410A-B Rear Panel

    Owner’s Manual EMMA2K-B Line Array System EMW410A-B Rear Panel POWER POWERCON NEUTRIK NAC3FCA MUTE PGM SEL CH 1 CLIP MUTE PROT SIGNAL POWER OUTLET LOOPING INPUT VOLUME 12A MAXIMUM OUTPUT 1. Power Switch – Turns unit power ON or OFF.

  • Page 8: Installation

    Owner’s Manual EMMA2K-B Line Array System Installation Instructions - Two People Recommended Stand the EMW410A upright and locate it’s position in the venue. Install the stabilizer bar in the bottom rear of the cabinet. Attach the bar with the thumbscrews and stabilize the cabinet with the outriggers.

  • Page 9: Troubleshooting

    Owner’s Manual EMMA2K-B Line Array System Troubleshooting Issue 1 - Green Signal light on but there is no sound Possible Cause - Mute switch is engaged Action Needed - Disengage the Mute switch. Issue 2 - Low sound or audio output.

  • Page 10: Specifications

    Owner’s Manual EMMA2K-B Line Array System Specifications EM806A-B Line Array RMS Power (Watts) 1000 Low/Midrange / 500 High Frequency MAX SPL 130dB Drivers Eight (8) 6.5" Low/Midrange Eight (8) 6.5" Ribbon High Frequency Frequency Response 90Hz - 19kHz Crossover Frequency...
  • Page 11 Owner’s Manual EMMA2K-B Line Array System Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – AtlasSound.com Specifications are subject to change without notice.

  • Page 12: Warranty

    Visit our website at www.al4.me to see other Atlas A-Line Acoustics products. ©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Atlas A-Line Acoustics are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ALA004558 RevA 12/12 1601 Jack McKay Blvd.
