Hardware Interfaces:

MIC
LINE IN
SPK1
SPK2
CENTER/
BASS
MIDI/Game
CD-IN
This port is for Microphone-in.
This port is for Audio Line-in.
This port is for Left and Right Front audio speakers. It can
be used for regular speakers or Headphones.
This port is for Left and Right Rear audio speakers. It can
be used with regular speakers.
This port is for Center & Subwoofer (LFE) audio speakers.
It can be used with regular speakers.
This port is for MIDI/Gamepad device.
This port is for CD-IN with L-G-G-R pin assignment.

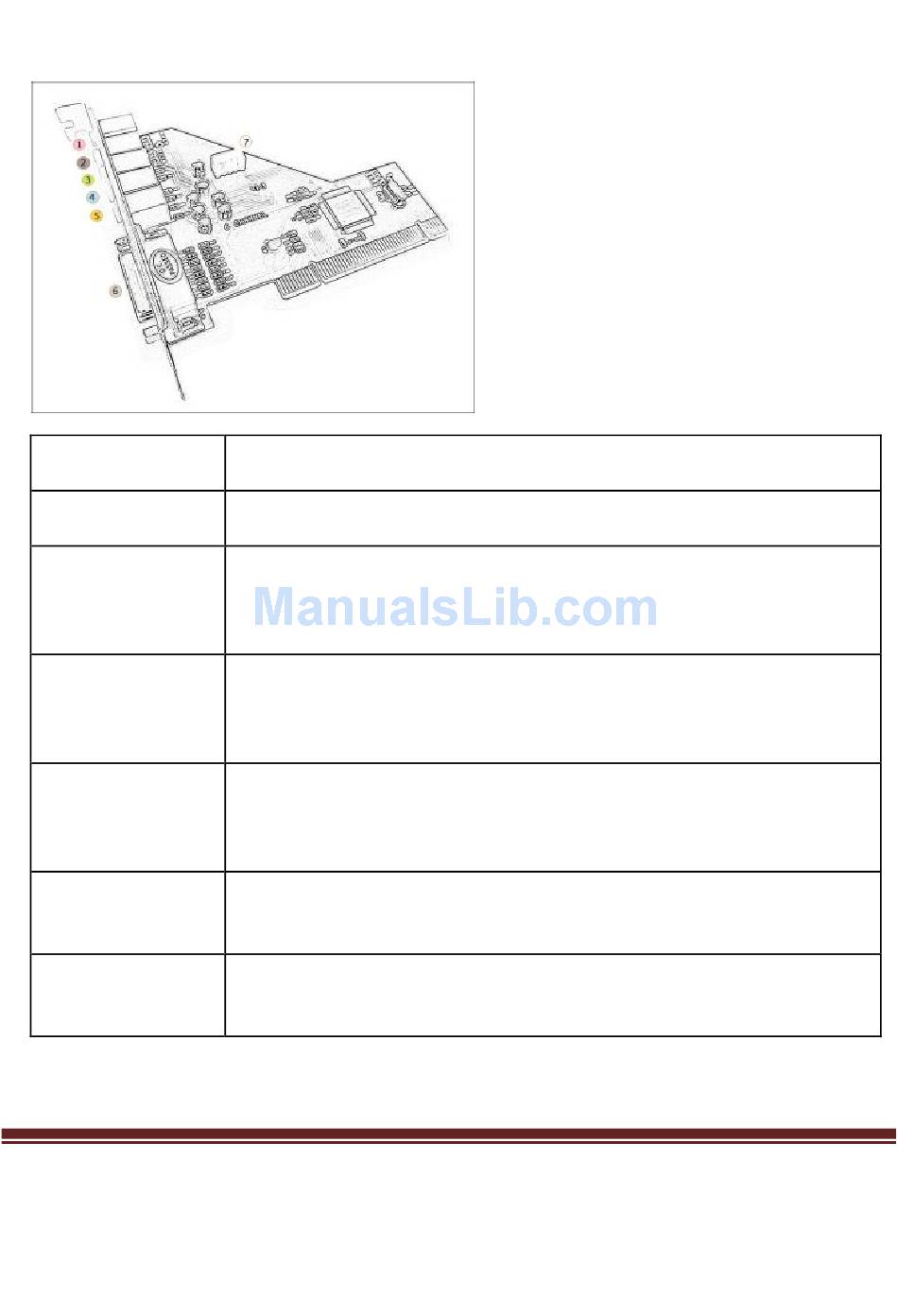

1. MIC
2. LINE IN
3. SPK1
4. SPK2
5. CENTER/BASS
6. MIDI/GAME
7. CD-IN
Page 4
