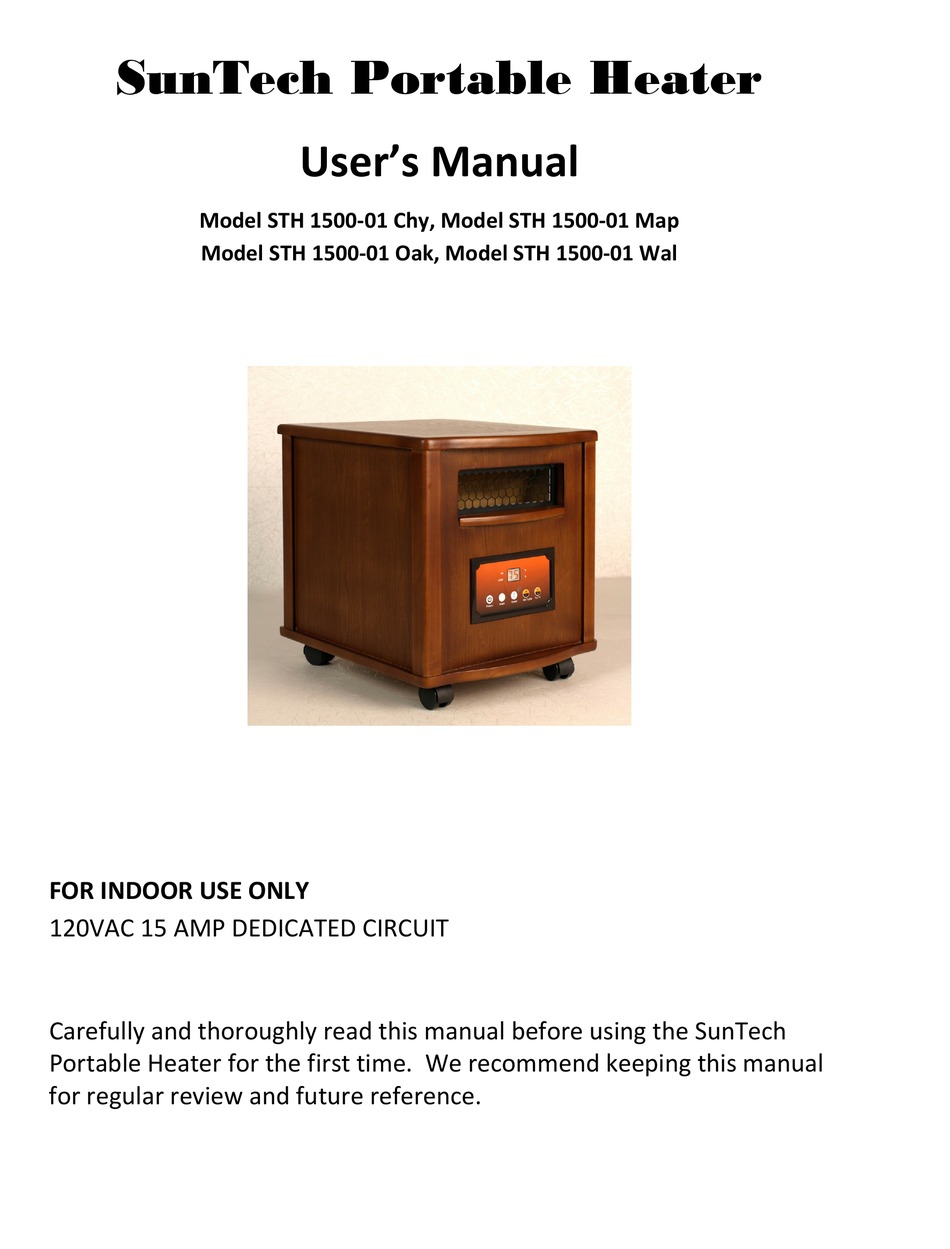

SunTech Portable Heater
Model STH 1500‐01 Chy, Model STH 1500‐01 Map
Model STH 1500‐01 Oak, Model STH 1500‐01 Wal
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Carefully and thoroughly read this manual before using the SunTech
Portable Heater for the first time. We recommend keeping this manual
for regular review and future reference.
User's Manual
Advertisement
Table of Contents
Related Manuals for SunTech STH 1500?01 Chy
Summary of Contents for SunTech STH 1500?01 Chy
- Page 1 SunTech Portable Heater User’s Manual Model STH 1500‐01 Chy, Model STH 1500‐01 Map Model STH 1500‐01 Oak, Model STH 1500‐01 Wal FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Carefully and thoroughly read this manual before using the SunTech Portable Heater for the first time. We recommend keeping this manual for regular review and future reference. ...
-
Page 2: Important Instructions
The SunTech Portable Heaters are constructed of a wood housing. They come in walnut, cherry, oak, and maple finishes. They are equipped with nylon caster wheels for easy mobility. And the highly efficient filter can be maintained and cleaned by simply rinsing with warm water. -
Page 3: Heater Specifications
Heating Elements Life Expectancy Potential: Rated 20,000 – 30,000 hrs How It Works In short, room temperature air circulates from the rear of the SunTech Portable Heater, passes through a highly efficient filter, enters a chamber that houses the Infrared Quartz Bulbs, and exits as heated air from the Diathermanous Copper Plate constructed on the front of the unit. -
Page 4: Components And Functions
SunTech Portable Heater cooling the unit down. D. The air flow exits through the front of the SunTech Portable Heater. It travels from the Diathermanous Copper Plate. The Diathermanous Copper Plate is constructed from red copper making it advantageous for efficient thermal conductivity. -
Page 5: Operating Instructions
1. First, check the carton to make sure there are no obvious damages that may have occurred during shipment. 2. Open the SunTech Portable Heater packaging and remove the heater by sliding it from the box. You may want to gently and cautiously turn the entire box upside down letting the heater slowly slide out. - Page 6 After about (5) seconds, it will switch to the current ambient temperature. (Note: If the current ambient temperature is greater than the set temperature, the HI/LOW display, fan, and Quartz Bulbs will not operate.) y y y y y y 5 seconds later the value switches to ambient temperature...
- Page 7 Press TIMER to switch to time status, then press HI/LOW/UP button once within 5 seconds to scroll up 5 seconds later the value switches to ambient temperature 4) Again, default temperature displayed on the LED display is 72 F. By pressing the TEMP button, the LED display will switch to the temperature status and flash.
- Page 8 If no actions are taken, the heater will shut off. Recommendations for Maximum Performance 1. The SunTech Portable Heater can heat a space up to 1000 square feet. Be sure not to place the heater in an area where the air flow or air movement is great.
-
Page 9: Care, Maintenance, And Storage
2. Direct the outflow towards the center of the room and not against a solid structure, like a wall for example. For larger areas, place the heater within a central location. 3. The SunTech Portable Heater is designed for maximum efficiency in the 68 F to 77 range. - Page 10 2. PROBLEM: a. The amount of heated air exiting the front of the portable heater is reduced. SOLUTION: Check the electrostatic filter to make sure it is free of dust and dirt. Also check the front grill and rear air intake to make sure it is not being blocked by any kind of debris.
-
Page 11: Limited Warranty
Disclaimers SunTech shall not be liable for loss of use of heater or other SunTech products or other incidental or consequential costs, expense or damages. Any implied warranty shall have duration equal of the applicable warranty stated above. Under no circumstances shall SunTech or any of its representatives be held liable for injury to any person or damage to any property, however arising. -
Page 12: Warranty Card
WARRANTY CARD Congratulations on your purchase of the SunTech Portable Heater. Please take the time to complete the following Warranty Card and mail it to: Blue Wave c/o SunTech Portable Heater 1745 Wallace Avenue St. Charles, IL 60174 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
