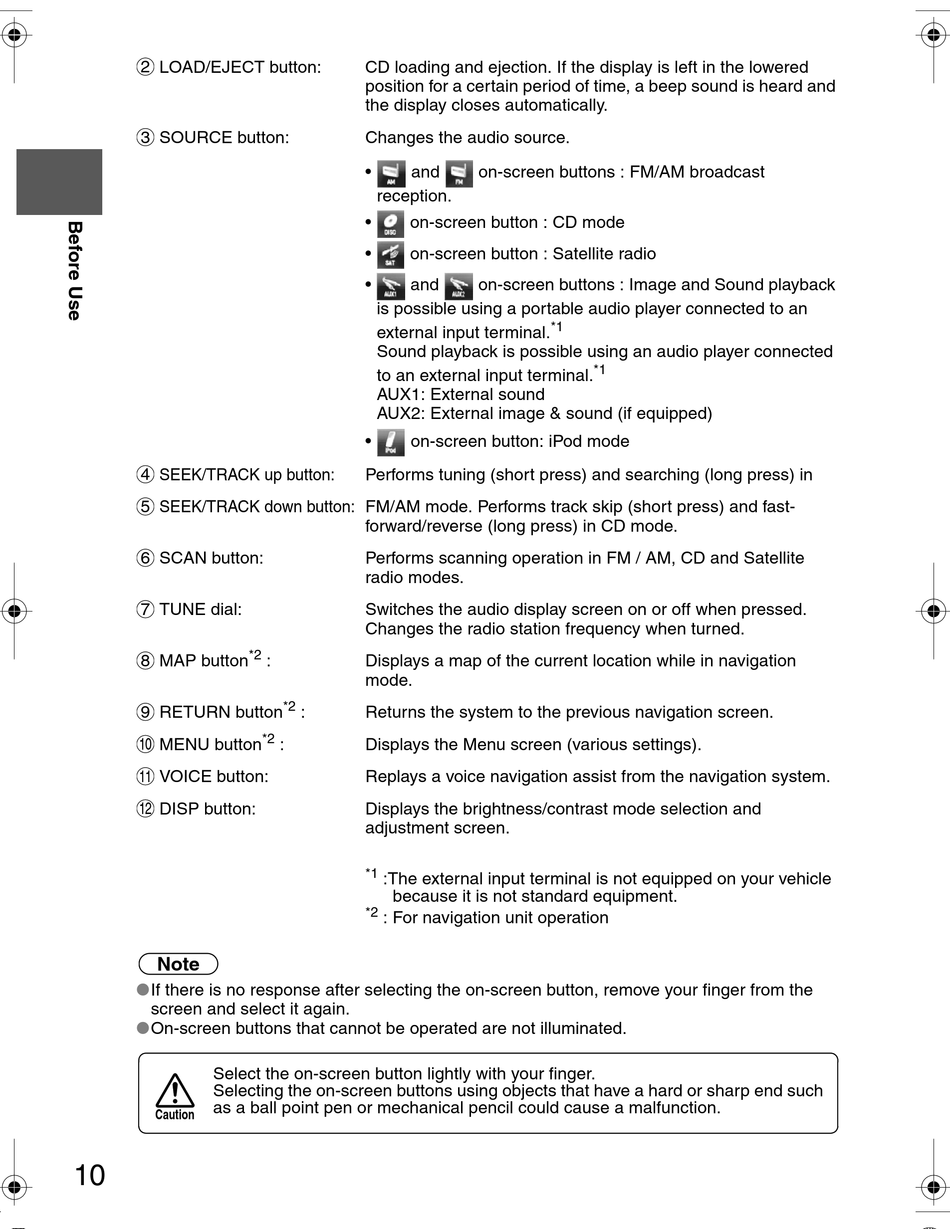

Mazda Navigation system User Manual page 10

2
LOAD/EJECT button:
3 SOURCE button:
4 SEEK/TRACK up button:
5 SEEK/TRACK down button: FM/AM mode. Performs track skip (short press) and fast-
6 SCAN button:
7 TUNE dial:
8 MAP button
9 RETURN button
10 MENU button
11 VOICE button:
12 DISP button:
Note
lIf there is no response after selecting the on-screen button, remove your finger from the
screen and select it again.
lOn-screen buttons that cannot be operated are not illuminated.
Select the on-screen button lightly with your finger.
Selecting the on-screen buttons using objects that have a hard or sharp end such
as a ball point pen or mechanical pencil could cause a malfunction.
Caution
10
CD loading and ejection. If the display is left in the lowered
position for a certain period of time, a beep sound is heard and
the display closes automatically.
Changes the audio source.
• and
reception.
• on-screen button : CD mode
• on-screen button : Satellite radio
• and
is possible using a portable audio player connected to an
external input terminal.
Sound playback is possible using an audio player connected
to an external input terminal.
AUX1: External sound
AUX2: External image & sound (if equipped)
• on-screen button: iPod mode
Performs tuning (short press) and searching (long press) in
forward/reverse (long press) in CD mode.
Performs scanning operation in FM / AM, CD and Satellite
radio modes.
Switches the audio display screen on or off when pressed.
Changes the radio station frequency when turned.
*2
: Displays a map of the current location while in navigation
mode.
*2
: Returns the system to the previous navigation screen.
*2
: Displays the Menu screen (various settings).
Replays a voice navigation assist from the navigation system.
Displays the brightness/contrast mode selection and
adjustment screen.
*1
:The external input terminal is not equipped on your vehicle
because it is not standard equipment.
*2
: For navigation unit operation
on-screen buttons : FM/AM broadcast
on-screen buttons : Image and Sound playback
*1
*1
