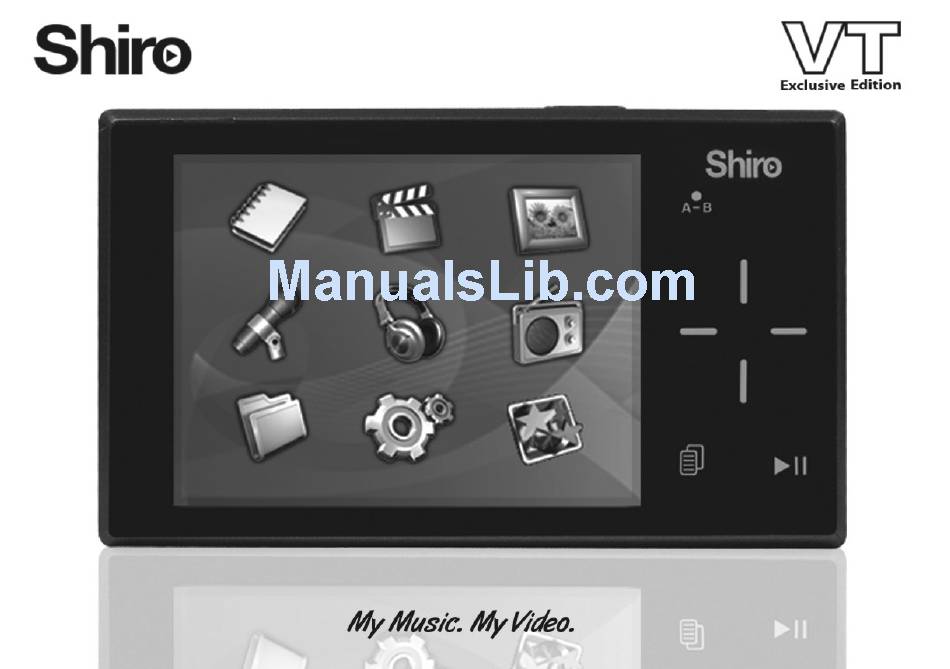

- Page 1 User Guide V1.2...
-
Page 2: Table Of Contents
Contents Notice......................2 Minimum System Requirements................2 Operation Touch-Pads ..................3 Packing includes ....................3 Connecting Player to Computer................4 Power On & Off....................4 Menu Icons ......................4 Menu Functions ....................5 Basic Operation of the Player................5 Operations of the Player ..................6 Music ......................6 Video.......................8 FM Radio......................9 Photo ...................... -
Page 3: Notice
Notice Do not disconnect the player when it is being formatted or uploading/ downloading data. This product needs to be charged for at least 3 hours before usage. Connect the player to the PC to start charging. Once player is full charged, the battery logo will display “Fully Charged”. -
Page 4: Operation Touch-Pads
Operation Touch-Pads Packing includes Earphone USB Cable MP4 Player User manual... -
Page 5: Connecting Player To Computer
Connecting Player to Computer Connect the USB port of the player to the computer using the USB cable provided Power On & Off To power on the player, slide the button to To power off the player, slide and hold Menu Icons EBook Video... -
Page 6: Menu Functions
Menu Functions Press Nine operations can be selected from the Main Menu Use the navigation touch-pad to browse the menu Press to select the desired functions Basic Operation of the Player Press will either play or pause the file Press Left/Right to choose the next or previous file Press Up/Down to adjust volume. -
Page 7: Operations Of The Player
Operations of the Player Press and hold on to for these operations to appear: Add to Playlist: Add the file to playlist Remove from Playlist: Remove the file from playlist Clear Playlist: Clear the playlist Now Playing: Play the currently selected file Shuffle: This option will shuffle the current playlist Delete: Delete the file on the player NOTE: You need to append the files before you could play it on the Player. - Page 8 PlayMode Press Left/Right to select the desired Playmode. Press to set the Playmode Normal: Play all files sequentially once Repeat One: Play current file repeatedly Repeat All: Play all files sequentially and continuously Random: Play all files randomly and continuously Music Search This option let you search for a song through various means: Artist...
-
Page 9: Video
Rate Track This option let you rate a song Setting A-B Clipping Press when you want to start the clipping Press again where you want the clipping to end Synchronous Lyrics You must ensure the Music file has additional .lrc file on the same folder. E.g. -
Page 10: Fm Radio
Video Operation To view the Video Playlist, press and hold Press to deselect the video from the playlist (The tick will disappear) Press and hold on to for the operations to appear. Refer to Operation (Page 6) FM Radio Press to navigate the preset channel. -
Page 11: Photo
Manual Search This option will search and stop when there is an available station without saving Record This option will let you record the current FM Photo Press to start playing the music in the playlist. At the Image interface, press and hold will enter the Image Operation. -
Page 12: Ebook
Slideshow Interval This option set the interval between the images Thumbnail Show all the pictures in thumbnail Manual View Mode Manually go to the next photo by pressing left/right Full Screen On/Off Select this option to fully display the photo EBook At the EBook interface, press will let you view the selected text file. -
Page 13: Browser
Record This option will start the recording Pause This option will pause the recording Record saved This option will save the recording Record Cancel This option will cancel the recording Record Settings Encoder: Selecting what type of format the player will record in Device: Select Internal or External, where the recorded file will be stored in Rate: Select from different sample rate as the desired setting Browser... - Page 14 External Media This option accesses the external storage, Micro-SD Card, of the MP3 player Music Playlist All the music that are been queued are shown here Press and hold on to for the operations to appear. Refer to Operation (Page 6) Image Playlist All the image that are been queued are shown here Press and hold on to...
-
Page 15: Settings
Settings Contrast Set the contrast level Press left/right to decrease or increase the contrast Brightness Set the brightness level Press left/right to decrease or increase the brightness Power Save Display off Press left/right to decrease or increase the display off timing Backlight Dim Press left/right to decrease or increase the dimming timing... - Page 16 Record Settings Encoder Select MS ADPCM or PCM as the desired encoding Device Select Internal or External as the desired storage device Rate Select from different sample rate as the desired setting Format Drive Format the player internal flash memory Language Selecting the desired language (Optional) English...
-
Page 17: Extras
Speaker On/Off Press to switch On/Off the speaker Extras Alarm Set the alarm Calendar This option lets you view the date and time in the player Games This option lets you play the games in the player About This option lets you view the following information. Player firmware version Internal memory storage information External memory storage information... -
Page 18: Troubleshooting Guide
Troubleshooting Guide 1. I couldn’t scan any station using FM, what should I do? Answer : Please ensure the earphone is plugged in properly and try again. 2. My player is fully charged but cannot be powered up. Answer : Please try to reset the player by pressing the Reset button. 3. -
Page 19: Technical Specifications
Technical Specifications Built-In Memory Up to 2GB External Memory MicroSD (up to 4GB) Battery Li-Ion battery LCD Resolution 2.4” TFT Color LCD, Landscape Signal Noise Ratio >90dB for MP3 playback, 60dB for FM radio Earphone output 10mW per channel (16 ohm earphone) Music Format Supported *.MP3, *.WMA (up to 320kbps), *.WAV (up to 44.1kHz) Record Format Supported... - Page 20 LIMITATION OF LIABILITY AND DAMAGES. IN NO EVENT WILL MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED...
